EVC61006

Corrugated Counter Display Tray with Hook Locks

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Manual hook-lock assembly requires no tape or glue
Roll-over front panel creates a clean, double-thick presentation edge
Open-top design requires a separate master carton for shipping

About this product

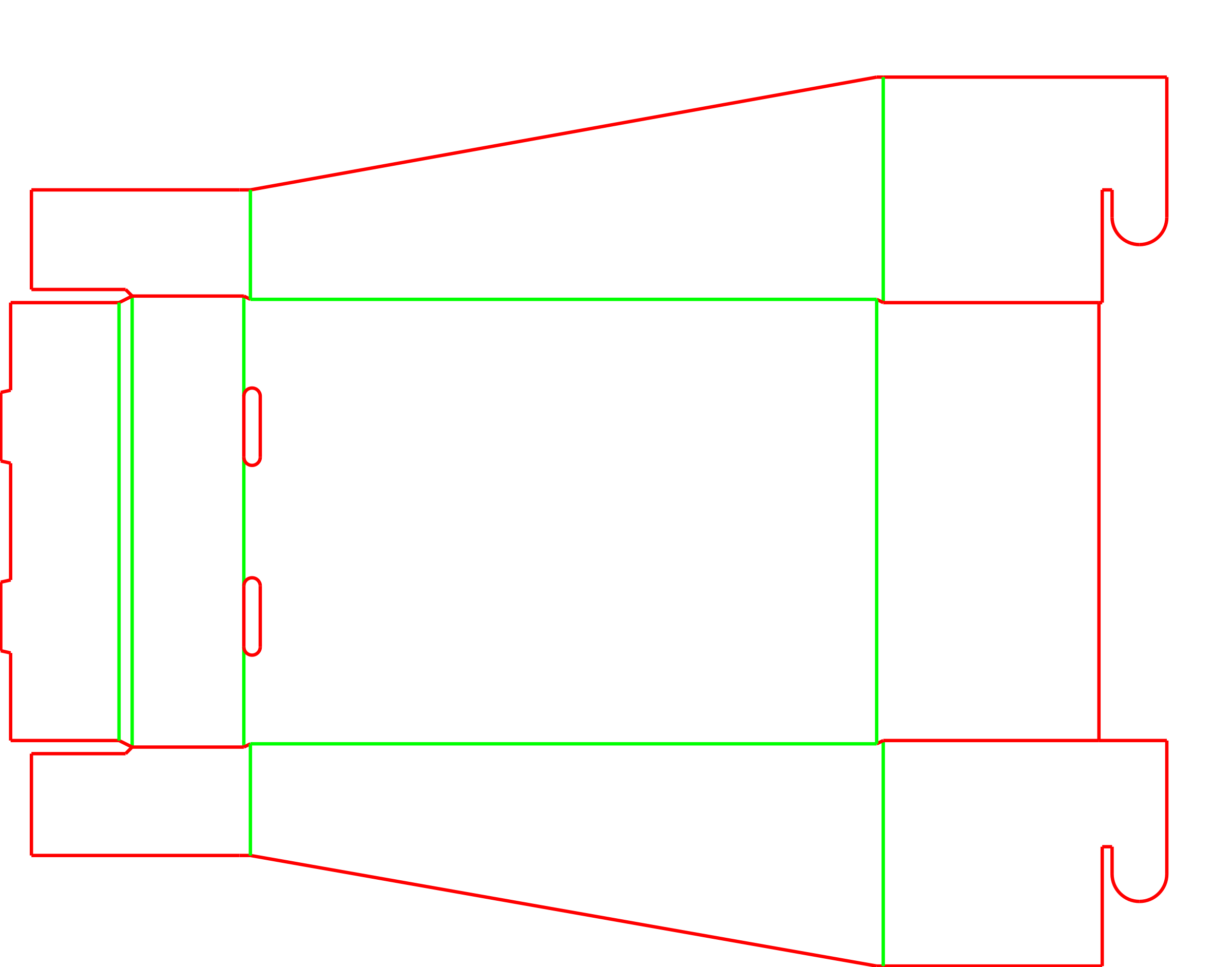

This single-piece corrugated tray is designed for retail shelves and point-of-purchase (POP) counters. It features tapered side walls for product visibility, a roll-over front panel that hides raw corrugated edges, and a glue-free hook-lock back wall.

Because it relies on mechanical locks rather than factory gluing, the tray ships completely flat to maximize pallet density. It is manually assembled at the fulfillment center or retail store before being loaded into a master carton for distribution.

Common uses

Point-of-purchase (POP) displays
Supermarket shelf-ready packaging (SRP)
Checkout counter impulse bins
Trade show sample distribution

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside width

Inside depth

Back wall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these loaded displays be shipped?

What type of items will be displayed in this tray?

How much of the product should the front lip cover?

Who will be assembling these trays?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Point-of-Purchase Display Roles

Shelf-Ready Packaging (SRP)

The tapered sides and low front lip make this tray a strong fit for supermarket shelves. Products remain contained but fully visible and accessible to shoppers without requiring store staff to cut away shipping panels.

Checkout Counter Displays

For small, impulse-buy items, the clean front roll-over provides a premium look by hiding the raw fluted edge of the corrugated board. The tray is rigid enough to handle customer interaction on a countertop.

Retail End-Cap Presentations

When staging products at the end of an aisle, this tray keeps items organized while presenting a clean front face to approaching shoppers.

Trade Show Sample Distribution

The flat-shipping nature and quick manual setup make this tray useful for temporary event displays where bulky pre-glued packaging would take up too much vehicle space.

Fulfillment and Store-Floor Setup

Manual Kitting and Fulfillment

Because this tray uses hook locks and a roll-over front, it must be erected by hand. This makes it a strong match for fulfillment centers packing retail kits, but it is not suitable for automated carton-erecting machinery.

Flat Supply and Storage

The lack of factory glue joints means the blanks ship completely flat. This maximizes inbound freight efficiency and reduces warehouse space requirements before the displays are needed.

Short-Run Retail Promotions

Since the tray requires no factory gluing, it is often easier to produce in smaller batches for seasonal or limited-time retail campaigns.

When to Consider Glued or Roll-Over Alternatives

High-volume automated packing lines

If your packing operation uses automated tray erectors, a machine-erected glued tray or a standard crash-lock base will be much faster. The manual hook locks on this design require human dexterity.

Heavy products requiring double-wall board

The hook-and-slot mechanism binds and tears if the corrugated board is too thick. If your product weight demands double-wall board, consider a corner-glued tray that does not rely on tight folding tolerances.

Board Thickness, Print, and Packing Choices

Board Caliper and Flute Profile

This design is highly sensitive to material thickness. E-flute (1.5mm) is excellent for small displays and makes the hook locks easy to engage. B-flute (3.0mm) provides better overall rigidity for larger counter displays. Heavier flutes should be avoided.

Inside and Outside Print Areas

Retail displays often require branding on both the outside front lip and the inside back wall. Decide early if your artwork requires two-sided printing or litho-lamination, as this changes the production routing.

Master Carton Sizing

Because this is an open-top display, it cannot be shipped through parcel or freight networks on its own. You will need to size a master shipping carton to hold one or more loaded trays securely during transit.

Assembly Labor Allocation

Factor in the time required to fold the roll-over front and engage the rear hook locks. While straightforward, this manual process takes longer per unit than opening a pre-glued tray.

Adjusting the Front Lip and Taper Profile

Front Lip Height

The height of the front roll-over panel can be adjusted to expose more of the product or to provide a larger billboard for retail branding. The lip must remain tall enough to secure the front corner flaps.

Side Wall Taper

The angle of the side walls can be modified to balance product retention with visibility. Steeper tapers expose more of the side profile but reduce lateral support for tall items.

Locking Tab Tolerances

The size of the hook tongues and receiving slots must be precisely matched to the chosen board caliper to ensure the locks engage securely without tearing.

Packing details

Prototyping the Locks

Always request a physical prototype to verify that the hook locks and roll-over tabs engage smoothly with your specific board grade and finish.

Additional notes

Locking tab tolerances

The size of the hook tongues and receiving slots must be precisely matched to the chosen board caliper. Always request a physical prototype to verify that the locks engage securely without tearing the corrugated material.

FAQs

Does this tray require glue or tape to assemble?

No. The front wall rolls over and tabs into the base, while the back wall is secured by corner flaps that hook into vertical slots. The entire structure locks together mechanically.

Can this display be erected by automated machinery?

This specific hook-lock design is intended for manual assembly at a pack bench or retail store. It is not a match for automated folder-gluers or tray erectors.

Can I ship this tray directly to a customer?

Not on its own. The open top and tapered sides offer no vertical stacking strength or top protection. It requires an outer master carton for distribution.

What board thickness works well for this design?

Thinner profiles like E-flute or B-flute work well. The hook locks and roll-over tabs require tight folding tolerances, and heavy double-wall board will likely bind or tear during assembly.

Where does the raw corrugated edge show on this tray?

The front roll-over panel hides the raw edge at the front of the display, creating a clean look. The raw edges will still be visible along the top of the tapered side walls and the back wall.

Can the hook locks be replaced with a glued back?

Yes, but that changes the fundamental template. If you prefer a glued back to speed up manual packing, it is usually better to start with a standard 4-corner glued tray template.

How does the front roll-over panel stay in place?

The front panel folds over the front corner flaps, and its bottom edge features tabs that press down and lock into slots located on the base of the tray.

How many trays fit in a master carton?

This depends entirely on your product dimensions and the final tray size. Because the trays are rigid once assembled, the master carton must be sized to hold the exact footprint of the loaded displays without crushing the tapered side walls.
