EVC61012

Stackable Corrugated Picking Bin

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Low front profile for easy picking and visibility
  • Optional interlocking tabs for vertical stacking
  • Assembles using friction locks with double-thick front and back walls

About this product

This open-top corrugated bin is built for retail shelving, parts organization, and fulfillment racks. It features a low front wall for easy product access and a high back wall for containment, with tapered sides that keep the contents visible.

The front and back walls roll over to lock securely into the base, creating clean, double-thick edges using friction locks instead of adhesive. An optional interlocking tab system allows multiple bins to stack vertically, maximizing shelf space.

Common uses

  • Point-of-purchase retail displays
  • Fulfillment center picking racks
  • Hardware and small parts organization

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Warehouse Applications

Retail Counter Displays

The low front and clean roll-over edges make this a strong fit for point-of-purchase displays. It is delivered flat to the store and assembles quickly without tools, presenting products neatly to customers.

Warehouse Parts Organization

When configured with the stacking system, these bins can be organized vertically on fulfillment racks. The open front allows fast retrieval, keeping small parts separated and accessible for picking teams.

Hardware and Fastener Sorting

For dense items like screws or small metal parts, the double-thick front and back walls provide containment. Heavy loads may require a stronger board grade to prevent the side walls from bowing outward.

Pharmacy and Cosmetics Merchandising

The clean presentation hides raw corrugated edges, making it suitable for smaller, lightweight retail items that need to remain visible and accessible on a shelf.

Who Uses This Bin

Fulfillment Centers

Operators can line these up on picking shelves. The open top allows fast retrieval, while the high back prevents items from spilling backward into the rack.

Retail Merchandisers

The tapered sides provide a clear view of the product. Because the front and back walls roll over, the raw corrugated edge is hidden, offering a neater presentation on the shelf.

Auto Parts Distributors

Distributors sorting various small components can use the stacking tabs to build vertical storage columns, keeping different SKUs separated but easy to reach.

When to Consider a Different Style

Standalone shipping needs

This is an open-top display, not a shipping box. If the package must travel through a courier network individually, compare it to a mailer or a standard slotted carton.

Heavy bulk loading

While the double-thick walls add strength, extremely heavy hardware may cause the side walls to bow outward. A reinforced tray or a rigid plastic bin might be necessary for dense metal parts.

Configuration and Board Choices

Stacking requirements

Decide if the bins will be stacked. The native stacking system adds upward-facing tabs on the side walls and receiving slots in the base, which changes the flat blank shape and requires alignment during assembly.

Print surface planning

Because the front and back walls roll over 180 degrees, the inside liner of the corrugated board becomes the visible exterior on those edges. If the bin requires full-color branding, two-sided printing or a mottled inner liner may be needed.

Board grade and flute profile

The clean front and back edges rely on a tight 180-degree fold. Thinner flutes assemble easily, while thicker boards require precise crease adjustments to prevent the panels from binding.

Master carton sizing

Since these bins are delivered flat, they take up very little space on a pallet. However, if they are pre-loaded with product before distribution, they will require a properly sized master shipper to protect the open top.

Adjusting the Bin Profile

Front wall height

The height of the front lip can be raised for better containment or lowered for easier access, provided it remains lower than the back wall.

Stacking tab removal

If the bins will only be used individually on a counter or shelf, the stacking tabs and base slots can be removed for a simpler side profile.

Back wall height

The back wall can be extended to provide more support for taller items or to create a larger billboard area for retail branding.

Packing details

Assembly space planning

Because these bins are delivered flat and assembled manually, packing teams will need adequate staging space to fold and lock the roll-over walls before loading products.

Stacking and Lock Options

Optional Stacking Tabs

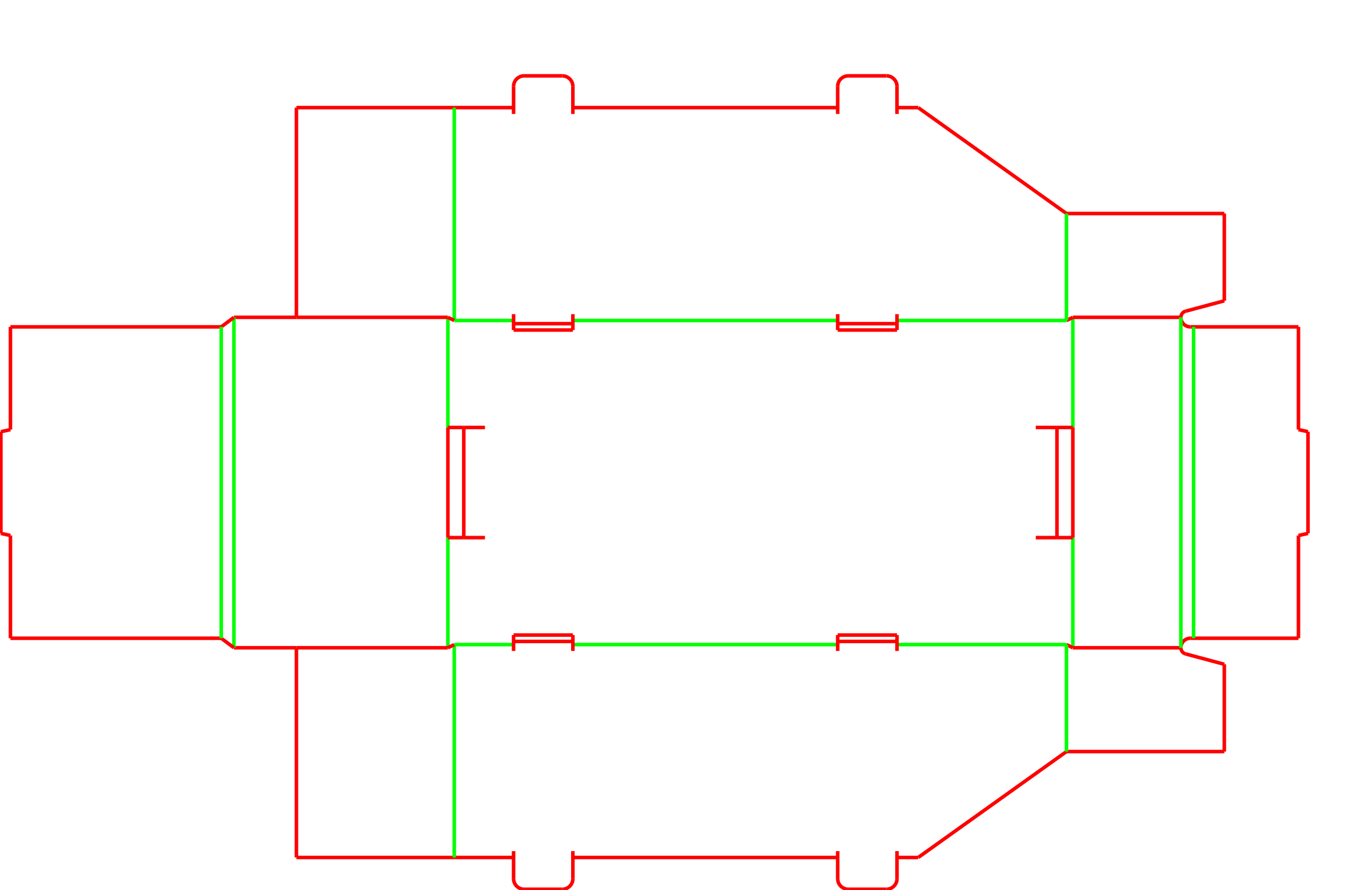

The template can be configured with upward-facing tongues on the side walls and matching slots in the base, allowing identical bins to interlock vertically.

Additional notes

Board thickness and roll-over folds

The clean front and back edges rely on a tight 180-degree fold. Thinner flutes assemble easily, while thicker boards require precise crease adjustments to prevent the panels from binding.

Related Displays and Trays

FAQs

Does this bin require adhesive to assemble?

No. The front and back walls roll over the side flaps and lock directly into the base panel using friction tabs.

How does the roll-over wall affect printing?

The 180-degree fold means the inside surface of the corrugated board becomes the visible top edge and inner wall of the display. If you need consistent graphics inside and out, two-sided printing is recommended.

How high can these bins be stacked?

The interlocking tabs keep the bins aligned, but the maximum stacking height depends entirely on the product weight and the chosen board grade. Heavy parts will require physical compression testing.

Can I ship products inside this bin?

Not on its own. This is an open-top display tray. It requires an outer master carton to protect the contents during transit.

Can this be made from heavy double-wall corrugated?

Double-wall board is generally not recommended for this style. The thick material can cause the 180-degree roll-over panels to bind or crack during assembly. Single-wall flutes offer a better balance of strength and foldability.

Can the front lip be adjusted?

Yes, the height of the front wall can be modified to balance product visibility with containment, depending on what is being stored or displayed.

How are these bins delivered?

They are delivered flat to save space and require manual assembly before loading.

Can I use this bin for heavy metal parts?

Yes, but dense items may cause the side walls to bow outward. A heavier board grade or a reinforced tray might be necessary depending on the exact weight.
