Retail and Point-of-Sale Applications
Retail-Ready Shelf Trays
The drop-front design allows shoppers to easily see and remove products while keeping the remaining inventory organized on the shelf. The double-thick walls provide clean, finished edges that look professional in a retail environment.
Point-of-Sale Counter Displays
For smaller items placed near registers, this tray acts as a self-contained presentation unit. The flat base provides stability, while the open top encourages impulse purchases.
Kitting and Assembly Trays
In fulfillment centers, the open front allows workers to quickly pick parts or components from the tray. The sturdy roll-over walls hold up well to repeated hand access.
Bakery and Cafe Displays
For lightweight packaged goods like snacks or baked items, the tray provides an accessible, branded container that can be placed directly on a cafe counter or display rack.
Merchandising and Fulfillment Contexts
Brand Merchandising
Brands looking to maximize graphic impact benefit from the roll-over wall construction. Single-sided printing covers both the exterior faces and the interior walls, creating a premium unboxing or display experience without the cost of two-sided printing.
Manual Fulfillment Operations
The tray is delivered flat and assembled by hand at the packing facility. The sequence is straightforward but specific: the back wall folds first, followed by the long sides, and finally the front cut-out wall locks the structure together.
Retail Shelf Replenishment
Store employees can quickly remove an empty tray and replace it with a fully stocked one. The flat base slides easily onto standard retail shelving, keeping the display neat and organized.
When to Consider Alternative Trays
Standalone Parcel Shipping
This tray has an open top and a cut-out front, offering no overhead protection. If the package travels through a courier network on its own, a mailer box or a fully enclosed slotted carton is a safer choice.
Heavy Vertical Stacking
Without a lid or full-height front wall, this tray is not built to support heavy top loads. If pallets of product are stacked directly on top of each other without master shippers, consider a tray with reinforced corner posts or a full shipping case.
Board, Print, and Shipping Decisions
Board Thickness and Flute Choice
Because the walls roll over themselves, the board should fold cleanly twice at the top edge. E-flute or B-flute corrugated board is usually recommended. Thicker double-wall boards can cause the hinges to bind or crack during assembly.
Master Shipper Sizing
Since these trays are not designed to be shipped individually, they are usually packed into a master corrugated box for transit. The dimensions of the assembled tray, including the slight outward bulge of the folded walls, should be factored into the master shipper's internal clearance.
Print Surface Selection
The roll-over design means that the outside of the corrugated sheet becomes both the exterior and interior of the finished tray. This allows for full-color branding on all visible surfaces using single-sided printing.
Cut-Out Depth and Product Retention
The depth of the front opening affects how much of the product is visible. However, a deeper cut-out leaves less material to hold the items in place, so the profile should be balanced against the weight and shape of the contents.
Cut-Out and Dimension Adjustments
Drop-Front Profile
The depth and angle of the front cut-out can be adjusted to match the product being displayed. A deeper cut-out increases visibility but reduces the rigidity of the front retaining wall.
Locking Tongue Count
For wider or longer trays, the number of locking tabs on the roll-over panels can be increased. This helps keep the long walls securely anchored to the base panel.

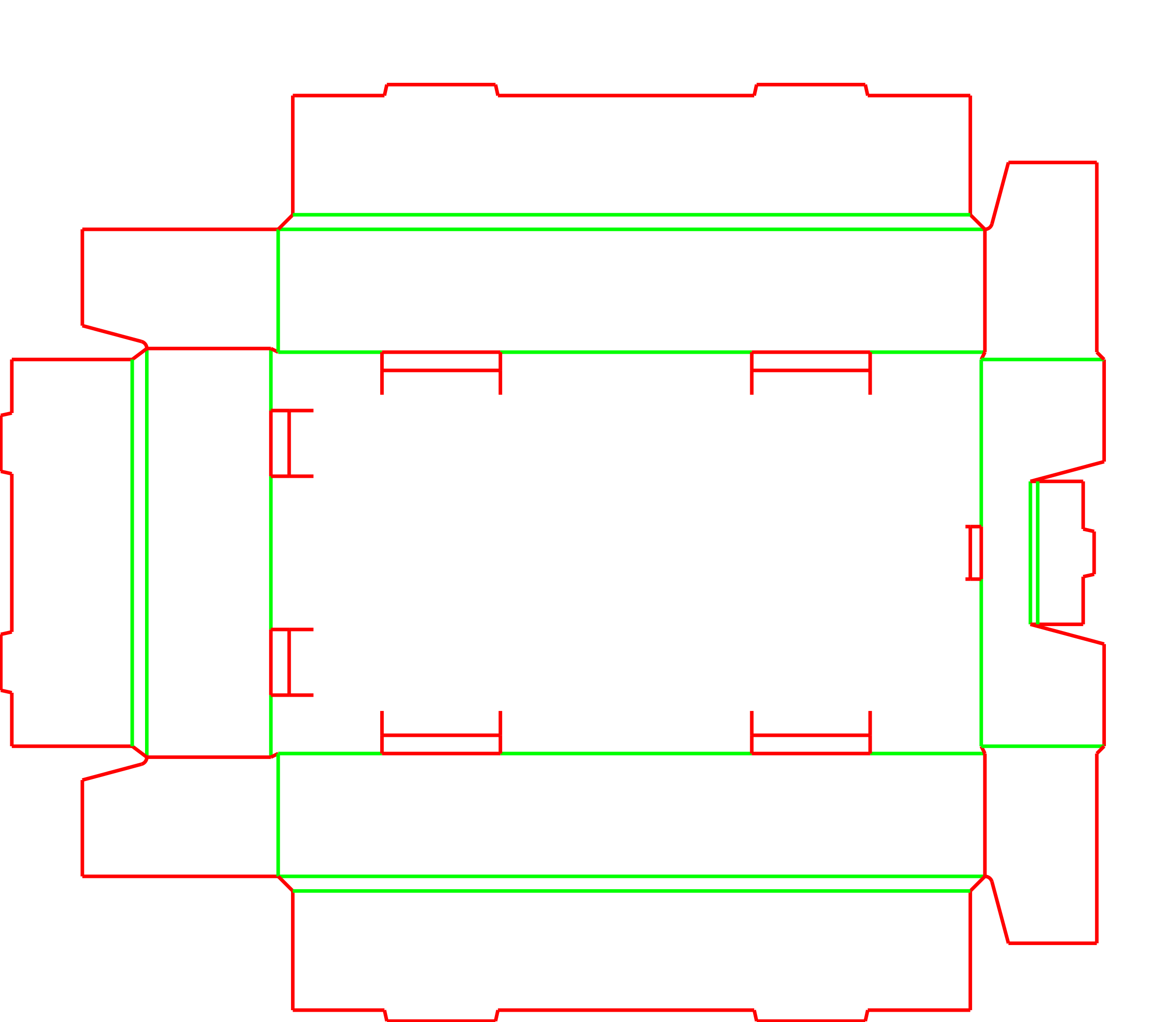

Double Crease Spacing
The distance between the two parallel scores on the top edge is adjusted based on the chosen board thickness. This ensures the wall rolls over smoothly without tearing the liner.
Packing details
Assembly Sequence
The fold-and-lock sequence is asymmetric. Packers fold the back wall and its corner flaps first, then roll over the long side walls to capture them. The front wall with the cut-out rolls over last to secure the front corners.
Additional notes
Master carton planning
When sizing the outer shipping box, account for the slight dimensional addition created by the folded double walls of the display tray.
FAQs
Do I need two-sided printing to have graphics on the inside of the tray?
Because the four walls roll inward and lock into the base, the inside walls of the assembled tray display the same side of the corrugated board as the outside. Single-sided printing covers both.
Can this tray be shipped directly to a customer?
The open top and drop-front provide no protection against impact or crushing. It relies on being placed inside a master shipping box for transit.
Does this tray require glue or tape to stay together?
It uses a manual fold-and-lock design. Locking tongues on the roll-over panels insert into slots in the base panel to hold the tray's shape without adhesive.
Can I use heavy-duty double-wall corrugated for this display?
The double-crease roll-over walls fold tightly, so thick double-wall material can bind, crack, or fail to lock properly. E-flute or B-flute is usually a better fit.
How does the front cut-out affect the tray's strength?
The cut-out removes material from the front wall, which reduces its overall rigidity compared to a solid wall. The depth of the cut-out should be balanced against the weight and shape of the products it holds.
Is the folding sequence the same for all four walls?
The sequence is specific. The back wall and its flaps fold first, followed by the long side walls. The front wall with the cut-out is folded last to complete the lock.
Can we adjust the number of locking tabs on the side walls?
For wider or longer trays, the template allows adding more locking tongues to keep the roll-over panels securely anchored to the base.
How does the board thickness affect the top edge?
Thicker board needs a wider double-crease spacing to fold cleanly. If the spacing is not adjusted for the specific flute, the board can crack or resist folding.
