EVC62001

Corrugated Multi-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Multi-piece tab-and-slot assembly uses no glue
Ships flat (KD) for efficient fulfillment and distribution
Adjustable shelf count, depth, and vertical spacing

About this product

The EVC62001 is a freestanding, multi-piece corrugated floor display designed for retail point-of-purchase environments. It ships completely flat and relies on a native tab-and-slot system to lock the rear wall, side walls, and shelves together without adhesive.

Because it is built from separate components, it offers high flexibility for shelf count and spacing. Buyers can choose between a base configuration for quick setup or a premium variant with folded front columns that hide raw corrugated edges and increase vertical strength.

Common uses

End-cap retail promotions
Aisle freestanding displays
Lightweight packaged food or cosmetics

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How many shelves do you need?

What type of products will sit on the shelves?

How will these displays reach the retail stores?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and point-of-purchase applications

Freestanding aisle and end-cap displays

This unit is designed to stand independently on retail floors. The base offset elevates the bottom shelf, protecting products from foot traffic and cleaning equipment, while the open front provides clear visibility for lightweight to medium-weight consumer goods.

Flat-pack distribution campaigns

Because the rear wall, side walls, and shelves are cut as separate flat blanks, the entire display nests efficiently on a pallet. It is a strong fit for campaigns where displays are shipped knocked-down inside a master carton to individual retail locations for on-site assembly.

Lightweight packaged goods presentation

The tab-and-slot shelves are well-suited for boxed food, cosmetics, or lightweight packaged items. The front lip on each shelf provides a flat surface for pricing labels or brand graphics while adding rigidity across the span.

Seasonal retail promotions

The lack of adhesive and multi-piece construction makes this display relatively quick to produce and distribute for temporary retail events. Store staff can assemble the unit, run the promotion, and break it down for recycling.

Fulfillment and store-floor setup

Store-floor setup

This display is erected by hand. Retail staff or fulfillment teams stand the rear wall, insert the shelves, and lock the side walls into place using the tuck tongues. While it uses no tools or tape, the multi-piece nature means kitting accuracy is critical; missing a shelf or wall piece prevents assembly.

Co-packing and pre-loading

If the display is assembled and loaded with product before reaching the retail store, the co-packer ensures the unit is securely palletized. The mechanical locks hold the display together, but lateral forces during transit can cause the side walls to rack if not properly stretch-wrapped.

Distributed retail campaigns

For brands shipping directly to hundreds of retail locations, the flat-pack nature of this display reduces shipping volume. Each location receives a flat kit in a master carton, relying on local staff to erect the display and stock the shelves.

When to compare other display styles

Single-piece fold-up displays

If retail staff struggle with aligning multiple separate panels, a single-piece display that folds out from one continuous blank may be a faster, albeit larger, alternative. Single-piece designs often have less flexibility in shelf count but reduce the risk of lost components during unpacking.

Heavy-duty pallet displays

For heavy items like large beverage bottles or bulk hardware, a standard tab-and-slot corrugated shelf may sag over time. In these cases, a display with reinforced under-shelf crossbars or a full pallet-based bin is worth comparing.

Board thickness and structural clearances

Matching board caliper to locking slots

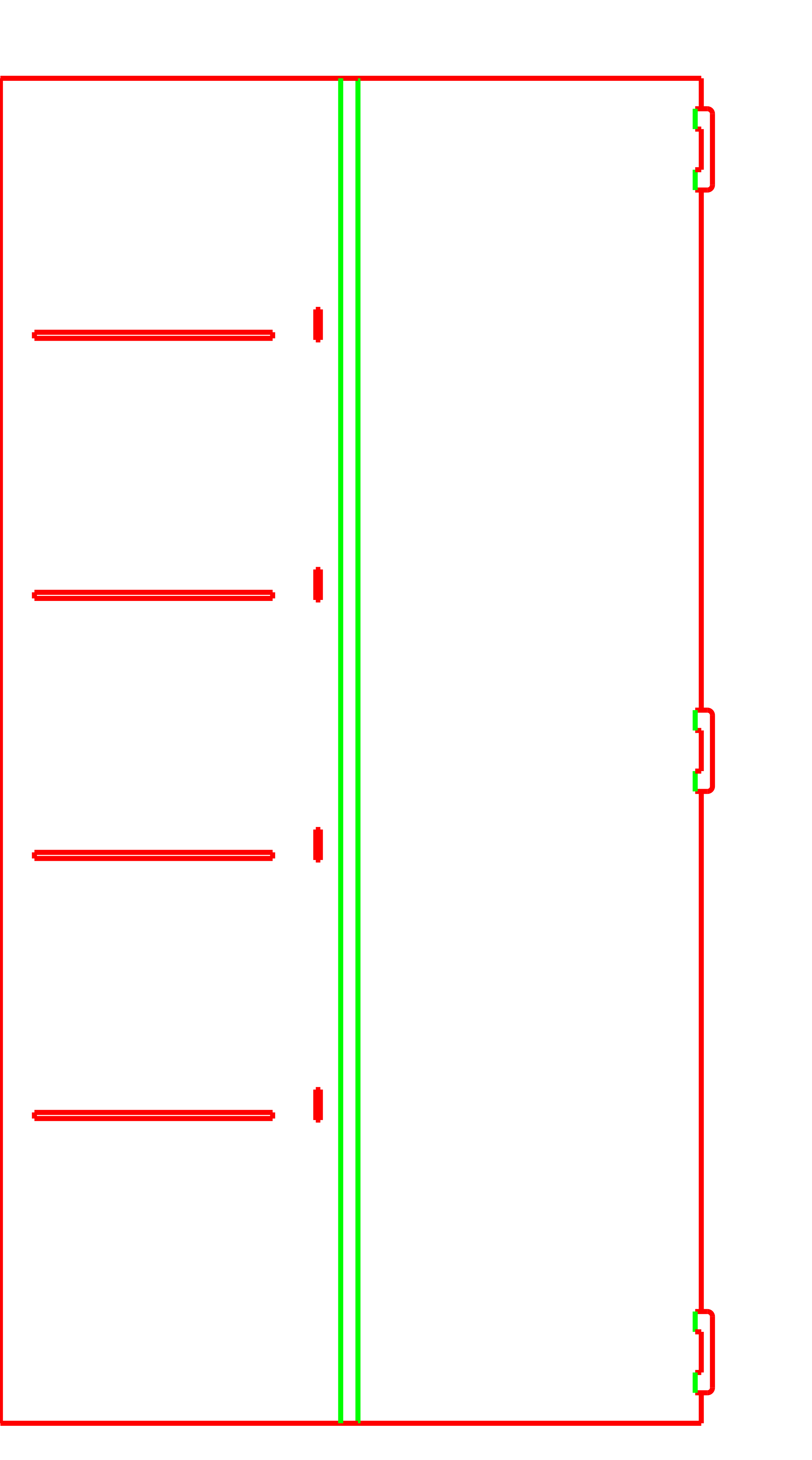

The mechanical strength of this display relies on friction and tight clearances. The width of the locking slots and the depth of the tuck tongues are cut to match the physical thickness of the chosen corrugated board. Changing from a B-flute to a thicker C-flute means updating the template clearances so the display assembles correctly.

Outer transit packaging

This display is not a shipping container. For transit through a courier or freight network, the flat components are typically kitted and packed inside a separate corrugated master carton.

Print surface and graphic placement

The separate-piece construction means graphics can be printed on the outward-facing side walls, the rear wall, and the shelf lips. Depending on the variant chosen, the inside of the side walls may also become visible if the front edges are folded inward.

Kitting and component bundling

Because the display consists of multiple separate blanks, the exact number of shelves, side walls, and rear walls are bundled into the master carton. Missing a single shelf piece prevents the display from being fully assembled at the retail location.

Configuring shelves and dimensions

Shelf count and spacing

The template allows for a flexible number of shelves. Adjusting the vertical gap between shelves automatically recalculates the total height of the side and rear walls, making it easy to adapt the display for different product heights.

Shelf front lips

Each shelf features a front lip that folds downward. This lip acts as a structural beam to prevent the shelf from bowing under product weight, while also providing a flat, forward-facing surface for pricing labels or brand graphics.

Base offset height

The distance from the floor to the bottom shelf can be adjusted. A higher base offset provides more protection against floor-level impacts and cleaning equipment, while a lower offset maximizes the available vertical space for additional shelves.

Packing details

Maximum display height and sheet size

The rear wall and side walls of a tall floor display are cut from flat corrugated sheets. The maximum sheet size of the chosen production route will dictate the maximum possible height of the fully assembled display.

Edge finishing and column strength

EVC62001_1 (Folded Front Columns)

This premium variant features side walls and shelf lips that fold over 180 degrees. This creates a double-thick front column that hides the raw corrugated flutes, provides a cleaner visual edge, and increases the vertical compression strength of the display.

Additional notes

Shelf bowing and product distribution

To minimize shelf sag, place heavier items near the side walls where the tabs lock into the vertical columns, and keep lighter items in the center of the span.

FAQs

Does this display need glue or tape to assemble?

The rear wall, side walls, and shelves lock together using a native tab-and-slot system with tuck tongues. It is designed for hand assembly on the retail floor without additional adhesives.

How much weight can the shelves hold?

Weight capacity depends entirely on the chosen board grade and the width of the shelf. The front folded lip helps prevent sagging, but heavy items like beverages should be physically tested before a full production run.

Can I ship this display fully assembled?

While it can be pre-loaded by a co-packer, it is primarily designed to ship flat inside a master carton. Shipping it fully assembled means careful palletization and stretch wrapping to prevent the side walls from racking during transit.

Can I change the board thickness later in the process?

Changing the board thickness means updating the template before cutting. The locking slots are calculated to match the board caliper; if the board is thicker than the slots, the tabs will crush, and if it is thinner, the display will be unstable.

Why choose the folded-edge variant?

The folded-edge variant rolls the front panels inward 180 degrees. This hides the wavy corrugated flutes from the consumer, creating a premium presentation, while also doubling the board thickness at the front corners to support heavier top loads.

Can I adjust the distance between shelves?

The vertical gap between shelves can be modified before production. Adjusting this spacing automatically recalculates the total height of the side and rear walls to fit different product heights.

Do I need an outer box to ship this display?

The display components are cut as separate flat blanks and are usually kitted inside a corrugated master shipper for distribution to retail locations.

How are the graphics printed on the folded-edge variant?

Because the front edges fold inward 180 degrees, the inside of the side wall blanks becomes the visible front column. Print layouts account for this fold to ensure branding faces the consumer correctly.
