EVC62007

Multi-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Multi-piece kit for efficient flatbed die-cutting and nesting
Tool-free manual assembly with tab-and-slot friction locks
Ships completely flat; requires an outer master carton for transit

About this product

The EVC62007 is a freestanding corrugated point-of-purchase display designed for retail floors. It features a modular, multi-piece construction with a configurable number of interlocking shelves and a top header board for branding.

Unlike single-piece wrap-around displays, this unit uses independent left and right body halves that meet in the center. The shelves and header act as cross-ties, locking the entire assembly together without the need for glue or tape.

Common uses

Retail point-of-purchase displays
Promotional endcaps
Lightweight packaged goods presentation

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How many shelves do you need?

Do you need an outer shipping box for the flat display?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Display and Point-of-Purchase Applications

Retail Point-of-Purchase Presentations

This display is built for presenting lightweight to medium-weight packaged goods on retail floors. The open front provides clear product visibility, while the top header offers a dedicated space for brand messaging. Because it relies on friction locks rather than glued seams, it is a strong fit for controlled retail environments.

Promotional Endcaps and Aisle Displays

The freestanding footprint allows the unit to be placed at the end of aisles or in high-traffic areas for temporary promotions. The split-back design keeps material usage efficient for short-run campaigns.

Lightweight Packaged Goods Merchandising

A strong fit for snacks, cosmetics, or boxed consumer goods. The folded front lip on each shelf helps resist sagging under moderate weight, keeping the presentation neat.

Trade Show and Event Product Presentations

Because the entire unit breaks down into flat pieces, it can be easily transported to events and assembled on-site without tools, making it a practical choice for temporary exhibits.

Fulfillment and In-Store Setup

Flat-Packed Distribution to Retail Stores

The modular design allows the side walls, shelves, and header to be stacked densely on pallets or packed into slim master cartons. This makes it efficient for distribution to individual retail locations.

Manual In-Store Assembly by Retail Staff

Store staff can assemble the display manually by folding the components and slotting them together. The left and right halves are locked in place by inserting the shelves and header.

Short-Run Promotional Campaigns

Because the multi-piece design nests efficiently on standard flatbed die-cutters, it reduces board waste. This makes it a practical choice for seasonal or temporary retail rollouts.

When to Consider Alternative Floor Displays

Single-Piece Wrap-Around Displays

If your fulfillment team prefers a display that opens with fewer separate pieces to manage, a single-piece wrap-around unit may be a better fit. While single-piece designs often generate more board waste during production, they can reduce the manual assembly time required at the store level.

Heavy-Duty Permanent Fixtures

If you are merchandising heavy liquids, canned goods, or metal parts, a corrugated friction-lock display may not provide enough long-term rigidity. In these cases, permanent shelving or reinforced wood or metal fixtures should be evaluated.

Board Grade, Print Layout, and Shipping Choices

Board Grade and Expected Shelf Weight

The weight of your products dictates the required board grade. While a B-flute may support lightweight snacks, heavier items often need a thicker C-flute or EB-flute to prevent the shelves from sagging. The slot widths in the side walls must be precisely matched to the chosen board thickness.

Print Layout for Visible Interior Surfaces

Because the display is open at the front, the inside of the back wall and the top surfaces of the shelves are visible to the consumer. When planning artwork, ensure the print layout accounts for these visible interior surfaces.

Master Carton Sizing for Flat Components

This display cannot be shipped through parcel networks on its own. You must plan for a separate corrugated master carton to protect the flat-packed components during transit, accounting for the stacked thickness of all pieces.

Shelf Count and Product Height Clearances

Determine how many shelves are needed based on the height of the products being displayed. Adding more shelves increases the overall height and provides more cross-ties, which enhances the rigidity of the split back wall.

Adjusting Shelf Count and Header Dimensions

Shelf Count and Vertical Spacing

The number of shelves and the vertical distance between them can be adjusted to accommodate different product heights. This changes the overall height of the display and the placement of the locking slots.

Shelf Front Lip Height

Each shelf features a front lip that folds down to stiffen the horizontal span. The height of this lip can be modified to balance structural support with product visibility.

Header Board Dimensions and Shape

The top header board can be resized or die-cut into custom shapes to match brand artwork, as long as the bottom locking tabs align with the slots on the back wall.

Packing details

Master Carton Requirements

This display is an exposed unit designed for stationary retail use. It cannot be shipped through parcel or courier networks on its own. A separate corrugated master carton is required to protect the flat-packed components during transit.

Additional notes

Store-Level Assembly Time

Because this is a multi-piece kit (two side walls, a header, and multiple shelves), retail staff will need time to fold the components and align the tabs and slots. It is not an instant-setup display.

Outer Shipper Sizing

When sizing the outer master carton, account for the stacked thickness of all the flat components, including the side walls, header, and every individual shelf.

FAQs

Does this display require glue or tape to assemble?

No. The display is entirely mechanically locked. The left and right side walls are held together by the shelves and the top header, which slot into place using friction locks.

How much weight can the shelves support?

Shelf capacity depends entirely on the chosen corrugated board grade and the width of the display. Heavier products will require a thicker flute profile and potentially a taller front lip on the shelves to resist sagging. We suggest physical testing with your actual products.

Can this display be shipped fully assembled?

It is best practice to ship this display flat-packed inside a master carton. Shipping it fully assembled increases freight costs and exposes the friction locks to transit vibrations, which could cause the components to separate.

Which parts of the display can be printed?

The exterior side walls, the front header, the front shelf lips, the top surfaces of the shelves, and the interior back wall are all visible. Artwork must be oriented correctly on the flat blanks so that the printed side faces outward or upward once assembled.

Why does this display use a split back wall?

Splitting the main body into two L-shaped halves allows the components to be nested much more tightly on a standard sheet of corrugated board. This reduces material waste and allows the display to be manufactured on standard-sized flatbed die-cutters.

Can the distance between the shelves be changed?

Yes. The vertical spacing between shelves can be adjusted during the structural design phase to fit the specific height of your products.

How are the shelves secured to the side walls?

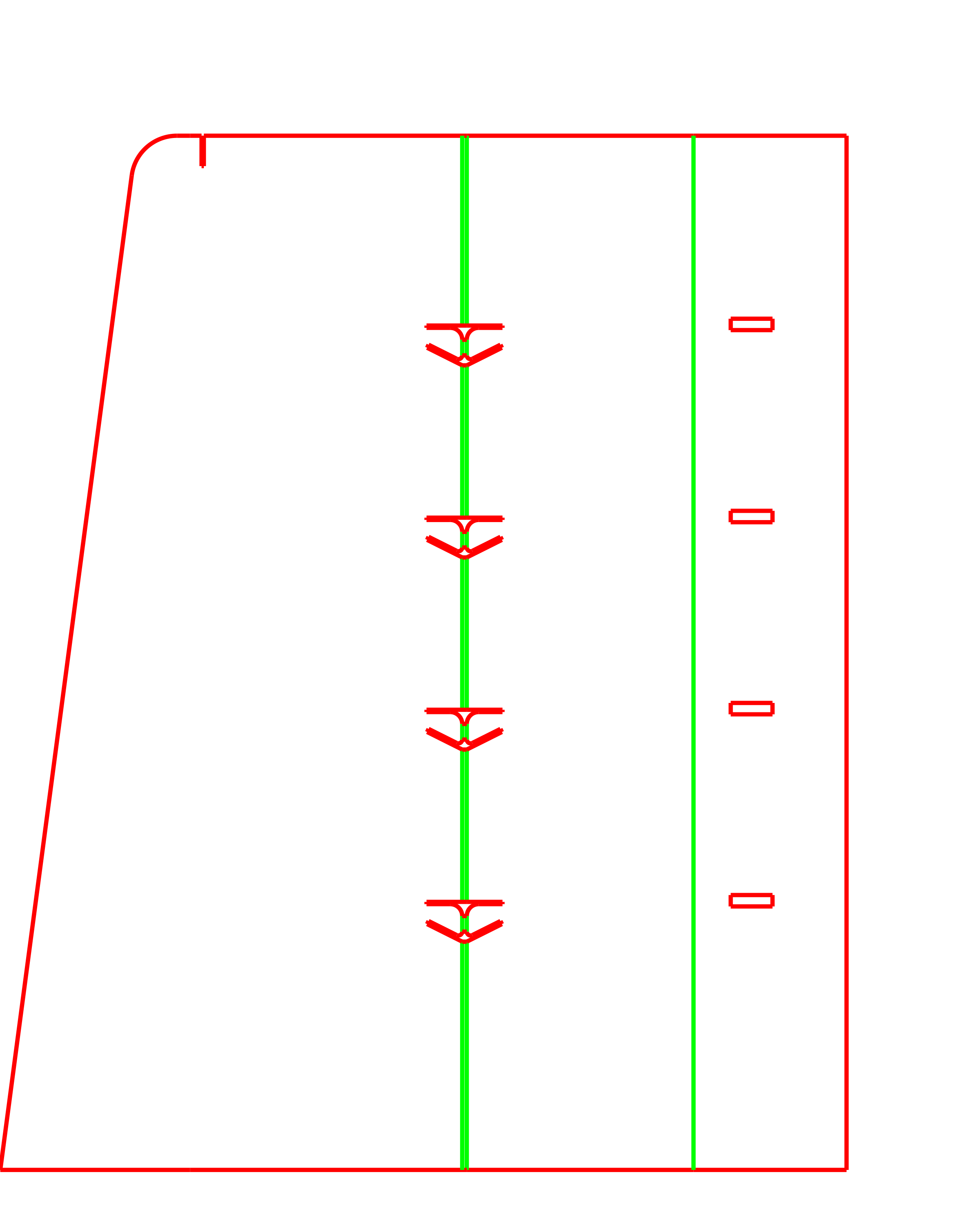

The shelves feature side flaps with locking hooks that snap into horizontal slots on the side walls. Rear tabs also insert into the back corners, locking the left and right body halves together.

Do I need a separate box to ship this display?

Yes. Because the display is exposed and relies on friction locks, the flat components must be packed inside a corrugated master carton for transit to the retail store.
