EVC62006

Multi-Shelf Corrugated Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

7-piece interlocking structure
Manual tab-and-slot assembly
Requires precise board caliper matching

About this product

The EVC62006 is a freestanding, multi-piece corrugated floor display designed to present lightweight, uniform products in retail environments. It features a central interlocking spine, multiple horizontal shelves, and 3D folded polygonal collars at the base and header for stability and branding.

Because it relies entirely on a manual tab-and-slot assembly without glue, the board thickness must be precisely matched to the slot widths. It is delivered flat and requires in-store or fulfillment-center assembly.

Common uses

Retail point-of-purchase
Beverage or snack promotions
Lightweight packaged goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Shelf depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will this display hold?

Where will the display be assembled and packed?

Which areas of the display need custom printing?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Floor Presentations

Lightweight Uniform Products

This display is well-suited for items like juice boxes, small packaged snacks, or lightweight retail goods. The central cross-spine provides vertical support, while the horizontal shelves offer accessible platforms for uniform products.

Branded End-Cap or Aisle Displays

The large 3D folded header and pedestal base provide prominent surfaces for promotional graphics, making it an effective standalone unit for retail aisles or end-caps.

Seasonal Beverage Promotions

For limited-time beverage rollouts, the multi-shelf layout allows clear brand blocking. The flat-packed delivery makes it practical to distribute to multiple retail locations for simultaneous campaign launches.

Grab-and-Go Snack Stations

Placing the display near checkout lanes or high-traffic intersections takes advantage of the 360-degree accessibility, allowing shoppers to pick items from multiple sides depending on the shelf profile.

Promotional and Point-of-Purchase Campaigns

Retail Rollouts and Kitting

Because the display consists of seven distinct flat components, it ships knocked down and requires a dedicated outer shipper. Buyers must plan for manual assembly labor, either at a central fulfillment facility before shipping the unit full of product, or by staff at the retail store.

Supermarket and Grocery Aisles

The freestanding footprint allows grocery managers to place the unit away from crowded inline shelves. The stable polygonal base helps prevent tipping in busy aisles.

Convenience Store Placements

For smaller retail environments, the vertical tower design maximizes product count per square foot. The interlocking spine keeps the footprint compact while offering multiple tiers of product presentation.

When to Consider Alternative Displays

Heavy or Irregular Products

If the products are heavy, the corrugated shelves, supported primarily by central slots, may sag. For heavy loads, consider displays with reinforced shelf supports, front lips, or alternative materials.

Fast In-Store Setup

The multi-piece tab-and-slot assembly takes time. If retail staff have limited time, a simpler pop-up display or a pre-loaded shipper display may be a safer choice.

Board, Print, and Production Choices

Board Caliper and Slot Widths

A major decision is the exact corrugated board grade. The interlocking slots on the spine and shelves must be cut to match the board's physical thickness. Changing the material later requires a full CAD update to prevent the joints from binding or being too loose.

Production Route and Cutting Methods

With seven distinct parts, traditional flatbed die-cutting requires multiple cutting dies. For short promotional runs or prototypes, digital cutting on a CAD table is often a more practical starting point before committing to large-scale production methods.

Print Placement

The header and base are the primary branding areas. Depending on the visual impact needed, these components can be printed using high-quality flexo or litho-lamination, while the internal spine and shelves might use simpler printing or remain unprinted.

Outer Shipper Requirements

This structure is a retail display, not a shipping container. The flat components must be bundled and packed into a separate corrugated outer box for transit to the store or fulfillment center.

Adjusting Shelf Count and Spacing

Shelf Count and Spacing

The template allows adjustments to the number of shelves and the vertical distance between them. Changing these parameters will automatically adjust the length of the central spine to accommodate the new layout.

Shelf Width and Profile

The width and depth of the shelves can be modified to fit specific product dimensions. However, widening the shelves too much increases the leverage on the central slots, which makes physical testing important to ensure they do not sag under load.

Base and Header Proportions

The height and angles of the 3D folded base and header can be adjusted. A taller header provides more branding space, while a wider base increases overall stability on the retail floor.

Packing details

Prototyping and Load Testing

Because the shelves are supported entirely by the central spine, physical testing with the actual product is critical. A digital CAD table prototype can verify that the chosen board grade will not sag under the intended product weight.

Additional notes

Humidity and long-term floor stability

Corrugated board loses rigidity in high humidity. For floor displays expected to last several weeks, discuss board treatments or heavier flute grades to prevent the base or spine from leaning over time.

FAQs

How is the display assembled?

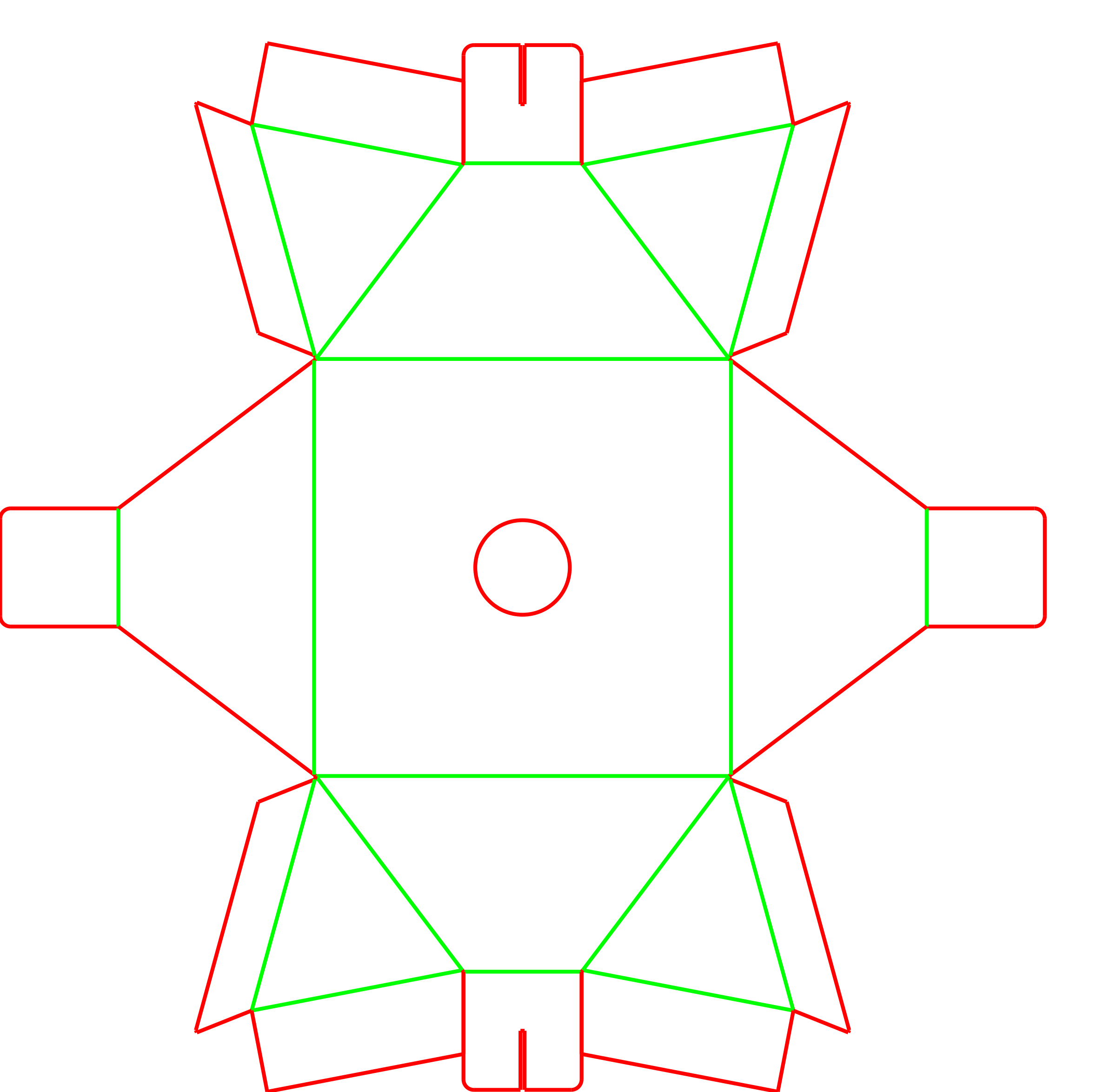

It uses a manual tab-and-slot method. The base and header fold into 3D shapes, the vertical divider and support interlock to form a central spine, and the shelves slide horizontally into pre-cut slots. No glue is required.

How much weight can the shelves hold?

Weight capacity depends entirely on the chosen corrugated board grade and the product distribution. Because the shelves are supported at the center spine, heavy items can cause sagging. Physical testing with the actual product is an important step.

Can I change the corrugated board thickness later?

Changing the board thickness requires updating the CAD file. The interlocking slots are sized exactly to the board caliper; if the board is thicker, the pieces will not fit together, and if thinner, the display will be unstable.

Is this display practical for short promotional runs?

Because it requires seven distinct pieces, traditional die-cutting involves multiple cutting dies. For short runs, cutting the components digitally on a CAD table is often a better approach, avoiding the need for multiple cutting dies while you test the display in the market.

How does this display ship to stores?

It ships knocked down as a bundle of seven flat components. You will need to specify a separate corrugated outer shipping box to protect the pieces during transit.

Can a lip be added to the front of the shelves?

Yes, the shelf profile can be redesigned to include a front lip to prevent products from sliding off, though this requires a custom modification to the shelf die lines.

Do the shelves require glue to stay in place?

No, the shelves slide horizontally into pre-cut slots on the central spine, relying on friction and exact board thickness to stay secure.

Can the header shape be modified for different branding?

The template allows adjustments to the header height and angles, but complex custom shapes may require a separate die-cut header card attached to the spine.
