EVC62014

Hardware-Secured Slanted Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Slanted shelves with front lips for angled product presentation
Requires external display clips or binding screws for assembly
Multi-piece flat-pack design for efficient pallet shipping

About this product

A freestanding corrugated retail display featuring angled shelves designed to improve product visibility. Unlike standard tab-and-slot stands, this multi-piece unit uses external fasteners like plastic display clips or binding screws to lock the side walls, shelves, and base together.

This hardware-secured approach creates a rigid structure with clean exterior lines, making it well-suited for heavy retail goods, premium cosmetics, or boxed products that need to face the shopper directly. Because it relies on separate fasteners, it requires hardware kitting and deliberate manual assembly at the store level.

Common uses

Boxed cosmetics and skincare
Magazines, books, and media
Blister-packed hardware or electronics
Heavy retail goods requiring rigid support

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall height

Shelf depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How heavy are the products on each shelf?

How many shelves do you need?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail environments and boxed-product presentation

High-visibility boxed goods and media

The downward slant of the shelves naturally tilts products toward the shopper's eye line. This makes it an excellent fit for boxed cosmetics, software, books, magazines, or blister-packed items that lose impact when laid flat on a standard shelf. A built-in front lip prevents items from sliding forward.

Heavy or dense retail items

Because the shelves are supported by both native corrugated tongues and external hardware clips, the display can handle denser product loads than many friction-fit alternatives. The fasteners transfer the weight directly into the side walls, reducing the risk of the shelf sagging or collapsing.

Blister-packed hardware and electronics

Products packaged in blister cards often need to be angled upward to catch store lighting and shopper attention. The slanted shelves keep these items organized and facing forward, while the rigid hardware connections support the concentrated weight of metal or electronic goods.

Cosmetics and premium skincare

The clean exterior lines created by the hardware connections provide a premium look suitable for high-end retail environments. The angled presentation ensures small cosmetic boxes remain visible and accessible without getting lost at the back of a deep shelf.

Fulfillment kitting and store-level assembly

Kitting and fulfillment operations

This display ships as a multi-piece flat kit. Brands must plan for a kitting step where the required plastic clips or binding screws are bagged and included in the master shipper before the unit is sent to retail locations.

Store-floor assembly

Retail staff will need to align the side walls, base, and shelves, then manually insert the fasteners through the pre-cut circular holes. While this creates a very sturdy final unit, it requires more time and floor space to build than a pop-up or pre-glued display.

Long-term retail placements

For displays intended to stay on the floor for months rather than weeks, the hardware-secured joints offer better durability. The external clips prevent the corrugated tabs from wearing out or loosening over time as shoppers interact with the unit.

When to compare tab-and-slot or pre-assembled displays

When store staff have limited assembly time

If retail compliance is a concern and store staff cannot be expected to manage loose hardware, compare this to a fully corrugated tab-and-slot display. Tab-and-slot designs eliminate the need for external clips, though they may sacrifice some of the clean exterior aesthetic.

When the display must ship fully loaded

This multi-piece design is intended to ship flat and be assembled in the store. If you need to ship the display with products already loaded on the shelves, you should evaluate a pre-glued or reinforced shipper-display hybrid that can handle the combined weight of the product and display during transit.

Hardware sourcing, board selection, and print layout

Board grade and fastener tear-out

The primary failure risk for a hardware-secured display is the fastener tearing through the corrugated board under heavy load. Specifying a double-wall board like EB or BC flute increases tear-out resistance at the connection points compared to a standard single-wall material.

Hardware specification

The exact diameter and grip range of your chosen display clips or binding screws must be known before finalizing the template. The die-cut holes will be sized specifically to match your procured hardware, ensuring a tight, secure fit.

Print layout around fastener heads

The heads of the external fasteners will be visible on the outside of the side walls. Your artwork layout must account for these circular interruptions to avoid placing critical text or logos directly under a plastic clip.

Shelf angle and product center of gravity

The downward slant of the shelves must be balanced against the product's center of gravity. Taller products may tip forward if the angle is too steep, requiring adjustments to the shelf tilt or the height of the front retaining lip.

Shelf count, presentation angle, and lip height

Shelf count and spacing

The number of shelves can be increased or decreased based on the product height. The vertical distance between shelves is fully adjustable, allowing the display to accommodate mixed product sizes or uniform rows.

Presentation angle

The downward slant of the shelves can be adjusted to match the product's center of gravity and the expected viewing height. Steeper angles improve visibility but require a taller front lip to keep products secure.

Front lip height

The retaining lip on the front edge of each shelf can be raised or lowered. A taller lip provides more security for heavy or unstable items, while a shorter lip increases the visible area of the product packaging.

Packing details

Print surfaces and hardware visibility

The header, side walls, and front base panel offer large, uninterrupted surfaces for high-quality graphics. Keep in mind that the heads of the external fasteners will be visible on the outside of the side walls, which should be factored into the artwork layout.

Additional notes

Fastener grip range and board thickness

When sourcing your display clips, ensure their grip range accommodates the combined thickness of the side wall and the folded shelf flap. If the board grade is upgraded to double-wall, longer fasteners will be required.

FAQs

Are the plastic clips included with the display?

Corrugated converters manufacture the board components, but the external fasteners like clips or screws are typically procured separately. You will need to arrange for these to be sourced and kitted into the final shipping box.

How long does it take to build in the store?

Because it requires aligning multiple loose panels and inserting individual fasteners at every joint, this display takes longer to assemble than a standard friction-fit unit. It usually requires two hands and a clear workspace.

Can the shelves hold heavy items like bottled beverages?

The display can support heavier items, provided the board grade is upgraded to match the weight. Heavy items put stress on the fastener holes, so a double-wall corrugated board is often required to prevent the clips from tearing through the cardboard.

Can we change the angle of the shelves?

The shelf slant can be adjusted during the structural design phase to suit your specific product. The template automatically recalculates the hole alignments to ensure the hardware still fits perfectly.

How is this display shipped to stores?

The display components are packed completely flat inside a master outer shipper, alongside the bagged hardware and an instruction sheet.

Will the hardware cover up my artwork?

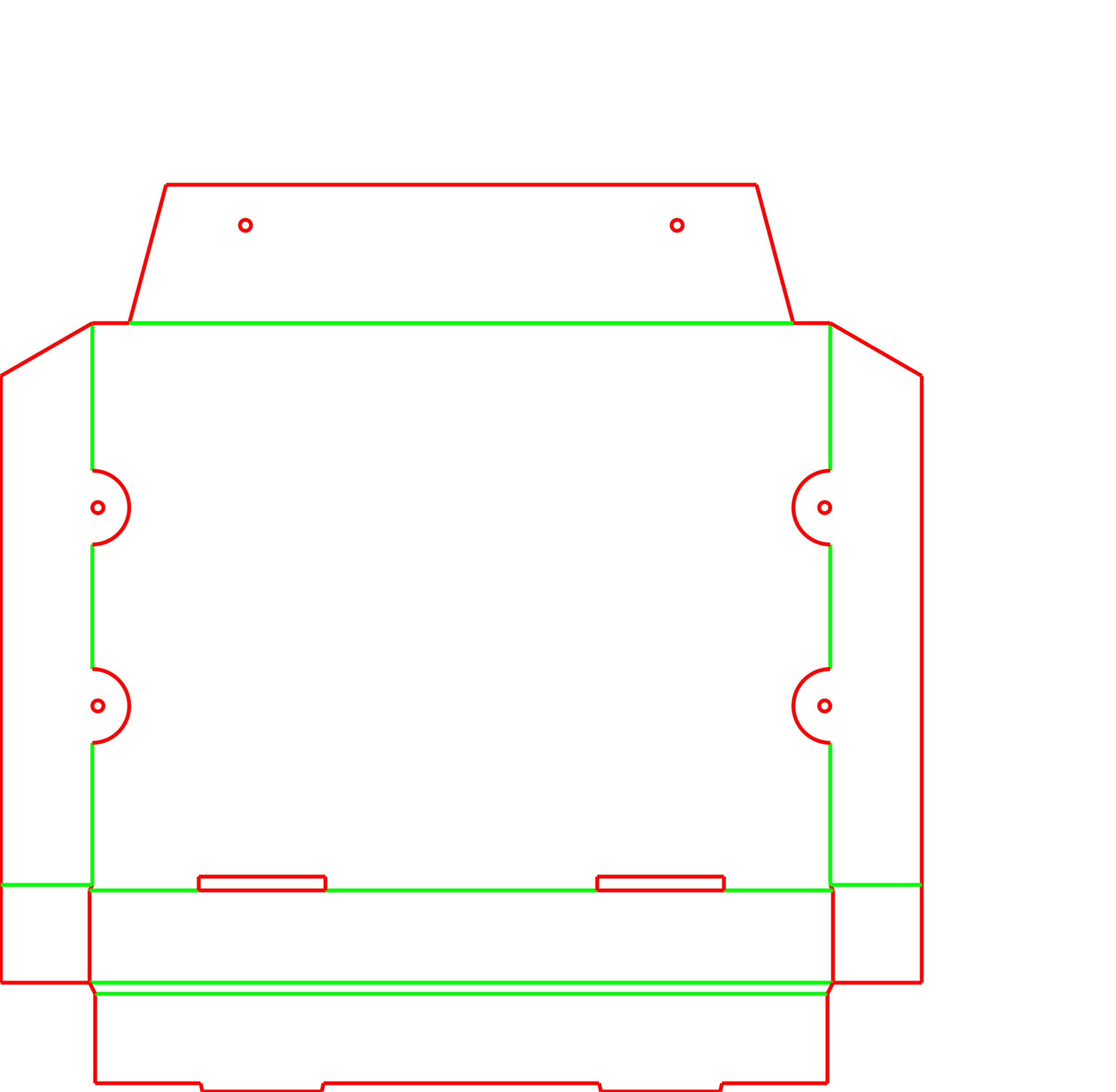

The fastener heads will be visible on the exterior side walls. Your structural designer can provide a dieline that shows exactly where these holes are located so your graphic team can keep critical logos or text clear of the clips.

What type of board is best for this display?

The choice depends on the product weight. For lighter items, a sturdy single-wall board may suffice. For heavier goods, a double-wall board is recommended to prevent the fasteners from tearing out of the corrugated material.

Can this display be shipped with products already on the shelves?

This is a multi-piece kit designed to be shipped flat and assembled at the retail location. It is not designed to be moved as a fully loaded, pre-assembled unit.
