EVC62026

One-Piece 3-Shelf Retail Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Three integrated shelves formed from front cutouts
Ships flat (KD) after side-seam gluing
Manual assembly required at the retail or co-packing level

About this product

The EVC62026 is a corrugated point-of-purchase display designed to present lightweight to medium-weight goods on three integrated shelves. Cut from a single piece of board, it features a back-wall header for branding and ships flat to reduce logistics costs.

Because the shelves are formed by folding the front panels inward, this design minimizes material waste while providing a clean, tiered presentation for retail floors or counters.

Common uses

End-cap retail displays
Countertop product launches
Lightweight snack or cosmetic presentations

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What types of products will sit on the shelves?

How will the displays be shipped to their final location?

Do you need a custom shape for the top header?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Point-of-Purchase Jobs

End-Cap and Floor Displays

This display style is well-suited for temporary retail promotions. The three tiers provide organized product separation, while the tall back wall extends into a header panel for campaign graphics.

Countertop Presentations

When scaled down, the same mechanism serves as a counter display for cosmetics, small electronics, or impulse-buy items near the register.

Seasonal Product Launches

The flat-shipping nature of this display makes it useful for coordinated national rollouts where stores need to set up temporary promotional space quickly.

Lightweight Snack and Confectionery

The fold-in shelf design easily supports bags of chips, candy, or baked goods, keeping them visible and accessible to shoppers.

Environments Using 3-Shelf Displays

Retail Rollouts and Co-Packing

Brands launching new products often use this style because it ships flat to the co-packer or retailer. Store staff pop the glued tube open, tuck the ends, and fold the shelves inward to complete the setup.

Trade Shows and Events

The lightweight, one-piece construction allows event teams to transport the display flat and assemble it on-site without needing separate shelf inserts or hardware.

Pharmacy and Convenience Stores

The compact footprint and tiered shelving help maximize limited floor or counter space, making it easier to place impulse items in high-traffic areas.

When to Consider Different Display Styles

Heavy or Industrial Products

The weight capacity of each shelf relies on the front corrugated hinge and the rear locking tabs. For heavy items like beverages or hardware, a display with separate, reinforced shelf inserts or a different base should be tested.

Pre-Loaded Transit

If the display must be shipped fully loaded with product, the shelves may bounce out of their rear slots during rough transit. This requires careful securing and a dedicated master shipping carton.

Board, Print, and Route Choices

Board Grade and Shelf Strength

A standard B-flute offers a good balance of rigidity for the shelves and crisp folding for the locking tabs. If a thicker board like C-flute is used for extra strength, the rear slot widths and tab clearances must be adjusted to prevent tearing.

Print Surface and Hinge Wear

The header, side walls, and front panels are highly visible. If using heavy ink coverage or litho-lamination, discuss score profile adjustments with the converter to prevent the shelf hinges from cracking when folded.

Shipping Method

Decide whether the display will ship knocked down to individual stores or be assembled and loaded by a co-packer. Pre-loaded displays require an outer master carton to protect the open front during transit.

Packing Labor and Assembly

Store staff or co-packers must manually pop the tube open, tuck the ends, and fold each shelf inward. Factoring this assembly time into the rollout plan is important for large campaigns.

Adjusting the Display Template

Header Customization

The top header profile can be die-cut into custom shapes to highlight a brand logo or specific promotional artwork.

Shelf Spacing

The vertical distance between the three shelves can be adjusted to accommodate different product heights, provided the overall display height is recalculated.

Base Height Adjustment

The distance from the floor to the first shelf can be raised or lowered to position products at a better viewing angle for shoppers.

Packing details

Blank Size and Die-Cutting

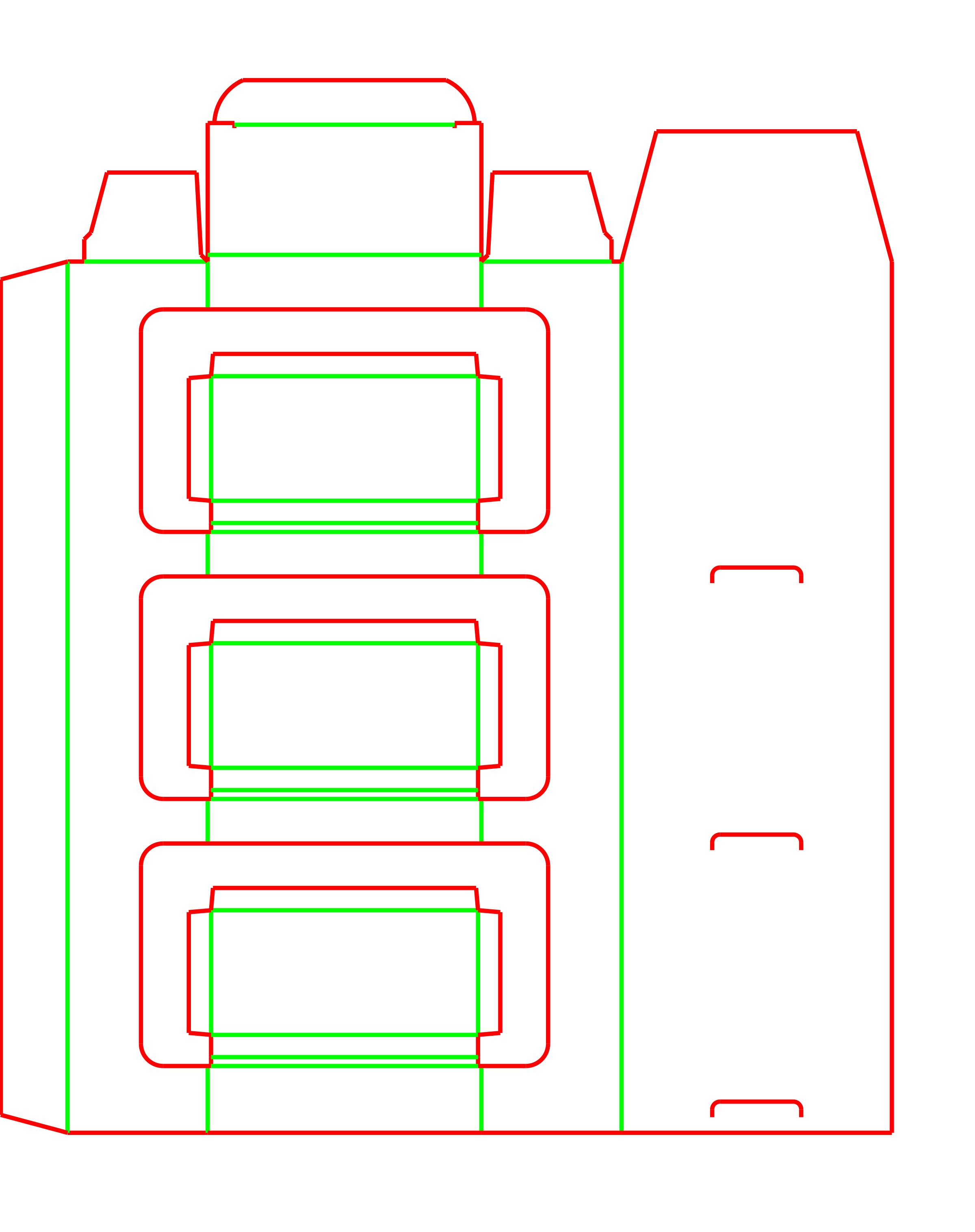

Because this is a one-piece design that includes the full height, header, and top/bottom flaps, the flat blank is quite large. It requires a converter with a flatbed die-cutter large enough to handle the full footprint.

Additional notes

Shelf Locking Mechanism

Each shelf features tabs on its back edge that insert into horizontal slots on the back wall. This prevents the shelf from collapsing downward at the rear.

FAQs

How much weight can the shelves hold?

Shelf capacity depends entirely on the chosen board grade and the product's weight distribution. Because the shelves rely on a front fold hinge and rear locking tabs, physical load testing with the actual product is strongly recommended before a full production run.

How is the display assembled at the store?

The display arrives flat. Staff pop the main tube open, fold and tuck the top and bottom flaps to square the base, and then push the three front panels inward. The back edge of each shelf folds down and locks into slots on the back wall.

Can this display be shipped directly via parcel?

No. The open front windows and lack of outer protection mean it is not a shipping container. It must be shipped flat or placed inside a protective master carton if moving through courier networks.

Can I change the number of shelves?

This specific template is hardcoded for exactly three shelves. Changing to a two-shelf or four-shelf design requires a different template or custom structural design work.

Where can graphics be printed?

The header, side walls, and the remaining front panel areas are prime locations for branding. The shelves themselves are formed from the front cutouts, so the top surface of each shelf will display the inside liner of the corrugated board unless both sides are printed.

Can the header be a custom shape?

Yes. The header extends from the back wall and can be die-cut into custom contours to match your logo or campaign artwork without changing how the shelves assemble.

Will the shelves sag over time?

Over time, corrugated board can fatigue under constant weight. If the display will be used for a long-term promotion or holds heavier items, a thicker board grade or a design with separate rigid shelf inserts may be a safer choice.

Does this display require glue or tape to assemble?

The side seam is glued by the converter before delivery. Final assembly at the store or co-packer is entirely mechanical, using tuck flaps and locking tabs, so no tape or additional glue is needed.
