EVC62030

Multi-Shelf Corrugated Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Flat back for flush wall or end-cap placement
Multi-piece tab-and-slot assembly
Central spine supports multiple adjustable shelves

About this product

The EVC62030 is a multi-piece corrugated floor display designed for retail end-caps and wall-flush placements. It features a flat back to save aisle space and a curved front that provides a 180-degree viewing angle for merchandise.

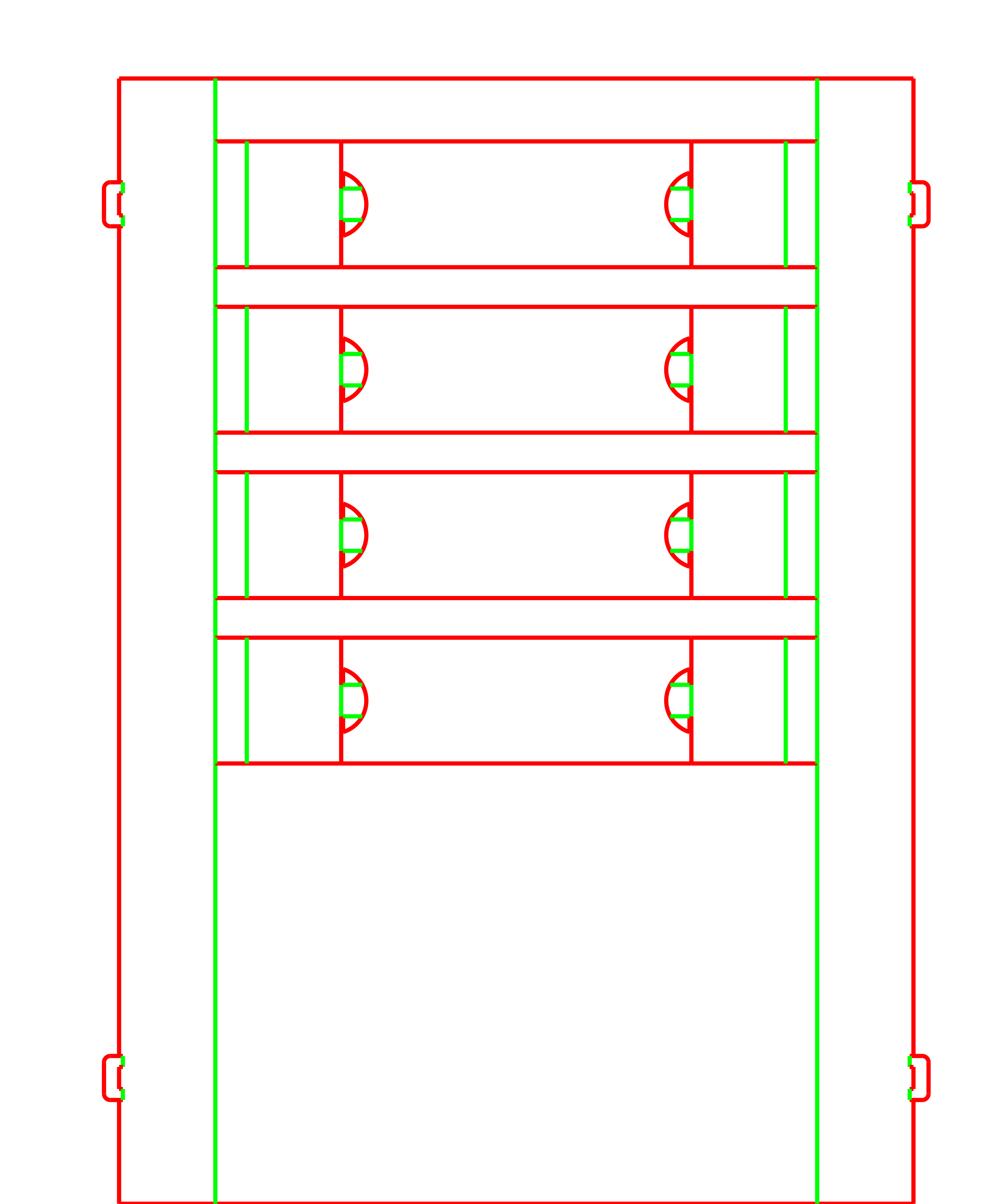

Built entirely with mechanical tab-and-slot connections, this display requires no glue or tape. A central vertical divider supports multiple D-shaped shelves, while the curved front panel wraps around the assembly and locks into the rear wall to hold the structure under tension.

Common uses

Retail end-caps
Aisle-flush product launches
Light to medium weight merchandise

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall width

Overall depth

Overall height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these displays be shipped to stores?

How many shelves do you expect to need?

Do you need a separate header card for branding at the top?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Placements for the Multi-Shelf Display

End-Cap and Wall-Flush Merchandising

The D-shaped footprint allows the display to sit tightly against store walls or gondola end-caps. The flat rear panel maximizes floor space, while the curved front ensures products are visible from multiple approach angles.

Multi-Tier Product Assortments

With multiple shelves supported by a central vertical divider, this structure is well-suited for organizing product families, varied sizes, or mixed assortments in a single standalone unit.

Aisle-Facing Product Launches

The 180-degree curved front creates a prominent billboard for new product introductions. Shoppers walking down the aisle can see the merchandise and branding before they reach the display head-on.

Lightweight Packaged Goods

This tab-and-slot design is an excellent fit for snacks, cosmetics, small boxed items, and apparel accessories. The central spine provides stability without requiring heavy-duty cross-bracing.

Merchandising and Store Rollouts

Retail Campaign Rollouts

Because the display ships flat as a multi-piece kit, it is efficient for distribution to individual retail locations. Store staff assemble the internal framework and wrap the printed body panel without needing specialized tools or adhesives.

Seasonal Promotions

For temporary holiday or seasonal pushes, this corrugated stand provides a substantial retail presence that can be easily broken down and recycled once the promotion ends.

Trade Show Exhibitions

The tool-free assembly and flat-packing nature make this display useful for trade show booths. Exhibitors can transport the kit easily and set up a professional shelving unit on-site.

When to Consider Alternative Display Structures

Heavy or Dense Merchandise

While the central divider provides vertical support, corrugated shelves have limits. If you are displaying heavy liquids or dense metal parts, a display with a cross-divider or reinforced shelving may be necessary to prevent sagging.

360-Degree Aisle Placements

If the display will be placed in the center of an aisle where shoppers approach from all sides, a fully cylindrical or multi-sided display is a better fit than this flat-backed design.

Key Specifications for Display Production

Board Thickness and Assembly Fit

The stability of this display relies entirely on intersecting slots and locking tabs. The board thickness must be decided early, as the slot widths in the cutting file must be precisely matched to the material to prevent the shelves from wobbling or the locking tongues from binding.

Print Layout and Large-Panel Production

The curved front body and the flat rear wall are large, continuous panels. This requires large-format flatbed die-cutting and printing. Consider how your graphics will wrap around the curved front and whether the internal divider or shelves require two-sided printing.

Shelf Load and Product Weight

Determine the total weight each shelf must hold. This dictates whether a standard B-flute board is sufficient or if a heavier C-flute or double-wall material is required to prevent the shelves from bowing over time.

Shipping and Distribution Method

Since the display components ship flat, you will need to plan an outer shipping carton. Consider whether the kit will be shipped individually via parcel networks or bulk-packed on pallets for distribution centers.

Modifying the Display Layout

Adjusting Shelf Count and Vertical Spacing

The number of shelves and the vertical distance between them can be adjusted to fit your specific product heights. Changing these parameters will alter the overall height of the display and the required blank size for the vertical panels.

Base Height and Floor Clearance

The bottom offset, or plinth, elevates the lowest shelf off the floor. This can be raised to bring products closer to eye level or to protect merchandise from floor-level scuffing and cleaning equipment.

Header Card Integration

While the base template defines the main body, a separate header piece can be integrated into the top of the rear wall or body panel to increase branding space above the top shelf.

Packing details

Assembly Sequence and Tension Locking

This is a multi-step assembly. The internal frame (divider and shelves) is built first. The curved front panel is then wrapped around the shelves, capturing their front edges. Finally, the flat rear panel is positioned, and tuck tongues from the curved front are inserted into the rear panel to lock the display's tension.

Additional notes

Large-Format Production Requirements

The tall vertical panels of this display require large-format flatbed die-cutting equipment. It cannot be produced on standard rotary slotters.

FAQs

Does this display require glue or tape to assemble?

No. The entire structure uses mechanical tab-and-slot connections. The shelves intersect with a central divider, and the curved front panel locks into the flat rear panel using tuck tongues.

How much weight can the shelves hold?

Shelf capacity depends entirely on the chosen board grade (such as C-flute or EB double-wall) and the dimensions of the display. The central divider helps transfer weight to the floor, but physical load testing is required to confirm performance for your specific merchandise.

How is this display shipped to stores?

The display is manufactured and shipped as a flat, multi-piece kit. It requires an outer shipping carton for parcel or freight distribution to retail locations, where it is assembled on-site.

Can I add a custom header card?

Yes. While the base template defines the main body and shelves, a separate header piece can be integrated into the top of the rear wall or body panel to increase branding space.

Why is the board thickness so critical for this design?

Because the display relies on friction and intersecting slots rather than glue, the width of every slot must exactly match the thickness of the corrugated board. If the board is changed later, the cutting dies must be updated, or the display will not assemble correctly.

Is this display easy for retail staff to set up?

It requires a specific sequence: building the internal shelf frame, wrapping the curved front, and locking the rear panel. While it needs no tools, it is a multi-step process that takes more time than a simple pop-up bin.

Can the shelves be adjusted after the display is assembled?

No. The shelves lock into the central divider and the curved front panel. Changing shelf heights requires disassembling the front and rear panels to reposition the internal framework.

What kind of artwork works well on the curved front?

Continuous patterns or repeating logos work well. Avoid placing critical text exactly on the sharpest part of the curve, as it may distort slightly depending on the board thickness and how tightly the panel is wrapped.
