EVC62062

360-Degree Multi-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Multi-piece kit: Central body, base, outer frames, and shelves
100% tab-and-slot mechanical assembly
Delivered flat for retail store setup

About this product

The EVC62062 is a freestanding corrugated floor display designed for multi-sided retail browsing. Instead of a traditional three-wall tray, it uses a central structural pillar to anchor shelves that extend outward, supported by outer vertical frames.

Because it is a multi-piece kit relying on tab-and-slot assembly, it requires manual setup at the retail level. It is customizable, allowing different board grades for the load-bearing spine and the individual shelves.

Common uses

Aisle merchandisers
Freestanding POP displays
Multi-sided product promotions

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Overall footprint width

Usable shelf depth

Target shelf count

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Will the display sit directly on a retail floor that gets mopped?

How will the display be shipped to stores?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Merchandising and Floor Placements

Freestanding Aisle Merchandisers

Useful for open floor spaces where shoppers approach from multiple directions. The central spine design allows products to be shopped from opposite sides simultaneously.

High-Traffic Retail Intersections

Because products face outward from the central pillar, this display works well in wide aisles or store entrances where a flat wall display would waste valuable facing space.

Multi-Product Campaigns

The separate shelves and dual-sided access make it easy to separate different product lines, flavors, or co-branded items on the same freestanding unit.

Modular Product Promotions

Practical for campaigns requiring varying shelf heights or counts. The tab-and-slot design allows the shelf configuration to be adjusted during the structural design phase.

Fulfillment and Store-Level Rollouts

In-Plant Kitting Operations

This display is manufactured as separate flat components. It is typically shipped as a knocked-down kit, either packed with the retail goods in a master shipper or sent separately for store staff to assemble.

Retail Store Assembly

Store personnel must erect the central pillar, wrap the base, attach the side frames, and insert each shelf. The assembly burden is higher than pop-up displays, making it better suited for longer-term promotional placements rather than quick weekend features.

Long-Term Floor Placements

The heavy central spine and multi-piece construction provide stability over time. This makes the display a strong candidate for multi-week retail programs where a lighter pop-up unit might lean or sag.

When to Consider Simpler Display Formats

When store staff need instant setup

If store compliance is a concern and staff have limited time, compare this to auto-bottom or pre-assembled pop-up displays. The EVC62062 requires following a multi-step assembly sequence.

Wall or end-cap placements

If the display will be pushed flat against a wall or gondola, a traditional three-wall tray display uses less material and is often easier to load than a central-spine design.

Board, Kitting, and Production Choices

Mixed Board Choices

The central pillar carries the entire vertical load and often requires a heavier double-wall board. The shelves and outer frames can sometimes use a thinner single-wall board to reduce weight and cost. The template supports these mixed-caliper adjustments.

Large-Format Cutting Needs

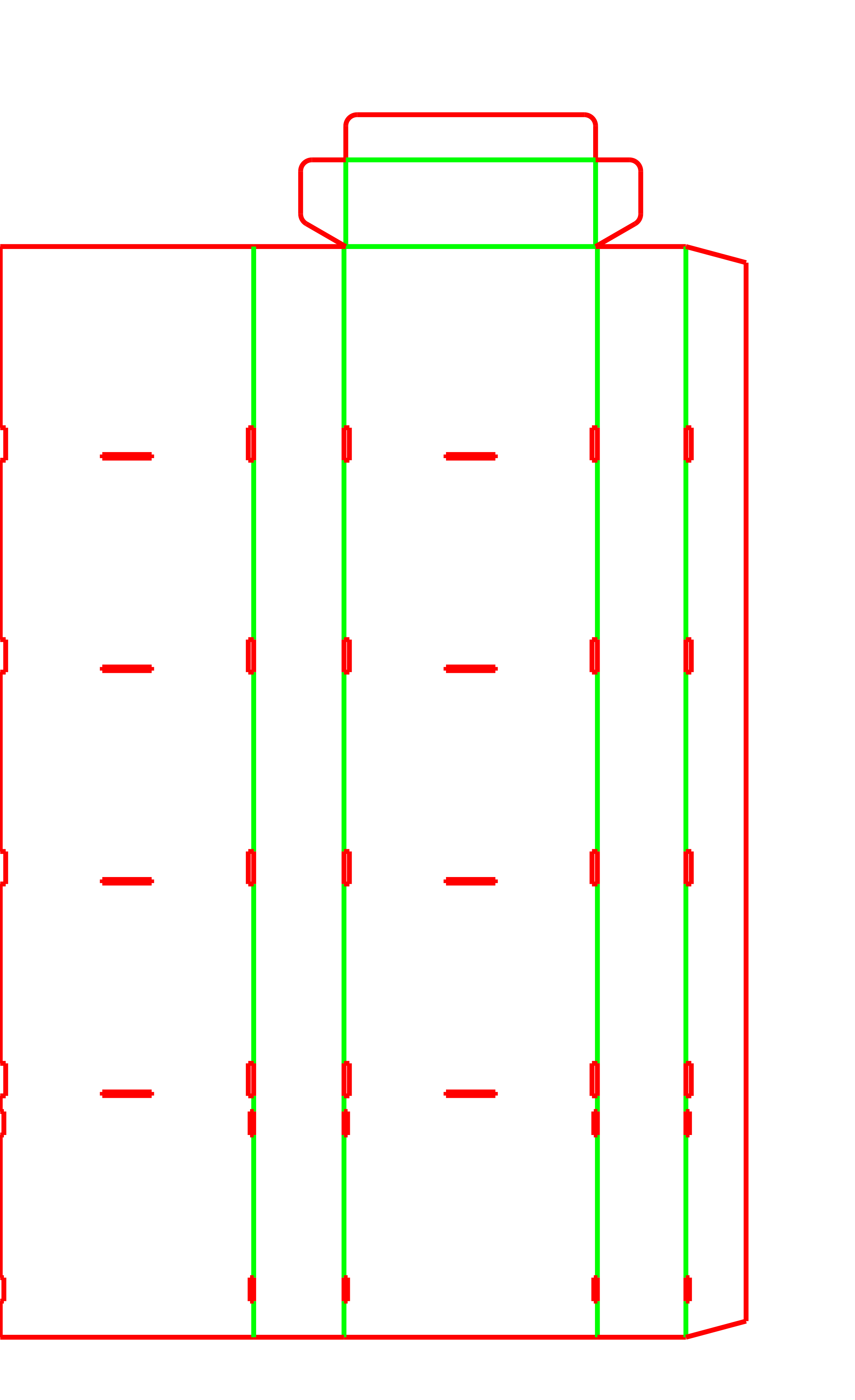

The central body is a single large blank that folds into a tall pillar. Depending on the final display height, this blank can exceed two meters in length, requiring a large-format flatbed die-cutter.

Physical Load Testing

While the shelves feature fold-down lips to resist bending, the actual weight capacity depends entirely on the chosen board grade and the friction fit of the tab-and-slot joints. Physical prototypes should be loaded with real product to check for shelf deflection.

Base Wrap and Floor Protection

The separate base component wraps around the bottom of the pillar and sits directly on the retail floor. If the store environment involves frequent mopping, consider a treated linerboard or coating for this specific piece.

Adjusting the Display Structure

Shelf Count and Spacing

The number of shelves and the vertical distance between them can be adjusted. Changing the shelf count automatically recalculates the required height of the central pillar and outer frames.

Tab and Slot Clearances

The locking tabs and receiver slots must be precisely sized to the actual measured thickness of the corrugated board. If the board changes, these clearances must be updated to prevent the joints from tearing or fitting too loosely.

Header Card Integration

While the base template focuses on the shelves and pillar, the top of the central body can be modified to accept a slotted header card for additional branding.

Packing details

Base Wrap Stability

A separate base component wraps around the lower section of the central pillar. This widens the footprint to prevent the display from tipping and provides a continuous surface for lower-level branding or mop protection.

Additional notes

Moisture and floor protection

The base wrap sits directly on the retail floor. If the store environment involves frequent mopping, consider a treated linerboard or coating for the base component to prevent moisture wicking.

FAQs

How is this display assembled at the store?

It requires manual assembly. Staff fold the central pillar, wrap the base around the bottom, position the outer vertical frames, and then fold and insert each shelf into the locking slots. It is a multi-step process.

Can I use different board grades for different parts?

Yes. It is common to use a heavy, rigid board for the central load-bearing pillar and a lighter board for the shelves and outer frames. The structural design must be adjusted for each specific board thickness so the tabs fit correctly.

Are there size limits for manufacturing this display?

The central pillar is cut from a single sheet of corrugated board. For tall displays, this blank can be very large, which requires a converter with a large-format flatbed die-cutter.

How does this ship to retailers?

The components are delivered flat. They are usually kitted together in a master shipping carton, sometimes alongside the retail products, to be built on-site.

How do the shelves support product weight?

Each shelf has front and back edges that fold down 90 degrees to create a rigid lip. The sides and back of the shelf lock into the central pillar and the outer frames, distributing the weight across the vertical supports.

Do I need a prototype?

Yes. Because the display relies on friction-fit tabs and corrugated board strength, you should always test a physical sample with your actual products to ensure the shelves do not sag and the pillar does not buckle.

Can we print on the inside of the central pillar?

Yes, if the design leaves the pillar visible between products, the central body blank can be printed. This requires running the large blank through the press before die-cutting.

What happens if we change the corrugated board thickness later?

The locking tabs and slots are sized exactly to the board thickness. If you change the board grade, the structural design must be updated so the display still fits together tightly without tearing.
