EVC62057

360-Degree Multi-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

360-degree product access with an octagonal footprint
Distributed load path via central core and four outer pillars
Requires multi-piece tab-and-slot assembly at the store

About this product

The EVC62057 is a multi-piece corrugated floor display designed for open retail aisles and club stores. Featuring an octagonal footprint, it provides 360-degree product access while distributing weight across a central load-bearing core and four outer pillars.

Because it relies on a multi-piece tab-and-slot architecture, it requires pre-gluing by the converter and planned assembly time at the store level. It is an excellent choice for high-visibility merchandising where standard square displays would block sightlines.

Common uses

Club store aisles
Endcap transitions
High-volume promotional rollouts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall footprint width

Overall display height

Space between shelves

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Where will this display be assembled and packed?

How many product shelves do you need?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Environments for 360-Degree Displays

Club Store and Open Aisle Merchandising

The octagonal shape and open sides allow shoppers to approach and select products from any direction. This makes it highly effective for wide aisles, club store environments, and intersection endcaps where a solid-walled display would create a visual barrier.

High-Volume Product Presentations

By relying on a central core and four outer pillars, the structure distributes vertical weight more effectively than a simple open-shelf design. It is well-suited for stacking multiple tiers of boxed or rigid retail goods.

Multi-Tier Assortments

The multiple shelves allow brands to present different product variations, flavors, or sizes on separate levels. The open architecture ensures all variations remain visible from any approach angle.

Seasonal and Promotional Rollouts

For temporary high-impact campaigns, the tall octagonal tower draws attention in open floor spaces. The large printable areas on the top cap and shelf edges help communicate promotional messaging.

Merchandising and Promotional Rollouts

Retail Rollouts and Co-Packing

Because the display consists of multiple components, including a base, top cap, central core, outer pillars, and multiple shelves, it is typically shipped flat to a co-packer or retail location. If pre-packed by a co-packer, it requires a large master shipper or shroud for safe transit to the store.

Club Store Procurement

Club environments often require displays that can hold large product volumes while surviving high-traffic aisles. The central core and outer pillars provide the necessary vertical support for these demanding retail spaces.

Brand Merchandising Teams

Merchandisers looking to maximize brand visibility in open spaces benefit from the 360-degree access. The design allows for branding on the top cap, the base, and the folded shelf edges, ensuring the brand is seen from all sides.

When to Consider Simpler Display Styles

Rapid Store-Level Setup

If retail staff have very limited time for assembly, a multi-piece tab-and-slot display may be too complex. Consider a one-piece pop-up display or a pre-assembled dump bin if instant setup is a strict requirement.

Heavy Liquid or Industrial Goods

While the central core provides strong vertical support, the span of the shelves between the core and outer pillars can bow under dense, heavy items like large beverage bottles. Physical weight testing is mandatory, and a different structural style may be needed for extreme loads.

Planning for Weight, Print, and Assembly

Shelf Weight Capacity and Board Grade

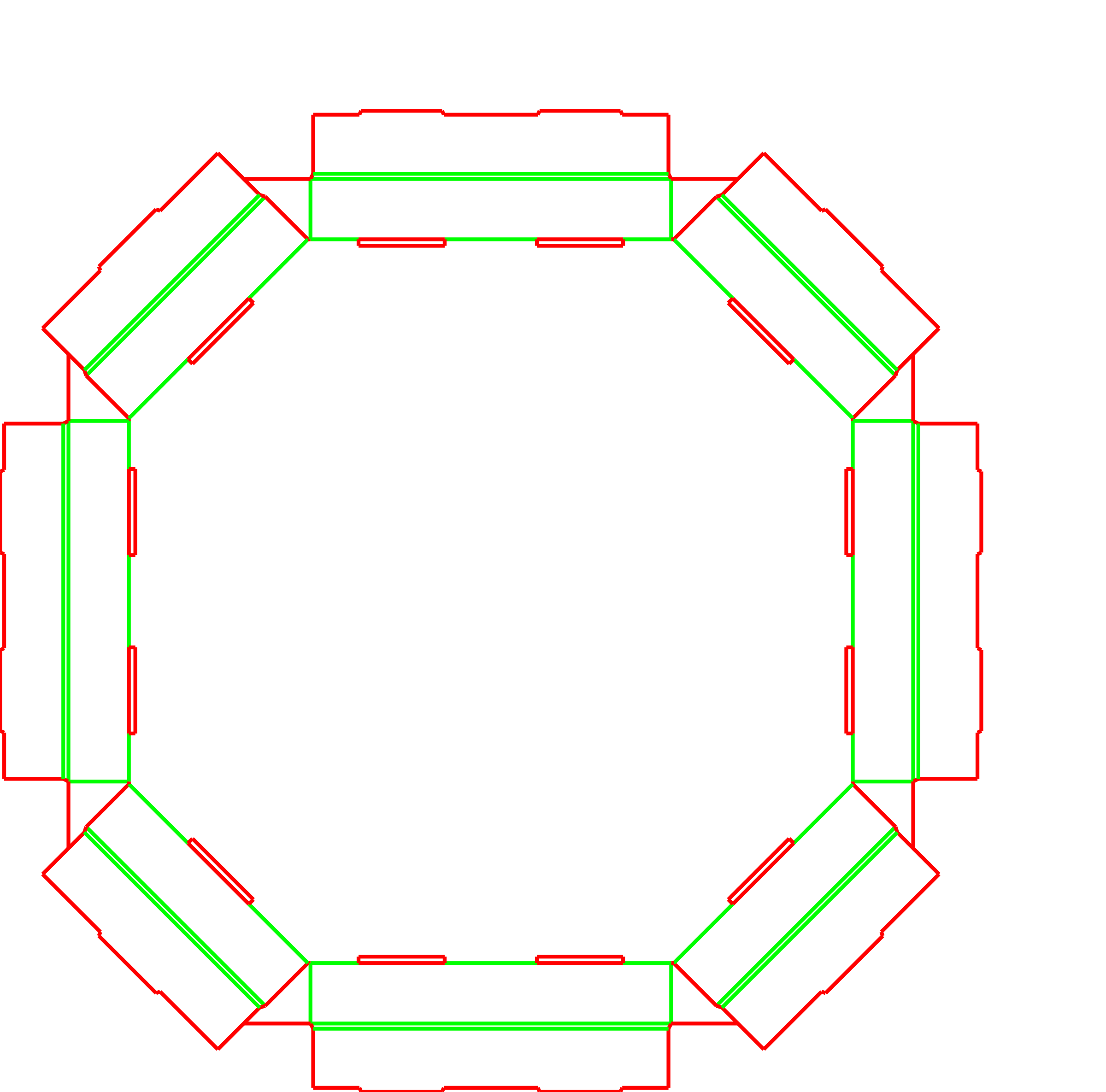

The weight of the product dictates the required board grade. The shelves feature 180-degree folded perimeter edges to prevent bowing, but the material thickness must be carefully matched to the load. Upgrading to a double-wall board increases strength but requires recalculating all slot and tongue clearances.

Pre-Gluing and Kitting

The central core and four outer pillars are formed from flat tubes that must be pre-glued by the converter. Buyers should confirm how the components will be kitted together for delivery to ensure all pieces arrive at the store in a single package.

Print Surface Planning

Because the shelf edges fold 180 degrees inward to create a rigid rim, the inside of the flat blank becomes the visible outer edge of the shelf. Artwork must be mapped carefully to ensure graphics appear correctly on the assembled display.

Assembly Labor and Store-Level Setup

The multi-piece nature of this display requires dedicated time for store associates to build the base, insert the core, stack the shelves, and lock the outer pillars. Providing clear, visual instructions is necessary for a successful rollout.

Adjusting the Display Structure

Shelf Count and Spacing

The number of shelves and the vertical distance between them can be adjusted to fit the specific product height. Changing these dimensions automatically updates the length of the central core and outer pillars.

Footprint Dimensions

The overall width and length of the octagonal base can be scaled. However, widening the display increases the unsupported span of the shelves, which may require a stronger board grade to prevent sagging.

Folded Rim Height

The height of the 180-degree folded perimeter edges on the shelves and base can be modified. A taller rim provides more space for printed branding and helps retain loose products, while a shorter rim maximizes vertical clearance between shelves.

Packing details

Assembly Friction and Tab Clearances

During setup, operators must slide the outer pillars through aligned slots in multiple shelves. If the board is too thick for the cutouts, the tuck tongues can crush or tear. Prototyping is essential to verify that the display can be assembled smoothly without damaging the visible components.

Additional notes

Shelf Bowing Risk

The primary structural limit is the span between the central core and the outer pillars. If products are too heavy, the shelves may sag over time, even if the vertical pillars remain strong.

Store-Level Labor

This is a multi-step assembly process. It is highly recommended to provide clear, visual instructions for retail staff to ensure the tabs are locked correctly and the folded edges are fully seated.

FAQs

How is this display assembled at the store?

The base is formed by folding its edges inward. The pre-glued central core is popped open and locked into the base. Shelves are then threaded over the core, and the four pre-glued outer pillars are inserted through the shelf slots to lock the structure together. Finally, a top cap is added.

Does it require tape or tools to build?

No. The vertical pillars are pre-glued by the manufacturer. On-site assembly relies entirely on mechanical tab-and-slot locks and folded edges, requiring no tape, glue, or tools.

Can this display hold heavy items?

It distributes weight well through its central core and four outer pillars, but the shelves can bow if overloaded. The exact weight capacity depends on the chosen board grade and the footprint size, making physical testing necessary before a full production run.

Where can graphics be printed on the shelves?

Graphics can be printed on the top surface of the shelves. Additionally, because the perimeter edges fold 180 degrees to form a rigid rim, the inside of the flat blank becomes the visible outer edge, allowing for branded shelf lips.

Can this display be shipped via parcel networks?

No. This is a retail merchandising structure, not a shipping container. It must be shipped flat to the store or co-packer, or transported fully assembled inside a protective master shipper on a pallet.

Why does this display require multiple cutting dies?

Because it is a multi-piece structure consisting of a base, top cap, shelves, a central core, and outer pillars, the different component shapes usually require separate flatbed die-cutting tools to manufacture.

How are the shelves kept rigid?

Each shelf features perimeter flaps that fold inward 180 degrees. This creates a double-thick rim that stiffens the horizontal plane and helps prevent the shelf from bowing under product weight.

How does the central core work?

The central core is a pre-glued vertical tube that passes through the center of every shelf. It acts as the primary load-bearing pillar, transferring the bulk of the product weight directly down to the base.
