EVC62065

360-Degree Multi-Tier Floor Display

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • 360-degree retail visibility
  • Multi-piece interlocking assembly
  • Ships flat inside a separate master carton

About this product

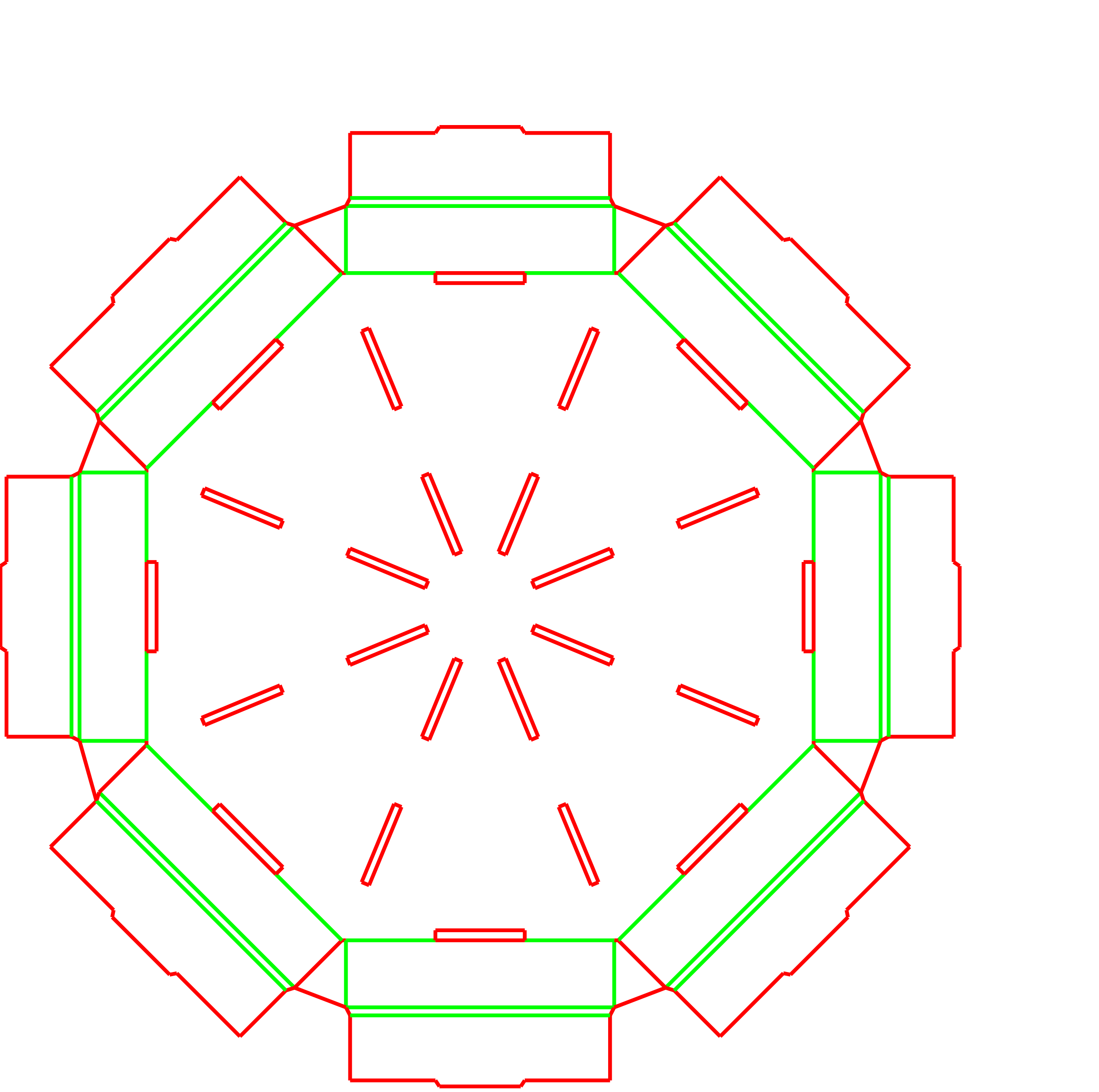

The EVC62065 is a freestanding, multi-tier corrugated floor display built for 360-degree shoppability. Built from octagonal trays, radial vertical dividers, and a conical header, it creates a prominent retail tower accessible from all sides.

Because it relies on a multi-piece, tab-and-slot interlocking system, it ships flat efficiently but involves dedicated in-store assembly. It is a strong fit for lightweight to medium-weight promotional merchandise like cosmetics, snacks, or seasonal items.

Common uses

  • Cosmetics promotions
  • Snack and confectionery aisles
  • Small electronics displays
  • Seasonal merchandise towers

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Aisle promotions and 360-degree retail displays

Aisle and endcap promotions

The octagonal footprint and radial compartments make this display a strong fit for open floor spaces where shoppers approach from multiple directions. It naturally organizes assortments of small to medium items.

Lightweight to medium-weight merchandise

The display relies on the intersecting corrugated dividers to support the shelves. It performs well with cosmetics, snacks, small electronics, or apparel accessories. Heavy goods can cause the interlocking slots to tear or the shelves to sag.

Seasonal and temporary retail campaigns

Because the entire tower is made of corrugated board, it can be recycled after a short-term promotional push. The flat-packed delivery helps distribute displays to many stores at once.

Multi-SKU product assortments

The radial dividers separate each shelf into distinct compartments. This layout helps merchandise different flavors, colors, or variations of a product on the same tier without mixing them.

National rollouts and in-store merchandising

Retail rollouts

For national or regional campaigns, these displays ship flat to distribution centers or directly to stores. The flat delivery reduces freight costs, though the multi-piece kit needs a dedicated outer shipper for protection.

In-store merchandising teams

Assembly is tool-free but involves aligning multiple vertical dividers into the radial slots of the horizontal trays. Retail staff should be provided with clear instructions, as the process takes more time than a simple pop-up bin.

Trade shows and exhibition booths

The 360-degree access makes this tower useful for temporary event spaces where attendees walk around the display. The conical header provides a high-visibility surface for branding.

When to compare simpler cross-divider displays

When rapid store-floor setup is a priority

If store staff have very limited time for merchandising, a pre-assembled display shipper or a simpler pop-up structure may be a better choice than this multi-piece interlocking kit.

When displaying heavy items

If the payload includes heavy beverages or hardware, a display with a reinforced central column or a different load path should be evaluated to avoid buckling.

Board thickness, two-sided print, and master cartons

Board grade and slot clearances

The thickness of the corrugated board directly dictates the width of the interlocking slots. If the board grade changes to support more weight, the cutting die has to be recalculated to ensure the pieces still fit together securely without crushing.

Two-sided printing for dividers

Because the vertical dividers radiate outward from the center, both sides of the divider panels are visible to the consumer. This often involves two-sided printing or a mottled white inner liner for a clean presentation.

Master carton sourcing

This display is a kit of flat parts. It needs a separate outer shipping carton to protect the components during transit to the retail location.

Shelf count and vertical spacing

The distance between shelves can be adjusted to fit the height of the merchandise. Taller products mean fewer shelves can fit within the same overall display height.

Shelf count, vertical spacing, and header graphics

Number of shelves

The template can be adjusted to include more or fewer tiers depending on the product height and the target overall display height. Adding tiers increases the number of components and the assembly time.

Header graphics

The conical octagonal header caps the display and discourages shoppers from placing items on top. It provides a prominent surface for brand messaging and campaign graphics.

Vertical shelf clearance

The vertical spacing between each tray can be modified before production. This adjustment changes the length of the vertical dividers and the overall height of the tower.

Packing details

Production route and flatbed cutting

The large octagonal trays and radial dividers rely on flatbed die-cutting or large digital cutting tables. Rotary slotters cannot produce these complex interlocking shapes.

Additional notes

Outer shipper for the flat kit

The flat components of this display do not form their own shipping box. A separate, properly sized master carton is necessary to transport the kit safely through courier or freight networks.

Header panel alignment

The octagonal header is formed from eight triangular panels. Artwork should be planned carefully so that graphics align correctly across the fold creases when the pyramid is assembled.

Alternative floor displays

FAQs

Do I need tools or glue to assemble this display?

The entire structure uses a mechanical tab-and-slot system. The vertical dividers slide into radial slots on the trays to lock the tower together without tools or adhesive.

How long does it take to set up in a store?

Because it is a multi-piece kit involving the alignment of eight vertical dividers across multiple shelves, assembly is more involved than a standard pop-up display. We recommend testing a prototype to establish a realistic time estimate for retail staff.

How much weight can each shelf hold?

Weight capacity depends entirely on the chosen corrugated board grade and the integrity of the slot intersections. Physical load testing with your actual product is necessary before a full production run.

Do the divider panels need to be printed on both sides?

The radial layout means shoppers can see both sides of the vertical dividers. If two-sided printing is not used, the unprinted side will show the raw corrugated liner, which may affect the presentation.

Can this display be shipped fully assembled?

Shipping it fully assembled is generally not recommended. It would ship mostly empty air and be very susceptible to transit damage. It is intended to ship flat (knocked down) in a master carton.

Can we change the thickness of the cardboard later?

Changing the board thickness means recalculating all the interlocking slot widths. If the slots are too narrow, the display will not assemble; if they are too wide, the tower will be unstable. The material should be locked in before tooling is created.

Can the distance between shelves be adjusted?

The vertical spacing can be modified before production to accommodate taller or shorter products. This changes the length of the vertical dividers.

Is this display suitable for heavy beverages or hardware?

It is generally a better fit for lightweight to medium-weight items like cosmetics or snacks. Heavy goods can cause the corrugated slots to tear or the shelves to sag over time.
