EVC62068

360-Degree Multi-Shelf Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

360-degree product access for open retail aisles
Modular interlocking core allows adjustable shelf counts
Ships flat as a multi-piece kit for retail assembly

About this product

This freestanding corrugated floor display features modular octagonal shelves that provide product access from all sides. Built around a rigid interlocking central core and a stable square pedestal, it is designed for open-aisle retail promotions where shoppers approach from multiple directions.

Because the shelves overhang the central column, this design is best suited for lightweight to medium-weight packaged goods. The entire multi-piece structure ships flat and requires manual assembly by retail staff at the destination.

Common uses

Open-aisle promotions
End-cap adjacencies
Lightweight packaged goods
Seasonal retail rollouts

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Maximum width (footprint)

Number of shelves

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will sit on the shelves?

Where will this display be placed in the store?

How will the display be distributed to stores?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Environments and Product Fit

Open-Aisle Retail Promotions

The octagonal shelves and central column allow shoppers to view and pick products from any angle. This makes the display highly effective for freestanding placement in wide aisles, store entrances, or promotional action alleys where traffic flows around the entire unit.

Lightweight Packaged Goods

Because the outer edges of the octagonal shelves overhang the central support core, this structure is ideal for lighter items like snacks, cosmetics, or small boxed goods. Heavy items placed on the outer edges may cause the shelves to deflect over time.

High-Traffic Store Entrances

Placing a 360-degree display near store entrances captures shopper attention immediately. The multi-sided access prevents traffic bottlenecks, allowing several customers to browse the display simultaneously without blocking the main walkway.

Multi-SKU Merchandising

The segmented nature of the octagonal shelves and the central cross core naturally divides the display into distinct zones. This layout is useful for presenting different flavors, colors, or related product lines on separate sides of the same tier.

Promotional and Seasonal Rollouts

Trade Marketing and Brand Activations

For national retail rollouts, the display offers dedicated branding space on the four-sided header and the tall base pedestal. The multi-piece kit can be packed flat into a single master shipper, allowing brands to distribute complete promotional setups directly to individual store locations.

Seasonal Retail Campaigns

Temporary holiday or seasonal promotions benefit from the modular nature of this display. It can be shipped flat, assembled quickly for a short-term event, and recycled afterward, avoiding the logistics of retrieving permanent fixtures.

Club Store Environments

In large warehouse clubs with wide aisles, freestanding displays must command attention from a distance. The tall profile and multi-sided branding surfaces help this structure stand out in open floor plans.

When to Consider Single-Sided or Square Displays

Wall-Facing or End-Cap Placement

If the display will be pushed against a wall or the back of an end-cap, a 360-degree design wastes valuable merchandising space. A single-sided floor display with a continuous back wall provides better stability and more forward-facing product volume for those locations.

Heavy Beverage or Liquid Promotions

Because the octagonal shelves overhang the central core, heavy items like glass bottles or large liquid containers can cause the board to sag. If you are packing dense goods, a display with fully supported shelves or a pallet-based structure is a safer choice.

Board Choice, Kitting, and Print Surfaces

Board Grade and Shelf Deflection

The interlocking cross core and overhanging shelves require a rigid corrugated board, typically B-flute or C-flute, to maintain stability. If you are packing heavier items, the board grade must be carefully matched to the shelf span to prevent sagging.

KD Kitting and Master Shippers

This display consists of at least seven distinct flat components, including the base, tray, core panels, shelves, and header. You will need to plan for a master outer shipper to contain the collated kit, ensuring all parts arrive safely for store-level assembly.

Retail Assembly Labor

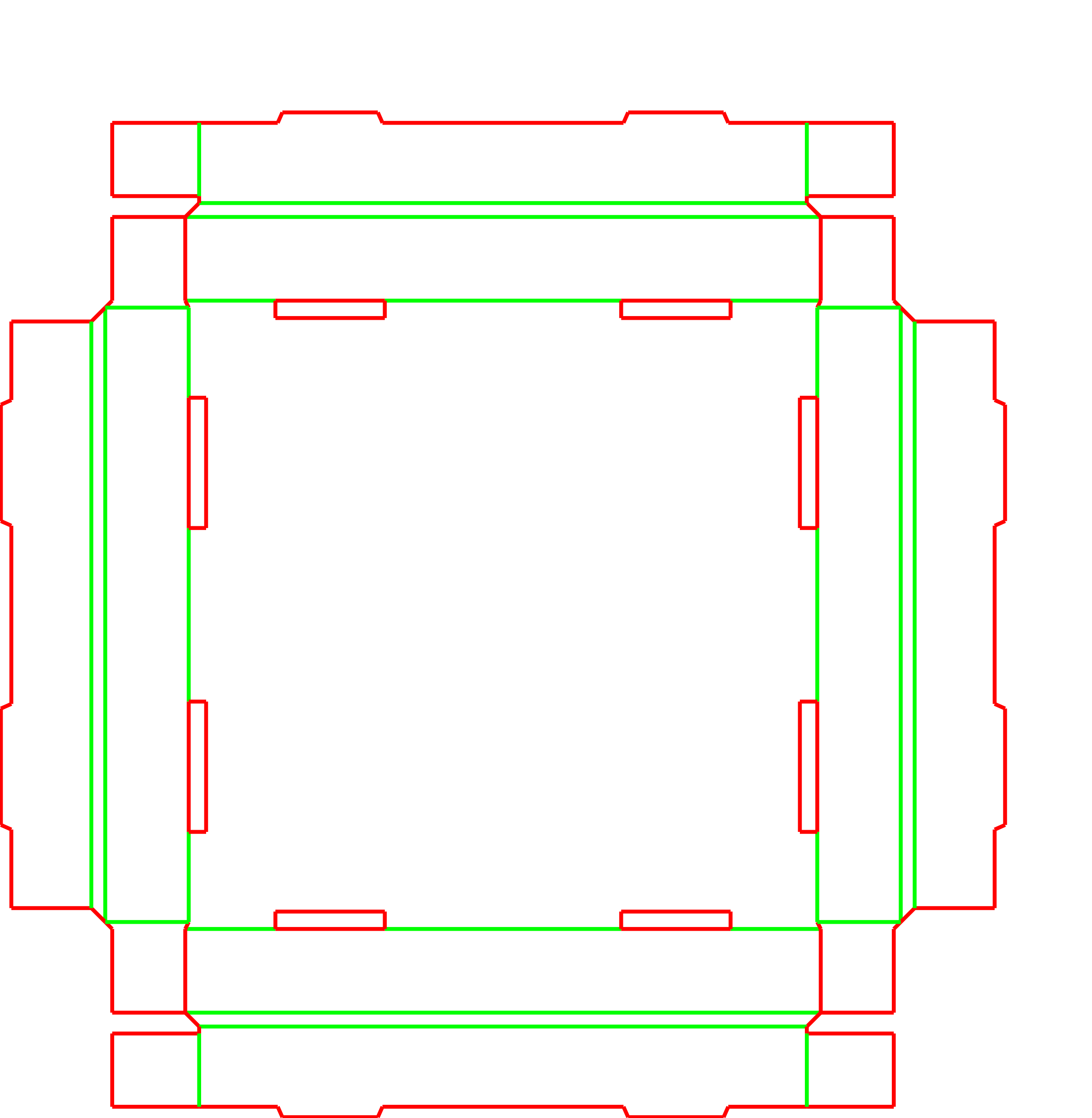

The structure relies on manual assembly. Retail staff must pop open the glued base, insert the stabilizing tray, interlock the central core panels, slide the shelves down into position, and cap the unit with the header. Providing clear, printed instructions inside the kit is highly recommended.

Print Surface Allocation

Decide where your primary graphics will live. The tall square base and the four-sided header offer the largest uninterrupted print areas. The shelves themselves have minimal front-facing lip space, so the core branding should focus on the top and bottom sections.

Adjusting Tiers and Display Height

Shelf Count and Spacing

The modular nature of the interlocking core allows you to specify the number of tiers and the vertical distance between each shelf. Taller products require fewer shelves with larger gaps, while smaller items can utilize more tiers to maximize inventory density.

Base and Header Proportions

The height of the bottom pedestal can be adjusted to raise the first shelf to an optimal shopping level. Similarly, the four-sided header can be scaled to accommodate different branding requirements or die-cut with custom top profiles.

Shelf Shape and Overhang

While the template uses octagonal shelves, the overall width and depth of the overhang can be adjusted. Extending the shelves too far increases the risk of deflection, so the overhang must be balanced against the weight of the intended product.

Packing details

Slot Friction and Caliper Matching

The central core relies on deep vertical slots that slide together to form a rigid cross. The width of these slots must be precisely matched to the exact thickness of the chosen corrugated board. If the slots are too wide, the display will wobble; if too narrow, the board will tear during assembly.

Additional notes

Base and Header Gluing

While the core and shelves assemble through mechanical interlocking, the square base pedestal and the top header are typically supplied as pre-glued tubes that simply pop open on the retail floor.

FAQs

How is this display assembled at the store?

Retail staff open the pre-glued base tube, insert a flat tray for stability, and then build the central column by sliding slotted core panels together. The octagonal shelves feature a central cutout that slides down over the core, and the pre-glued header caps the top.

Can this display hold heavy products like beverages?

It is generally better suited for lightweight to medium-weight items. Because the octagonal shelves overhang the central cross core, placing heavy items on the outer edges can cause the corrugated board to sag. Physical testing is recommended for heavier payloads.

How does the display ship to retail locations?

The display components are delivered flat. Because it is a multi-piece kit, the flat parts are typically collated and packed into a separate corrugated master shipper for transit to the store.

Where are the primary branding surfaces?

The most prominent branding areas are the four-sided top header and the tall square base pedestal. The shelves themselves offer minimal front-facing lip space, so the base and header carry the primary visual impact.

Can I change the number of shelves?

Yes. The interlocking core design is modular, allowing you to specify the total number of tiers and the vertical clearance between them to match your product height.

Why is a physical prototype important for this display?

A prototype verifies two critical factors: that the interlocking slots are sized perfectly for the board thickness so the core stays rigid, and that the overhanging shelves can support your specific product weight without deflecting.

Can I add dividers to the shelves?

While the standard template does not include shelf dividers, the open octagonal tiers can accommodate custom inserts if you need to separate different product flavors or keep small items organized.

Do I need a separate shipping box for the knocked-down kit?

Yes. Because this display is made of multiple flat components, it requires an outer master shipper to keep the parts protected and organized during transit to the retail store.
