EVC62107

Slanted Cell Stand Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Six-piece construction with intersecting cell dividers
Slanted two-tier presentation for clear visibility
Involves manual assembly and a separate master shipper

About this product

This multi-piece corrugated display presents individual products in an angled, two-tier grid. Designed for retail floors or large counters, it uses a stepped inner tray and intersecting dividers to keep items like bottles, tubes, or boxed goods upright, separated, and clearly visible.

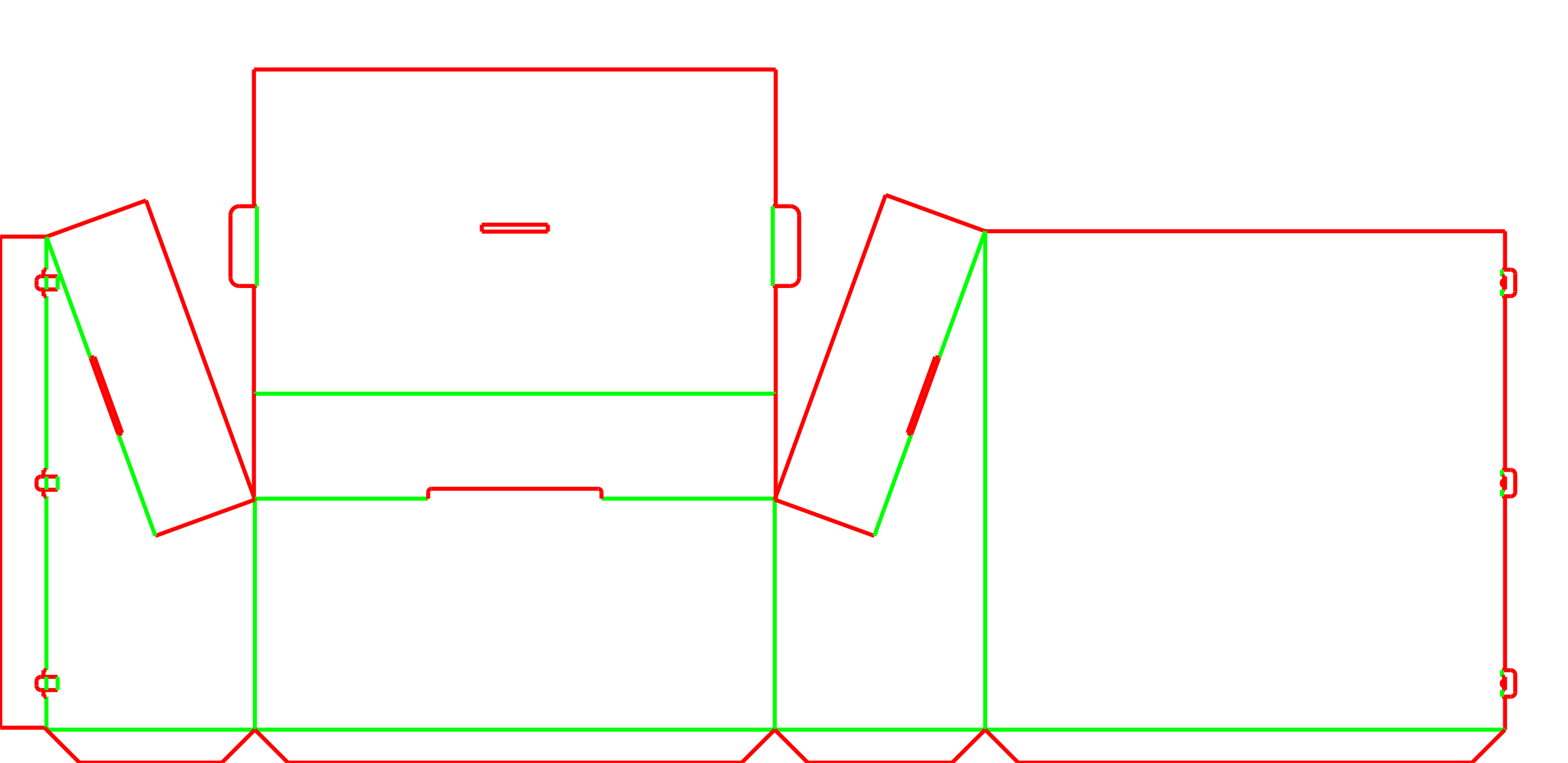

Because it is built from six distinct components, including a snap-lock base, a folded tray, multiple slotted barriers, and a removable header, it offers strong structural support but involves multi-step manual assembly. It is typically shipped flat to a co-packer or retail location and needs a separate master carton for transit.

Common uses

Cosmetics counters, beverage end-caps, hardware small parts, vape displays.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Single item width

Single item depth

Single item height

Total items to display

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this display be assembled and packed?

Will the header graphics need to change for different seasons or promotions?

What is the general weight of the items being displayed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Environments and Product Fit

Bottles, Tubes, and Cylinders

The individual cells keep tall, narrow items from tipping over or shifting when a customer removes an adjacent product.

High-Value Cosmetics and Electronics

The stepped, slanted profile ensures the back row remains visible, while the rigid grid provides a structured presentation.

Vape and E-Cigarette Retail

Small, lightweight items benefit from the tight grid, keeping inventory organized and easy to count on a busy counter.

Hardware and Small Parts

Dense items can be separated by the intersecting dividers, though the total weight must be checked against the base strength.

Fulfillment and Assembly Planning

Co-Packer Assembly and Fulfillment

Because this display consists of six separate pieces, it is often built and loaded by a co-packer. If shipped fully assembled, it needs a custom master carton and careful void fill to protect the slanted face.

In-Store Retail Setup

If shipped flat directly to retail locations, store staff must fold the base, insert the stepped tray, and manually slot in multiple dividers. This labor burden should be factored into the rollout plan.

Seasonal Promotional Campaigns

The separate header panel allows brands to swap out promotional graphics for different seasons without replacing the entire base and tray structure.

When to Consider Simpler Display Styles

Standard Tiered Displays Without Cells

If your products are wide enough to stand on their own or are packed in stable secondary cartons, a standard stepped display without intersecting dividers will reduce assembly time and tooling complexity.

Single-Piece Counter Displays

If the manual assembly of six distinct pieces is too burdensome for the intended retail staff, a simpler fold-up counter tray may be a better choice, even if it lacks individual product cells.

Board Selection and Stability Checks

Mixed Board Calipers for Base and Dividers

The template supports different material thicknesses for different components. A heavier board is often chosen for the main body to support the total weight, while thinner flutes can be used for the internal dividers to keep the grid crisp and easy to slot.

Center of Gravity and Tipping Risk

The slanted profile shifts the center of gravity forward. The base depth and slant angle must be checked against the actual weight of your loaded products to help keep the display stable on a retail shelf or counter.

Header Panel Printing

Decide whether the removable header will be printed with evergreen branding or swapped out frequently. Printing the header separately can reduce costs for seasonal campaigns.

Master Shipper Clearance

If shipping the display fully loaded, the outer master carton must be sized to accommodate the slanted front face without crushing the exposed products.

Configuring the Cell Grid and Angle

Cell Count and Grid Dimensions

The number of cells per row, as well as the exact width, depth, and height of each compartment, can be adjusted to match your specific product footprint.

Slant Angle Modification

The default presentation angle can be modified to be steeper or shallower, depending on the viewing height of the intended retail placement.

Base Closure Style

The standard snap-lock bottom can be changed to a glued auto-bottom to speed up the first step of assembly, though this adds gluing steps during manufacturing.

Packing details

Removable Header Panel

The rear billboard is a separate piece that slots into the back of the assembled base. This allows brands to swap out promotional graphics for different seasons without replacing the entire display.

Additional notes

Friction Fit of Slotted Dividers

The vertical dividers rely on precise slit-locks to hold the stepped tray in place. The slot widths must be closely matched to the chosen board thickness to keep the grid from being too loose or too difficult to assemble.

FAQs

How long does this display take to assemble?

Assembly takes longer than standard displays because it involves erecting a snap-lock base, folding a stepped tray, and manually aligning and inserting multiple slotted dividers. It is a multi-step process.

Can this display be shipped fully loaded with product?

Shipping fully loaded requires a specialized master shipping carton. The slanted front leaves products exposed, so the outer shipper must provide clearance and protection for the angled face during transit.

Which parts of the display are typically printed?

The most visible areas are the separate header panel, the exterior walls of the main base, and the front-facing lips of the stepped tray. The internal dividers are often left unprinted or flooded with a solid color.

Will the display tip forward if the top row is loaded with heavy items?

The slanted design shifts weight forward, creating a tipping risk. If you are displaying heavy liquids or dense hardware, the base depth and slant angle must be carefully balanced and physically tested.

Do all six pieces need to be made from the same corrugated board?

The design allows for mixed materials. You might use a sturdy C-flute for the load-bearing base and a thinner E-flute for the internal dividers to help the slots fit tightly without crushing.

Can the snap-lock bottom be changed to an auto-bottom?

The base closure can be redesigned as a glued auto-bottom to speed up the first step of assembly, though this adds gluing steps during production and does not reduce the labor needed for the internal dividers.

How is the header panel attached?

The rear billboard is a separate piece that slots into the back of the assembled base. This allows for easy removal and replacement.

What happens if the divider slots are too tight?

The vertical dividers rely on precise slit-locks. If the slot widths do not match the chosen board thickness, the grid will be difficult to assemble and the flutes may crush.
