Retail Applications for Slanted Cell Displays
Sorted Point-of-Purchase (POP) Presentations
The compartmentalized grid separates product varieties, flavors, or colors. The slanted profile ensures that items on lower shelves remain visible to shoppers, making it a strong fit for cosmetics, packaged snacks, and small electronics.
End-Cap and Aisle Merchandising
With a dedicated base pedestal elevating the product and a large slotted header for branding, this structure works well as a standalone aisle feature or an end-cap anchor.
Trade Show and Event Merchandising
Because it ships flat and sets up without tools, the display is useful for temporary event spaces to organize product samples, literature, or promotional giveaways.
Checkout Queue Impulse Sales
The relatively compact base footprint allows the display to sit near checkout lanes, while the slanted shelves keep small impulse items visible to waiting customers.
Merchandising and Fulfillment Contexts
Retail Rollouts and Kitting
Because the display consists of six distinct flat blanks, it is typically produced, bundled with assembly instructions, and packed into a master shipper. This knocked-down format keeps distribution costs low but shifts the assembly labor to the retail floor.
Seasonal or Promotional Campaigns
As a temporary corrugated structure, it provides a large printable surface area on the header and side walls to support short-term campaign branding.
Multi-SKU Product Launches
When introducing a new product line with multiple variants, the physical grid separates different colors or flavors clearly, preventing the presentation from becoming disorganized.
When to Consider a Different Display Style
Heavy or Bulky Merchandise
The accordion-folded shelves and intersecting barriers are designed for small to medium items. If merchandising heavy beverages or large hardware, a standard straight-shelf floor display with reinforced load-bearing trays may offer better vertical crush resistance.
Fast In-Store Setup Requirements
This display requires folding a complex tray and sliding multiple barriers into place. If retail compliance is a concern and staff need a display that sets up in seconds, a pre-glued pop-up structure may be a better choice.
Key Decisions for Production and Kitting
Board Grade and Caliper Precision
The intersecting slots on the tray and barriers are very sensitive to material thickness. Changing from a B-flute to a thicker double-wall board requires recalculating the slot widths and double creases to prevent the pieces from binding or tearing during assembly.
Print and Finish Strategy
Floor displays often require high-impact graphics. Decide early if the project will use direct print or litho-lamination, as the added thickness of a laminated sheet must be factored into the structural CAD file.
Master Shipper Sizing
The six flat components must be kitted into an outer corrugated box for transit. The dimensions of the largest flat blank will dictate the size of this master shipper.
Retail Assembly Instructions
Because the tab-and-slot assembly involves multiple steps, planning for a printed visual guide to include in the kit helps ensure store staff build the structure correctly.
Configuring the Grid and Profile
Cell Count and Grid Sizing
The number of vertical cells and the width of each compartment can be adjusted to fit specific product dimensions. Changing the grid will alter the overall blank size and the number of intersecting slots required.
Slant Angle Modifications
While the backward lean of the display can be adjusted, steepening the angle shifts the center of gravity. Any major change to the slant requires recalculating the base footprint and physical testing to ensure the display will not tip forward when fully loaded.
Header Panel Contours
The top branding panel can be die-cut into custom shapes, provided the bottom mounting tabs remain aligned with the slots on the main body.
Packing details
Base Pedestal and Locking Mechanism

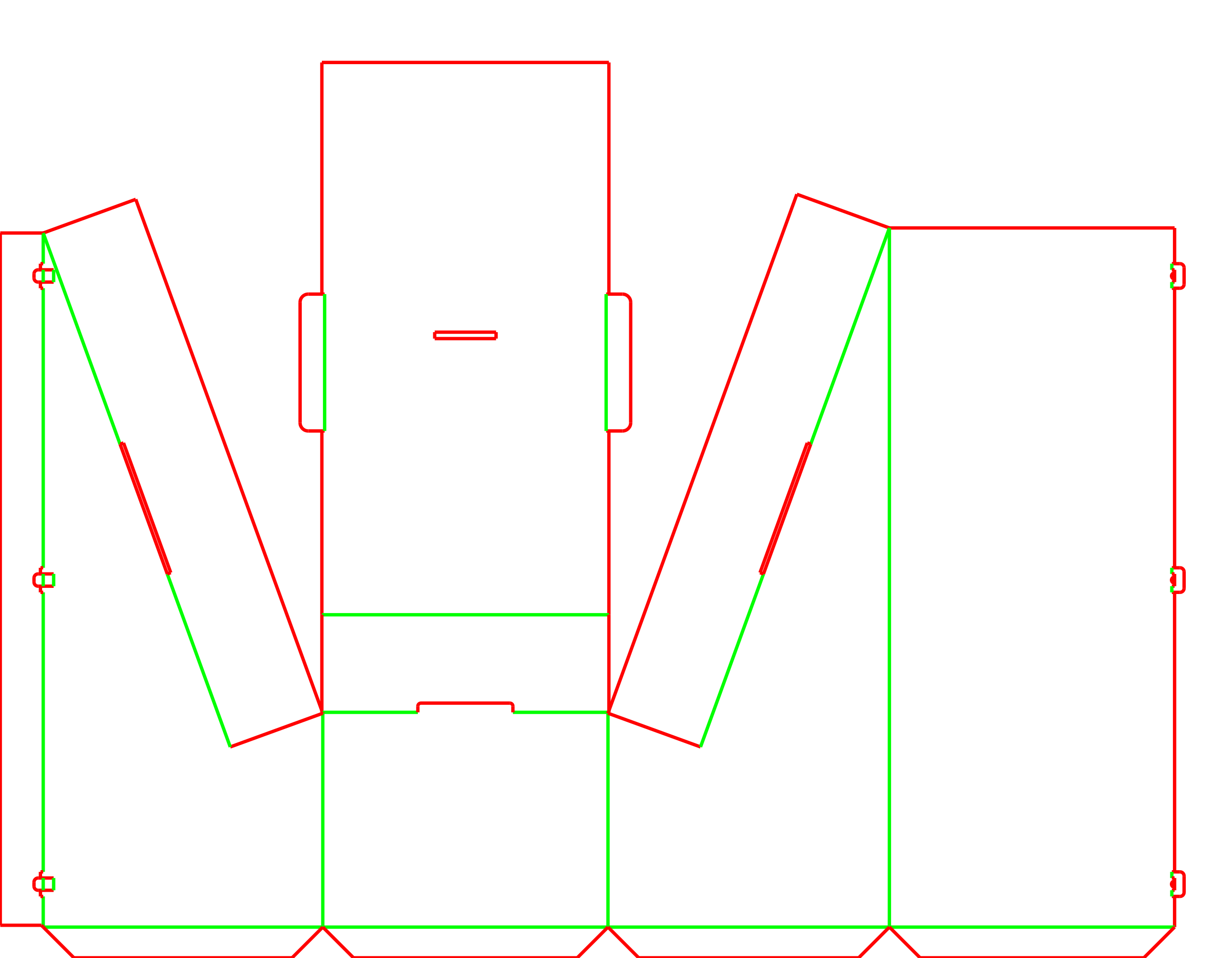

The lower portion of the main body folds into a rectangular pedestal that bears the total weight of the display. It secures itself using tuck tongues that seat into lock holes, keeping the frame stable without adhesive.
Additional notes
Slot Tolerance and Material Thickness
Because the barriers and tray intersect through deep slots, the CAD file must be precisely matched to the final board caliper. Approving a prototype in one material and running production in another will cause the assembly to fail.
FAQs
Does this display require glue or tape to assemble?
No. The entire structure uses tab-and-slot and tuck-tongue connections. However, retailers sometimes apply clear tape to the base or hidden seams to reinforce the display against heavy foot traffic.
How is the display shipped to stores?
The six components (body, tray, header, and three barriers) are delivered flat. They are typically kitted together in a corrugated master shipper along with assembly instructions.
Can I change the angle of the shelves?
The slant angle can be modified in the template, but doing so changes the display's center of gravity. Any adjustment to the lean must be physically tested to ensure the unit remains stable when fully loaded.
Which flute profile fits this structure?
B-flute or C-flute corrugated board is common for this type of floor stand, providing a good balance of rigidity and printability. Thinner E-flute may lack the necessary vertical strength, while double-wall board can make the complex accordion folds difficult to execute.
Can the header shape be customized?
Yes. The top profile of the header panel can be die-cut into custom shapes for branding, provided the bottom mounting tabs remain aligned with the slots on the main body.
How is the shelving grid formed?
Instead of individual flat shelves, a single large tray is accordion-folded to create stepped levels. Vertical barrier panels then slide into slots on the tray to lock the folds in place and divide the space into cells.
Can the display hold heavy industrial parts?
No. The accordion-folded tray and tab-and-slot barriers are designed for small to medium retail merchandise. Heavy items require reinforced flat shelves and a different base architecture.
What happens if the board thickness changes after prototyping?
The intersecting slots on the tray and barriers are cut to match a specific board caliper. Changing the thickness between prototype and production will cause the assembly to bind or fail.
