Retail placement for multi-product assortments
Freestanding aisle displays
With shelves accessible from all four sides, this display fits open floor areas where shoppers approach from multiple directions. The central vertical core divides the shelves into distinct cells, allowing for organized presentation of different product varieties or complementary items.
End-cap promotions
The structured, tiered design works well at the end of retail aisles. The raised base elevates the bottom shelf to a comfortable browsing height, while the roll-over edges on the trays provide a clean, finished appearance suitable for high-visibility promotions.
Multi-product assortments
The divided cells keep different SKUs separated and organized. This prevents mixed products from becoming disorganized on the shelf, making it easier for shoppers to find specific variations or flavors.
High-traffic retail zones
Because the display offers 360-degree access, it reduces bottlenecking in busy store areas. Multiple shoppers can browse different sides of the display simultaneously.
Co-packing and retail distribution
Co-packing operations

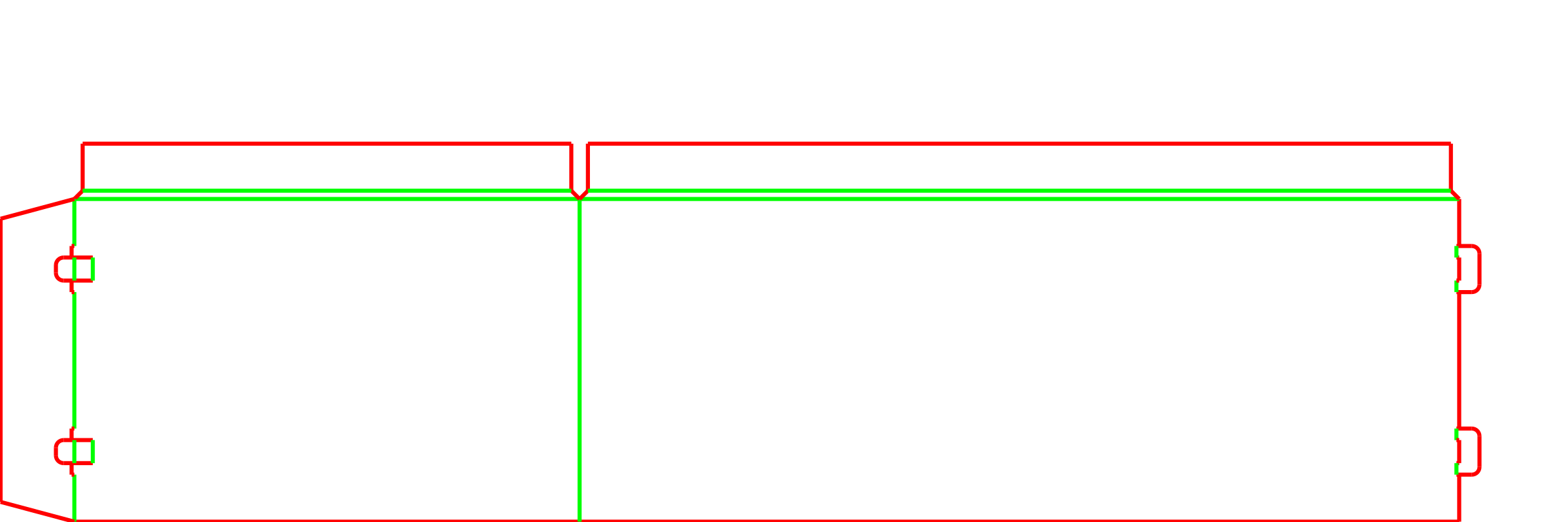

This display is a complex kit consisting of a base sleeve, internal support grids, vertical dividers, shelf trays, and locking strips. It requires substantial manual labor to assemble. It is usually shipped flat to a co-packing facility, where it is built, loaded with product, and then stretch-wrapped on a pallet for final delivery to the retailer.
Retail store assembly
While possible, sending this display flat directly to a retail store for staff assembly is generally not recommended due to the number of parts and the time required to build the internal grids and thread the locking mechanisms.
Promotional campaigns
For seasonal or temporary product pushes, this display provides a large, structured footprint that can be fully printed to match campaign branding. The multiple tiers offer ample space for both product and promotional messaging.
When to compare other retail displays
When quick retail assembly is required
If retail staff must assemble the display on the floor, consider a pop-up display or a simpler pre-glued structure. This multi-piece cell stand requires dedicated assembly time and space.
When shipping via parcel networks
A fully assembled floor display is not suited for mixed-carrier parcel networks. If shipping directly to consumers or individual small stores via parcel, the display must remain knocked down inside a protective outer master carton.
Board selection and production planning
Mixed board grades for strength and material planning
This template is designed to accommodate different material thicknesses for different components. A common approach is to use a heavy double-wall board for the base and internal support grid to bear the overall weight, while using a lighter single-wall board for the shelf trays to make folding the roll-over edges easier.
Production path and part count
Because the display consists of several distinct flatbed parts, volume runs require dedicated production planning for each component. For short runs or prototypes, digital cutting is often more practical.
Print and surface finishing
Decide which components require high-quality graphics. The base sleeve and shelf trays are very visible, while the internal support grids and locking strips are often left unprinted to focus print resources where they matter most.
Shelf load and product weight
The weight of the products dictates the board grade needed for the vertical core and base grid. Heavy items may require double-wall corrugated for the load-bearing components to prevent buckling.
Configuring cells and tiers
Cell count and dimensions
The number of cells per shelf and the overall width, depth, and height of each cell can be adjusted to fit the specific product assortment. Changing the cell count alters the number of interlocking slots and the overall footprint of the display.
Number of tiers
The height of the vertical core can be extended or reduced to accommodate more or fewer shelf trays, depending on the desired overall display height and the vertical clearance needed for the products.
Base height and elevation
The base sleeve can be extended to raise the bottom shelf higher off the floor, improving visibility and reachability for the lowest tier of products.
Packing details
Load path and vertical strength
The weight of the products rests on the shelf trays, which are supported by horizontal locking strips. These strips transfer the load to the central vertical dividers, which in turn rest on the dense internal grid inside the base. This continuous load path to the floor provides stability, provided the correct board grades are specified.
Additional notes
Roll-over tray edges
The shelf trays feature double-folded walls (roll-over edges) that provide rigidity and a clean look. If the board specified for the trays is too thick, these edges may crack or resist folding during manual assembly.
FAQs
How is this display assembled?
The base sleeve is glued, and an internal grid is built and placed inside. The first shelf tray is folded and placed on the base. Tall vertical dividers are slotted together and inserted through the tray into the base grid. Subsequent trays are slid over the dividers, and horizontal locking strips are inserted to secure each shelf.
Can retail staff assemble this on the floor?
It is generally not recommended. The multi-piece construction and interlocking grids require substantial time and floor space to build. It is better suited for co-packing facilities that ship the loaded display on a pallet.
Do all parts need to be the same corrugated board?
No. The template specifically accommodates mixed board grades. You can specify a heavy-duty board for the load-bearing base and vertical core, and a lighter board for the shelf trays to ensure clean folds on the roll-over edges.
How does the part count affect production?
The display is a kit made of several distinct components, including the base, trays, dividers, supports, and locks. In volume production, each distinct shape is cut separately, which requires more coordination than a single-piece display.
How is the display shipped to the co-packer?
The components are delivered flat. Because a single display requires multiple copies of certain parts, such as trays and locking strips, they must be carefully bundled or kitted into a master shipper to ensure no pieces are missing during assembly.
How much weight can the shelves hold?
Capacity depends on the chosen board grades, the dimensions of the cells, and the environment. The interlocking vertical core and base grid provide strong vertical support, but physical testing with the actual product is always required to confirm stability.
Can the internal support grid be left unprinted?
Yes. Since the internal base grid and locking strips are hidden from the shopper, they are often left unprinted to focus print resources on the highly visible base sleeve and trays.
Are the shelf trays adjustable after assembly?
No. The shelves are locked into specific notches on the vertical dividers. The tier spacing must be determined during the structural design phase.
