EVC62136

360-Degree Multi-Tier Cell Display

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Multi-piece interlocking kit with individual product cells
  • 360-degree retail access with a central branding header
  • High manual assembly; often built at a co-packing facility

About this product

The EVC62136 is a freestanding corrugated floor display designed to present products in individual compartments with 360-degree access. It uses an interlocking egg-crate divider system sandwiched between horizontal trays, creating a sturdy, multi-level presentation that separates and protects each item.

Because it is built from multiple interlocking components, including base supports, grid dividers, horizontal trays, and a central header, it offers excellent vertical strength but requires heavy manual assembly. It is a strong choice for high-visibility retail rollouts where products like bottles, cosmetics, or hardware need to be organized and accessible from any aisle.

Common uses

  • Beverage bottles
  • Cosmetics and beauty products
  • Hardware or small tools
  • Specialty food items

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for material or strength preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Environments and Product Fit

Beverage and Bottle Rollouts

The individual cells prevent glass bottles from striking each other, while the interlocking grid transfers vertical weight efficiently to the floor. This makes it a strong candidate for heavy, fragile items when built with appropriate double-wall board.

Cosmetics and Beauty Products

For smaller items, the cell size can be reduced to create dense, highly organized presentations. The 360-degree access allows multiple shoppers to browse simultaneously in open floor spaces.

Hardware and Small Tools

Heavy metal items or tools benefit from the rigid separation of the egg-crate grid. The individual compartments keep heavy items from shifting and damaging adjacent products during retail browsing.

Specialty Food and Jars

Glass jars containing sauces or preserves are protected by the corrugated dividers. The multi-tier setup allows different flavors or varieties to be organized by level or side.

Fulfillment and Assembly Planning

Co-Packing and Fulfillment

This display consists of at least eight distinct component types that must be folded and slotted together. Due to the high assembly burden, it is usually built and loaded at a co-packing facility, then shipped to retail on a pallet with a protective shroud, rather than being assembled by store staff.

Open Retail Floor Spaces

The 360-degree design is intended for island placements in wide aisles or open promotional areas. It allows traffic to flow around the unit while keeping products accessible from every angle.

High-Visibility Brand Campaigns

The central header panel provides a tall, double-sided billboard for branding. Combined with printable outer trays, the display serves as a standalone promotional center for new product launches.

When to Consider Simpler Displays

Products That Do Not Require Separation

If your products are already boxed or do not need individual compartments, a standard tiered shelf display will use less corrugated board and reduce assembly labor.

Wall-Facing or Endcap Placements

If the display will be pushed against a wall or placed at the end of an aisle, the 360-degree access is wasted. A one-sided floor display is a more efficient choice for those locations.

Configuring the Cell Display

Cell Dimensions and Vertical Tiers

The width, depth, and height of the individual cells dictate the overall footprint of the display. The number of vertical tiers can also be adjusted, though taller displays must be evaluated for stability and safe aspect ratios.

Mixed Board Grades for Trays and Dividers

To balance cost and performance, the outer trays and header are often specified in a high-quality printable board, while the internal interlocking dividers can use a heavier, unprinted double-wall board for vertical compression strength.

Assembly Location and Labor

Decide early whether the display will be assembled at a dedicated fulfillment center or shipped flat to retail stores. The complexity of the interlocking grid usually makes in-store assembly impractical.

Shipping Format and Pallet Shrouds

If the display is pre-loaded at a co-packer, it will need a corrugated pallet shroud or master shipper to protect it during transit to the retail location.

Structural Adjustments

Sloped Top-Tier Dividers

The dividers on the top tier feature a sloped profile. The angle of this slope can be adjusted to change how the top-level products are presented and how much of the central header is exposed.

Base Support Panels

Internal support panels sit beneath the lowest tray to distribute weight and keep the display elevated off uneven retail floors. The height of these supports can be modified based on the expected floor conditions.

Header Panel Shape and Height

The central header slots directly into the top dividers. Its height and outer contour can be modified to match specific brand artwork or promotional messaging.

Packing details

Board Thickness and Slot Fit

The interlocking slots on the dividers and trays are strictly tied to the exact thickness of the corrugated board. If the material grade changes during prototyping or production, the slot widths must be recalculated to prevent the grid from buckling or fitting too loosely.

Related Floor Displays

FAQs

Is this display practical for in-store assembly by retail staff?

Because it requires folding multiple tray flanges, building several egg-crate grids, stacking the tiers, and inserting the header, in-store assembly is usually too time-consuming. It is best suited for co-packing facilities where it can be assembled, loaded, and shipped on a pallet.

How much weight can the cell grid support?

The vertical compression load is carried by the dense grid of intersecting dividers, making it quite strong. Exact weight capacity depends on the chosen board grade and the size of the cells. Physical load testing with the actual product is always required before a rollout.

Which panels are best for printing and branding?

The central header panel serves as the primary billboard. The outer perimeters of the horizontal trays can also be printed. The internal dividers are typically left unprinted or use a simple flood coat, as they are mostly obscured by the product.

How are the display components delivered before assembly?

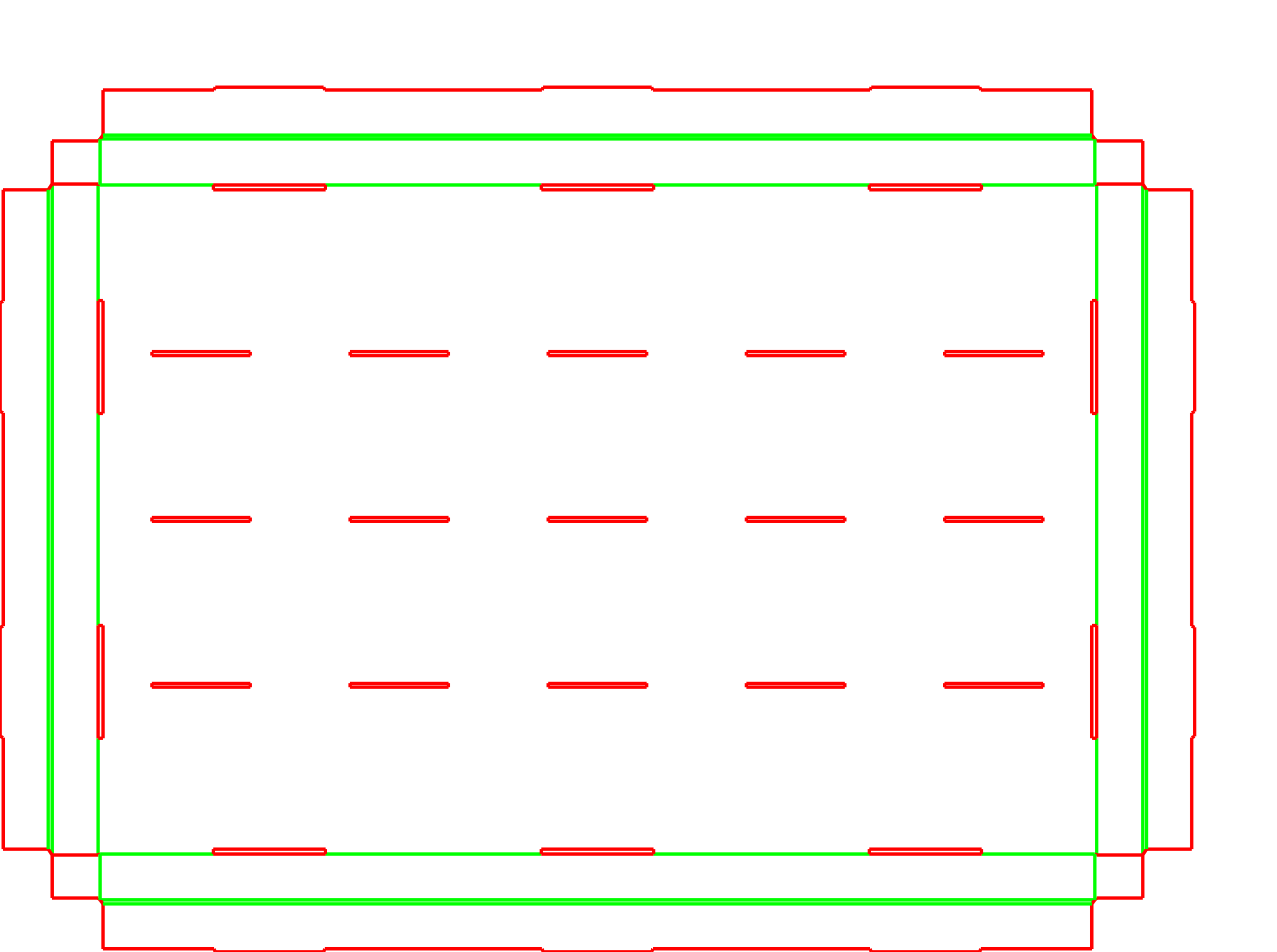

The components are die-cut and delivered completely flat. Because it is a multi-piece kit with eight distinct part types, the parts must be carefully bundled in the correct quantities per display for the assembly team.

Can the number of product compartments be adjusted?

Yes. The grid can be expanded or contracted by changing the number of cells in the width and depth directions, which updates the required number of slots and tabs for the dividers.

Can the display use different board grades for different parts?

Yes. The display is designed to support mixed material thicknesses. A common approach uses a strong double-wall board for the internal load-bearing dividers and a single-wall board with a premium finish for the visible outer trays and header.

How does the display remain stable on uneven retail floors?

Internal support panels are placed beneath the lowest tray. These supports distribute the weight of the loaded display and keep the base elevated, helping it sit securely on typical retail floors.

Why is a physical prototype necessary before a full production run?

The interlocking slots rely on precise clearances tied to the exact thickness of the corrugated board. A physical sample verifies that the grid assembles smoothly without buckling and that the fully loaded display remains stable.
