EVC62140

Corrugated Cell Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Multi-piece kit with an internal load-bearing grid
Individual product cells lock securely into the outer body
Requires manual co-packer assembly and an outer transit shipper

About this product

The EVC62140 is a freestanding corrugated floor display designed to present products in separated, stacked cubbies. Instead of relying on simple folded shelves, this display uses a rigid internal support grid and individual insertable cells, creating a clean, very organized presentation for retail environments.

Because it is a multi-piece kit, this display requires dedicated manual assembly before arriving on the retail floor. It is a strong choice when visual separation and individual compartment strength matter more than rapid packing speeds.

Common uses

Retail end-caps
Assorted product launches
Heavy or fragile items needing isolated compartments

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Number of compartments

Compartment width

Compartment depth

Compartment height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Who will assemble and load this display?

How will the loaded display ship to stores?

Do you need a removable header card at the top?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Product Isolation

Segmented Product Assortments

The individual cubbies keep different product varieties, flavors, or sizes visually separated. The rigid cell walls prevent items from leaning into each other, maintaining a neat appearance even as the display sells down.

Heavy or Fragile Retail Items

Because each cell rests on a dedicated horizontal plane provided by the internal cross-grid, the vertical load is transferred down the display rather than resting entirely on the shelf below. This makes it suitable for items that might crush standard fold-in shelves.

High-Value Product Launches

Isolating premium items in their own dedicated cells draws consumer attention and prevents them from getting lost in a crowded dump bin or mixed shelf.

Mixed-SKU Merchandising

Allows brands to present different colors, flavors, or variations in a single footprint without them mixing together, ensuring a clean presentation throughout the retail cycle.

Merchandising and Co-Packing Environments

Dedicated Co-Packing Operations

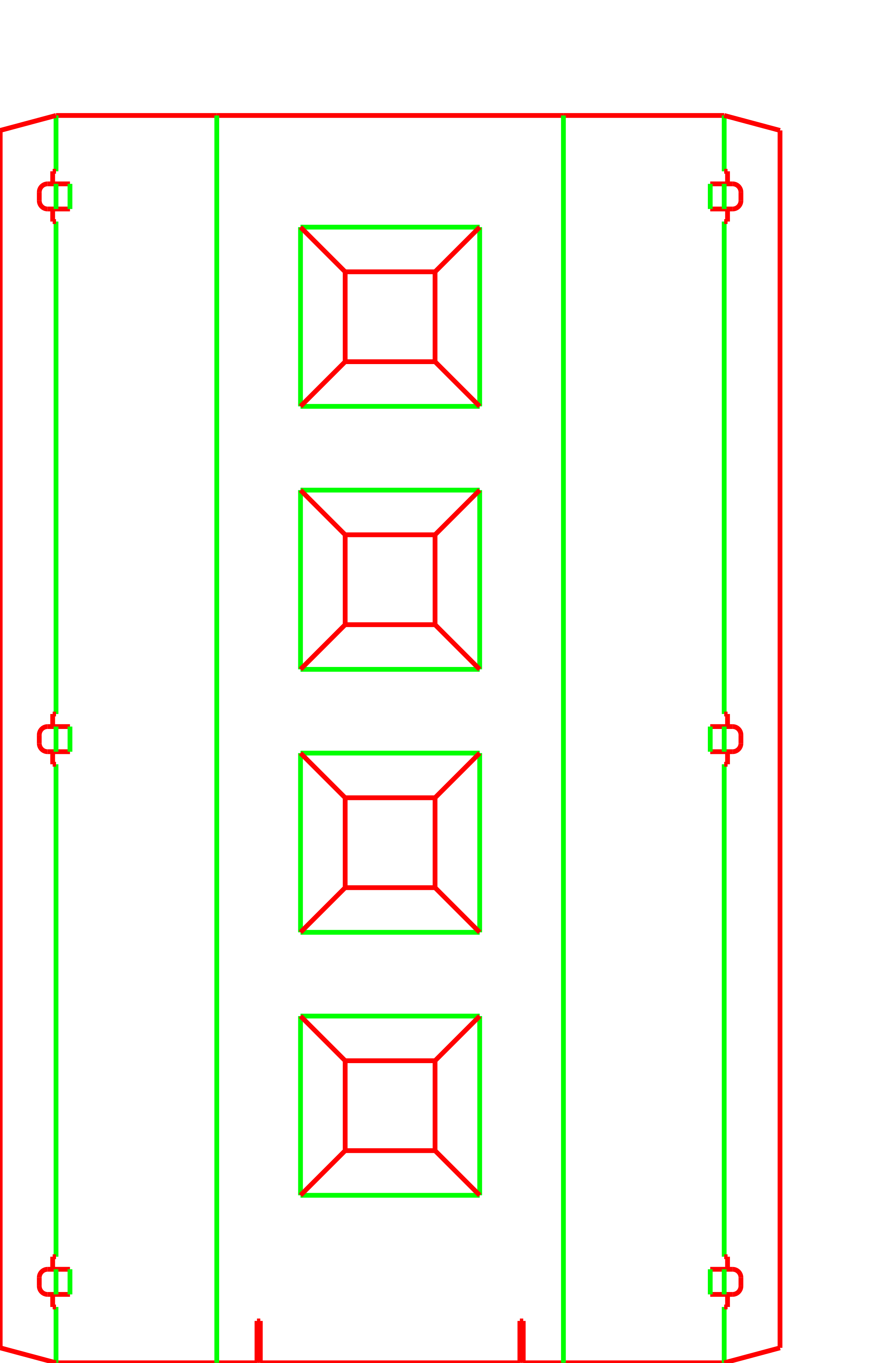

This display is shipped flat as a multi-piece kit. It requires a planned assembly line to erect the main body, interlock the internal supports, fold the individual cells, and insert them through the front windows. It is designed for environments where assembly labor is budgeted into the rollout.

Retail End-Cap Programs

The tall, narrow footprint fits well at the end of aisles, where vertical space can be maximized for high-visibility promotions without taking up permanent shelf space.

Brand-Controlled Floor Presentations

Useful when a brand wants to dictate exactly how the product sits on the floor, rather than relying on store shelving. The rigid cells ensure the presentation remains exactly as intended.

Store-Floor Setup and Transit Needs

Retail Staff Assembly

If retail staff must assemble the display on the store floor, a multi-piece cell display is often too complex. A single-piece pop-up display or a pre-glued auto-bottom bin is a safer choice for quick, untrained setup.

Direct-to-Consumer Shipping

This is a floor display, not a transit shipper. If the goal is mailing products directly to buyers, review corrugated mailers or master cartons instead.

Board Thickness, Transit Outer Packaging, and Assembly Planning

Board Thickness and Slot Tolerances

The internal grid and the locking tongues on the cells rely on exact material thickness to seat correctly. If the board grade changes from a B-flute to a thicker C-flute for added strength, the die-cut slots must be recalculated so the display does not wobble or bind during assembly.

Outer Transit Packaging

This display is a retail presentation vehicle, not a shipping container. Moving the loaded display through a courier or freight network requires an outer master carton to protect the exposed products and the display body.

Print Surface Allocation

Deciding whether to print the hidden internal grid or just the outer body and cell interiors helps manage costs. The internal cross-grid is completely hidden once the cells are inserted, so it is usually left unprinted.

Assembly Labor Budget

Factoring in the time required to build the internal grid and insert individual cells is critical. This multi-piece kit requires more manual handling than a standard folded-shelf display.

Configuring the Cell Layout

Cell Count and Dimensions

The template can be adjusted to change the number of vertical cubbies, as well as the height, width, and depth of each cell. Changing the cell depth will automatically adjust the overall footprint of the outer display body.

Base Elevation

The distance between the floor and the bottom cell can be modified. Elevating the base helps protect the lowest products from floor moisture and scuffing.

Glue Flap Placement

The side glue flap on the main outer body can be adjusted in width to accommodate different gluing equipment or manual assembly preferences.

Packing details

Print Surfaces and Hidden Components

The outer body sleeve and the inside walls of the individual cells are clearly visible to the consumer. These components are often treated with high-quality graphics, while the hidden internal support grid can remain unprinted to manage costs.

Header and Top Panel Options

Header Card Additions

While the base display is a flat-top tower, slots can be added to the top panel to accommodate a separate printed header card for brand messaging.

Additional notes

Kit Collation for Co-Packers

Because this display uses multiple distinct components (body, rear panel, supports, and multiple cells), the flat blanks must be collated and banded together as a complete kit before being sent to the assembly facility.

FAQs

Can this display be assembled automatically by machinery?

No. The EVC62140 is a multi-piece kit that requires manual assembly. The outer body can be glued on a straight-line folder-gluer, but building the internal grid and inserting the folded cells must be done by hand.

How much weight can each cell hold?

The vertical load is carried by the internal support grid, making the overall tower quite strong. However, the floor of each individual cell can sag if overloaded. The exact weight capacity depends on the chosen board grade and should be validated with a physical prototype.

Can the fully loaded display be shipped directly to stores?

It can be shipped loaded, but it requires a separate, heavy-duty outer shipping box. The display itself does not have protective outer doors or a transit-rated exterior.

Does changing the board material affect the display assembly?

Changing the board thickness requires updating the cutting die. The internal supports and cell locking tongues are cut to match the exact caliper of the board; a mismatch will cause the display to either jam during assembly or feel loose.

Which parts of the display need to be printed?

Typically, the outer body, the rear panel, and the individual cells are printed. The internal cross-grid is completely hidden once the cells are inserted, so it is usually left unprinted.

Why is a physical sample important for this display?

A sample verifies that the co-packing team can smoothly insert the cells through the windows and that the locking tongues engage without tearing. It also confirms the display remains stable under the actual product weight.

Can the internal support grid use a different board grade than the outer body?

Yes. The internal grid can use a heavier board for vertical strength while the outer body uses a thinner board for better print quality, provided the die-cut slots are adjusted for the different thicknesses.

How are the individual cells secured inside the display?

Each cell features tuck tongues on its side panels that lock into corresponding holes on the main body and rear panel, preventing the cells from sliding out.
