EVC62180

Single-Tier Corrugated Floor Display with Dividers

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Four-piece kit: base, tray, dividers, and header
Interlocking cell grid keeps products upright
Delivered flat for manual retail or co-pack assembly

About this product

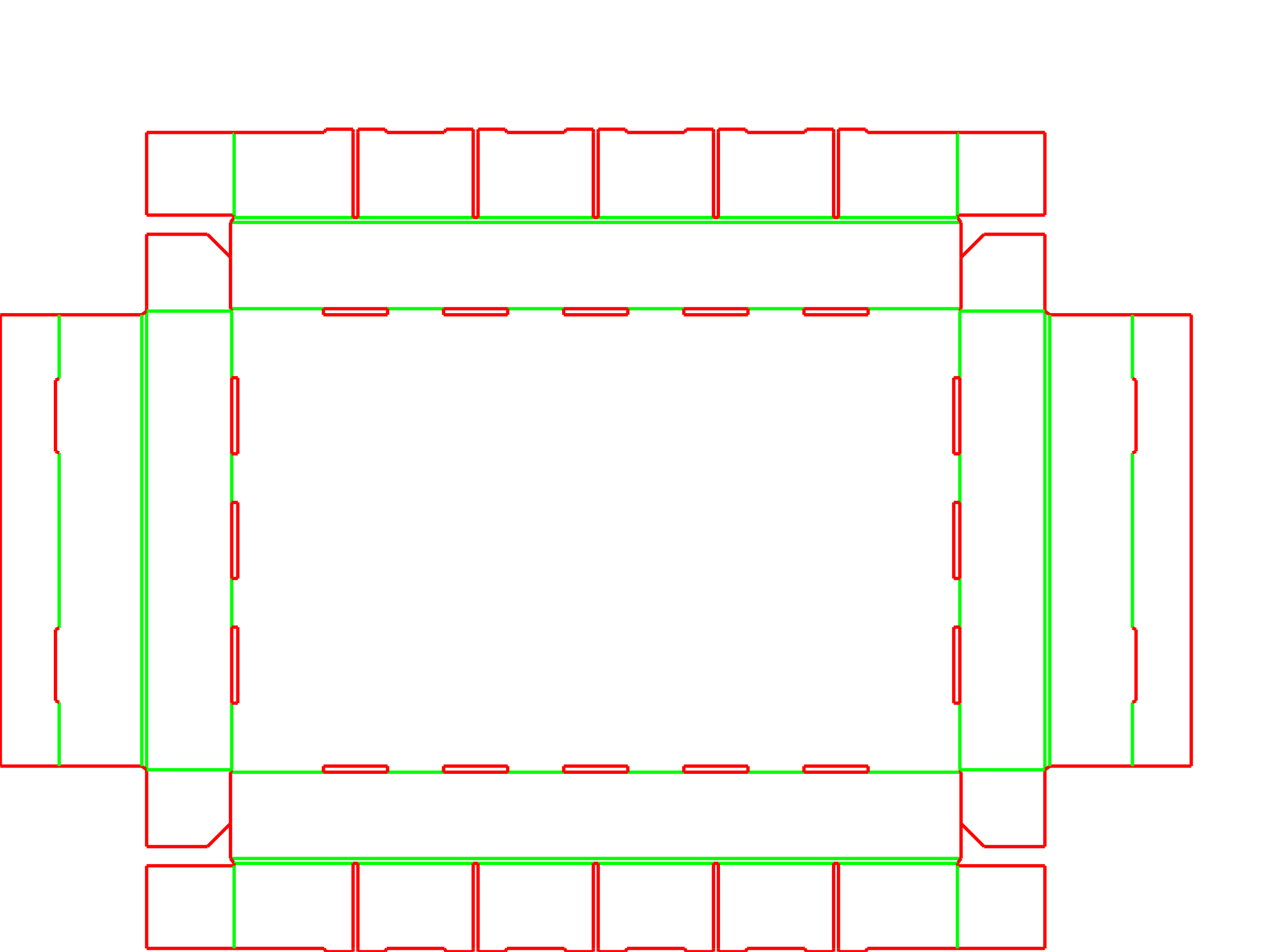

This freestanding retail display organizes individual products into a single, accessible tray supported by a sturdy corrugated pedestal. The four-piece design includes a wrap-around base, a roll-over tray, interlocking dividers, and a rear header panel for brand messaging.

Because the components are cut separately, the display allows for mixed material choices, such as a heavy-duty fluted base for weight support and a smoother board for high-quality header graphics. It is delivered flat and relies entirely on mechanical locks and slots for manual assembly on the store floor or at a co-packing facility.

Common uses

Beverage and bottle promotions
Cosmetics and tube displays
Boxed retail goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display width

Overall display depth

Overall display height

Number of product compartments

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of products will this display hold?

Where will the display be assembled and loaded?

How will the displays ship to their final destination?

What are your printing expectations for the display?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Co-Packing Applications

Organized point-of-purchase promotions

The slotted divider grid makes this display effective for tall, narrow, or easily tipped items like bottles, tubes, and cylindrical canisters. The individual cells keep the presentation neat even as products are shopped.

Pre-loaded co-pack programs

For retail rollouts, the tray can be assembled, loaded with product, and shrouded at a co-packing facility, while the base and header ship flat alongside it. This reduces the assembly burden on store staff.

High-visibility endcap placements

The tall rear header and elevated tray create a strong visual presence at the end of an aisle. The freestanding pedestal allows the display to be positioned independently of existing store shelving.

Seasonal or temporary retail rollouts

Because the entire unit is made from corrugated board and requires no permanent hardware, it is well suited for short-term promotions. Once the campaign ends, the display can be broken down for recycling.

Product Fit and Merchandising

Beverage and personal care rollouts

Brands launching new drinks, lotions, or cosmetics often need a freestanding footprint that does not rely on existing store shelving. The rear header provides eye-level billboard space, while the tray height keeps products within easy reach.

Hardware and cylindrical tool merchandising

Heavy or awkward items like sealant tubes, spray paints, or rolled materials benefit from the structured grid. The dividers prevent these items from falling over and creating a disorganized presentation.

Snack and confectionery launches

For bagged or boxed snacks, the dividers can be adjusted or removed entirely to create an open bin. The large base provides a stable foundation in high-traffic grocery aisles.

When to Consider Alternative Displays

Multi-tier or high-volume presentations

If the product volume requires multiple shelves or a gravity-fed dump bin, a single-level tray will not provide enough capacity. A multi-shelf floor display maximizes vertical retail space.

Countertop placement

This is a full-height floor pedestal. If the promotion is intended for a checkout counter or existing shelf, a smaller countertop display tray without the large base is the correct choice.

Board, Print, and Assembly Choices

Mixing board grades for strength and print

Because the display is cut from four separate blanks, the base can be specified in a heavier, thicker flute to support the tray weight, while the header can use a thinner, smoother board for premium graphics.

Outer shipping requirements

This display is an open retail presentation unit. It requires a separate corrugated master shipper to protect the flat components and any pre-loaded products during transit to the store or distribution center.

Matching slot widths to material caliper

The interlocking dividers and header tabs rely on precise slot widths. If the board grade changes during prototyping or production, the slot clearances must be updated to prevent the display from leaning or failing to assemble.

Hand assembly versus co-packing labor

The four-piece design requires manual folding and slotting. Buyers must decide whether store employees will assemble the empty display on site or if a co-packer will build and load the tray before distribution.

Configuring the Tray and Cell Grid

Cell count and grid dimensions

The number of individual compartments can be adjusted to match the product count. Changing the grid alters the overall width and depth of the tray, which must remain within the footprint limits of the target retail environment.

Header and base height

The rear billboard can be extended for more graphic space, and the pedestal base can be adjusted to bring the tray to the intended shopping height. Taller bases may require stronger board grades to prevent buckling.

Divider removal for bulk items

If the product mix changes from individual bottles to larger boxed goods, the internal divider grid can be omitted entirely. The tray and base will still function normally as an open bin.

Packing details

Large-format flatbed die-cutting

The wrap-around base panel is a very large single piece of corrugated board. This large footprint requires specific flatbed cutting equipment, which influences production planning and order scheduling.

Additional notes

Tray floor support

The center of the tray floor bears the most weight. For very heavy items, the base profile must provide enough cross-support under the tray to prevent sagging.

FAQs

Does this display require glue or tape to assemble?

No. The base uses tuck tongues, the tray features roll-over locking walls, and the dividers and header slide into dedicated slots. The entire unit is designed for tool-free manual assembly.

Can the base support heavy items like glass bottles?

The base can support heavy items provided it is manufactured from a board grade with sufficient vertical crush resistance. The tray rests directly on the top profile of the base, transferring the weight downward. Heavy payloads should always be physically tested.

How is the display shipped to stores?

The four components are delivered flat. They must be packed inside a separate corrugated outer shipper for transit. If a co-packer pre-loads the tray, the loaded tray and flat base are typically packed together in a custom transit box.

Can I remove the dividers if my products are boxed?

If the products support themselves or fill the tray completely, the internal divider grid can be omitted. The tray and base will still function normally.

Which panels offer the best branding space?

The rear header acts as the primary billboard. The front and side walls of the tray, as well as the large flat panels of the base, also provide excellent print surfaces.

Why is a physical sample important for this display?

A sample verifies that the slot widths perfectly match the chosen board thickness. It also allows you to test the assembly time and confirm the base can support the actual weight of your loaded product.

Can the header shape be modified?

The top profile of the header can be custom cut to match brand logos or specific promotional shapes, as long as the bottom tabs still align with the tray slots.

What happens if the board thickness changes after the sample is approved?

If the board grade changes, the slot clearances on the dividers and header must be updated. Using a thicker board without updating the slots will make assembly impossible, while a thinner board will cause the display to lean.
