EVC62183

10-Cell Corrugated Retail Floor Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

10 distinct open-top compartments
8-piece interlocking construction
Ships flat for manual assembly

About this product

The EVC62183 is a freestanding, multi-piece corrugated floor display designed to present and separate multiple SKUs in a single retail footprint. It forms a sturdy, 10-compartment polygonal bin using a system of interlocking internal dividers and wrap-around outer walls.

Because it relies entirely on mechanical tab-and-slot connections, the display requires no tape or glue to build. However, the eight-piece construction means assembly should be planned for the store floor or a dedicated co-packing facility.

Common uses

Multi-SKU retail promotions
Bulk item sorting on the store floor
Seasonal product assortments

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display width

Overall display depth

Overall display height

Target compartment size

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Where will this display be assembled and loaded?

Where do you need printed graphics?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Assortments and Bulk Sorting

Multi-SKU Retail Promotions

The 10-cell layout is useful for presenting assortments, color variations, or mixed product lines in a single, organized freestanding unit.

Bulk Item Sorting

The deep compartments and rigid internal grid keep loose or bulk items separated and accessible on the retail floor.

Seasonal Product Assortments

Provides a dedicated, high-visibility floor footprint for holiday or seasonal collections that require distinct separation by category.

Hardware and Parts Separation

Useful in hardware or home improvement settings where multiple related items, such as different fastener sizes or plumbing parts, need to be displayed together without mixing.

Fulfillment and Store-Floor Setup

Store-Floor Assembly

This display is delivered as a flat kit of eight components. Retail staff or merchandising teams must manually intersect the internal grid, seat it in the base tray, and lock the outer walls in place.

Co-Packing Operations

If pre-loaded before shipping to retail, the assembled display will require a large master shipper and careful palletization to protect the outer walls during transit.

Club Store Presentations

Fits well in large retail environments where freestanding, multi-product pallets are expected, provided the board grade is matched to the expected shopper interaction.

When Simpler Displays Make Sense

When quick setup is critical

If store staff have limited time for assembly, a simpler pop-up bin or a pre-glued display base may be a better choice than this multi-piece interlocking kit.

When shipping directly to consumers

This is strictly a retail presentation display. It cannot be used as a shipping container and requires an outer master carton if moved after assembly.

Board Thickness and Production Layout

Board Thickness and Slot Clearance

The internal dividers rely on deep vertical slots to intersect. The chosen corrugated board thickness must precisely match the slot widths in the CAD file, or the grid will either bind during assembly or fit too loosely.

Flatbed Cutting and Nesting

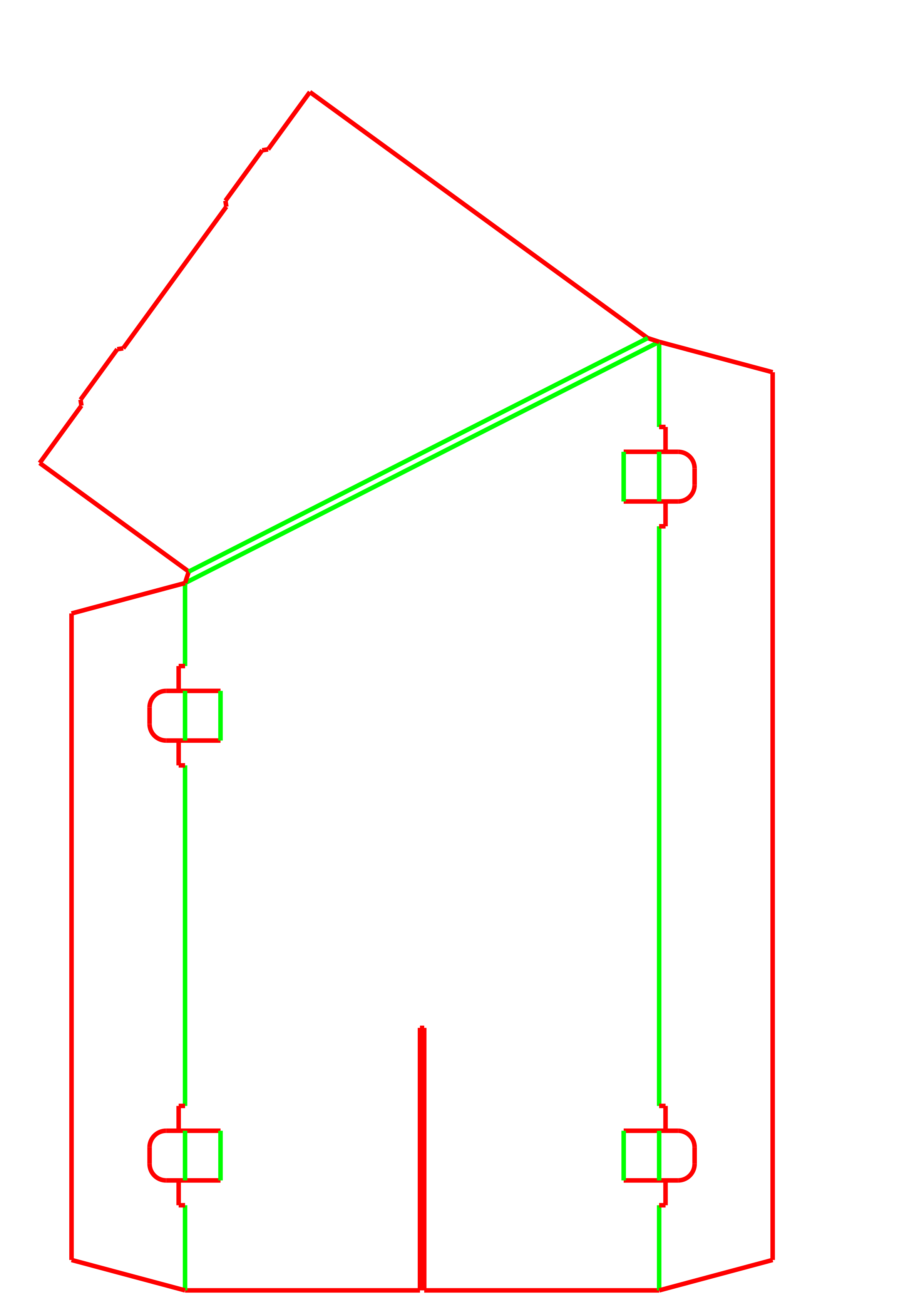

Because the display is built from eight distinct flat blanks (a base, three dividers, and four outer walls), the layout of these large parts on the corrugated sheet will affect material efficiency and production planning.

Print Surface Allocation

Decide whether graphics are needed only on the four outer wall panels, or if the internal dividers and base tray should also be printed to brand the inside of the cells.

Assembly Labor Planning

Account for the time required to align the long slots across three internal dividers and secure the four separate outer walls, which carries a higher manual assembly burden than standard dump bins.

Cell Dimensions and Wall Angles

Cell Dimensions

The length, width, and depth of the individual cells can be adjusted to fit specific product volumes, which will scale the overall footprint of the polygonal display.

Outer Wall Angles

The geometric angle of the outer walls can be modified, though extreme changes may affect how the tuck tongues align with the internal grid.

Overall Display Height

The total height of the display can be altered independently of the cell depth, allowing the base to be raised or lowered to bring products to the desired shopping level.

Packing details

Load Bearing and Stacking

The vertical strength of the display comes from the intersecting internal dividers, which transfer weight to the base tray. Physical testing helps ensure the chosen board grade supports the intended product weight.

Additional notes

Master Shipper Requirements

If you plan to assemble and load the display at a co-packing facility, you will need a custom corrugated master shipper to protect the loaded display during transit to the retail store.

FAQs

Does this display require glue or tape?

No. The entire display is held together by mechanical tab-and-slot connections and tuck tongues. The internal dividers interlock, and the outer walls wrap and lock into the grid.

How long does it take to assemble?

Because it involves aligning long slots across three internal dividers and securing four separate outer walls, it carries a higher manual assembly burden than standard dump bins. It often requires a large workspace and is easier with two people.

How is the display delivered?

The eight components (base tray, dividers, and outer walls) are delivered flat. They can be bulk-packed on pallets or banded together as individual kits for store distribution.

Can I use a heavy double-wall board for more strength?

Yes, but the CAD file's slot widths and double creases must be recalculated to match the exact caliper of the thicker board. If the slots are too narrow, the intersecting dividers will crush during assembly.

Where can graphics be printed?

The four outer wall panels provide the primary billboard space. The internal dividers and base tray can also be printed if the inside of the cells needs branding.

Can the number of cells be changed?

Changing the cell count requires a completely different template, as the intersecting grid geometry is specific to the 10-cell layout. You can, however, adjust the overall size of the 10 cells.

Can this display be shipped fully assembled?

Because of its size and the risk of crushing the outer walls, it is usually shipped flat and assembled at the retail location or a dedicated fulfillment center.

How does the display support heavy products?

The intersecting internal dividers form a rigid skeleton that transfers vertical weight directly to the base tray, rather than relying on the outer walls.
