Retail Floor Promotions And End-Caps
Multi-product retail presentations
The tiered shelf layout presents product families, assorted flavors, or varying sizes in a single footprint. The cantilevered shelves keep merchandise accessible and visible from multiple angles in open store aisles.
Temporary promotional end-caps
When a brand needs a dedicated presence away from the permanent store aisle, this freestanding unit creates an immediate destination. The tall backboard provides a large, uninterrupted surface for primary branding and campaign graphics.
Lightweight boxed goods and impulse items
The modular shelves are well-suited for lightweight retail cartons, snack boxes, or bagged items. Placing the display near checkout lanes or high-traffic intersections captures attention without requiring permanent store fixtures.
Seasonal merchandise rollouts
For holiday campaigns or limited-time offers, the display ships flat to distribution centers and builds quickly on the store floor, providing high visual impact for temporary retail events.
Brand Rollouts And Merchandising
Nationwide retail campaigns
Shipping fully assembled displays risks transit damage and wastes trailer space. This multi-piece display packs down flat into a manageable kit, allowing distribution centers to ship the display alongside the actual merchandise for store staff to set up.
Brand merchandising teams
Merchandisers planning large rollouts must balance visual impact with store-level compliance. The tab-and-slot assembly requires no glue, making it easier for retail staff to build the display correctly on the floor.
Trade marketing and distributor programs
Distributors offering freestanding displays to independent retailers need units that are easy to transport and place. The flat-packed kits fit easily into delivery vehicles and can be assembled on-site to secure secondary floor placements.
When To Consider Integrated-Shelf Displays
Pre-packed shipper displays
If you intend to ship the display fully loaded with merchandise, a cantilevered shelf design is a poor choice. The shelves are likely to crush or tear during transit. Compare this with a display shipper or a stackable tray system that protects the goods through the courier network before converting into a display.
Heavy beverage or bulk goods
Heavy items like large liquid multipacks or dense canned goods place heavy downward stress on the backboard slots. If the payload is heavy, compare this with a reinforced stackable tray display or a permanent metal rack that transfers weight directly to the floor.
Shelf Count, Depth, And Stability
Mixed board grades for strength and print
Because the display is cut from multiple separate blanks, you can specify different corrugated materials for different parts. A heavy double-wall board is often chosen for the main backboard and rear easel to prevent bowing, while a thinner, smoother single-wall board can be used for the shelves to ensure crisp folds and excellent print quality.
Kitting and fulfillment labor
Every display requires a backboard, an easel, and multiple shelf trays and support legs. Your fulfillment plan must account for the labor to gather, verify, and pack these separate flat components into a single master carton before distribution.
Shelf depth and tipping risk
Extending the depth of the shelves increases the forward pull on the backboard. Increasing shelf capacity must be balanced by adjusting the rear easel's footprint to ensure the loaded display remains stable.
Print coverage and graphic alignment
The multi-part design means graphics are printed on separate sheets. You must decide whether to print the entire backboard, the shelf lips, or both, and ensure that the artwork aligns visually once the shelves are plugged into the spine.
Adjusting The Display Footprint
Shelf count and vertical spacing
The template allows you to specify the exact number of shelves and the vertical distance between them. This flexibility helps accommodate tall bottles on the bottom tier and shorter boxes on the upper tiers, maximizing the available presentation area.
Easel angle and footprint
The rear support easel can be adjusted to change the display's resting angle. A wider stance increases stability against forward tipping, which is important if the shelves are deep or the merchandise is heavy.

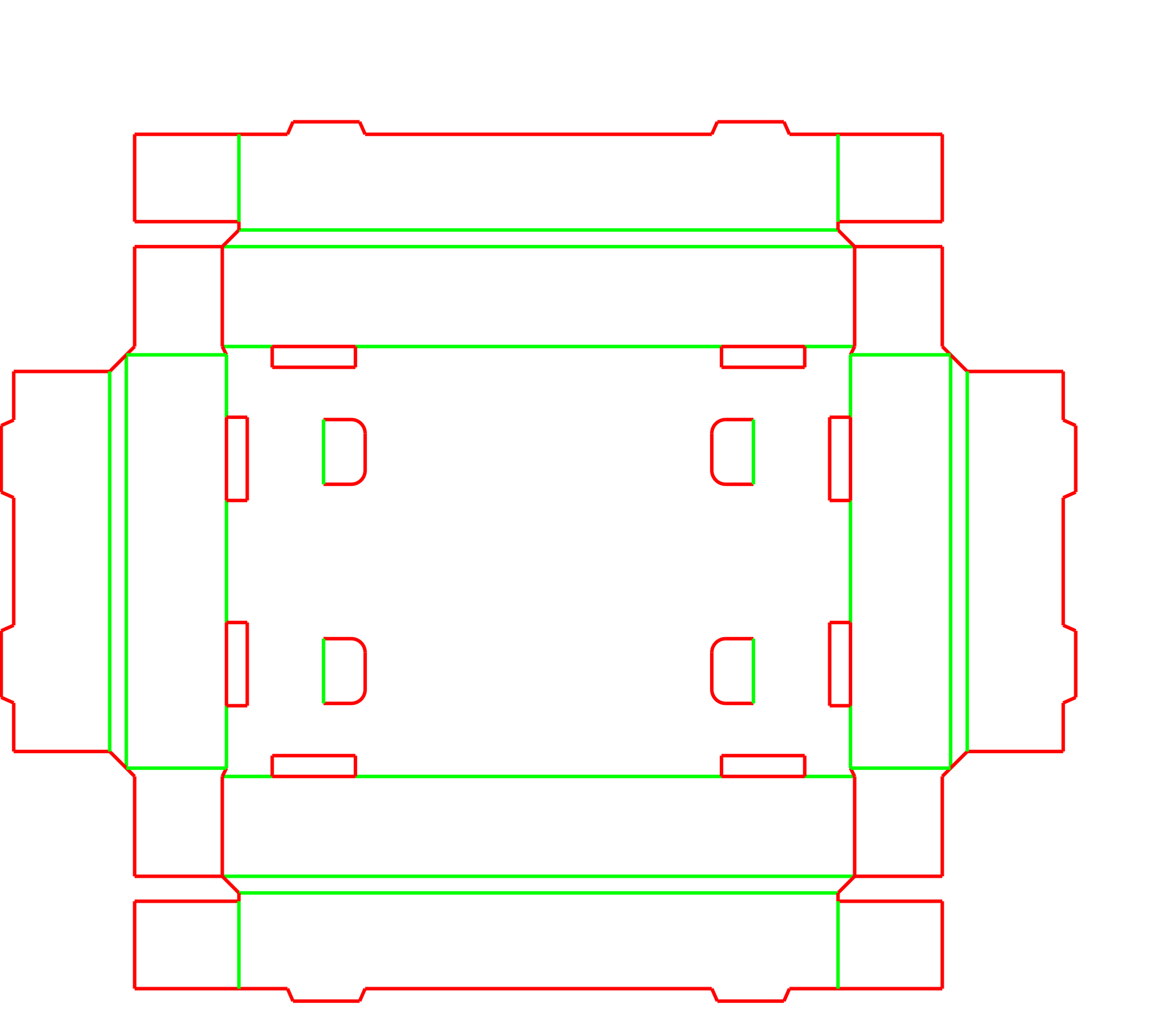

Shelf tray dimensions
The width and depth of the individual shelf trays can be modified to match the exact footprint of your retail cartons. Precise sizing prevents products from shifting and keeps the presentation orderly.
Packing details
Testing slot tear resistance
The entire weight of the merchandise on each shelf is transferred through the rear tabs into the slots on the backboard. Physical testing with the actual product weight is necessary to ensure the corrugated board does not tear at these connection points over time.
Additional notes
Shelf depth and tipping risk
Deep shelves hold more product but shift the weight forward. Always prototype the display with the heaviest intended merchandise to verify that the rear easel provides enough counterbalance.
FAQs
Does this display require glue or tape to assemble?
The display relies on a mechanical tab-and-slot system. The shelf trays and side legs interlock, and their rear tabs push through pre-cut slots in the backboard. While it holds together mechanically, some retail environments use a few strips of clear tape on the rear tabs to lock them permanently.
Can store staff easily build this?
Yes, but it requires floor space and a few minutes of labor. The multi-part nature means staff must fold the rear easel, assemble each shelf tray, attach the side brackets, and plug them into the spine. Clear printed instructions should be included in the kit.
How much weight can the shelves hold?
Weight capacity depends entirely on the chosen corrugated board grade and the width of the shelves. Heavy loads transfer stress to the slots in the backboard. Physical testing with your actual merchandise is necessary to ensure the slots do not tear under the payload.
Why are multiple cutting dies used for this display?
The backboard, rear easel, shelf trays, and side legs are distinct shapes that cannot be cut from a single sheet of corrugated board. Conventional production uses separate cutting dies for the different components, though short runs can be produced on digital flatbed cutters.
Can I ship this display fully assembled?
No. The projecting shelves are designed for static retail presentation, not the impacts of a transit network. It should be shipped flat and assembled at the final retail destination.
Where does the branding go on this display?
The tall backboard provides a large header area above the top shelf, and the front lips of the individual shelf trays offer prime space for pricing, flavor callouts, or brand logos.
Can I use different corrugated board types for the shelves and the backboard?
Yes. Because the components are cut from separate blanks, it is common to use a heavy double-wall board for the load-bearing backboard and a thinner single-wall board for the shelves to achieve crisper folds.
How are the components packed for distribution?
The flat backboard, folded easel, and flat shelf components are typically gathered and packed together into a single master carton. This kitted package is then shipped to the retail location for on-site assembly.
