EVC62910

Triangular Floor Display with 360-Degree Slanting Shelves

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

360-degree retail visibility with a triangular footprint
Ships as flat, unglued components to minimize transit volume
Requires manual assembly at the retail destination

About this product

This multi-piece corrugated floor display creates a tall, three-sided merchandising tower with individual slanting shelves. Designed for 360-degree retail access, it presents small, lightweight items such as cosmetics, packaged snacks, or accessories.

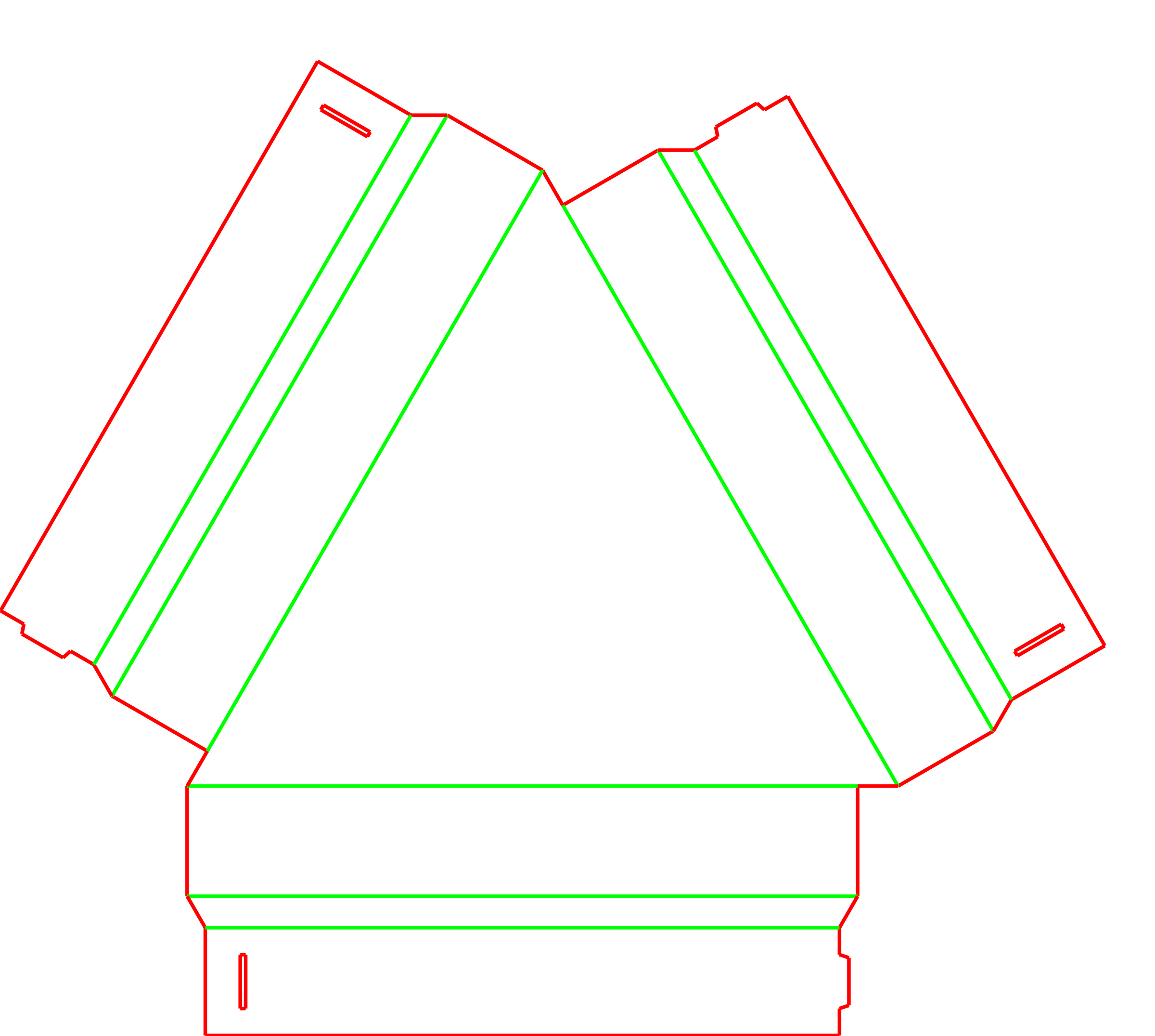

The structure ships entirely flat as separate components: a base, pedestal, main holder, header, and individual shelves. At the retail destination, the large panels fold into triangular tubes that stack vertically, while the shelves lock into angled slots on the main tower.

Common uses

Retail floor merchandising for cosmetics, snacks, or accessories
Flat-shipping distribution to individual stores

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall tower height

Shelf width

Shelf depth

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of items will be displayed on the shelves?

How will the display be assembled and packed?

Approximately how many shelves do you need per side?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Merchandising and Floor Placement

360-Degree Floor Merchandising

The triangular footprint and three-sided access make it a strong fit for open floor spaces where shoppers approach from multiple directions.

Lightweight Retail Assortments

The individual tuck-tongue shelves are designed for small, light items. Heavy goods should be tested to ensure the shelf slots do not tear under load.

Flat-Packed Store Distribution

Because the display ships as completely flat sheets, it is very efficient for distribution to individual retail locations, provided store staff can manage the assembly.

Multi-Tier Product Presentation

The tall tower format allows brands to separate different product lines or variations across multiple slanting shelves on each face.

Product Fit and Display Strategy

Open Retail Floor Spaces

Stores with wide aisles benefit from the three-sided access, allowing shoppers to interact with the merchandise from any angle.

Seasonal and Promotional Campaigns

The flat-shipping nature and tall branding header make this tower useful for temporary product pushes that require high visibility.

Distributed Franchise Networks

Brands sending displays to hundreds of locations can reduce shipping volume, though they must account for the time required to build the tower on site.

When to Consider Alternative Display Styles

Pre-assembled or Pop-up Displays

If retail staff have limited time for setup, a pre-glued display that opens quickly may be a better choice than this multi-piece, tab-and-slot tower.

Heavy Product Loads

If displaying heavy bottles or hardware, a display with a rigid internal frame or reinforced horizontal shelving should be evaluated instead.

Assembly, Closure, and Tooling Considerations

Assembly Labor and Instructions

The tower requires folding the triangular sections, stacking them vertically using tabs, and inserting every individual shelf. Clear assembly instructions for retail staff are essential.

Tower Seam Closure

The three-panel vertical sections do not feature a native side glue flap. They rely on the top and bottom stacking tabs to hold their triangular shape, though external clear tape is often used to secure the vertical seams.

Board Caliper and Slot Width

The vertical stacking slots and the shelf insertion slots are precisely calculated based on the material thickness. Any change in board grade requires recalculating the entire die layout.

Shelf Angle and Product Retention

The slant angle of the shelves can be adjusted during specification, but steep angles require careful testing to ensure products do not slide off the front lip.

Shelf Configuration and Tower Height

Shelf Count and Spacing

The number of shelves per face and their vertical spacing can be adjusted to fit the specific product height.

Shelf Slant Angle

The angle of the shelves can be modified, though steep angles require careful product testing to ensure items do not slide off.

Pedestal and Header Proportions

The height of the lower body section and the top branding header can be scaled independently of the main shelf area.

Packing details

Tooling and Die-Cutting

The numerous angled slots on the main holder and the individual shelf pieces require a complex flatbed die-cutting layout. This makes the design more suitable for planned retail rollouts rather than short prototype runs.

Additional notes

Retail staff assembly burden

The multi-piece nature of this display means store personnel must fold the tower sections, stack them, and insert each shelf individually.

FAQs

Does this display ship pre-glued?

The components are designed without side glue flaps. They ship as completely flat sheets and are folded into triangular tubes during assembly.

How do the vertical sections stay together?

The base, pedestal, main holder, and header connect using vertical tabs that insert into corresponding slots on the section below.

Can the shelves hold heavy items?

This structure is intended for lightweight merchandise. The shelves rely on tuck tongues inserted into the main tower; heavy loads may cause the slots to tear or the shelves to sag.

Can we change the angle of the shelves?

The slant angle can be adjusted in the template, but the new angle should be tested with the actual product to ensure items remain stable.

Can we switch to a thicker corrugated board?

Changing the board thickness requires a complete recalculation of the template, as the interlocking tabs and slots are sized exactly to the material caliper.

How is the display packaged for transit?

Because it consists of multiple flat components, it requires a separate outer shipping box to transport the unassembled pieces to the retail location.

What is the best way to secure the vertical seams?

The three-panel sections lack native glue flaps, so clear tape is often applied to the outside corners for extra stability during retail use.

Can the number of shelves be adjusted?

The template allows for changing the shelf count and vertical spacing to match the height of the merchandised items.
