EVC62911

Triangular 360-Degree Hook Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Triangular footprint for multi-aisle visibility
Dual-tube construction keeps peg hooks straight and secure
Delivered as unglued blanks or fully assembled 3D units

About this product

This freestanding triangular floor display provides 360-degree access to hanging merchandise. Designed as a tall tower, it uses a four-piece construction: a pedestal base, an outer shell, an inner support core, and a branding header, to create a stable, high-visibility merchandising station.

The defining feature is the dual-tube body. An inner corrugated core sits inside the outer shell, providing a structural standoff that anchors the back of the peg hooks. This prevents the hooks from sagging or tearing through the outer wall when loaded with product.

Common uses

Retail floor aisles
Endcaps
Impulse buy stations for blister-packed goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Width of one triangular face

Pedestal base height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How do you plan to assemble and ship these displays?

Do you already have the peg hooks you plan to use?

How heavy is the merchandise hanging on a single hook?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Floor Merchandising

360-degree open floor placements

The triangular shape allows shoppers to browse hanging items from three sides, making it a strong choice for open floor spaces or wide aisles where a flat-backed display would waste facing opportunity.

Heavy blister-pack goods

Because the hooks are supported by both the outer shell and the inner core, the display handles heavier hanging items, like hardware or dense cosmetics, better than a single-wall pegboard.

Impulse buy stations

The compact triangular footprint fits well near checkout zones or aisle intersections, capturing attention from multiple traffic directions.

Multi-product campaign rollouts

The three distinct faces allow brands to separate different product lines, sizes, or complementary accessories on a single freestanding unit.

Campaign and Fulfillment Planning

Retail rollouts and co-packing

The four components lock together using corrugated tongues and slots. Because the main tubes are three-sided, they do not fold flat once the side seam is joined. Planners evaluate whether to ship the blanks flat for taping at the store, or assemble them at a fulfillment center and ship the displays fully built.

High-traffic retail environments

The pedestal base and triangular geometry provide a stable center of gravity, reducing the risk of tipping when placed in busy store aisles.

Seasonal promotional campaigns

The separate top header provides a dedicated branding surface that can be swapped or updated for different seasons without redesigning the main hook body.

When to Consider Alternative Floor Displays

High-volume flat shipping needs

If the campaign relies on thousands of displays that should ship flat and open quickly at retail, a standard four-sided display with pre-glued collapsing scores is often easier to deploy.

Wall-adjacent or endcap placements

If the display will sit flush against a wall or at the end of a shelving run, a flat-backed or two-sided display uses the available space more efficiently.

Hardware, Board, and Shipping Format

Matching the physical hook hardware

The die-cut holes and internal slots should be matched to the physical peg hooks you plan to use. Testing a physical hook against a prototype helps ensure a tight fit that will not sag.

Board grade for merchandise weight

While the dual-tube design adds strength, the overall weight of the merchandise dictates the board choice. Double-wall corrugated is often recommended for the body and inner core to support heavier loads.

Delivery format and assembly labor

Decide early whether the fulfillment strategy supports shipping flat blanks that require manual side-seam taping at the store, or if shipping fully assembled displays makes more sense for the campaign.

Base height and product clearance

The height of the pedestal base determines how close the lowest row of merchandise sits to the floor. This should be evaluated based on store cleaning practices and shopper reach.

Hook Grid and Display Scaling

Hook grid density and spacing

The number of hooks horizontally and vertically, as well as the spacing between them, can be adjusted to fit the exact dimensions of your blister packs or hanging cards.

Header branding and base height

The height of the pedestal base and the top branding header can be scaled to elevate the merchandise to eye level or to accommodate larger promotional graphics.

Base footprint scaling

The overall width of the triangular faces can be expanded to increase stability for taller displays or to accommodate wider merchandise.

Packing details

Forming the tower and inserting hooks

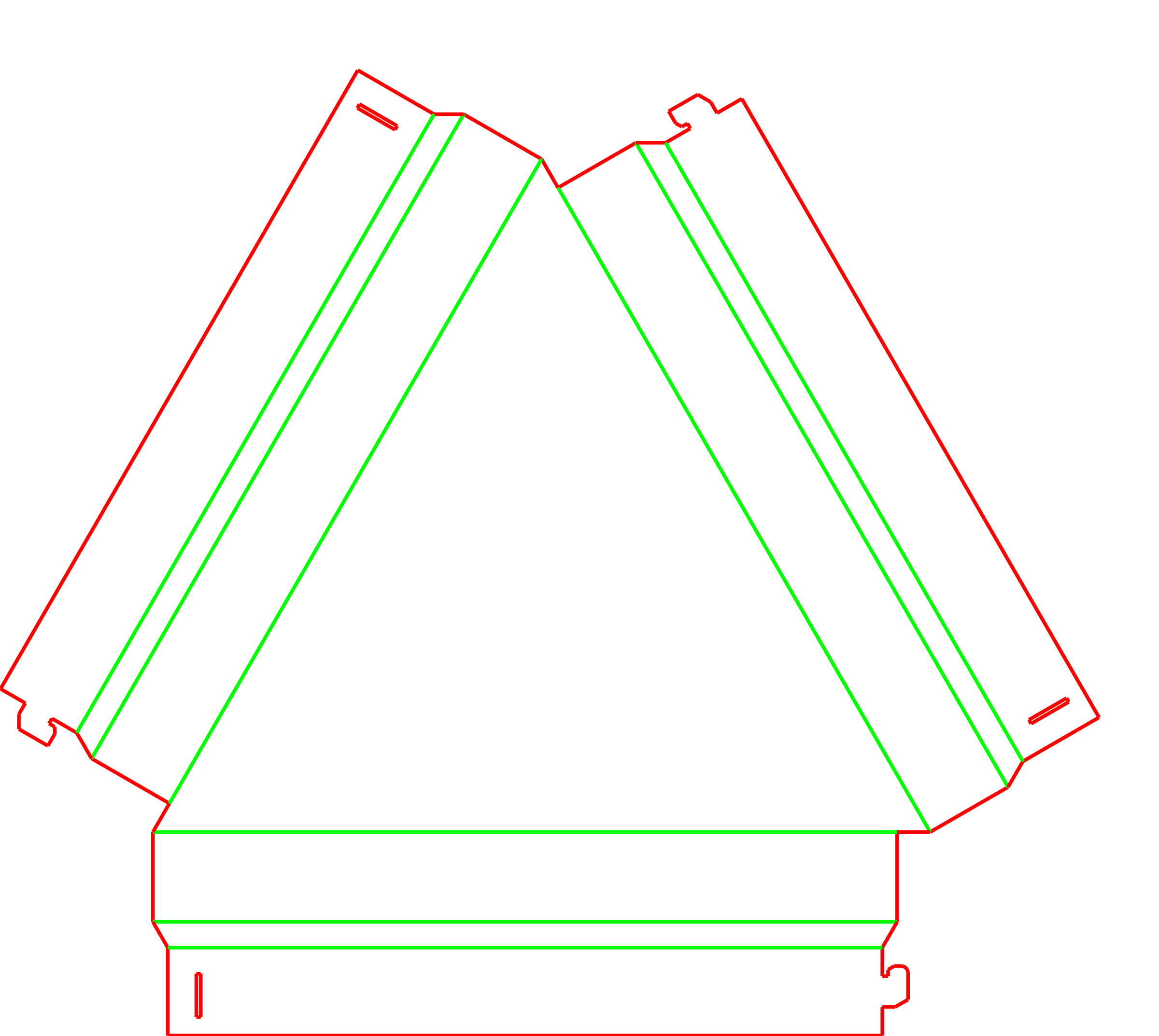

Assembly involves forming the four triangular tubes, sliding the inner core into the outer body, locking the base and header into place with the corrugated tongues, and finally inserting the metal or plastic hooks through the aligned holes.

Additional notes

Co-packing versus store-level assembly

Because forming the triangular tubes requires manual taping or gluing, many brands choose to have these displays assembled and loaded with product at a co-packing facility, shipping them to retail fully built.

FAQs

Can this display be shipped flat to retail stores?

The individual pieces can be shipped flat as unglued blanks, but store staff will need to apply adhesive or double-sided tape to form the triangular tubes. Because a three-sided tube does not fold flat once sealed, it is usually not pre-glued by the manufacturer for flat shipping.

Do I need to supply the hooks before ordering?

It is highly recommended. The exact dimensions of your chosen metal or plastic peg hooks help adjust the CAD template. The outer holes and inner slots should align with your hardware to keep the hooks straight.

How does the display keep the hooks from tearing the cardboard?

It uses a dual-tube design. The outer shell provides the front face, while an inner corrugated core sits a few inches behind it. The back of the hook anchors into the inner core, transferring the leverage and reducing stress on the outer wall.

Can I change how many hooks are on each side?

Yes. The grid pattern, including the number of rows, columns, and the spacing between hooks, can be adjusted to match your product packaging.

How do the top and bottom attach to the main body?

The base and header feature corrugated locking tongues that insert into corresponding slots on the main body assembly, securing the tower without needing extra clips or fasteners.

What board grade makes sense for this display?

It depends on the weight of your products. For lightweight items, a sturdy single-wall board may suffice. For heavier goods, double-wall corrugated is often used for the body and inner core to ensure the hooks remain stable.

How is the inner support core installed?

During assembly, the inner triangular tube is formed and simply slides down inside the outer body tube. The hook holes on the outer shell align with the vertical slots on the inner core.

Does the triangular shape affect pallet shipping?

Yes. If shipped fully assembled, triangular towers do not pack as densely on a standard pallet as square displays. This often influences the decision to ship them as flat blanks for store-level assembly.
