EVC62930

Double-Sided Multi-Pocket Leaflet Display

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Double-sided access for open floor plans

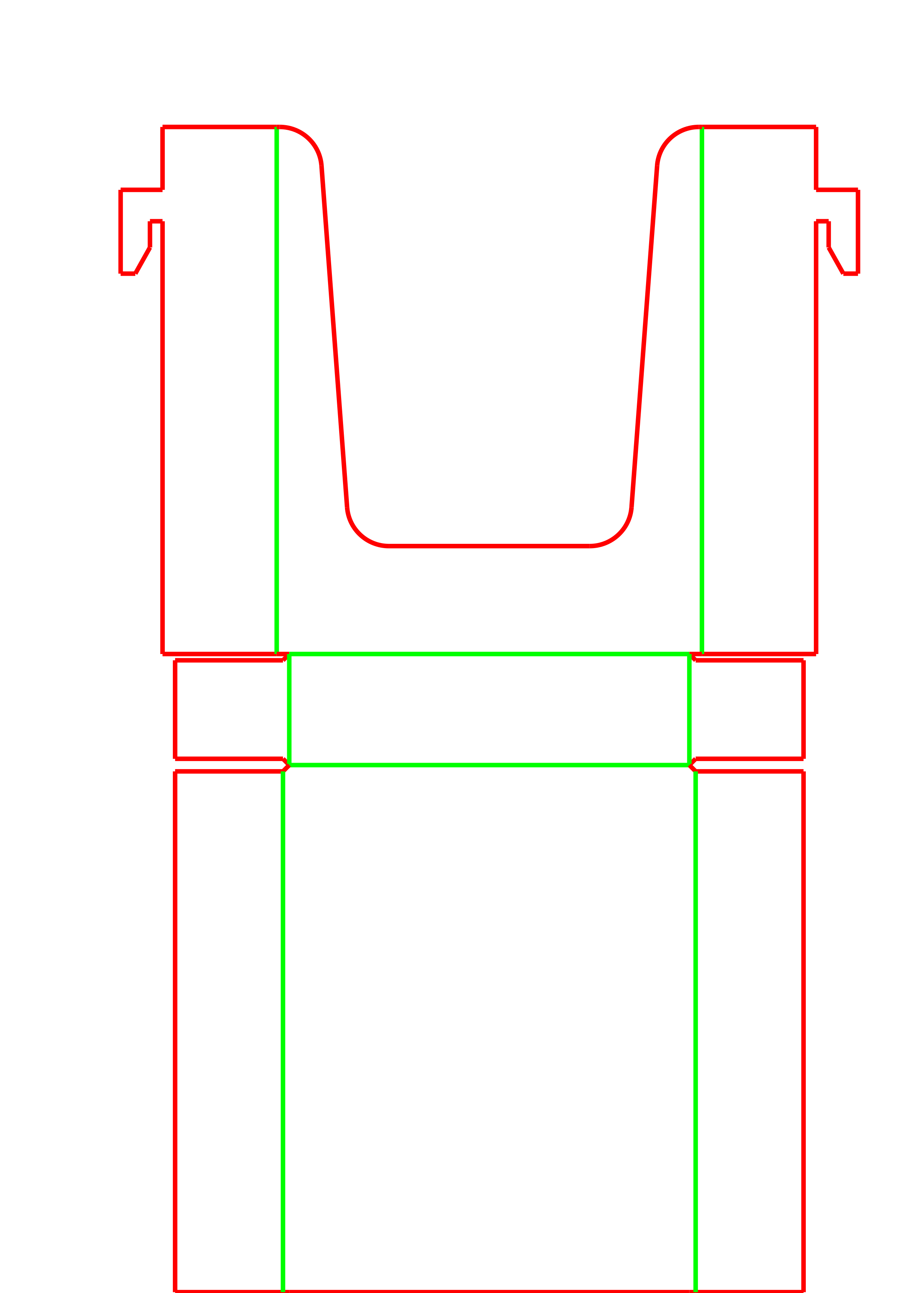

Individual tab-and-slot pockets hook into the main spine
Ships flat as a multi-piece kit requiring manual assembly

About this product

The EVC62930 is a freestanding, high-capacity corrugated floor display designed for 360-degree literature distribution. Built around a central vertical spine, it uses individual folded pockets that lock into slots on both the front and back faces, creating a double-sided rack for brochures, flyers, or magazines.

Because each pocket is a separate component, this design offers excellent flexibility for mixing literature sizes, but it requires dedicated manual assembly and careful kitting when shipped flat to retail or event locations.

Common uses

Trade show booths
Retail aisles
Tourist information centers
Lobby literature distribution

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Overall display height

Literature width

Literature height

Size notes

Quantity notes

Materials and print

Material or strength preference

Add details for material or strength preference

Material or strength details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Where will this display be set up?

What type of literature will this hold?

How should the main structure be printed?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

High-Capacity Literature Distribution

Trade show and lobby information centers

The two-faced design is useful in open areas where foot traffic approaches from multiple directions. The individual pockets keep different brochures separated and upright, preventing the disorganized look of open dump bins.

Retail promotional literature

Useful for distributing product catalogs, rebate forms, or seasonal flyers in wide store aisles. The rigid U-channel side walls keep the tall spine stable even when fully loaded with paper.

Tourist and visitor information hubs

Provides high-capacity distribution for maps, guides, and local attraction flyers, keeping different publications neatly organized in their own bins.

Corporate campus and waiting room distribution

Organizes company newsletters, benefits packets, and industry magazines in open lobbies without requiring permanent furniture.

Retail Aisles and Event Spaces

Event marketing and touring promotions

The entire structure breaks down into flat corrugated sheets, making it easy to transport to trade shows. However, event staff must be prepared to fold and insert each pocket individually during setup.

High-traffic retail environments

The two-sided access maximizes floor space utility in wide aisles where shoppers approach from multiple directions.

Seasonal or temporary campaigns

A multi-piece corrugated display offers a practical, paper-based alternative to permanent metal fixtures for short-term literature distribution.

When to Consider Simpler Display Structures

Fast-setup retail rollouts

If store staff need a display that opens in seconds, a multi-piece pocket display is not the right fit. Consider pop-up floor displays or pre-assembled tiered shelf units that require less manual labor on the floor.

Single-sided wall placement

If the display will be pushed against a wall or endcap, the rear-facing pockets become unusable. A single-sided structure reduces material and assembly time.

Pocket Configuration and Kitting Strategy

Mixed board grades for frame and pockets

The main spine and side walls usually require a thicker, rigid board to support the overall weight and prevent bowing. The individual pockets often use a thinner board so the small flaps and hook tabs fold cleanly.

Kitting and flat shipping

Because this display consists of a base, a spine, side walls, and dozens of individual pockets, it must be carefully kitted into a master shipper. Missing a single pocket blank during fulfillment leaves a gap in the final display.

Print surface and branding

Deciding whether the central spine needs two-sided printing, as both faces will be visible behind the pockets.

Assembly labor planning

Accounting for the time required to fold and insert dozens of individual pockets during floor setup.

Adjusting Pocket Grids and Clearances

Adjusting pocket dimensions

Modifying the length, width, and depth of individual pockets to fit specific brochures or magazines.

Mixing pocket sizes on one display

Configuring the slot grid to hold large magazine pockets on the bottom rows and smaller trifold pockets on the top rows.

Header shape and branding area

Altering the arched top profile of the main spine to match campaign branding or accommodate specific graphics.

Packing details

Slot clearance and board thickness

The vertical slots on the main spine must be precisely sized to match the thickness of the pocket hook tabs. If the board grade changes, these clearances must be updated so the pockets seat firmly without tearing the spine.

Additional notes

Hook tab insertion

The pockets feature extended tuck tongues that pass through the spine and seat downward, locking the pocket against the face of the board under its own weight.

FAQs

Does this display require glue or tape to assemble?

The base, side walls, and individual pockets all connect to the main spine using mechanical tab-and-slot friction fits, without requiring glue or tape.

How long does it take to set up?

Setup time is higher than standard pop-up displays because each pocket must be folded and hooked into the spine individually. It is best suited for environments where staff have dedicated time for assembly.

Can the main spine be printed on both sides?

Because pockets attach to both the front and back, the central spine is visible from both directions and often uses two-sided printing.

Can it hold heavy catalogs or magazines?

It can hold standard literature, but heavy catalogs place downward stress on the hook tabs and spine slots. Heavy loads should be physically tested to ensure the tabs do not tear out over time.

Can the assembled display be shipped through a parcel network?

The assembled 3D structure is not designed for individual parcel shipping. It must be shipped flat inside a protective outer corrugated box and assembled at the final destination.

Do the pockets have to be the same material as the frame?

It is common to use a rigid board for the structural frame and a thinner, easier-to-fold board for the pockets. This requires separate cutting dies and press runs.

Can different pocket sizes be used on the same display?

The slot grid on the main spine can be configured to accept different pocket dimensions, allowing for a mix of magazines and trifold brochures.

How is the display stabilized?

The side walls fold into rigid U-channels that attach to the edges of the main spine, providing vertical column strength to prevent bowing.
