Retail Dispensing and Dry Goods
Granular and Powdered Products
The pull-out drawer mechanism is designed to meter the flow of dry goods like cereal, seeds, detergent powders, or pet food. The internal walls of the spout catch against the front panel, stopping the drawer at a specific angle for controlled pouring.
Plastic-Free Retail Dispensing
Because the spout is die-cut and folded from the main carton blank, it eliminates the need to source and apply separate plastic pour spouts, supporting single-material packaging goals.
Metered Pouring for Lawn and Garden
For products like grass seed or fertilizer, the integrated spout allows users to pour directly from the carton with better control than a torn flap or open bag.
Pantry Storage and Reclosure
The drawer spout can be pushed back into the carton after use, keeping the contents contained on the shelf and reducing spills compared to permanently open boxes.
Product Fit and Consumer Convenience
Consumer Usability
The front-facing pull tab provides an intuitive opening experience. Once opened, the spout can be pushed back into the carton to reclose the package, keeping the contents contained on the shelf or in the pantry.
Automated Filling Lines
The carton is delivered flat with the side seam and internal spout already glued and folded. On the filling line, the carton is erected, the bottom overlapping flaps are sealed with adhesive, the product is top-loaded, and the top flaps are sealed.
Retail Shelf Presentation
The full overlapping flaps create a flat, stable base for standing upright on retail shelves, while the large front and side panels offer uninterrupted space for branding and product information.
When to Consider Simpler Closures
Hermetic Seal Requirements
While the overlapping flaps provide good coverage, this carton is not natively sift-proof for very fine powders or hermetically sealed against moisture. Products requiring strict barrier protection will need an internal bag or liner.
Manual Packing Operations
The full overlapping top and bottom flaps do not mechanically lock. If the packing operation relies on hand assembly without gluing equipment, a tuck-end carton or crash-lock base may be a more practical choice.
Board Choice and Production Route
Board Strength and Tear Resistance
The spout mechanism relies on paperboard hinges that must survive repeated opening and closing. Specifying a premium board with high tear resistance prevents the pull-tab from ripping during consumer use.
Manufacturing Complexity
The internal spout requires a complex 180-degree fold during the converting process. This specialized folding step can affect folder-gluer speeds compared to standard straight-line cartons, which should be factored into production planning for large rollouts.
Sealing Method for Overlapping Flaps
Because the top and bottom flaps do not tuck or lock, the packing line must be equipped to apply adhesive or tape to secure the closures after filling.
Sift-Proofing and Internal Bags
For fine powders that might escape through the corners of the overlapping flaps or the edges of the closed spout, an internal bag or liner should be planned into the packaging strategy.
Spout Size and Placement
Spout Dimensions and Vertical Position
The dimensions of the front aperture and the corresponding internal drawer can be adjusted to suit the product's particle size. The vertical placement of the spout can also be shifted higher or lower on the front panel.
Spout Catch Mechanism
The internal walls of the drawer that catch against the front panel to stop the spout from pulling out completely can be modified to change the pouring angle.
Tube Size and Proportions
The overall length, width, and height of the carton can be scaled to accommodate different product volumes, provided the front panel remains wide enough to house the spout mechanism.
Board and packing details
Tamper Evidence
The built-in spout is not inherently tamper-evident. A clear label or shrink band applied over the front aperture is often used to secure the pull-tab until the consumer's first use.
Additional notes
Grain Direction
To ensure the tall vertical panels do not bow and the complex spout folds cleanly without cracking, the paperboard grain direction should run horizontally across the blank.
Related Dispensing Cartons
FAQs
Product Fit
Is this carton sift-proof for fine powders?
Not entirely. While the full overlapping flaps provide excellent coverage, fine powders can still escape through the corners or the edges of the closed spout. An internal bag is often used for very fine or moisture-sensitive powders.
Production and Packing
How are the top and bottom closed?
Both the top and bottom use full overlapping flaps. They do not tuck or lock into place and are typically sealed using adhesive or tape on the packing line.
Manufacturing
Does the spout require special assembly by the packer?
No. The complex folding of the internal spout is handled by the manufacturer during the gluing process. The carton arrives flat, and the packer simply erects the tube, seals the bottom, fills the product, and seals the top.
Materials
What board type supports the spout mechanism?
A board with high tear resistance is often specified. Boards with shorter fibers may crack or tear at the spout hinges after repeated consumer use.
Design
Can the size of the pour spout be changed?
Yes. The width and depth of the drawer mechanism can be adjusted to accommodate different product flow rates, though large changes require verifying that the internal walls still catch properly against the front panel.
Shipping
Can this carton be shipped individually in the mail?
No. The front aperture and overlapping flaps are vulnerable to crushing and snagging in parcel networks. It requires a protective outer shipper for e-commerce fulfillment.
Design
How does the spout stay inside the carton?

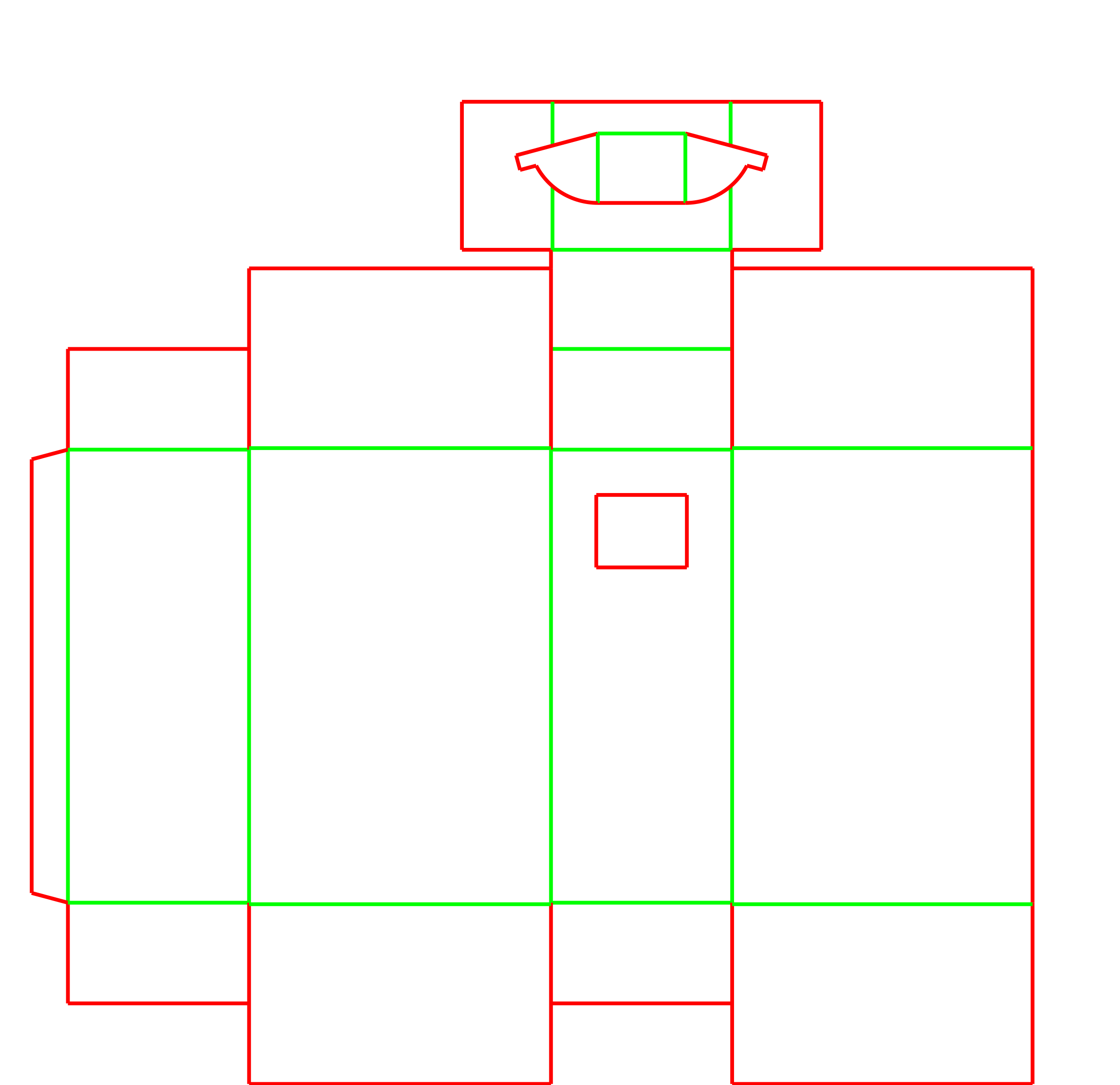

The spout is formed from an extension of a top flap that is folded 180 degrees inside the carton during manufacturing. Internal side walls on the spout catch against the front panel to prevent it from pulling all the way out.
Production and Packing
Does the carton arrive flat or pre-assembled?
It arrives flat (knocked down) with the side seam and the internal spout mechanism already glued and folded. It is popped open into a tube on the filling line.
