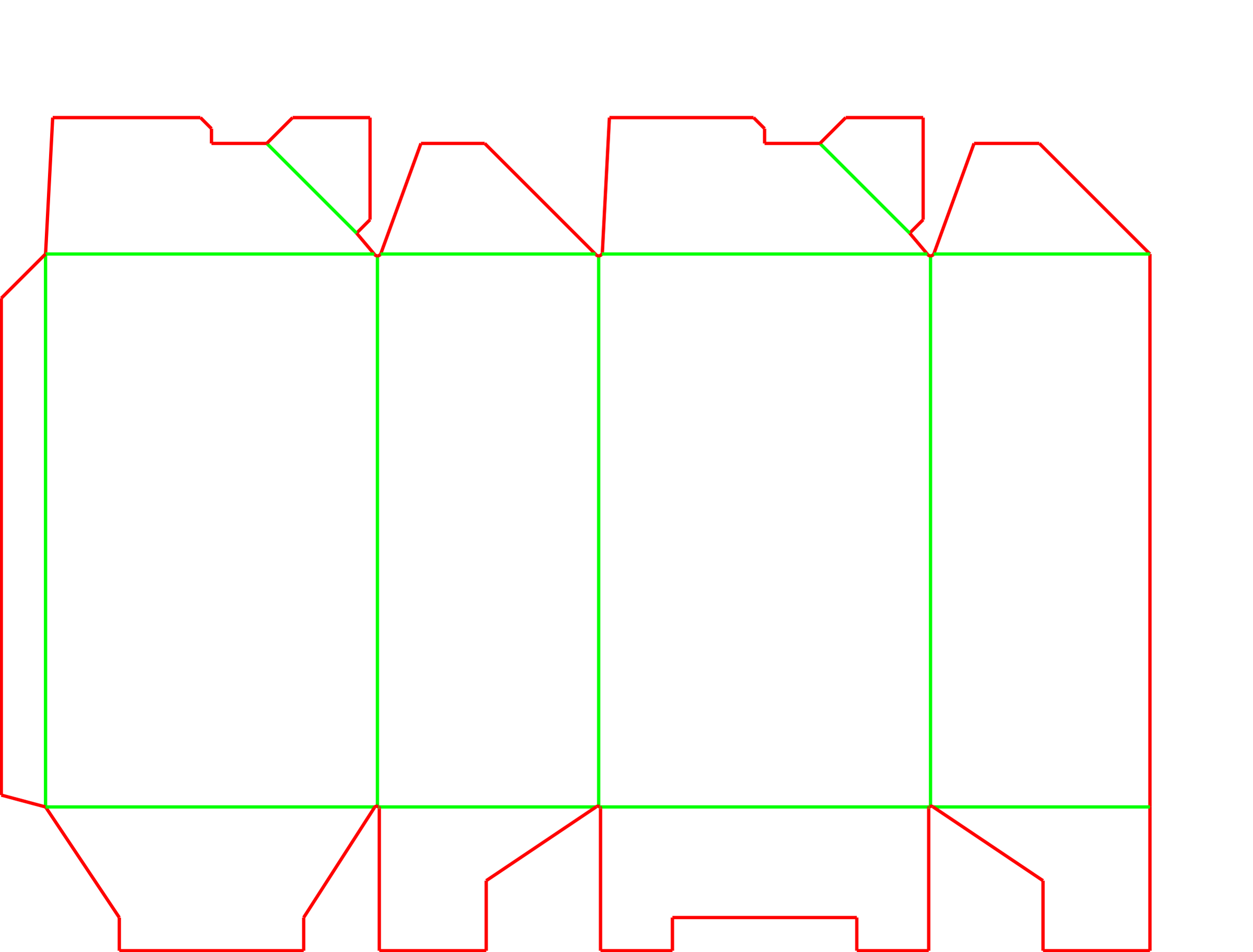

ECMA A55.60.01.00

Bottom-Loading Carton with Auto-Erecting Top

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Pre-glued top closure that automatically erects
  • Manual snap-lock bottom for secure closure after loading
  • Requires bottom-loading packing workflows

About this product

This specialized folding carton reverses the standard closure orientation. The top features a pre-glued crash-lock mechanism that snaps into place automatically when the box is squared, while the bottom uses a manual snap-lock closure.

Because the top is permanently sealed during manufacturing, this carton must be loaded from the bottom. It is practical for sealed-top dispensers, upside-down packing workflows, or retail packaging where the top panel must remain perfectly intact.

Common uses

  • Sealed-top dispensers
  • Upside-down packing lines
  • Tamper-evident retail tops
  • Hanging retail displays

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Bottom-Loading and Dispenser Applications

Sealed-top dispensers

The top remains permanently glued, making it practical for base-dispensing retail setups where the upper panel must stay closed.

Upside-down packing lines

Fits workflows where the product is inserted base-first into the carton before the bottom flaps are locked.

Tamper-evident retail tops

The glued top prevents opening from above without tearing the board, offering a clean, secure presentation on the shelf.

Hanging retail displays

The glued top provides a secure anchor for a hang tab or euro-slot without risk of the top opening under the product's weight.

Retail Display and Specialized Assembly

Retail and display packaging

Provides a clean, secure top panel that will not pop open on the shelf, maintaining a consistent appearance.

Specialized hand assembly

The auto-erecting top speeds up the initial squaring of the carton, leaving only the bottom flaps to be folded manually after the product is inserted.

High-volume production runs

The multi-point gluing required for the top crash-lock makes this carton a better fit for mature, larger-scale orders rather than short digital trials.

When to Consider Standard Top-Loading Cartons

Standard top-loading workflows

If your packing line drops products in from the top, compare the standard A60.55.00.01 Auto-Bottom Carton, which places the glued closure on the bottom.

Heavy retail products

Because the product weight rests entirely on a manual snap-lock bottom, heavy items may cause the base to bow or open. A glued bottom provides better weight-bearing strength.

Short prototyping runs

The pre-glued top requires a multi-point folder-gluer, which adds setup time. For very short runs, a full snap-lock carton (A55.55.01.01) avoids this gluing step.

Packing Workflow and Weight Considerations

Product weight and base support

Verify that the manual snap-lock bottom can support your product's weight without bowing or tearing the locking tabs.

Packing orientation

Confirm your team or machinery can load the product upside down, as the top cannot be opened for filling.

Production volume

Ensure your order size justifies the setup time for multi-point crash-lock gluing.

Board choice and erection speed

Folding boxboard (FBB) or solid bleached board (SBB) helps ensure the top crash-lock snaps open cleanly without binding when the carton is squared.

Bottom Lock and Flap Adjustments

Snap-lock fit

The bottom locking tabs and cutouts can be adjusted for tighter retention depending on the board thickness and product weight.

Glue flap width

The side seam glue flap can be widened to ensure stronger tube integrity on larger cartons.

Crash-lock flap angles

The bevels and tapers on the top glued flaps can be modified to prevent binding during erection.

Board and packing details

Grain direction

The paperboard grain should run horizontally across the main panels to prevent bowing and ensure the vertical creases fold sharply during assembly.

Additional notes

Retail shelf loading

The clean, glued top presents well on shelves, but packing staff must be trained to load and lock the bottom correctly to avoid base failure.

Short digital trial versus repeat run

The complex gluing makes this structure better suited for mature, higher-volume production runs rather than short prototyping batches.

Alternative Folding Cartons

A60.55.00.01: Standard Auto-Bottom Carton

The traditional orientation with a glued bottom and manual top closure.

A55.55.01.01: Full Snap-Lock Carton

Manual snap-locks on both ends, eliminating the need for complex gluing.

A55.20.01.00: Tuck Top, Snap-Lock Bottom

A standard retail carton with a reclosable top lid and a manual locking base.

FAQs

Product fit and loading

Can I load this carton from the top?

The top crash-lock flaps are permanently glued by the manufacturer. The carton must be loaded from the bottom.

Why use a glued top instead of a glued bottom?

A glued top is useful for retail dispensers, tamper-evident upper panels, or workflows where the product is naturally inserted upside down.

Route and shipping

Does the bottom require tape?

The bottom uses a mechanical snap-lock that folds together securely. However, this carton is designed for retail or master-shipper transport and is not meant for raw parcel shipping on its own.

Product fit and loading

Is this carton suitable for heavy items?

The product weight rests entirely on the manual snap-lock bottom. For heavy items, a carton with a glued crash-lock bottom provides better weight-bearing strength to prevent the base from opening.

Quantity and production

Does this design increase manufacturing setup time?

The top crash-lock requires a multi-point folder-gluer. This setup time makes it less economical for very short runs compared to a standard tuck carton.

Packing labor

How is the carton delivered and assembled?

The carton is delivered flat. When an operator squeezes the opposite edges, the main tube squares up and the top automatically locks into place. The product is then inserted, and the bottom flaps are folded manually.

Product fit and loading

Can I add a hang tab to this carton?

The glued top provides a secure anchor for hanging displays, as the top panel will not open under the product's weight.

Board and finish

Which board types suit the auto-erecting top?

Folding boxboard (FBB) or solid bleached board (SBB) are common choices because they fold cleanly and allow the crash-lock to snap open without binding.
