ECMA A60.00.00.00.85

Crash-Lock Gable Box with Handle

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Auto-erecting crash-lock bottom speeds up manual packing
  • Integrated handle held by two top tuck tabs
  • Usually packed in an outer shipping box for parcel transit

About this product

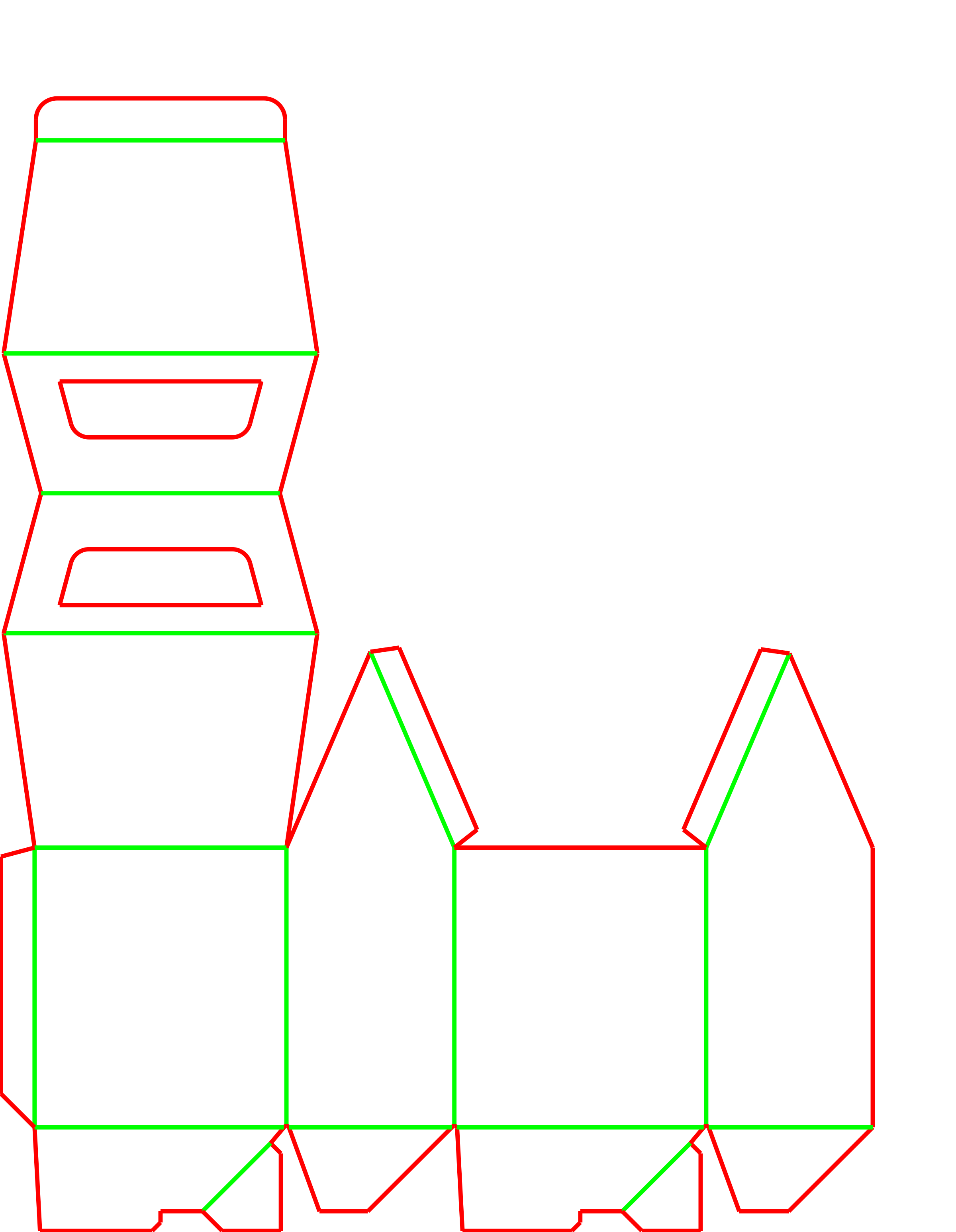

The A60.00.00.00.85 is a retail-ready folding carton that combines a built-in carrying handle with a fast-erecting crash-lock base. Delivered flat with the bottom seams glued during manufacturing, the base opens into a square with a simple squeeze, eliminating the step of folding and interlocking bottom flaps by hand.

The top forms a pitched gable roof, held by folding the handle panels together and locking them with two tuck tabs. Because the top closure involves manual folding, this carton is a strong fit for hand-packed retail kits, promotional items, and grab-and-go food packaging, but it is not suited for automated top-closing lines.

Common uses

  • Retail grab-and-go kits
  • Event and promotional packaging
  • Premium food and beverage assortments
  • Gift and presentation packaging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Promotional Packing Jobs

Retail grab-and-go kits

The handle encourages immediate carrying, making it a natural fit for multi-item retail kits, specialty food assortments, or beverage packs where the customer will carry the item directly out of the store.

Event and promotional packaging

The pitched roof and large front panels offer excellent display space, while the handle makes it easy for attendees to carry the box throughout an event or trade show.

Bakery and specialty food assortments

The enclosed shape and carrying handle work well for premium baked goods or deli items that are carried by the customer.

Gift and presentation packaging

The distinctive gable shape provides a premium unboxing experience for curated gift sets, reducing reliance on additional gift bags.

Retail, Food Service, and Event Channels

Manual fulfillment operations

The crash-lock bottom reduces the time spent forming the base compared to standard snap-lock designs, helping hand-packing teams maintain a faster rhythm.

Store-floor assembly

Retail staff can easily open the boxes and load them on demand without tape, glue, or specialized training.

Limited-space packing stations

Because the boxes are delivered flat and erect quickly, they are easy to store and assemble in cramped retail backrooms or event booths.

When to Consider a Different Box Style

High-speed automated filling

The gable top and tuck-tab closure involve complex manual manipulation. If the packing line uses automated top-closing equipment, a standard straight-tuck or reverse-tuck carton is a better fit.

Direct parcel shipping

The exposed handle and tuck flaps can catch on courier sorting equipment. If the box ships directly through the mail without an outer master carton, a standard mailer box is a safer choice.

Board Strength and Packing Route Decisions

Board tear strength

Because the entire weight of the product hangs from the paperboard handle, the board grade should be evaluated for tear resistance. Heavier products often call for a thicker caliper or a stronger board type.

Handle cutout stripping

The handle cutouts should be cleanly removed during manufacturing. Discussing this ensures the factory plans for proper inline stripping, avoiding hanging paper scraps that slow down the packing team.

Outer shipping requirements

If these cartons ship to retail stores or individual customers, an outer master carton helps shield the handle and gable top during transit.

Surface finish and print area

The large front and back panels offer excellent branding space, but the angled gable panels at the top should be designed with perspective in mind so logos do not appear distorted.

Handle and Closure Adjustments

Handle width and clearance

The width of the handle cutout can be adjusted for different hand sizes, but widening the hole reduces the remaining board material, which can lower the overall carrying capacity.

Tuck tab length

The length of the top tuck tabs can be extended slightly to provide a tighter friction fit over the handle.

Slit-lock additions

For heavier items or longer transit times, slit locks can be added to the top tuck tabs to increase closure strength and keep the gable from opening accidentally.

Board and packing details

Physical weight testing

Testing a physical prototype with the actual product load helps confirm whether the selected board grade can support the weight without the handle tearing or the crash-lock bottom bowing.

Closure Variants

A60.00.00.00.85.a

Adds slit locks to the top tuck tabs instead of standard tucks. This increases the strength of the top closure, making it harder for the gable to open accidentally during carrying.

Additional notes

Print panel and perspective

The large front and back panels offer excellent branding space, but the angled gable panels at the top should be designed with perspective in mind so logos do not appear distorted when the box is closed.

Related Retail and Handle Cartons

A60.60.00.00: Standard Crash-Lock Carton

Consider this style if the fast-erecting bottom is useful but a flat top is preferred for easier stacking or automated closing.

FAQs

Shipping and Route

Can this box be shipped through the mail?

Not on its own. The pitched roof, exposed handle, and tuck flaps will catch on courier sorting belts. It usually ships inside an outer corrugated box for parcel delivery.

Assembly and Packing

Does the bottom use tape?

The crash-lock bottom is glued during manufacturing. When you square the box, the bottom flaps interlock and form a flat base automatically without tape.

Can the top closure be automated?

The gable top and tuck-in handle closure are designed for manual assembly. They are very difficult to close using standard automated cartoning equipment.

Product Fit and Weight

How much weight can the handle hold?

This depends entirely on the board grade, the grain direction, and the width of the handle cutout. Testing a physical sample with the actual product weight helps confirm the handle will not tear.

Retail and Display

Can the boxes be stacked on a retail shelf?

The pitched gable roof keeps these boxes from being stacked on top of one another. They are typically displayed side-by-side or placed on separate shelf tiers.

Comparison

Why choose a crash-lock bottom over a snap-lock bottom?

A crash-lock bottom opens quickly, which saves labor time if you are hand-packing hundreds or thousands of boxes, though it involves a gluing step during manufacturing.

Print and Finish

Can we print on the angled top panels?

The gable panels can be printed, but the artwork should be designed with the folded perspective in mind so that logos and text appear correctly when the box is closed.

Modifications

Can the handle size be changed?

The handle cutout can be widened or narrowed. However, making the cutout too large reduces the amount of board supporting the weight, which can affect the carrying strength.
