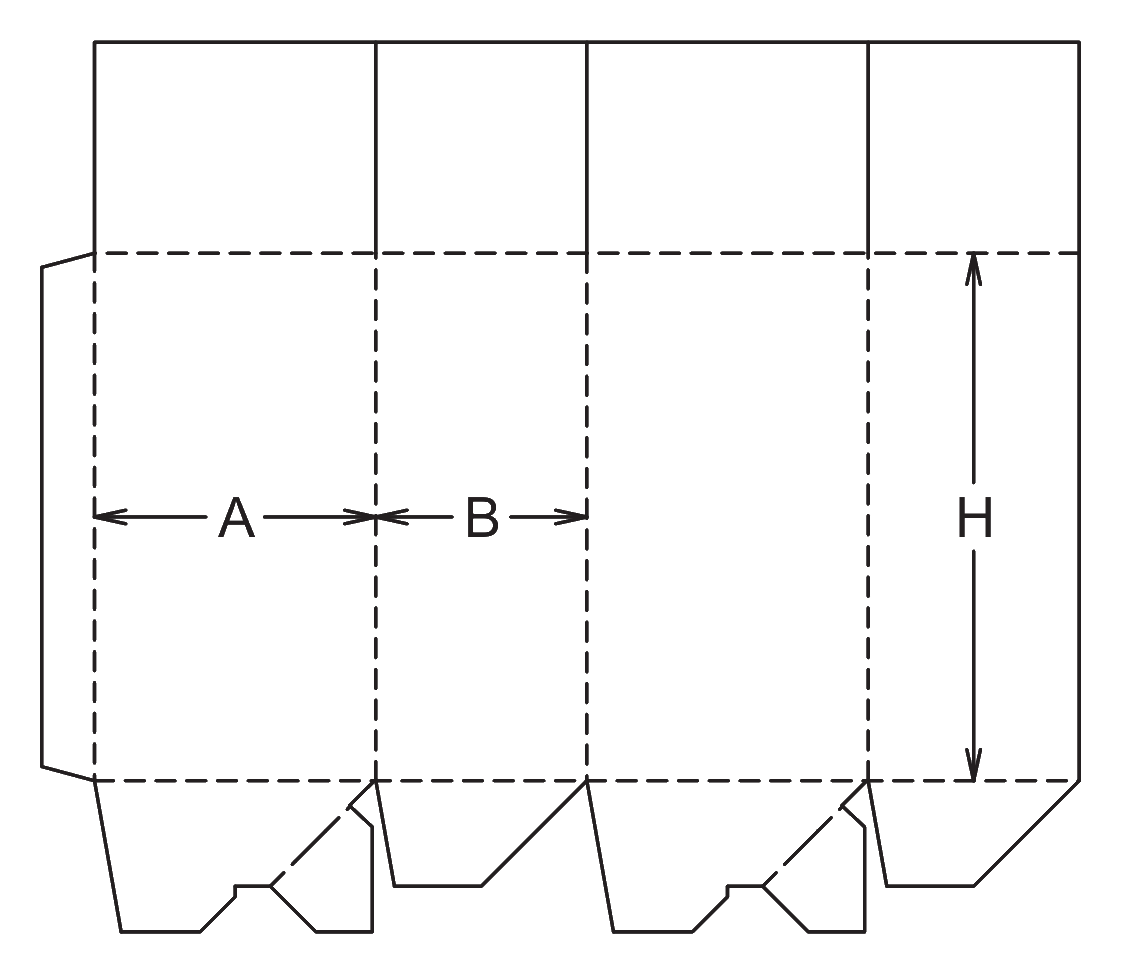

ECMA A60.10.00.03

Crash-Lock Carton with Overlapping Top Flaps

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Fast-setup auto-bottom base
Relies on tape, label, or adhesive to seal the top
Delivered flat for efficient storage

About this product

This folding carton combines a fast-erecting crash-lock base with full overlapping top flaps. Delivered flat with the base pre-glued, it snaps into a rigid, load-bearing shape the moment it is squared, reducing manual assembly time on the packing floor.

Because the top closure uses overlapping flaps rather than a tuck tongue, it relies on a secondary seal, such as tape, a tamper-evident label, or adhesive, to stay closed. This makes it a practical choice for repeat retail, cosmetic, or pharmaceutical fulfillment where top-sealing equipment is already in place.

Common uses

High-volume cosmetics packing
Pharmaceutical fulfillment
Retail goods requiring a tamper-evident top label
Lightweight consumer electronics

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How do you plan to seal the top of the carton?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

High-Volume Retail and Fulfillment Packing

Repeat Manual Fulfillment

The pre-glued crash-lock base eliminates the need to manually fold and tape the bottom of the carton. Packers simply squeeze the flat sleeve, and the floor locks into place automatically. This labor savings makes it useful for fast-paced packing lines.

Tamper-Evident Retail Packaging

Because the overlapping top flaps rely on an external seal, this carton pairs well with branded or tamper-evident labels. It provides a clean, secure presentation for retail shelves, ensuring the product remains enclosed until purchased.

Lightweight Consumer Electronics

For small devices and accessories, the double-layer top provided by the overlapping flaps adds a degree of crush resistance. The flat base supports the product securely during transit to the retail store.

Automated Top-Sealing Lines

If your facility uses automated taping or gluing stations for the final closure, the simple overlapping flaps feed smoothly through the equipment without the complexity of folding a tuck tongue.

Cosmetics, Pharmaceuticals, and Electronics

Cosmetics and Personal Care

These sectors often require fast assembly and secure closures. The flat, rigid base supports moderate product weights, while the overlapping top flaps provide a clean surface for branded sealing labels.

Pharmaceuticals and Supplements

When product security is a priority, the need for an external top seal becomes an advantage. A destructible label over the overlapping flaps clearly shows if the package has been opened.

Contract Packing and Co-Packing

Operations handling large volumes of identical items benefit from the rapid base assembly. The time saved per unit during the squaring and locking motion adds up over a long production run.

When to Compare Tuck-Top or Manual-Lock Cartons

When the packing line avoids tape or labels

If your packing line avoids tape, labels, or adhesive, the overlapping flaps on this carton will not stay closed. Compare this to a tuck-top crash-lock carton, which uses a friction-fit tuck tongue for a secure closure without tape.

When trialing prototypes or small batches

The crash-lock base requires specialized factory gluing during manufacturing. For prototypes or very small batches, the setup time for this process can make the run less practical. A manual interlocking base may be a better choice for early testing.

Sealing Methods, Board Stiffness, and Production Route

Top Sealing Method

Decide how the top flaps will be secured before ordering. A clear seal, a branded paper label, or a pass through a gluing machine will dictate how the final package looks and functions on the shelf.

Board Stiffness for the Auto-Bottom Snap

The auto-bottom mechanism relies on the memory and stiffness of the board to snap into place. Standard paperboard works well. If you are considering thicker corrugated materials, the base clearances must be carefully adjusted to prevent the folds from binding.

Production Route and Order Size

Because the base is pre-glued at the factory, the initial setup takes longer than a simple straight-line carton. This makes the style more suited for repeat programs rather than one-off trial runs.

Product Weight and Base Support

While the crash-lock base is strong, it relies on diagonal folds and glue joints. Discuss the exact weight of your product so the board grade and base design can be matched to the expected load.

Window Patches and Flap Adjustments

Display Window Patches

A display window can be added to the main front or back panels to display the product. The cutout must be kept away from the corner creases and the complex bottom folds to keep the carton stable.

Flap Overlap Depth

The major top flaps typically overlap completely for maximum dust protection and strength. Depending on the product and sealing method, this overlap can be adjusted to reduce material usage.

Dust Flap Modifications

The inner minor flaps can be shaped or angled to prevent interference when the major flaps are folded down, ensuring a smooth closure process on the packing line.

Board and packing details

Grain Direction and Erection Speed

For the carton to square up smoothly and the base to lock without bowing the main panels, the paperboard grain must run horizontally around the tube. This ensures the vertical creases fold cleanly during the rapid snap-open motion.

Variants

A60.10.00.03.a close EngView variant

A60.10.00.03.a is the close EngView variant for the same crash-lock base and overlapping top-flap family. Keep it with this page when the job still needs fast bottom setup and an externally sealed top, then confirm the flap-overlap details from the chosen dieline.

Additional notes

Automated top-sealing and packing lines

Because the top flaps overlap fully, this carton is well-suited for packing lines equipped with automated top-taping or gluing stations.

FAQs

Closure and Sealing

Does this carton need tape to stay closed?

The top closure consists of overlapping rectangular flaps without a locking mechanism. Tape, a label, or adhesive is needed to secure the top. The bottom is pre-glued and locks automatically.

Route and Shipping

Can I use this for parcel shipping?

Folding cartons are generally not designed for direct parcel shipping. If shipped individually, the overlapping top flaps must be heavily taped, and the board must be thick enough to protect the contents. It is usually better to place this carton inside a corrugated outer shipper.

Production and Quantity

Why is this carton better for repeat volumes?

The crash-lock base relies on specialized gluing equipment during manufacturing. This setup process adds upfront time, making short runs less practical. At higher volumes, the labor savings during manual packing make it a strong choice.

Board and Material

Can this be made from corrugated board?

While possible with very thin flutes, the tight pre-folds needed for the crash-lock base can crack or bind if the material is too thick. Standard paperboard is the most reliable choice for this mechanism.

Assembly

How fast is the assembly process?

A packer simply pushes the opposite folded edges toward each other, and the carton squares up while the base snaps into a locked floor in a single motion. The only secondary step is sealing the top after loading.

Comparison

What is the difference between this and a tuck-top carton?

A tuck-top carton has a top panel with a tongue that tucks into the carton body, holding itself closed via friction. This carton has four flaps that simply fold over each other, relying on an external seal.

Inserts and Fit

Can I use custom inserts with this carton?

Custom paperboard inserts can be loaded from the top to hold products securely. The flat crash-lock base provides a stable floor for inserts to rest on.

Print and Finish

Does the overlapping top affect printing?

The overlapping flaps provide a continuous surface for printing or labeling. However, you should plan your artwork knowing that the outer flap will cover the inner flap, and the final seal will sit on top of the design.
