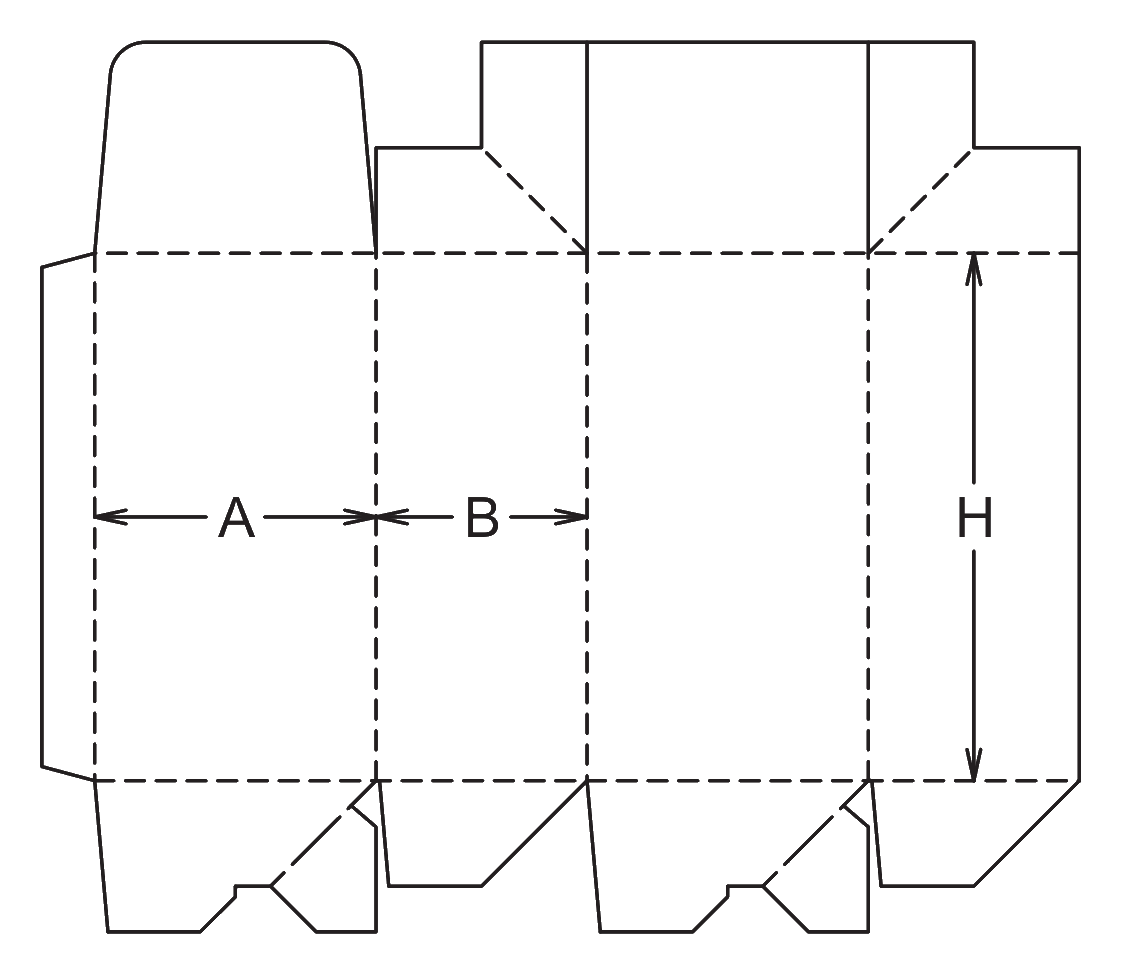

ECMA A60.45.00.01

Crash-Lock Bottom Carton with Winged Tuck Top

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Pre-glued base pops open for rapid fulfillment
  • Winged top flap catches under dust panels for added friction
  • Relies on multi-point factory gluing, often making it practical for repeat volumes

About this product

This folding carton combines a quick-setup crash-lock base with a winged tuck top, making it one of the faster formats for high-volume retail packing. Delivered flat, the pre-glued bottom automatically locks into a flat floor when the edges are squeezed, bypassing manual base assembly.

The top closure features a tuck flap with winged extensions that catch underneath the side dust flaps. This creates a stronger friction lock than a standard tuck, helping the lid stay closed on retail shelves while still allowing consumers to open and reclose the package.

Common uses

  • High-volume cosmetics
  • Pharmaceutical packaging
  • Lightweight retail bottles
  • Contract packaging and kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-Volume Retail and Kitting Applications

High-speed manual fulfillment

Because the base bypasses manual folding, this carton reduces assembly time per unit. It is often effective for hand-packing operations where labor speed is a primary bottleneck, such as kitting cosmetics, pharmaceuticals, or lightweight consumer goods.

Automated cartoning lines

The flat, knocked-down delivery format feeds into standard magazine-fed cartoning equipment. The automatic bottom deploys when the machine opens the tube, making it a common choice for mechanized packing.

Contract packaging and kitting

For third-party logistics and contract packers handling large promotional rollouts, the rapid setup of the crash-lock base helps maintain throughput without adding complex folding steps to the line.

Retail-ready lightweight goods

The winged top and flat base make this a strong fit for primary retail packaging, helping keep the product upright and the lid closed during shelf stocking and customer handling.

Product Fit and Packing Environments

Retail shelf presentation

The flat base provides a stable footprint for vertical display, while the winged tuck top helps resist the lid bowing or opening under slight internal pressure. The continuous front and back panels offer uninterrupted space for graphics.

Lightweight vertical products

Tall, narrow items like bottles, tubes, and cosmetic jars fit naturally into this package. The glued floor supports product weight better than a standard tuck bottom, though it is still intended for primary retail packaging rather than heavy industrial loads.

Pharmacy and health products

The clean lines and friction closure fit well into pharmacy environments, where products need to look professional and stay closed until the consumer opens them.

When to Consider Snap-Lock or Standard Tuck Cartons

Short runs and prototype testing

The crash-lock base relies on a multi-point folder-gluer during manufacturing, which carries a higher setup burden. For short promotional runs or early product testing, a 1-2-3 snap-lock bottom is often more practical because it can be processed on simpler equipment, even though it takes slightly longer to assemble by hand.

Parcel and courier shipping

This is a retail carton held closed by friction. If the product is shipping directly to a consumer through a mixed-carrier parcel network, the winged tuck top can catch or open during rough handling. It is usually packed inside a corrugated master shipper or mailer for transit.

Production Route and Board Considerations

Board grade and folding behavior

Standard folding boxboard or solid bleached sulfate provides a balance of stiffness and clean folding. If specifying a thicker board or a micro-flute, the crash-lock base geometry should be verified to confirm the carton still folds completely flat for delivery without binding.

Adhesive zones and finishes

The base relies on two specific glue points applied during manufacturing, plus the main side seam. If the carton uses premium finishes like UV coating or lamination, these glue zones are usually left uncoated to help the base hold under the product weight.

Master shipper requirements

Because this carton is designed for retail display rather than direct shipping, buyers often plan for an outer corrugated box to protect the cartons during distribution to stores or fulfillment centers.

Packing line setup

While the base sets up quickly, the winged top involves a specific tucking motion to engage the friction locks. Packing teams should test the closure motion to see how it aligns with their expected throughput.

Modifying the Winged Tuck and Base Clearances

Winged flap width and friction

The width of the winged extensions on the top flap can be adjusted to increase or decrease the opening resistance. A wider wing provides a tighter lock under the dust flaps, while a narrower wing makes the carton easier for the end user to open.

Crash-lock cutbacks

The internal angles and cutbacks of the base flaps are calibrated to the board thickness. If the material changes, these clearances may need adjustment so the base deploys squarely on the packing line.

Window patch placement

A display window can be added to the front or side panels to show the product. The cutout should stay clear of the main vertical creases and the complex folding geometry of the crash-lock base to maintain stability.

Board and packing details

Grain direction and pop-up tension

For consistent automatic setup, the paperboard grain usually runs parallel to the horizontal creases. This helps the main vertical folds fold cleanly and helps the carton bow open correctly when squeezed.

Additional notes

Automated line compatibility

While this carton is a common fit for automated magazine-fed cartoning machines, the exact pop-up resistance and flap angles should be validated on your specific equipment before a full production run.

Print panel alignment

The continuous front, back, and side panels offer excellent billboard space. Ensure any critical graphics or text avoid the top tuck flap crease, where repeated opening can cause minor wear.

Related Retail Cartons

A50.45.01.01: Snap-Lock Bottom Carton with Winged Tuck Top

Useful alternative if run volumes are lower and manual base assembly is an acceptable tradeoff for simpler factory setup.

A60.41.00.03: Crash-Lock Bottom with Standard Tuck Top

Consider this option if the top closure does not need the extra friction lock of winged extensions.

FAQs

Assembly and Packing

Does this carton require tape or glue during packing?

No. The factory applies adhesive to the side seam and the bottom flaps before delivery. When you receive the flat carton, squeezing the edges forces the base to lock into place. The top closes with a friction tuck flap.

Production and Volume

Why is this style usually recommended for higher volumes?

The crash-lock base is folded and glued on specialized multi-point equipment. Setting up this machinery takes time, which makes the carton efficient for large runs but less practical for very short trials compared to a manual snap-lock base.

Product Fit

Can the crash-lock base hold heavy items?

It holds weight better than a standard tuck bottom because the interlocked, glued flaps form a continuous floor. However, it is still a paperboard retail carton. For dense or heavy items, the board grade and base adhesive should be tested to check that the bottom supports the load.

Shipping and Route

Can I ship this carton directly in the mail?

It is not intended for direct parcel shipping. The winged tuck top is designed for retail display and consumer access, not for mixed-carrier transit. It is usually placed inside a corrugated outer box or mailer for shipping.

Design and Finishes

Can I add a display window to this carton?

Yes, a window can be added to the front or side panels, provided it stays clear of the main vertical creases and the complex folding geometry of the crash-lock base.

Opening and Closure

How does the winged tuck top differ from a standard tuck?

A standard tuck flap relies only on the friction of the flap against the front wall. A winged tuck has small extensions on the sides that catch underneath the internal dust flaps, making it harder for the lid to open accidentally.

Production and Volume

Can we use a micro-flute corrugated board for this style?

While possible, micro-flute adds thickness that changes how the crash-lock base folds. The cutbacks and angles usually need adjustment to help the carton ship flat and pop open squarely without binding.

Assembly and Packing

How are these delivered to our facility?

They arrive knocked down and glued. The side seam and bottom flaps are already adhered, so the cartons stack flat on a pallet and take up minimal storage space before packing.
