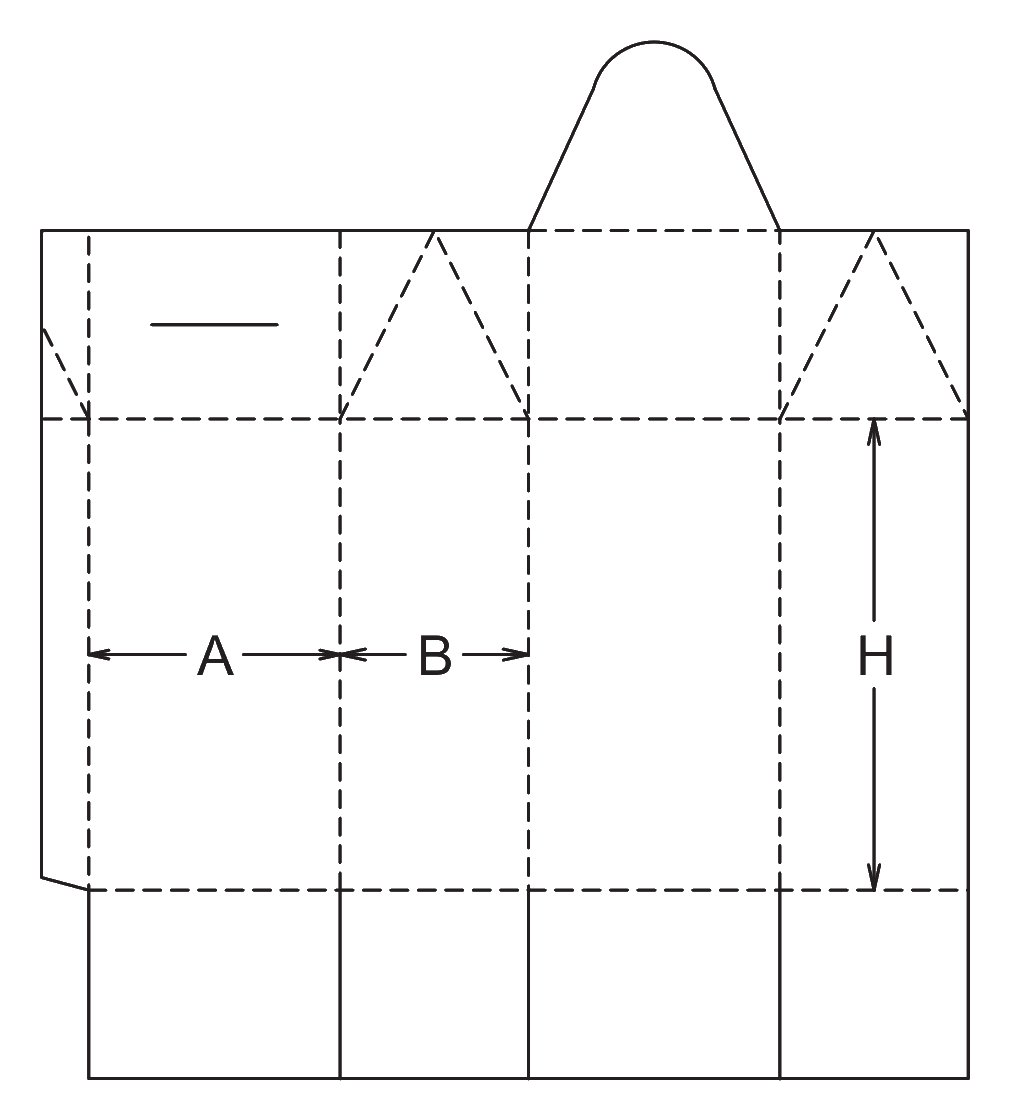

ECMA A10.75.03.03

Gable-Top Retail Carton with Locking Flap

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Reclosable gable top with a friction-fit locking tab
  • Full overlapping bottom requires tape or adhesive
  • Pitched roof limits vertical stacking in transit

About this product

This gable-top folding carton provides a pitched-roof silhouette for retail shelves. The top closure pinches inward and fastens with a fold-over locking tab, giving consumers a way to open and reclose the package without tearing the board.

While the top is designed for tool-free access, the base uses full overlapping flaps that require tape or adhesive to close. This combination makes it a practical choice for automated filling lines packing dry goods, confectionery, or specialty retail items.

Common uses

  • Dry goods
  • Confectionery
  • Gift packaging
  • Powders (with inner liner)

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Dry Goods Packaging

Confectionery and specialty foods

The recognizable milk-carton shape signals specialty contents. The reclosable top accommodates treats, wrapped chocolates, or dry goods that are consumed over multiple sessions.

Dry goods and granular products

When paired with a sealed inner bag or liner, the carton provides a consistent outer shape for coffee, tea, or powdered mixes, while the gable top allows controlled pouring.

Gift and promotional packaging

The pitched roof provides a natural focal point for branding and graphics. The locking tab maintains the presentation shape even after the recipient opens the package.

Pet treats and specialty kibble

The reclosable feature helps keep dry pet treats contained between uses, while the overlapping bottom accommodates dense kibble when properly glued.

Retail Displays and Packing Line Setup

Automated filling lines

With its full overlapping bottom flaps, this carton is well-suited for automated lines that apply adhesive before filling. The top gussets can then be pinched and locked by machine or by hand.

Retail shelf presentation

The vertical profile and angled roof panels offer unique branding surfaces. Because the top is not flat, these cartons are typically displayed side-by-side rather than stacked vertically on the shelf.

Consumer reusability

The friction-fit locking tab allows the consumer to open and close the package repeatedly without tools, which adds value for multi-serving products.

When to Consider a Different Bottom Closure

Manual packing operations

If you are hand-packing orders and want to avoid taping or gluing the bottom, compare this to a crash-lock base. A crash-lock bottom erects by hand, speeding up fulfillment.

Vertical stacking needs

If the cartons must bear top weight during transit or storage, a standard flat-top carton will transfer weight through the vertical walls much better than a pitched gable roof.

Board Choice, Sealing, and Transit Planning

Bottom sealing method

Decide how the overlapping bottom flaps will be closed. High-volume runs typically use automated adhesive application, while shorter runs or manual setups may rely on clear tape or labels.

Board thickness and gusset folds

The inward-folding gussets at the top require crisp, clean creases. Standard folding carton board works well. Excessively thick boards or corrugated materials can crack at the complex fold vertices and make the locking tab difficult to insert.

Inner liners for fine powders

While the overlapping bottom can be glued tightly, the folded gable top is not an airtight seal. Fine powders or granular products usually require a sealed inner bag.

Master shipper requirements

Because the gable top cannot bear vertical loads, these packages must be packed inside a corrugated master shipper for parcel or pallet transit.

Adjusting the Gable Pitch and Proportions

Gable height and pitch

The height of the roof panels can be adjusted, which changes the angle of the gable. Steeper pitches create a taller profile, while shallower pitches save material, provided the locking tab still has enough clearance to fold over the apex.

Locking tab clearance

The width and depth of the locking tab and its corresponding slit can be adjusted to ensure a smooth friction fit, depending on the chosen board thickness and any applied coatings.

Glue flap width

The side glue flap can be widened to provide a larger adhesive area, which may be necessary for specific automated folding-gluing equipment.

Board and packing details

Grain direction

Ensure the paperboard grain runs horizontally around the tube to prevent the main panels from bowing and to ensure the side glue seam folds cleanly.

Additional notes

Locking tab durability

If the carton is intended for long-term consumer reuse, the board must be tear-resistant enough to handle the tab being repeatedly pulled in and out of the slit.

Related Gable-Top Cartons

A41.75.03.03: Gable-Top with Tuck Bottom

Replaces the glued overlapping bottom with a tuck-in flap, making it easier to assemble entirely by hand without tape.

A50.75.01.03: Gable-Top with Crash-Lock Base

Features an auto-bottom that snaps into place, suitable for fast manual packing while keeping the same reclosable roof.

A11.75.03.03: Gable-Top with Reduced Bottom Flaps

Uses a more material-efficient bottom closure where only one flap fully covers the base, altering the sealing dynamics.

FAQs

Closure and Sealing

Does the top locking flap require tape or glue?

No. The top closure is fastened by folding the extended flap over the apex and inserting its tab into a pre-cut slit. It relies entirely on friction and board stiffness, allowing it to be opened and reclosed multiple times.

How is the bottom of this carton sealed?

The bottom uses full overlapping flaps that do not lock into place on their own. They must be closed with adhesive on an automated line or with packing tape.

Product Fit and Use

Can this carton hold fine powders on its own?

Not on its own. While the overlapping bottom can be glued tightly, the folded gable top is not an airtight seal. Fine powders or granular products usually require a sealed inner bag or liner.

Materials and Route

How are these cartons delivered?

They are delivered knocked-down flat. The manufacturer glues the long side seam, so you receive a flat tube that opens into a rectangular shape before you seal the bottom and fill it.

Can I stack these cartons on a retail shelf?

Vertical stacking is difficult and generally avoided. The pitched gable roof does not provide a flat surface for the next carton, and top weight can crush the apex. They are best displayed side-by-side.

What board types work for the gable folds?

The complex, angled creases of the top gussets and the tight friction fit of the locking tab work well with standard folding carton boards. Corrugated materials tend to crush or crack at these fold points.

Closure and Sealing

Is the top closure difficult for consumers to open?

The friction-fit tab is designed to be opened without tools. The ease of opening depends on the board thickness and the exact clearance cut into the receiving slit.

Materials and Route

Is this package suitable for direct parcel shipping?

No. Because the gable top cannot bear vertical loads and the carton is made of paperboard, these packages must be packed inside a corrugated master shipper for parcel transit.
