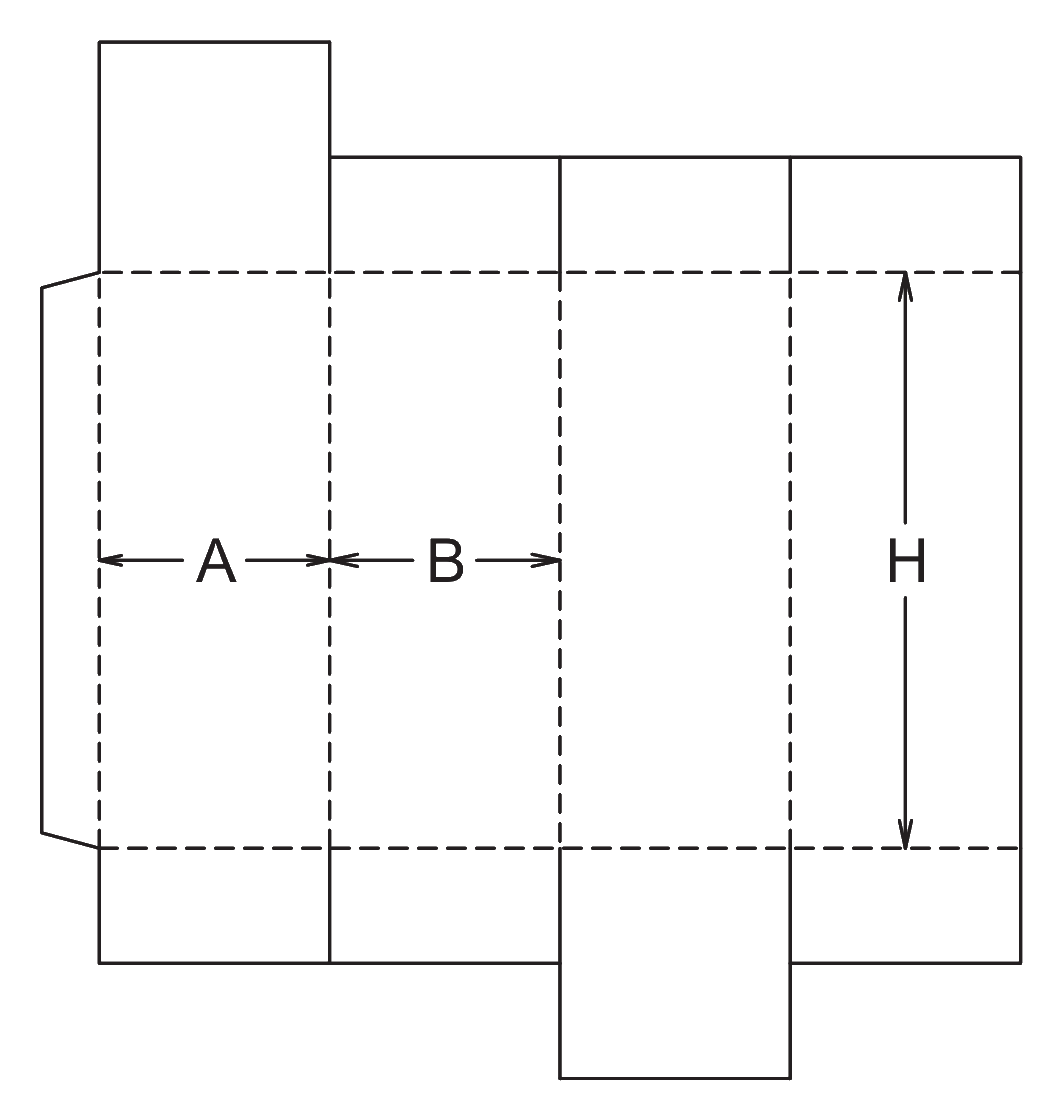

ECMA A11.11.03.01

Glued-Tube Carton with Reduced Flaps

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Relies on applied adhesive or tape to seal
Material-efficient flap configuration
Suited for automated cartoning equipment

About this product

This glued-tube folding carton is engineered for automated packing lines. By using reduced inner flaps and a single fully covering outer flap on both ends, it minimizes material use while maintaining a clean, continuous surface for branding.

Because it lacks friction locks or tuck tabs, the carton relies entirely on applied adhesive or tape to stay closed. It is a common format for lightweight retail goods packed in large volumes.

Common uses

Dry foods
Pharmaceuticals
Retail goods packed on automated lines

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will the ends of the carton be sealed?

How will the cartons be filled?

What type of product is going inside?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail and Automated Packing Jobs

Automated Dry Goods Packing

This carton is a common choice for continuous filling lines. The simple flap folds and straight side seam support continuous erection, filling, and sealing. It is well suited for lightweight retail products.

Large-Volume Retail Runs

The reduced dust flaps and shortened inner length flap save board area across a large run compared to full-overlap designs. When material yield is a primary driver, this template is a strong option.

Pharmaceutical Packaging

For lightweight bottles or blister packs loaded by machine, this carton provides a clean outer surface and predictable folding behavior.

Products Requiring a Clean Top Surface

The single fully covering flap on the top and bottom provides an uninterrupted surface. This is useful for printing expiration dates, barcodes, or primary branding without the visual break of a center seam.

Industry Fit and Production Scale

Automated Cartoning Operations

Packers using automated equipment benefit from the predictable folding behavior of this carton. The lack of complex tucks or locks can reduce machine catches, provided the flap tapers and board grain are specified correctly for the equipment.

Material Reduction Initiatives

Buyers looking to reduce overall paperboard usage often select this style over full-overlap cartons, as the shortened inner flaps remove unnecessary material from the top and bottom closures.

Retail Shelf Presentation

Brands needing a continuous display surface on the top or bottom of the package can use the fully covering flap for uninterrupted graphics or labeling.

When to Consider Tuck-Ends or Full Overlaps

Hand assembly and manual loading

If your team is erecting and filling cartons by hand, this style is frustrating because the flaps will spring open until taped or glued. A tuck-end carton uses friction to hold itself closed during manual loading and is a better choice.

Base strength and sift resistance

For heavier items that might stress a single glued flap, or fine powders that could leak through the corners, a full overlapping closure provides more material overlap at the base.

Machine Fit and Sealing Choices

Adhesive zones and sealing method

Decide whether the carton will be sealed with applied adhesive, tape, or security labels. If using adhesive, the flap areas receiving the bond must be kept free of varnish or coatings.

Board thickness and grain direction

The thickness of your chosen board dictates the necessary step creases to prevent the flaps from binding when folded over each other. Additionally, the paperboard grain must run horizontally around the tube to ensure the carton opens crisply on the packing line.

Machine guide compatibility

The angles on the sides of the dust flaps can be adjusted to match the guides and plows of your specific cartoning equipment, preventing catches during high-speed folding.

Side seam placement

While typically placed on the inside of the carton, the side glue flap can be adjusted in width or moved to the outside depending on your artwork layout and the converter setup.

Flap Tapers and Clearance Adjustments

Flap tapers

The dust flaps can be tapered at specific angles to ensure they fold smoothly without catching on machine guides.

Layer step creases

The fold lines for the minor flaps can be slightly offset to accommodate thicker paperboard, ensuring the main flap lies flat.

Glue flap width

The side seam flap can be widened for a larger adhesive area or narrowed to accommodate specific artwork constraints.

Board and packing details

Flat Delivery and Storage

These cartons are delivered knocked-down flat with the side seam already joined. They require minimal warehouse space and are ready to be loaded directly into the magazine of an erector.

Additional notes

Automated line setup

This carton is a common choice for continuous filling. Ensure you share your machine's specific flap taper and clearance requirements before finalizing the dieline.

FAQs

Assembly and Packing

Can this carton be packed by hand?

It is not recommended for manual packing unless you use a holding fixture. Because it lacks tuck tabs, the flaps will not stay closed on their own while you load the product or prepare to tape it.

Closure and Sealing

How is this carton sealed?

The top and bottom closures rely entirely on external sealing, typically adhesive applied by an automated cartoning machine, or packing tape.

Material and Fit

Why are the inner flaps shorter?

The reduced dust flaps and inner length flap minimize the amount of paperboard required. This makes the carton efficient for large production runs while still providing a resting surface for the main covering flap.

Route and Shipping

Can I ship this carton through a parcel network?

Like most folding cartons, it is designed for retail shelves and multi-pack distribution. It usually needs a corrugated outer shipper to protect the product during courier transit.

Production

What prevents the flaps from bulging when folded?

The template uses a layer step crease. This slightly offsets the fold lines of the inner flaps, creating clearance so the outer flap can fold flat without binding against the material thickness.

Print and Finish

Can I print on the top and bottom flaps?

Yes. The single fully covering flap provides a clean, uninterrupted surface for printing. However, if you are using adhesive to seal the carton, the areas receiving the bond must remain unvarnished.

Board and Grain

Does the grain direction matter?

For the carton to open crisply from its flat state on an automated line, the paperboard grain should run horizontally around the tube.

Machine Compatibility

Do I need to specify my machine type?

It is helpful to share your machine's specific flap taper and clearance requirements so the dieline can be adjusted to prevent catches during folding.
