ECMA A55.01.01.00

Open-Top Snap-Lock Carton Base

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Completely open top for lids or slipcases
  • 1-2-3 snap-lock bottom for fast hand assembly
  • Delivered flat with a pre-glued side seam

About this product

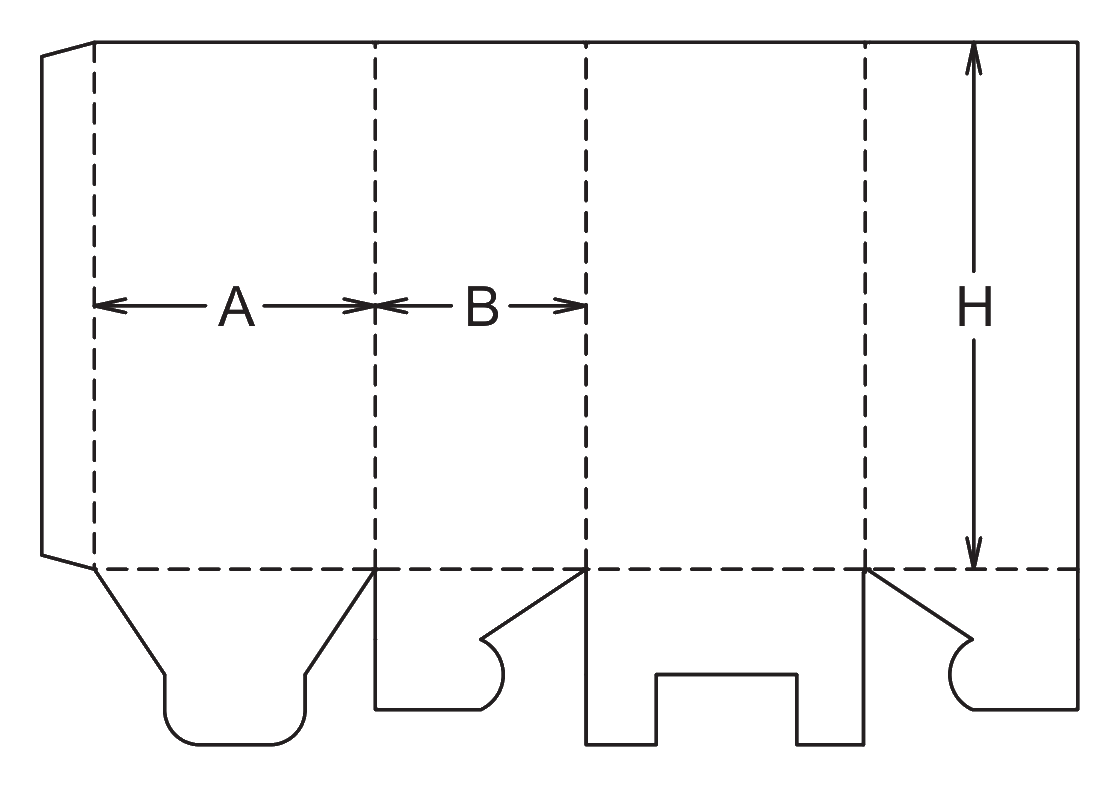

The A55.01.01.00 is an open-top folding carton featuring a 1-2-3 snap-lock bottom. Delivered flat with a pre-glued side seam, it pops open for quick manual assembly, creating a sturdy base without requiring bottom tape or adhesive.

Because it has no top flaps, this package is typically paired with a separate lid, used as an inner tray for a slipcase, or deployed as a vertical display sleeve for tall products.

Common uses

  • Slipcase inner trays
  • Base for rigid caps
  • Vertical display sleeves for tall products
  • Open-top bins for secondary packaging

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Practical Uses for an Open-Top Base

Slipcase Inner Trays

The clean, straight top edge and flat vertical walls make this an excellent sliding inner tray for a rigid or folding slipcase. The snap-lock bottom provides enough rigidity to hold the product while sliding in and out.

Two-Piece Retail Boxes

When paired with a separately designed tuck-top lid or rigid cap, this carton acts as the foundational base. It is often used for cosmetics, spirits, or gift sets where a telescoping unboxing experience is desired.

Vertical Display Sleeves

For tall products that need to remain visible or accessible from the top, the open structure acts as a protective sleeve that holds the base securely while leaving the upper portion exposed.

Open-Top Bins for Secondary Packaging

When packing multiple smaller items into a master shipper, this open-top carton can serve as an organizing bin. The fast-folding bottom speeds up the kitting process, and the open top allows quick access during unpacking.

Industry and Retail Applications

Cosmetics and Personal Care

Tall bottles, tubes, and pump dispensers often use an open-top base paired with a decorative cap. The 1-2-3 bottom sets up quickly on manual packing lines without the production steps required for an auto-bottom.

Specialty Food and Spirits

Used as a base for premium bottles or confectionary towers. The interlocking bottom flaps can support moderate weights, provided the board caliper and lock friction are properly matched.

Pharmaceuticals and Supplements

Elongated bottles or blister-pack stacks can be housed in this base and covered with a slipcase. The mechanical bottom lock provides a secure floor for hand-packing operations.

When to Consider a Different Carton Style

High-Volume Automated Packing

The 1-2-3 snap-lock bottom requires manual folding. If your fulfillment line processes thousands of units a day, an auto-bottom (crash-lock) carton will reduce labor time, even though the initial manufacturing path is different.

Standalone Enclosed Packaging

Because this carton has no top flaps, it cannot enclose a product on its own. If you need a complete, single-piece package, evaluate a standard tuck-top snap-lock carton instead.

Key Decisions for Fit and Assembly

Board Caliper and Lock Friction

The security of the snap-lock bottom depends entirely on the friction between the interlocking flaps. Thicker boards provide a stronger lock but may require clearance adjustments to prevent the flaps from binding during assembly.

Lid Pairing and Tolerances

If this base will be covered by a lid or slipcase, the outer dimensions of the carton must be precisely matched to the inner dimensions of the cover to ensure a smooth, secure fit without scuffing.

Print and Edge Finish

The open top leaves a raw paperboard edge exposed. Heavy ink coverage or certain coatings near this edge may chip during handling or when a lid is repeatedly applied and removed.

Packing Line Assembly Speed

While faster than a standard tuck bottom, the 1-2-3 lock still requires an operator to fold four flaps in sequence. Review your daily packing volume to decide if this manual step is sustainable or if an auto-bottom is justified.

Clearance and Lock Adjustments

Lock Flap Clearances

The width of the interlocking tabs can be adjusted to tune the friction fit. A tighter fit increases security for heavier items, while a looser fit speeds up manual assembly for lightweight goods.

Glue Flap Width

The side seam glue flap can be widened for larger cartons to ensure the tube remains secure under outward pressure from the product.

Bottom Lock Style

Depending on the product weight and carton width, the bottom can be configured with a single central lock or a double lock for added stability across wider spans.

Board and packing details

Grain Direction for Tall Cartons

For elongated boxes, the paperboard grain should typically run horizontally around the tube. This ensures the long vertical creases fold cleanly without cracking, though it requires balancing against the need for vertical compression strength.

Board Thickness Variants

A55.01.01.00.a (Thick Board Clearance)

This variant introduces a 2mm width correction to the snap-lock flaps. It is specifically used when running thicker board calipers to ensure the bottom flaps fold and lock smoothly without binding.

Additional notes

Lid and Slipcase Clearances

Because this carton is often used as a base, providing the exact dimensions of your intended lid or slipcase early in the process ensures the friction fit is calculated correctly.

Related Carton Styles

A55.12.01.03: Tuck-Top Snap-Lock Carton

Review this option if you need a fully enclosed single-piece carton with the same manual 1-2-3 bottom.

FAQs

Assembly and Closure

Does the 1-2-3 bottom require tape or glue?

The four bottom flaps interlock mechanically to create a secure floor without adhesive. The side seam is pre-glued by the manufacturer, so the carton arrives flat and is assembled entirely by folding.

Is a snap-lock bottom faster than a tuck bottom?

The 1-2-3 interlocking sequence is generally faster to assemble by hand than folding and inserting standard tuck flaps, making it a popular choice for manual packing lines.

Product Fit and Route

Can this carton be used for shipping?

The open top provides no protection, and the friction-locked bottom can disengage under heavy transit impacts. It is designed as primary retail packaging and requires a master shipper for parcel or freight transport.

How much weight can the bottom hold?

It supports lightweight to medium-weight products well. The exact capacity depends on the board thickness and the precision of the die-cut lock. Heavy items may require an auto-bottom style or a clear wafer seal for added security.

Related Package Choice

When should I switch to an auto-bottom (crash-lock) carton?

Consider an auto-bottom when your order volumes are high enough that the savings in manual assembly time outweigh the different manufacturing steps of the crash-lock gluing process.

Product Fit and Route

How do I ensure a slipcase fits over this base?

The outer dimensions of this carton must be slightly smaller than the inner dimensions of the slipcase. Providing the exact board caliper for both pieces allows the manufacturer to calculate the correct friction fit.

Print and Finish

Can the open top edge be printed or coated?

Heavy ink coverage or brittle coatings directly on the raw cut edge may chip when a lid is repeatedly applied and removed. It is often safer to leave the immediate edge unprinted or use a durable varnish.

Board and Material

What board thickness is appropriate for the snap-lock bottom?

Standard folding boxboard (FBB) or solid bleached sulfate (SBS) around 0.5mm works well. If you use a thicker board or micro-flute, the lock flap clearances must be adjusted (as in the .a variant) to prevent binding.
