ECMA A01.15.00.03

Retail Hanging Sleeve with Reinforced Header

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Completely open bottom for quick slide-over loading
  • Extended back panel folds 180 degrees for a double-thick hanger
  • Top closes with a standard friction tuck flap

About this product

This folding carton acts as an open-bottom sleeve designed specifically for retail pegboard displays. It features a top tuck closure and an extended back panel that folds over itself to create a double-thick, tear-resistant hanging tab.

Because the bottom is completely open, this sleeve is built to slide over self-retaining products, blister packs, or inner trays. It provides a large branded surface and a secure hanging point without the material requirements or assembly time of a fully closed carton.

Common uses

  • Blister pack covers
  • Cosmetic tubes
  • Lightweight hardware tools
  • Branded sleeves for generic inner boxes
  • Rolled apparel or soft goods

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Product fits for an open-bottom hanging sleeve

Branded covers for blister packs

The open bottom allows the sleeve to slide directly over a rigid blister pack or clamshell, using the inner packaging to retain the product while the sleeve provides the hanging point and graphics.

Lightweight cylindrical or self-retaining items

Products that fit snugly within the sleeve's footprint, such as cosmetic tubes or rolled items with their own base caps, can rely on this sleeve to gain a pegboard presence.

Outer branding sleeves for generic inner trays

When a product is already housed in a plain tray, this sleeve adds retail hanging capability and a billboard for graphics without requiring a complete repackaging effort.

Rolled apparel or soft goods

Items like rolled socks or small towels that expand slightly to grip the inner walls of the sleeve can hold themselves in place, making an open bottom a practical choice.

Retail and display environments

High-volume retail pegboard displays

The double-thick header panel resists tearing in busy retail environments where products are frequently handled, removed, and restocked on metal pegs.

Multi-component kitting

When a product already has a functional but unbranded inner tray or box, this sleeve adds retail-ready hanging capabilities and marketing space.

Point-of-purchase impulse clip strips

The reinforced hanger withstands the tugging and pulling typical of clip-strip merchandising in grocery or hardware aisles, keeping the presentation intact.

When to compare closed-bottom hanging cartons

Loose or multi-part products

If the product consists of loose items or lacks its own rigid base, the open bottom will not retain it. Compare with a closed-bottom hanging carton like the A10.15.03.03.

Very lightweight items

If the product is extremely light, the double-thick 180-degree folded hanger may be over-engineered. A standard extended panel uses less board and requires less folding effort.

Board choice, retention, and hanger assembly

Board tear strength and folding endurance

The extended panel must fold 180 degrees flat against itself without cracking the printed surface, while still providing enough tear resistance to support the product's weight on a peg hook.

Manual versus pre-glued hanger assembly

The 180-degree hanger reinforcement is typically folded and tucked manually during packing. Discuss with your converter whether this fold can be pre-glued on the folder-gluer to speed up your fulfillment line.

Product retention method

Because the base is open, verify exactly how the product will stay inside the tube. Friction fit, an inner blister, or a base cap must be planned before finalizing the sleeve dimensions.

Grain direction for the hanger fold

Balancing the need for vertical tube stiffness against the risk of cracking the 180-degree folded header panel requires careful grain direction planning with the board supplier.

Hanger hole and panel adjustments

Hanger hole shape and placement

The standard euro-slot can be adjusted in width, height, or swapped for a simple round hole depending on the retail fixture. The vertical offset can also be changed to leave more printed space above the cutout.

Header panel height

The overall height of the extended back panel can be increased to provide more billboard space for branding, provided it does not interfere with the top tuck flap during assembly.

Tuck flap friction locks

The top closure can be modified with small friction locks or adjusted tuck radii to ensure the flap stays secure during retail handling and customer inspection.

Board and packing details

Nesting and material yield

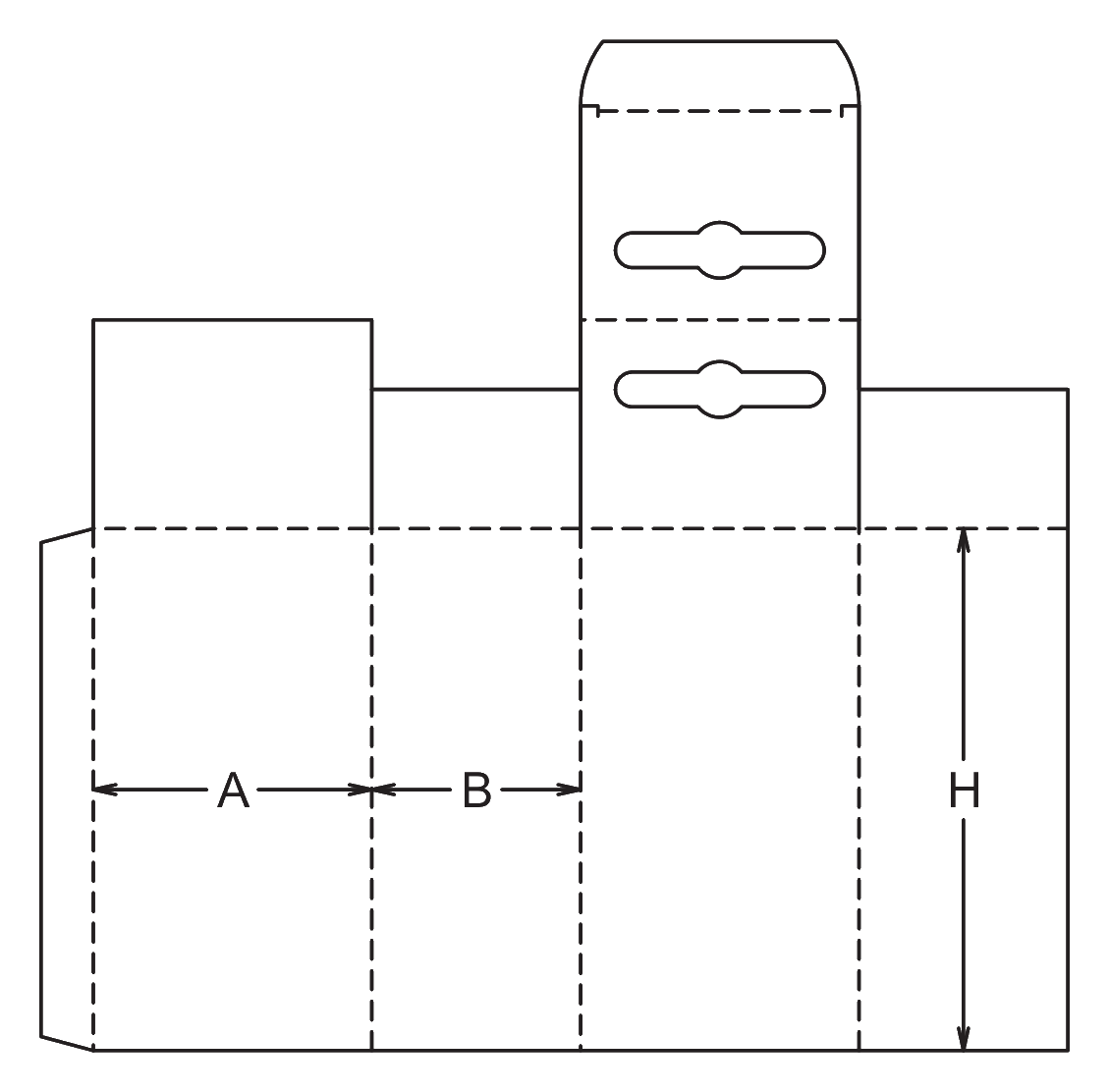

The tall extended back panel creates an irregular flat blank shape. This can reduce nesting efficiency on the printed sheet compared to standard rectangular cartons, which affects overall board usage.

Additional notes

Top closure sequence

The top is closed by folding in two side dust flaps, then inserting the main front flap's friction tuck into the back slot. This secures the top of the sleeve around the product.

Related retail packaging

A12.15.03.03: Four Reduced Flaps Closure with Extended Panel

Uses four smaller folding flaps at the bottom, offering a closed base that uses slightly less material than a full overlap.

A01.21.00.01: Tuck-In Flap Closure with Extended Panel

An open-bottom sleeve with a simple, single-thickness extended back panel for very light items, eliminating the 180-degree fold.

FAQs

Product Fit and Retention

How does the product stay inside if the bottom is open?

This sleeve relies on the product being self-retaining, tightly fitted, or having its own base like a blister pack or inner tray. It is designed to slide over the item rather than enclose it completely.

Assembly and Packing

Does the hanger panel require manual folding?

The top section of the back panel must be folded 180 degrees inward and locked with a small tuck tab to create the double thickness. This is usually done by hand during packing, though some converters may be able to pre-glue it.

Board and Finish

Will the 180-degree fold crack the printed graphics?

It can, depending on the board caliper and grain direction. A board with good folding endurance is necessary, and the grain should ideally run perpendicular to the fold to minimize stress on the coating and ink.

Shipping and Route

Can this sleeve be shipped directly in the mail?

The open bottom and exposed hanging tab make it unsuitable for parcel networks. It requires an outer shipping box or master carton for transit to the retail store.

Retail Display

How much weight can the hanger support?

The double-thick folded panel increases tear resistance compared to a standard single-ply header, but the exact weight limit depends entirely on the specific board grade and tear strength chosen.

Customization

Can the euro-slot be changed to a round hole?

The hanger cutout is fully adjustable and can be modified to fit round pegs, wide hooks, or specific retail display requirements.

Product Fit and Retention

What happens if my product is too heavy for the open bottom?

If the product lacks a base or friction fit, it will slip out. You should compare a closed-bottom alternative like the A10.15.03.03 to ensure full retention.

Customization

Can the extended back panel be made taller for more branding?

Yes, the header height can be increased to provide a larger billboard space, provided it leaves enough clearance for the top tuck flap to fold and insert properly.
