Retail Display And Product Fit
Lightweight Pegboard Display
The extended back panel acts as a built-in hanger, making this carton a natural fit for retail pegboards. The single-ply hanger and friction-fit bottom are designed for light items that are less likely to tear the paperboard or force the bottom flap open.
Quick Manual Kitting
Delivered flat and pre-glued on the side seam, the carton opens easily by hand. The top and bottom tuck flaps allow for fast manual loading without the need for automated folding equipment.
Retail Shelf Presentation
While designed for hanging, the flat bottom tuck allows the carton to stand upright on retail shelves. The extended back panel remains visible above the product, providing extra space for branding or instructions.
Point-of-Purchase Impulse Items
The compact footprint and easy-to-hang design make this style useful for checkout aisles and endcap displays, where small, lightweight items need to be visible and accessible.
Common Retail Applications
Cosmetics and Personal Care
Provides a clean front display panel for branding, while the reverse-tuck design keeps the top closure neat. Often used for lightweight tubes, bottles, and compacts.
Small Electronics and Accessories
Useful for cables, chargers, and small peripherals that hang on store aisles. The tuck closures allow customers to easily open and reclose the carton if needed.
Hardware and DIY Accessories
Fits lightweight fasteners, small tools, or craft supplies. The hanger panel keeps these small items organized on pegboards rather than lost in bins.
When To Consider A Stronger Base
Heavy or dense products
If the product is heavy enough to tear a single-ply hanger hole or push open a friction-fit bottom tuck, compare a carton with a scissor-lock bottom (A30.21.03.03) or a reinforced fold-over hanger panel.
Automated packing lines
The extended back panel and reverse-tuck flaps can complicate automated feeding and closing. If you are using automated cartoning equipment, discuss machine compatibility before selecting this style.
Board, Grain, And Closure Choices
Board Stiffness and Grain Direction
Hanging strength depends heavily on the board choice. The paperboard grain should typically run vertically to help prevent the hanger panel from bending or tearing under the product's weight.
Bottom Closure Security
The bottom tuck relies on slit locks and friction. For added security on retail shelves, plan to use clear wafer seals or tape over the bottom closure.
Hanger Hole Stripping
Ensure the hanger holes are fully stripped during the die-cutting process so your packing team does not have to manually punch out the waste pieces before hanging.
Print Surface and Finishing
The extended back panel acts as a primary billboard. Consider how UV coatings, foil stamping, or embossing will look on this upper section, especially under retail lighting.
Hanger Hole And Panel Adjustments
Hanger Hole Shape and Placement

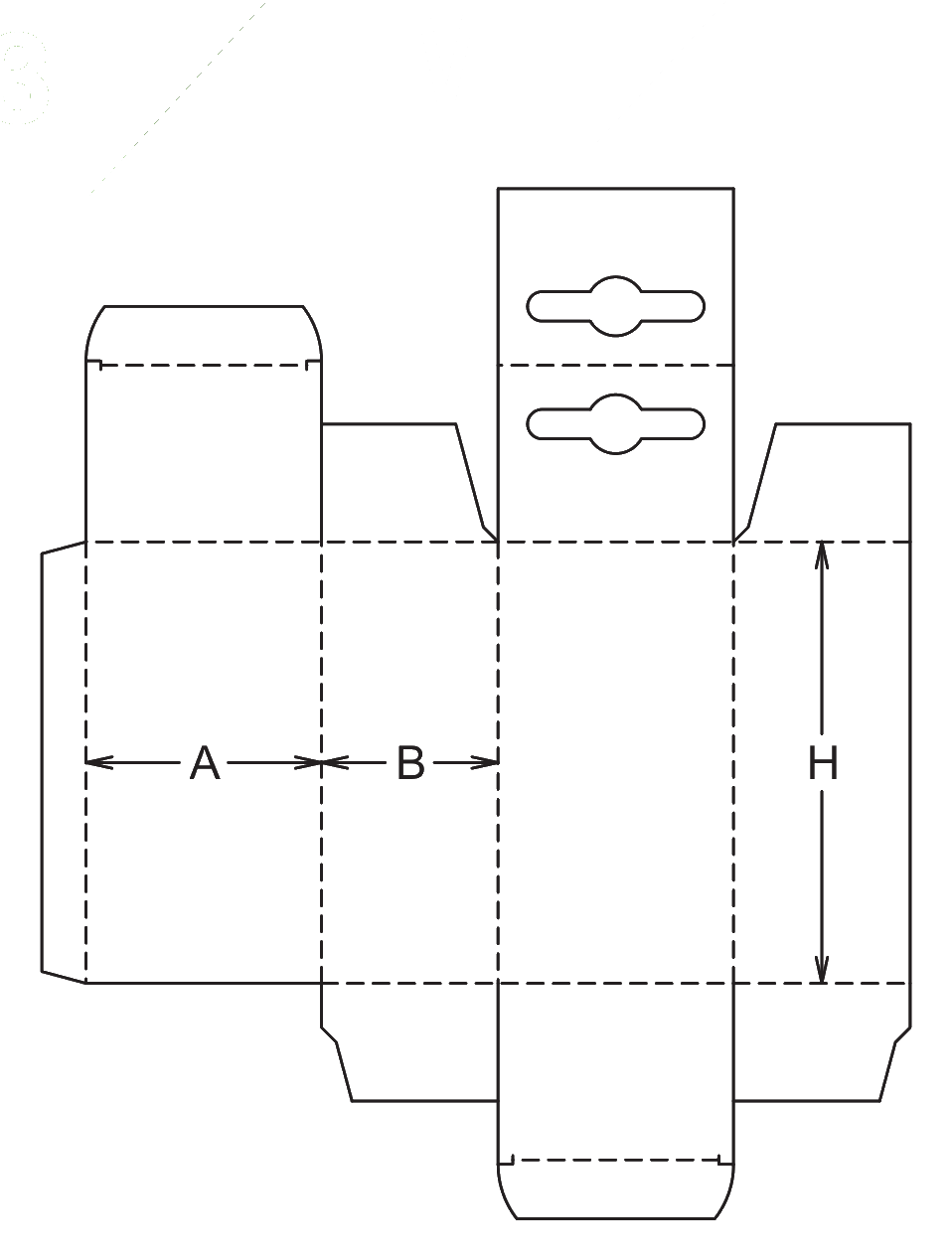

The template uses a euro-hole, but this can be adjusted to a simple round hole or a delta shape. The offset and spacing can also be modified if multiple holes are needed for wider cartons.
Window Patches
A display window can be added to the front panel to show the product, though this adds an additional manufacturing step to apply the clear film patch.
Tuck Flap Slit Locks
The depth and shape of the slit locks on the tuck flaps can be adjusted based on the board thickness to ensure a smooth but secure friction fit.
Board and packing details
Reverse Tuck Orientation
Unlike a straight tuck carton, the top and bottom flaps fold in opposite directions. The top tuck folds toward the back, while the bottom tuck folds toward the front. Artwork should be oriented correctly to account for this.
Additional notes
Hanging strength and board testing
Always hang a loaded prototype for several days to ensure the board does not bow and the hole does not tear.
Tamper evidence and retail seals
Tuck flaps can be opened and closed without leaving a trace. Use adhesive seals if tamper evidence is needed.
Related Hanging And Display Cartons
FAQs
Product Fit & Weight
How much weight can this hanging box hold?
Weight capacity depends entirely on the board thickness and grain direction. Because the hanger is a single ply of paperboard and the bottom is a friction fit, it is generally used for lightweight goods. Always test a physical sample with your exact product.
Closure & Security
When should the bottom tuck be sealed?
For very light items, the friction fit and slit locks may be enough. However, applying a clear wafer seal to the bottom tuck is often recommended for retail environments to prevent accidental opening or tampering.
Manufacturing & Packing
Is this carton suitable for automated packing lines?
It is generally erected and loaded manually. The extended hanger panel and reverse-tuck flaps make it difficult to run on automated cartoning equipment.
Design & Artwork
How does the reverse tuck affect artwork layout?
A reverse tuck means the top closure flap and the bottom closure flap are attached to opposite main panels. When assembling the carton, they fold in opposite directions. Your graphic designer should account for this so the artwork is oriented correctly on all sides.
Adjustments
What hanger hole shapes are available?
The template uses a euro-hole by default, but it can be adjusted to a round hole, a delta shape, or other custom profiles depending on your retail pegboard requirements.
Shipping
Is this carton suitable for parcel shipping?
This is a primary retail carton. It should be placed inside a corrugated master shipper or mailer for parcel transit, as the hanger panel may crush and the tucks may open during rough handling.
Product Fit & Weight
Can this box stand upright on a shelf instead of hanging?
The flat bottom tuck allows the carton to stand on its own. However, the extended hanger panel makes the overall package taller, which should be checked against retail shelf clearances.
Manufacturing & Packing
Do I need a special tool to open the hanger hole?
If the carton is properly stripped during the die-cutting process, the hanger hole will be clear and ready to use when the flat carton arrives.
