Primary Packaging For Powders, Granules, And Dry Goods
Sift-Proof Dry Goods And Powders
The pinched fin seals create a tight boundary that prevents fine powders, granules, or dry chemicals from leaking during transit and retail display. The carton acts as a rigid alternative to flexible pouches, offering better shelf presence and stacking stability.
Tamper-Evident Retail Packaging
Because the ends are permanently sealed via heat, ultrasonic welding, or adhesive, the package has to be torn or cut to open. This provides built-in tamper evidence without needing additional shrink bands or labels.
Coated-Board Liquid Applications
When paired with the correct foil or PE lamination, the fin seal provides a tight boundary for liquids. The flat top and bottom seals contain the product while the rigid paperboard body maintains shape on the retail shelf.
Granular Household Chemicals
For products like detergent powders or lawn care granules, the sealed ends keep the product contained while the large vertical panels provide space for regulatory text and branding.
Automated Filling And Production Contexts
Form-Fill-Seal Operations
This carton is delivered flat with a pre-glued side seam. It relies on automated machinery to square the tube, pinch and seal the bottom, fill the product, and seal the top. It is not suitable for low-volume manual fulfillment.
Transitioning From Flexible Pouches
Brands moving away from plastic pouches often use this carton to maintain a sift-proof seal while gaining the stacking stability and billboard space of a rigid paperboard box.
Mature Retail Production Environments
Because the carton relies on specialized cartoning equipment, it fits well in mature production environments where the volume justifies the automated setup and the product benefits from a sealed paperboard container.
When To Consider Standard Flaps Or Reclosable Tops
When the product needs a reclosable top
Once a fin seal is torn open, the carton cannot be easily reclosed. If consumers need to store the product in the original box after opening, look at cartons with tuck flaps or winged dustproof closures.
When packing by hand
The diagonal gussets and fin seals are exceptionally difficult to close securely by hand. If you are packing manually, switch to a standard auto-bottom or snap-lock carton with a tuck top.
Board, Coating, And Sealing Decisions
Sealing Method And Board Coating
The choice of sealing method (heat, ultrasonic, or applied adhesive) depends on the board coating. If the product needs a moisture or oxygen barrier, the necessary PE or foil lamination will often dictate a heat-sealing process on the filling line.
Crease Tolerance
The diagonal gussets fold sharply inward to create a tight seal. The chosen paperboard needs to handle these complex vertices without cracking, which could compromise the sift-proof nature of the package.
Outer Shipper Requirements
This carton is designed as primary retail packaging. While the fin seals contain the product, the carton itself is generally not meant to ship individually through courier networks and often needs a corrugated outer box for transit.
Print Surface And Fin Visibility
The four main vertical panels offer large, uninterrupted space for branding. The angled panels leading to the fin seals can also be printed, though they are less visible when the carton is standing upright on a shelf.

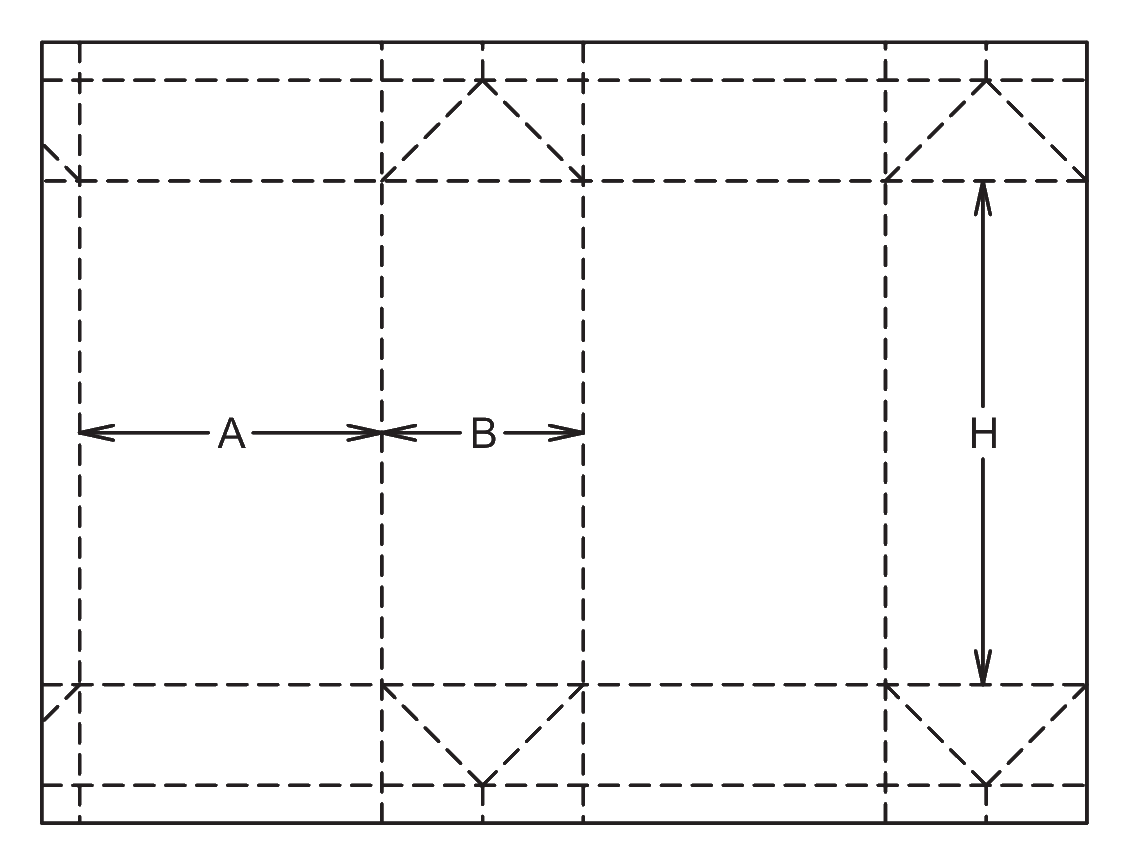

Seal Angles, Fin Heights, And Adjustments
Seal Angle And Fin Height
The height of the angled approach panels and the actual mating fin can be adjusted to match the specific sealing jaws of your cartoning equipment. Changing the width of the carton will directly alter the geometry of the inward-folding gussets.
Base Width And Gusset Geometry
The width of the side panels determines the depth of the inward-folding gussets. Adjusting this dimension changes the angle of the top and bottom approach panels, which should be coordinated with the filling machinery.
Fin Seal Tip Extension
The flat portion of the fin seal can be extended to provide more surface area for the heat or adhesive bond. A taller fin supports a more consistent seal but increases the overall height of the flat blank.
Board and packing details
Storage And Flat Delivery
Because the carton is delivered flat with a pre-glued side seam, it stores efficiently before use. The flat blanks are loaded directly into the magazine of the cartoning equipment for continuous production.
