ECMA A45.20.01.03

Sift-Proof Reverse Tuck Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Webbed bottom flaps prevent fine contents from sifting out
  • Delivered flat with a single glued side seam
  • Designed for manual assembly and hand-packing lines

About this product

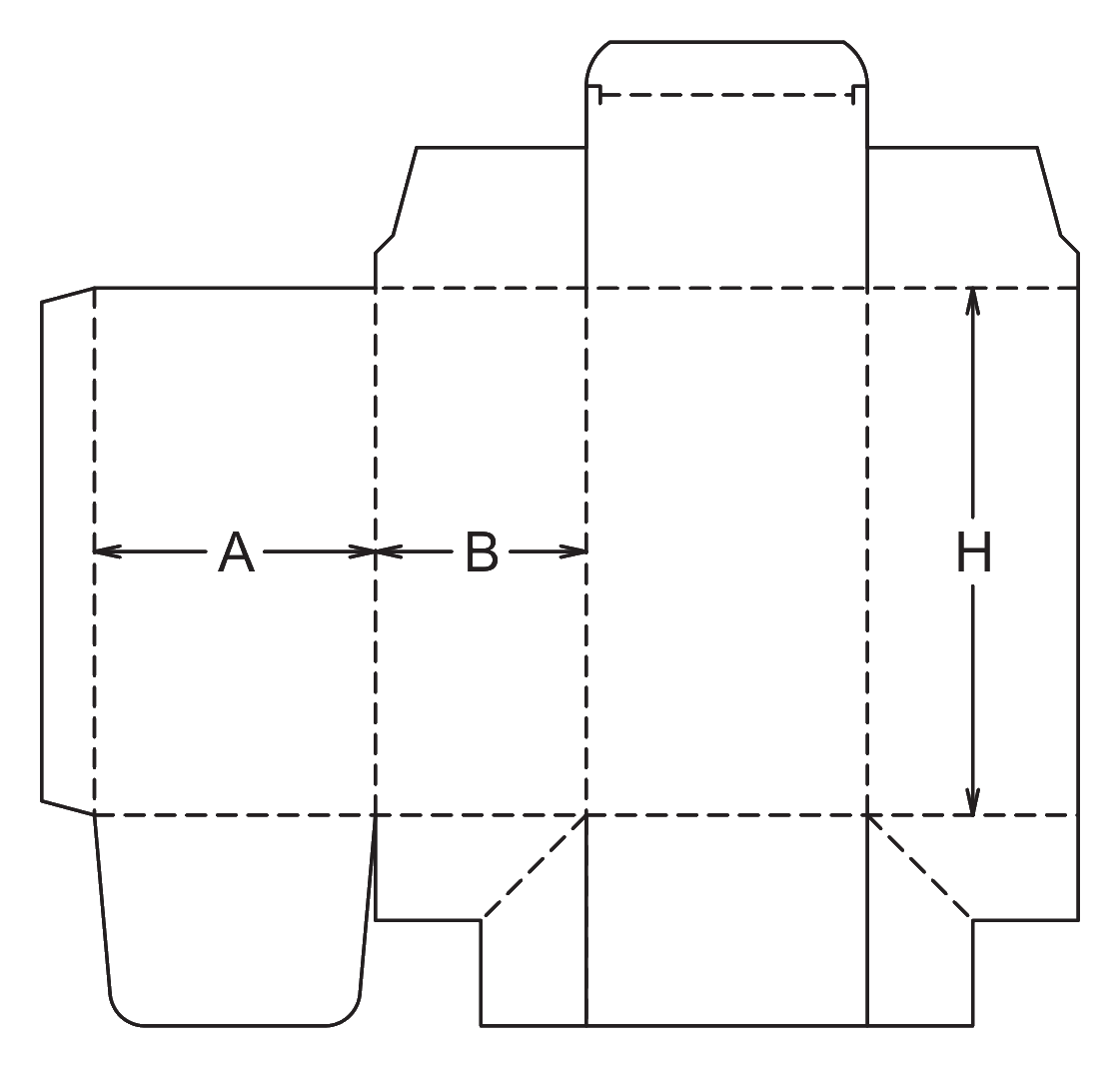

A specialized folding carton designed to hold powders, granular products, and small loose items. Instead of standard bottom flaps that leave small gaps, the bottom side panels feature diagonal creases that fold inward into webbed gussets, creating a continuous seal at the corners.

This dustproof base provides the security of a fully sealed bottom while keeping production simple, as it requires only a standard straight-line glued side seam. Because the webbed flaps require a deliberate inward push, this style is typically loaded and closed by hand.

Common uses

  • Loose tea, spices, and dry mixes.
  • Small hardware, seeds, and granular parts.
  • Premium cosmetics requiring a clean base.

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Granular Products, Powders, and Clean Retail Displays

Loose tea, spices, and dry mixes

The webbed bottom gussets block the corners completely, helping contain granular food products that would slip through the gaps of a standard tuck carton.

Cosmetics and personal care powders

For bath salts, clay masks, or cosmetic powders, the dustproof base keeps the product contained while providing a clean, flat exterior for premium shelf presentation.

Small hardware and loose components

When packing small screws, beads, or seeds, the continuous corner seal prevents tiny parts from escaping during handling and retail display.

Premium retail goods requiring a clean base

Because the bottom tuck flap covers the internal gussets, the exterior base of the carton has no exposed raw board edges. This provides a polished look for high-end retail shelves even if the product is not granular.

Manual Fulfillment, Specialty Retail, and Trial Runs

Manual fulfillment operations

The bottom closure requires an operator to push the side flaps inward so they fold along their diagonal creases before inserting the main tuck flap. This makes it well-suited for hand-packing lines but difficult to run on conventional automated cartoning equipment.

Specialty retail and boutique brands

Brands packing premium loose goods by hand benefit from the sift-resistant base without needing to invest in the tooling or higher minimums often associated with automated pouch-filling or complex glued bases.

Product trials and market testing

Because the carton is glued on a straight-line folder-gluer, it avoids the multi-point gluing process of a crash-lock bottom. This makes it an accessible choice for short runs and market testing of new granular products.

When to Consider Standard Tucks or Crash-Lock Bases

High-speed automated filling

If your packing line uses automated carton erectors, the webbed bottom flaps often require specialized tooling to fold. A standard reverse tuck or an automated crash-lock bottom may be a better choice depending on the product's sift risk.

Heavy products requiring base strength

While the webbed flaps add some rigidity, the bottom is still secured by a friction-fit tuck flap. For heavy items, a glued crash-lock base provides more reliable weight-bearing strength.

Board Endurance, Packing Labor, and Closure Security

Board folding endurance for the webbed corners

The sift-proof seal relies on the diagonal creases folding cleanly without cracking. When selecting a board grade or heavy coating, it is important to verify that the material can handle these sharp internal folds without compromising the corner seal.

Top closure security and tamper evidence

The standard top is a slit-lock tuck flap. If the carton holds fine powders, you may want to discuss adding a clear wafer seal or tamper-evident label to the top closure for retail distribution.

Packing labor and assembly speed

The deliberate inward push required to form the bottom gussets adds a step to the manual assembly process. Buyers should evaluate this labor time against the cost of alternative sift-proof packaging like sealed pouches.

When to pair with an inner pouch

For ultra-fine dusts like baking flour or certain cosmetic powders, the board and creases alone may not provide a perfect seal. In these cases, the carton is often used as a rigid retail shell over a sealed inner bag.

Top Locks, Windows, and Display Additions

Top tuck friction and lock styles

The top tuck can be adjusted from a standard slit lock to a friction-fit crease lock, depending on how often the consumer needs to open and reclose the carton.

Die-cut display windows

Windows can be added to the main panels to show the product, provided they are kept clear of the diagonal bottom creases and top locking slots.

Extended panels for hanging displays

The rear panel can be extended upward and die-cut with a euroslot or round hole, allowing the sift-proof carton to be hung on retail pegboards.

Board and packing details

Prototyping the corner seal

Because the effectiveness of the dustproof bottom depends on the exact product and board thickness, it is always recommended to request a physical sample and perform a shake test with the actual contents before a full production run.

Additional notes

Inner pouches for fine powders

If your product is an extremely fine dust, such as certain cosmetic powders or baking flours, the carton is often used as a clean retail outer shell over a sealed inner plastic or foil pouch.

Related Carton Styles

A45.30.01.03: Scissor-Lock Top Dustproof Carton

The same sift-proof bottom, but paired with a scissor-lock top closure for different opening behavior.

FAQs

Product fit and sifting

Is this carton completely leak-proof for liquids or ultra-fine powders?

No. While the webbed flaps prevent granular items like tea, seeds, or spices from sifting out, it is not a liquid-tight seal. Ultra-fine powders may still require an inner pouch or bag depending on the board and crease tightness.

Packing and assembly

Can this carton be erected on automated packaging machinery?

It is generally designed for manual assembly. The diagonal creases on the bottom flaps require a specific inward push that standard automated cartoners usually cannot perform without specialized tooling.

Quantity or production path

Does the dustproof bottom increase manufacturing costs?

The carton is glued on a straight-line folder-gluer, just like a basic tuck carton. It avoids the multi-point gluing process required for a crash-lock bottom, keeping the production path straightforward while still providing a sealed base.

Board and finish

Which board types suit the webbed bottom flaps?

Boards with high folding endurance, such as solid bleached sulfate (SBS) or high-quality folding boxboard (FBB), perform well. Rigid or recycled boards that are prone to cracking on sharp folds can compromise the sift-proof corners.

Shipping route

Can this carton be shipped individually in the mail?

No. The top and bottom are secured by friction-fit tuck flaps, which can pop open during rough transit. It requires an outer mailer or shipping box for parcel networks.

Samples and prototypes

How should we test the bottom closure before ordering?

Request a physical prototype in your chosen board grade, fill it with your exact product, and perform a shake test to ensure the webbed corners provide an adequate seal for your specific contents.

Packing and assembly

How does the bottom closure stay shut during handling?

Once the side gussets are folded inward, the main bottom flap tucks in over them. The friction of this tuck flap against the front panel holds the entire webbed assembly securely in place.

Adjustments and options

Can we add a hanging tab to this carton?

Yes. The rear panel can be extended to include a die-cut hanging hole or euroslot, allowing the carton to be displayed on retail pegboards while maintaining the sift-proof base.
