ECMA A20.20.03.03

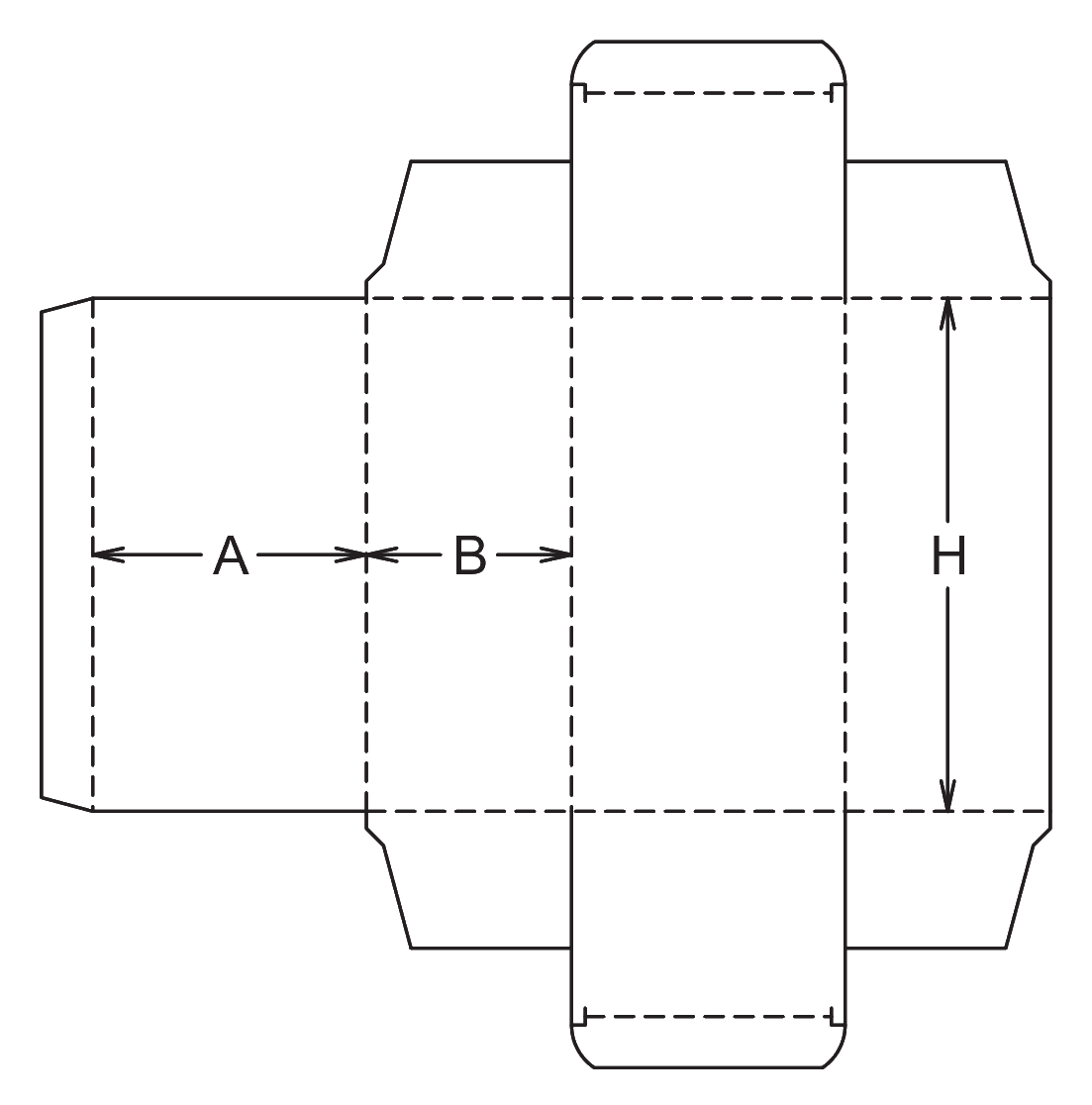

Straight Tuck End (STE) Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Uninterrupted front panel for premium retail display
  • Top and bottom friction tucks with friction slit locks
  • Widely compatible with automated cartoning equipment

About this product

The Straight Tuck End (STE) carton is a primary choice for premium retail packaging, cosmetics, and pharmaceuticals. Because both the top and bottom closure flaps hinge from the rear panel, the front face remains completely continuous, with no raw paperboard edges visible to the consumer.

This layout provides an unbroken billboard for high-quality graphics, foil stamping, and embossing. Delivered flat and easily erected, it is widely used for both manual hand-packing and high-speed automated cartoning lines.

Common uses

  • Cosmetics
  • Pharmaceuticals
  • Light retail goods
  • Premium tea or coffee boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail and Primary Packaging

Premium retail display

The STE carton is chosen when the front presentation is the highest priority. Because the tuck flaps fold to the back, the primary display face is a single, unbroken panel. This makes it a strong fit for products that rely heavily on shelf appeal.

High-speed automated filling

The straightforward folding sequence and predictable friction locks make this style a staple on automated cartoning lines. It opens cleanly from a flat state, allowing rapid product insertion and closure.

Manual hand-packing

For shorter runs or specialized fulfillment, the carton is easy for operators to erect by hand. The pre-glued sleeve opens with a gentle squeeze, and the tuck flaps close intuitively without needing tape or glue.

Frequent consumer access

Products that are used over time, such as supplements or cosmetics, benefit from the friction tuck closures. The flaps can be opened and reclosed repeatedly without destroying the box.

Premium and High-Volume Markets

Cosmetics and health/beauty

Premium skincare, perfumes, and cosmetics frequently use STE cartons made from Solid Bleached Sulfate (SBS) board to achieve clean white edges and support high-end finishes like foil or spot UV without visual interruption on the front.

Pharmaceuticals and supplements

The consistent closure and clean panels provide ample room for regulatory text, branding, and tamper-evident labeling. The carton can be easily opened and reclosed by the consumer throughout the product's lifespan.

Specialty food and confectionery

Lightweight premium foods, such as artisan chocolates or high-end tea, use this style to maintain a polished presentation on the shelf while keeping the product accessible.

When to Consider Alternative Carton Styles

When packing heavy or dense items

The bottom closure relies entirely on friction and small slit locks. If the product is heavy, such as a large glass jar or dense hardware, the bottom tuck may yield and open. An auto-bottom or crash-lock carton is often a better fit for heavier payloads.

When optimizing board usage for large runs

Because both tuck flaps extend from the same side of the blank, STE cartons nest slightly less efficiently on a master sheet than Reverse Tuck End (RTE) cartons. For extremely high-volume runs where the front-panel appearance is less critical, an RTE may yield more cartons per sheet.

Board, Finish, and Production Choices

Board grade and caliper

The thickness of the paperboard directly affects how the tuck flaps and slit locks behave. Thicker boards need adjusted lock depths to prevent the flaps from binding, while thinner boards may need tighter locks to maintain friction.

Grain direction

For straight tuck cartons, the paperboard grain should typically run horizontally around the girth of the box. This helps keep the wide main panels from bowing outward and ensures the long vertical creases fold cleanly without cracking.

Surface finishes and coatings

Heavy UV finishes or laminations applied over the tuck flap creases can cause the board to crack when folded, reducing the friction needed to keep the carton closed. Keep-out zones for coatings should be planned around the closure areas.

Slit lock engagement

The small notches at the base of the tuck flaps catch on the folded dust flaps to secure the closure. The depth and offset of these locks should be calibrated to the chosen board thickness to ensure the carton stays closed without being difficult for the consumer to open.

Dispensing and Display Modifications

Tear-out dispensing windows

The carton can be modified with a perforated tear-out strip, often on a side or front panel, to serve as a dispenser for individually wrapped items, tea bags, or wipes. The cut-to-tie ratio of the perforation should be matched to the board grade so it holds during transit but tears cleanly for the user.

Custom window patching

A die-cut window can be added to the front or side panels to display the product. This involves a separate window-patching process to apply the clear film, and the cutout should be kept safely away from the main load-bearing creases.

Dust flap modifications

The internal dust flaps can be adjusted in height or given sloped edges. This helps prevent the flaps from catching on the product during high-speed automated loading or manual insertion.

Board and packing details

Pre-breaking for automation

If the carton will be erected on an automated cartoning line, the folder-gluer should pre-break the first and third creases. This ensures the flat sleeve opens squarely and predictably when it reaches the machine magazine.

Carton Variants

Tear-Out Dispenser (A20.20.03.03.14)

Adds a perforated racetrack strip to a main panel, allowing the user to tear open a dispensing window while keeping the standard tuck-in closures intact.

Additional notes

Front panel continuity

The defining feature of the STE carton is that the front panel is completely free of closure seams or raw edges, making it the preferred choice when high-end branding, foil stamping, or embossing is the main priority.

Board nesting efficiency

Because both tuck flaps extend from the same side of the flat blank, STE cartons nest slightly less efficiently during die-cutting than reverse tuck cartons. This minor material tradeoff is usually offset by the premium retail appearance.

Related Folding Cartons

A60.20.00.03: Auto-Bottom Carton

Consider this alternative if packing heavier items that need a glued, interlocking base that resists opening under product weight.

FAQs

Product fit and closures

Can this carton hold heavy items?

The bottom closure relies on a friction tuck flap. Heavy items may force the bottom open when lifted. For heavier products, an auto-bottom or crash-lock carton is a safer choice.

Is a straight tuck carton tamper-evident?

The tuck flaps can be opened and reclosed without leaving a trace. If tamper evidence is needed, a clear wafer seal or destructible label should be applied over the closures.

Print and finish

Why choose a Straight Tuck End over a Reverse Tuck End?

The primary advantage of the STE is visual. Because both tuck flaps fold to the rear, the front display panel has no visible raw paperboard edges at the top or bottom, providing a cleaner look for premium graphics.

Route and shipping

Can this carton be shipped as a standalone parcel?

Friction-tuck folding cartons serve as primary retail packaging. They will easily open or crush in a courier network and should be packed inside a corrugated outer shipper for transit.

Production and packing

Does this carton work on automated filling lines?

The STE is a standard layout for automated cartoning equipment. However, the exact board caliper, pre-break angles, and slit lock tolerances should be tested on the specific filling line to ensure smooth operation.

Samples and prototypes

What should be checked on a physical sample?

Verify that the slit locks engage firmly without tearing, that the main panels do not bow outward, and that the product weight does not force the bottom flap open when handled.

Production and packing

Do the tuck flaps require tape or glue?

No, the top and bottom closures rely entirely on friction and mechanical slit locks. The only glued section is the manufacturer's side seam, which forms the flat tube before delivery.

Print and finish

How does grain direction affect this box?

Grain direction usually runs horizontally around the carton. This prevents the wide front and rear panels from bowing outward and ensures the long vertical creases fold cleanly without cracking the board or the printed finish.
