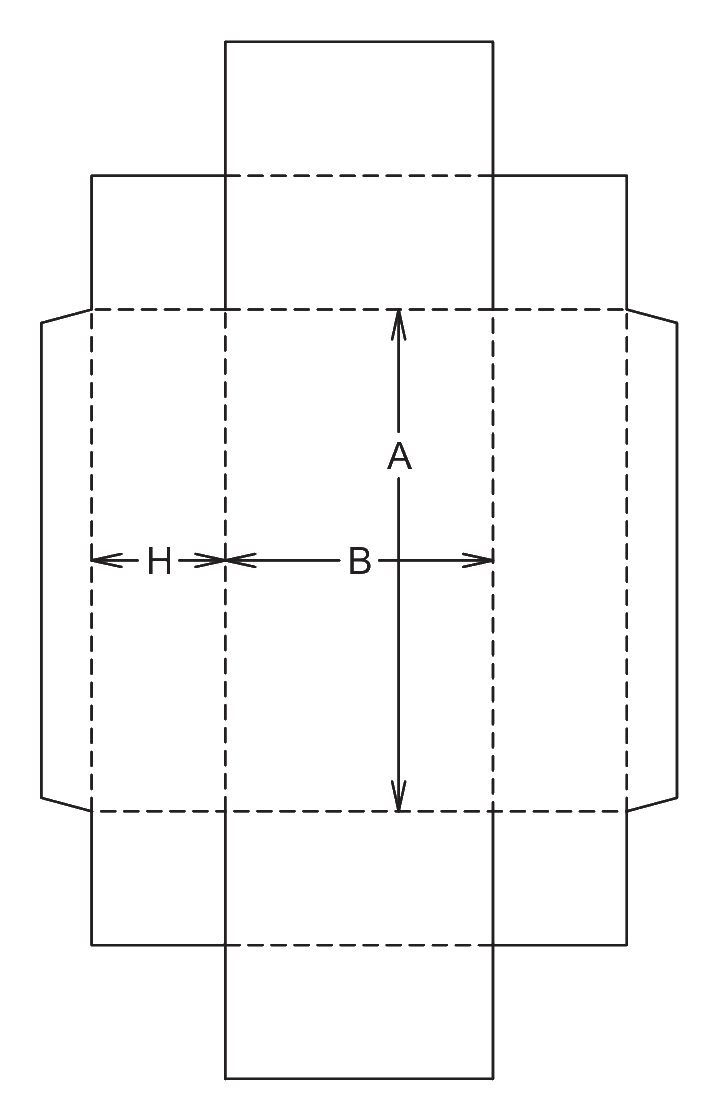

ECMA B44.20.82.00

Automated Double-Wall Glued Tray

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Designed for automated tray-forming equipment
  • Double-thick end walls hide corner dust flaps
  • Top flanges stiffen the long side walls

About this product

This open-top tray is engineered for high-volume automated packing lines. It features double-thick end walls and inward-facing top flanges on the side walls, creating a rigid, clean-edged presentation for confectionery, cosmetics, or premium baked goods.

Because it relies on adhesive applied during erection, it ships flat and is typically erected by a tray former at the packing facility. It is not designed for manual hand-assembly.

Common uses

  • Confectionery
  • Cosmetics
  • Premium baked goods
  • Electronics

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-Volume Tray Applications

Automated primary packaging

A practical choice for fast-paced lines where flat blanks are fed, glued, and erected immediately before product loading. The straight fold lines and simple 90-degree and 180-degree actions align with standard tray former capabilities.

Premium retail presentation

The 180-degree fold on the inner end walls conceals the corner dust flaps, while the top flanges provide a finished rim. This makes it a practical choice for products that will be wrapped in film or placed inside a secondary display sleeve.

Base for shrink-wrapped products

The rigid double walls and flanged sides resist bowing when shrink film is applied, keeping the tray footprint square and the presentation clean.

Multi-component kitting trays

When paired with custom inserts, the rigid walls provide a stable foundation for holding multiple heavy or delicate items securely in place.

Industry and Packing Fit

Confectionery and baked goods

Provides a clean, sturdy base for delicate items. The top flanges help prevent the long side walls from bowing outward when the tray is handled or wrapped.

Cosmetics and personal care

Offers the crisp edges and rigid feel expected in premium categories, especially when produced in high-quality folding boxboard.

Electronics and premium consumer goods

Serves as a reliable inner tray that slides smoothly into a rigid outer sleeve, protecting components while offering a premium unboxing experience.

When to Consider Friction-Lock or Pre-Glued Trays

Manual packing operations

If your facility relies on hand assembly, this glued tray will be slow to erect. Compare it to unglued self-locking trays (like the B10 or B20 series) that use friction tabs to hold their shape without active gluing equipment.

Standalone shipping

This is an open primary tray. It provides no top containment or crush resistance on its own and usually requires a secondary outer shipper or rigid sleeve for distribution.

Board, Flange, and Packing Line Considerations

Tray former compatibility

Verify your machine's envelope limits, plunging mechanisms, and adhesive application zones. The equipment should be able to handle the 180-degree downward fold of the inner end walls.

Board caliper and grain direction

Because the inner end walls fold completely over the dust flaps, board thickness and grain direction are critical. The grain often runs parallel to these 180-degree folds to help prevent the board from cracking.

Flange width and product clearance

The inward-facing top flanges reduce the clear opening of the tray. Check that the flange width leaves enough room for automated or manual product loading.

Secondary packaging strategy

Decide how the tray will be covered. Whether using shrink film, a clear lid, or a printed sleeve, the outer packaging will dictate the final dimensions and required rigidity of the tray.

Adjusting the Tray Profile

Top flange width

The inward-facing rim on the side walls can be widened for extra rigidity or narrowed if it interferes with product loading.

Dust flap bevel angles

The angles on the corner dust flaps can be adjusted to help ensure they do not collide during the automated folding sequence.

Overall tray depth

The height of the side and end walls can be scaled to match the product profile, balancing containment needs with material efficiency.

Board and packing details

Print surface continuity

The inner end walls and top flanges fold inward from the main sheet, meaning they display the same side of the board as the exterior. This allows for continuous graphics without requiring two-sided printing.

Tray Modifications

Inward Downfold Corners (B44.22.82.00)

Modifies the corner webbing and downfold logic, which may be preferred by specific tray-forming equipment.

Additional notes

Machine envelope verification

Before committing to this format, confirm that your tray former can accommodate the flat blank size and execute the specific 180-degree fold required for the inner end walls.

Related Tray Styles

B46.20.81.00: Three-Double-Wall Glued Tray

Adds a third double-thick wall for even greater rigidity.

FAQs

Production and Assembly

Can this tray be assembled by hand?

It lacks the mechanical friction locks needed to hold itself together. It relies on adhesive applied during erection, making it a practical choice primarily for automated tray formers.

Does the converter pre-glue this tray?

No. The tray is die-cut and shipped flat to your facility. The gluing happens on your packing line just before the product is loaded.

Materials and Fit

What board types fit this structure?

Standard folding boxboard or solid bleached board are common choices. Thicker corrugated boards are generally a poor fit because the 180-degree folds on the end walls may bind and resist automated gluing.

Do the top flanges interfere with loading?

They can, depending on your product and loading mechanism. The width of the flanges can be adjusted during the design phase to help ensure clearance for your specific payload.

Shipping and Route

Is this tray suitable for parcel shipping?

Not on its own. It is an open-top primary package. For parcel or courier networks, it should be placed inside a secure outer shipping box.

Print and Finish

Do I need two-sided printing for the inside of the tray?

Usually not. The inner end walls and the top flanges fold over from the outside of the blank, so your primary exterior graphics will naturally show on those interior surfaces.

Production and Assembly

How does the tray stay together?

The side walls fold up, bringing dust flaps inward. The outer end walls fold up against these flaps, and the inner end walls fold 180 degrees downward to sandwich the dust flaps, locking the structure with adhesive.

Adjustments and Options

Can the top flanges be removed?

Yes, the template can be modified to remove the flanges, but this reduces the rigidity of the long side walls, which may bow outward depending on the tray length and board choice.
