Retail Presentation and Fine Contents
Premium framed presentation
The inner walls fold completely over the outer walls, hiding all raw corrugated or paperboard edges. This creates a clean, framed border around the product, often used when the unboxing experience matters as much as the item itself.
Containing crumbs and powders
Standard tray corners have small gaps where the panels meet. This design uses webbed corners, a continuous piece of board that folds diagonally inward, creating a solid barrier that keeps fine contents from leaking out during transit or display.
Automated tray forming
The unglued locking tabs and webbed corners are designed to be erected by specialized tray-forming machinery. This eliminates the need for a separate gluing pass during manufacturing, making it efficient for operations with the right equipment.
Eliminating raw board edges
Because the inner walls fold 180 degrees over the outer walls, the top edge of the tray is rolled rather than cut. This provides a smoother feel and a more refined look for high-end retail displays.
Cosmetics, Confectionery, and Premium Kitting
Bakery and confectionery
The webbed corners keep sugar, crumbs, and small candies contained, while the double walls provide a rigid, high-end frame for delicate baked goods.
Cosmetics and luxury goods
When paired with a custom insert, the clean interior walls elevate the presentation of skincare sets, perfumes, or jewelry, ensuring no unfinished edges distract from the product.
Powdered or granular product kits
For kits containing loose or fine materials, the continuous corner barrier reduces the risk of product sifting out of the tray before it reaches the end user.
When to Consider Pre-Glued or Simpler Trays
High-volume manual packing
Folding four double walls and trapping webbed corners by hand is labor-intensive. If your fulfillment line relies on manual assembly, a pre-glued tray will set up much faster, though it requires a gluing pass during manufacturing.
Heavy transit shipping
This is an open presentation tray. If the primary goal is shipping through mixed parcel networks, it will need a sturdy outer carton, a fitted sleeve, or a full lid to protect the contents and maintain the tray shape.
Board Selection and Assembly Planning
Automated forming versus hand assembly
This tray is designed for automated tray formers. While short runs or prototypes can be folded by hand, the sequence is complex. Discuss your packing line capabilities early so the template can be matched to your equipment.
Board grade and folding endurance
The inner walls must fold 180 degrees to lock into the base. This requires a board grade with excellent folding endurance, such as solid bleached board (SBB) or high-quality folding boxboard (FBB). Stiff or brittle materials may crack along these hinges.
Inner wall clearance
The tabs on the long inner walls must seat perfectly into the base creases to hold the tray together. If you change the board thickness, these clearances must be recalculated, or the inner walls may pop out or crush during assembly.
Outer shipper requirements
Because this tray is open and relies on friction locks, it is not designed to ship on its own. Plan for a fitted outer carton or sleeve if the product will be shipped individually.
Clearance and Locking Tab Adjustments
Locking tab clearance
The locking tabs can be adjusted in height and width to match the exact caliper of the chosen board, ensuring a tight friction fit without tearing the base creases.
Inner wall height
The inner walls are slightly shorter than the outer walls to account for the thickness of the board when folded. This offset can be adjusted to ensure the walls sit flush against the base without bowing.
Webbed corner offset
The diagonal fold of the webbed corner can be adjusted to prevent excessive bulk from interfering with the inner wall locks, especially if a slightly thicker board is used.
Board and packing details

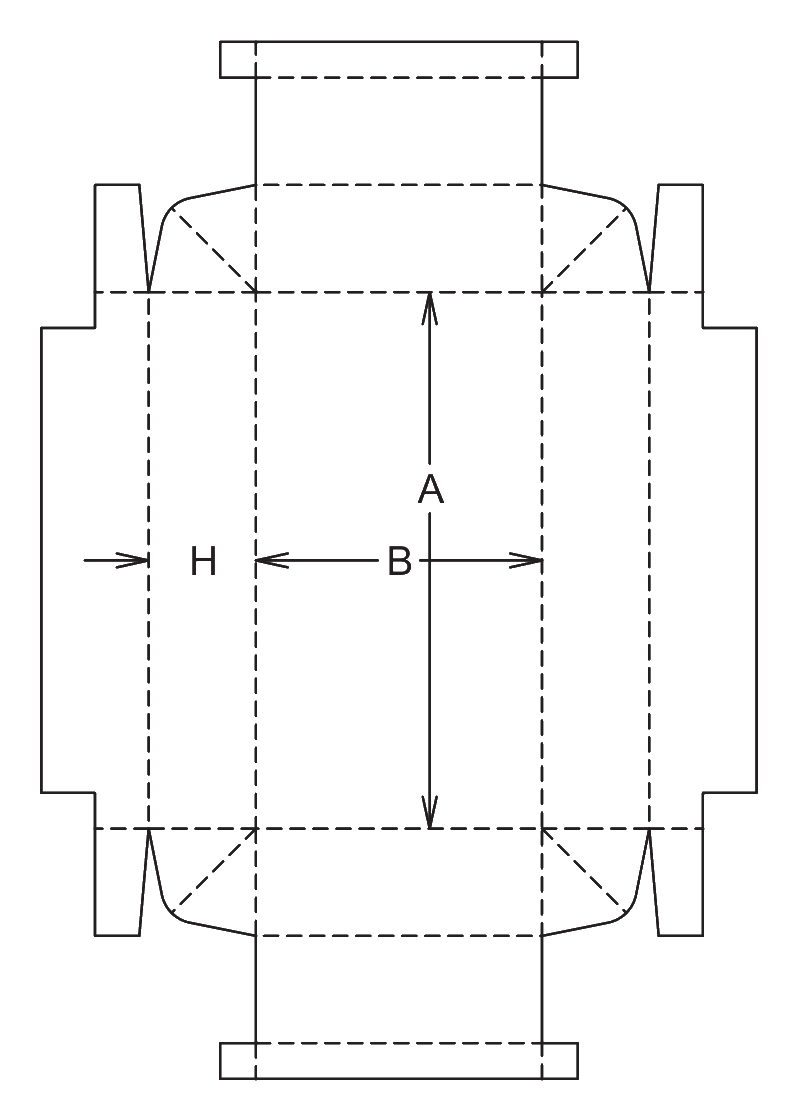

Blank size and material usage
Because every wall is doubled and the corners include extra webbing, the flat blank for this tray is much larger than its finished footprint. This increases material usage per unit, which is offset by eliminating the gluing process.
Corner and Wall Variations
Stepped inner walls
The template can be adjusted to use stepped inner walls, creating a tiered interior frame for specialized product displays.
