ECMA B40.20.00.00

Four-Corner Glued Tray for Automated Setup

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

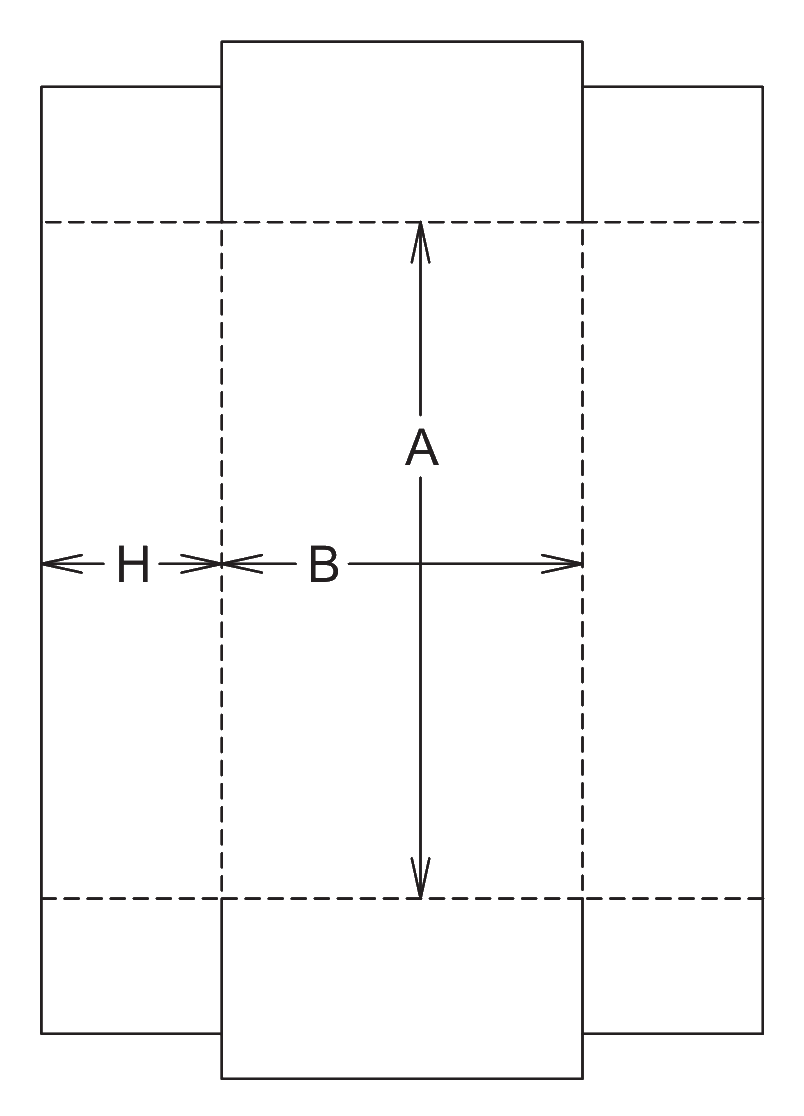

  • Delivered as a completely flat, unglued blank
  • Designed for automated tray formers and adhesive application
  • Single-wall construction for material efficiency

About this product

The B40.20.00.00 is a classic single-wall open tray designed specifically for automated packing lines. Delivered as a completely flat, unglued blank, it relies on a tray former to fold and glue the corners on demand, creating a rigid base for jars, bottles, bakery items, or multipacks.

Because it lacks the diagonal creases of a collapsible tray, it does not ship pre-glued. This design trades hand-assembly speed for flat-shipping efficiency and automated throughput.

Common uses

  • Primary product grouping
  • Base component for telescopic boxes

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

High-Volume Tray Packing Jobs

Primary product grouping and shrink wrapping

This tray provides a clean, rigid base for grouping heavy or rigid primary containers like glass jars, bottles, and canned goods. Once formed and loaded, the open top allows for direct product visibility, making it a strong foundation for shrink-wrapping or overwrapping before retail display.

Base component for telescopic boxes

When paired with a matching lid, this tray serves as the bottom half of a rigid two-piece box. The glued corners provide vertical support for the lid, though the exact board grade should be matched to the expected top load.

Bakery and confectionery trays

For baked goods or multipack sweets, the open-top format allows consumers to see the product. The tray is typically formed, loaded, and then sealed in a clear overwrap to maintain freshness.

High-volume retail multipacks

For club stores or retail shelves where products are displayed directly in their transit tray, the unwebbed glued corners offer a clean appearance without the bulky fold-over panels seen in friction-locked alternatives.

Production Environments

Automated packing facilities

This package fits facilities that have invested in automated tray forming equipment. By shifting the gluing process to the packing line, operations benefit from efficient inbound logistics and rapid assembly.

Beverage and preserve producers

Operations packing heavy glass jars or bottles often use this tray to keep items grouped securely. The glued corners hold the tray shape firmly while the product moves through shrink-wrapping tunnels.

High-volume retail distribution

Brands shipping large quantities of multipacks to club stores use this tray to balance material efficiency with a clean retail presentation, avoiding the extra board used in double-wall locking trays.

When to Consider Collapsible or Self-Locking Trays

Manual fulfillment or short runs

If your packing team sets up boxes by hand, this tray involves manually applying wet glue or double-sided tape to four corners, which slows down the line. Consider an unglued self-locking tray or a pre-glued collapsible tray that snaps open.

Heavy stacking without a lid

Because the walls are single-ply, vertical compression strength relies entirely on the four glued corners. If the tray will bear heavy top loads without a supporting lid or master shipper, a double-wall tray or a design with reinforced corners may be worth comparing.

Need for a fully closed box

If the product needs protection from dust or light without relying on a separate lid or overwrap, consider a tray with an integrated complete flap cover.

Machine Tolerances and Board Choices

Tray former compatibility

The exact make and model of your tray forming equipment dictates the blank size limits, hopper feed orientation, and whether the machine uses hot melt or cold glue. These details determine the necessary tab dimensions and board coating.

Board thickness and fold clearance

Moving from a thin folding carton board to a thicker micro-flute corrugated changes how the flaps fold. The template should be adjusted with specific step creases to prevent the material from binding during the plunger stroke.

Adhesive application method

Whether the packing line uses hot melt nozzles or cold glue affects the required compression time and the choice of board finish, as heavily coated boards may resist certain adhesives.

Grain direction for hopper feeding

The grain direction of the board usually needs to run parallel to the longest fold to prevent bowing, but this should be verified against the specific feeding requirements of your tray former.

Adjusting for the Tray Former

Glue tab angles

The angles and clearances of the four corner glue tabs can be tuned to match the specific forming cavity of your equipment, ensuring smooth folding without interference.

Wall height and lateral support

The height of the side and end walls can be adjusted independently of the base footprint to expose more of the primary product or to provide deeper lateral support for taller items.

Double-wall reinforcements

If one or more sides need extra rigidity for display headers or handling, fold-over panels can be added to create double walls on specific sides.

Board and packing details

Flat delivery and warehouse space

Because these blanks are not pre-glued or folded by the converter, they ship completely flat. This maximizes the number of trays per pallet, reducing inbound freight costs and warehouse space requirements compared to knocked-down-flat glued trays.

Tray Variants

Double-wall reinforcements

If one or more sides need extra rigidity for display headers or handling, fold-over panels can be added to create double walls.

Additional notes

Board grain and hopper feeding

The grain direction of the board usually needs to run parallel to the longest fold to prevent bowing, but this should be verified against the specific feeding requirements of your tray former.

Related Tray Styles

B40.20.00.60: Tray with Complete Flap Cover

Consider this when the tray needs an integrated lid to form a fully closed box rather than an open top.

FAQs

Production and Setup

Can this tray be run on a standard folder-gluer?

Because it lacks diagonal corner creases, it does not fold flat after gluing. It is designed to be shipped as a flat blank and erected by a tray former at the final packing location.

Is this tray suitable for hand packing?

Erecting it by hand involves manually applying adhesive or tape to all four corners. If you are packing by hand, a self-locking or pre-glued collapsible tray is usually a faster choice.

Materials and Route

Does this tray work for parcel shipping?

Not on its own. As an open-top, single-wall tray, parcel shipment usually involves a master shipper, a matching telescopic lid, or a rigid overwrap.

What board types make sense for this design?

It is typically cut from folding carton board for clean machine forming and retail graphics. It can be adapted for micro-flute corrugated, but the template's fold clearances should be adjusted to handle the extra thickness.

Inserts and Fit

Can partitions or inserts be added?

Yes. The open rectangular basin easily accepts separate die-cut inserts, cross partitions, or molded trays to separate glass bottles or fragile items.

Production and Setup

What product and machine details matter first?

Knowing the exact make and model of your tray former, the adhesive system it uses, and the weight of the products being grouped will help determine the correct board grade and tab clearances.

Materials and Route

How does this tray ship to the packing facility?

It ships as a completely flat, unglued blank. This maximizes the number of blanks that fit on a single pallet, reducing inbound freight space compared to pre-glued trays.

Inserts and Fit

Can the wall heights be adjusted?

Yes, the side and end walls can be sized to expose more of the primary product or to provide deeper lateral support for taller items.
