Premium Presentation And Rigid-Box Alternatives
Premium presentation bases
The inward-folding top flange creates a clean, finished edge that mimics the look of a rigid setup box. It provides a stable, framed cavity that pairs well with custom inserts to hold high-value items securely.
Automated high-volume packing
This tray is built for efficiency on automated lines. Flat blanks are fed into a tray former, which folds the walls, applies adhesive to the corners, and folds the top flanges inward in a single continuous operation.
Rigid-box alternatives
For brands wanting the premium feel of a rigid setup box without the associated shipping volume and manufacturing costs, this folding carton alternative offers a similar framed aesthetic when erected on-site.
Insert-driven product staging
The continuous top frame naturally hides the outer edges of internal inserts. This allows for complex, multi-level product staging inside the tray while keeping the visible border clean and uniform.
Cosmetics, Confectionery, And High-End Retail
Cosmetics and personal care
The framed opening offers an elegant unboxing experience, providing a clean border around bottles, jars, or compacts when the outer sleeve or lid is removed.
Confectionery and gifting
Often used as the base for premium chocolate assortments, the rigid top flange helps support a clear plastic sleeve or a decorative paperboard lid without crushing.
High-end electronics and devices
The rigid walls and framed top provide a secure, structured cavity for heavy or delicate devices, especially when paired with a molded or die-cut insert.
When To Consider Collapsible Trays Or Lidded Options
Manual packing operations
If you do not have automated tray-forming equipment at your fulfillment center, this tray is difficult to assemble by hand at scale. A standard 4-corner collapsible tray, which the factory glues and ships flat, is a much faster choice for manual setup.
Self-contained shipping
This is an open tray. If the package needs to ship through a parcel network without an outer master carton, you will need a style with an integrated cover or a separate heavy-duty outer shipper.
Board Choice And Mitered Corner Clearances
Board caliper and corner binding
The top flanges meet at 45-degree mitered corners. If the chosen paperboard is too thick, these corners can bind or overlap during automated folding. Solid bleached board (SBS) or folding boxboard (FBB) usually provides the best balance of clean edges and structural snap.
Insert support
While the glued corners provide rigidity, the inward-folding flanges can sag if pressed from above. Designing an internal insert that sits just below the flange helps support the frame and maintains a crisp appearance.
Production route and packing location
Because this tray cannot fold flat once glued, shipping fully erected trays means paying to ship mostly air. The standard route is shipping flat blanks to a facility equipped with a tray former.
Outer closure method
As an open base, this tray requires a secondary component for closure. Buyers must decide between a clear plastic sleeve, a separate paperboard lid, or shrink wrap based on retail display needs.
Flange Width And Insert Integration
Flange width tuning
The width of the top frame can be adjusted to change the visual proportion of the tray or to cover more of the internal insert. Wider flanges require more precise folding control to remain perfectly horizontal.
Miter angle adjustments
The exact angle of the corner cuts can be fine-tuned to accommodate specific board thicknesses, ensuring the flanges meet cleanly without overlapping or leaving unsightly gaps.

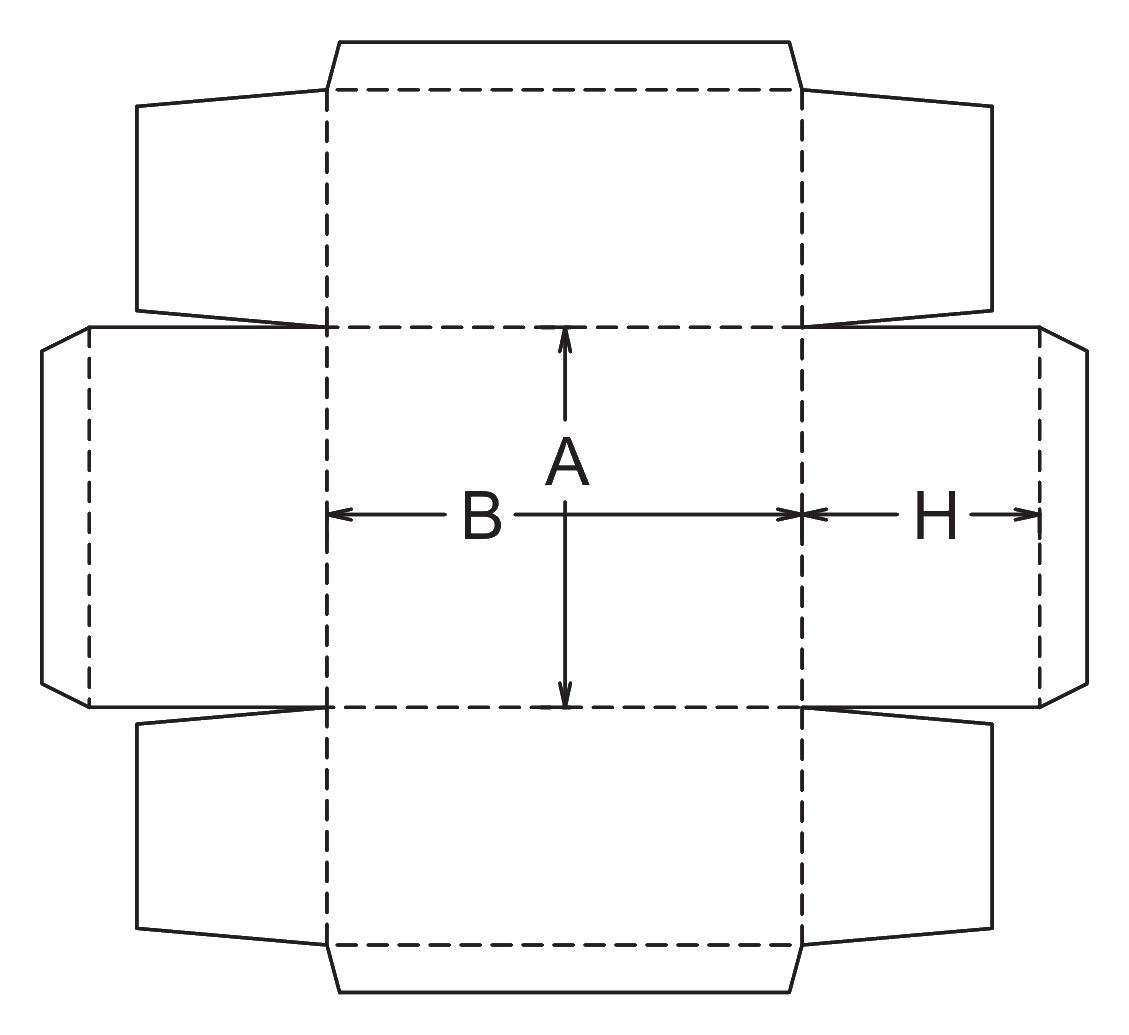

Base dimensions and cavity depth
The overall length, width, and height can be scaled to fit the product, provided the dimensions remain within the operating envelope of the intended tray-forming equipment.
Board and packing details
Logistics of flat blanks versus erected trays
Because this tray cannot fold flat once glued, having the factory glue and ship fully erected trays means paying to ship mostly air. The standard, cost-effective route is shipping flat blanks to a facility equipped with a tray former.
Additional notes
Tray former compatibility
Verify that your fulfillment center's tray forming equipment has the specific tooling required to fold and compress the inward-facing top flanges after the main walls are erected.
FAQs
Production and Assembly
Can this tray be shipped flat after the corners are glued?
No. The geometry of the inward-folding top flanges and the lack of diagonal wall creases mean the tray remains rigid once glued. It must be formed from a flat blank at the packing site.
Can we assemble this tray by hand?
While possible for very small prototype runs, hand-folding and gluing the four corners and four top flanges is very inefficient. This design is intended for automated tray-forming equipment.
Materials and Fit
What board types fit the mitered top frame?
Solid bleached board (SBS) or folding boxboard (FBB) are strong choices. Heavy corrugated boards can cause the mitered corners of the top flange to bind or crush during folding, requiring special relief cuts.
Closure and Route
How is this tray closed for retail or shipping?
As an open base, it requires a secondary component. It is typically paired with a clear plastic sleeve, a separate paperboard lid, or shrink wrap for retail presentation.
Design and Inserts
Do I need an insert with this tray?
Inserts are highly recommended. Beyond holding the product, a well-designed insert supports the underside of the top flanges, preventing them from sagging or crushing under top pressure.
Production and Assembly
Does this tray require adhesive?
Yes. The four corners must be glued during the tray-forming process to hold the walls upright and keep the top frame under tension.
Design and Inserts
Can the width of the top frame be changed?
Yes, the flange width can be adjusted to change the visual border or hide more of the internal insert, though wider flanges require careful tuning to stay flat.
Materials and Fit
Why choose this over a standard rigid setup box?
This folding carton alternative ships as flat blanks, saving freight volume compared to pre-erected rigid boxes, provided you have the equipment to form them on-site.
