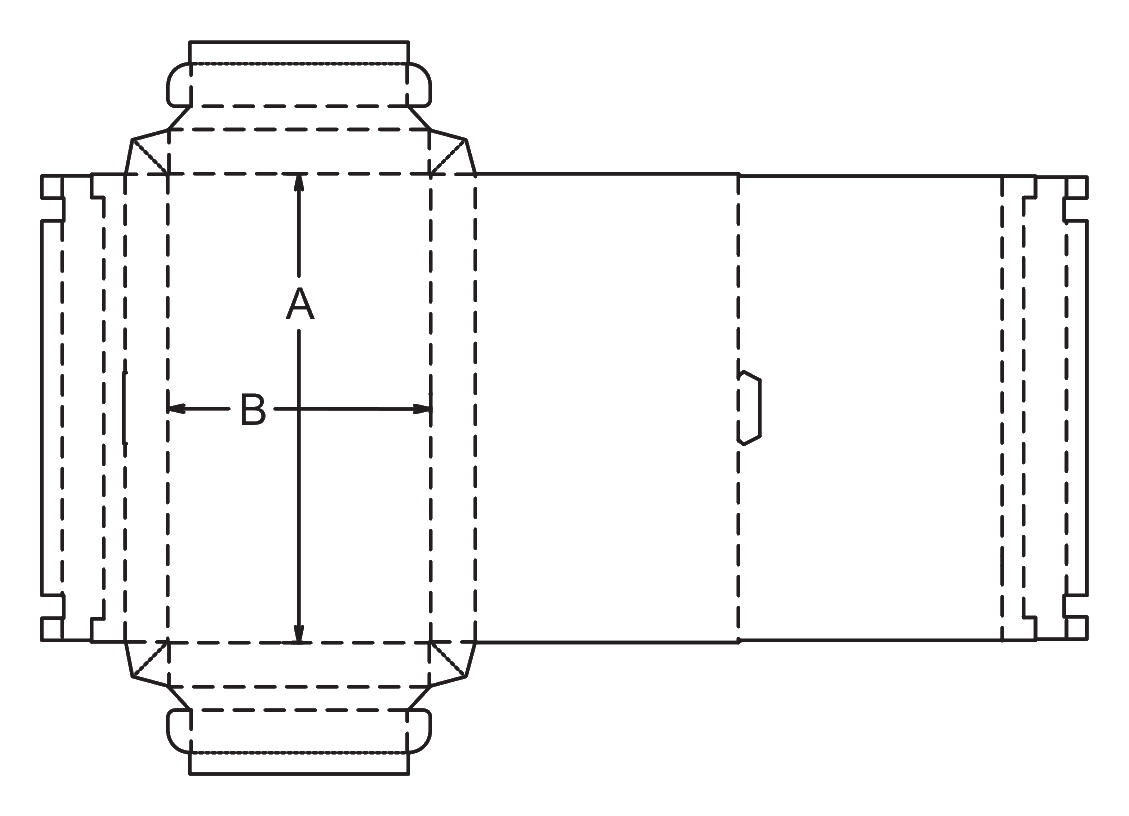

ECMA B49.21.00.51

Hinged Buffer-Wall Tray

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Hollow perimeter walls provide a standoff distance and frame the product
Pre-glued webbed corners allow flat shipping and quick pop-up
Involves manual roll-over assembly to lock the buffer frame

About this product

The B49.21.00.51 is a premium presentation box featuring a built-in hollow perimeter frame and an integrated hinged lid. The hollow buffer walls create a standoff distance that helps protect fragile items from side impacts while framing the product for a high-end unboxing experience.

Because the corner gussets are pre-glued, the tray ships flat and pops open quickly. The packer then rolls the inner walls over to lock the frame in place, making this a space-saving alternative to rigid setup boxes for luxury retail and kitting.

Common uses

Premium cosmetics
High-end electronics
Confectionery and delicate gifts
Promotional kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside length

Inside width

Inside depth

Frame width

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will these boxes be packed?

Will you need a custom insert to hold the items?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Premium Retail and Fragile Goods Presentation

Cosmetics and electronics

The hollow frame creates a visual border around high-value items, elevating the presentation while keeping components away from the outer impact zone.

Confectionery and delicate gifts

The rigid perimeter helps resist side-crush damage during retail handling, while the attached lid keeps the presentation unified.

High-end apparel and accessories

Provides a structured, boutique-style unboxing experience for folded garments or leather goods without the storage footprint of a rigid box.

Promotional kits and influencer mailers

Frames multiple items neatly within the hollow walls, offering a premium presentation that can be packed efficiently before being placed in an outer shipper.

Fulfillment and Kitting Environments

Kitting and hand assembly

While the pre-glued corners allow the box to pop open quickly, the inner buffer walls are manually rolled over and locked into the base. This makes it an excellent fit for hand-packing lines where the freight savings of a flat-shipped box outweigh the manual assembly time.

Luxury retail

Provides the structured, high-end feel of a rigid setup box but stores flat in the backroom until needed for a customer purchase.

Limited-edition product launches

Ideal for short packing windows where warehouse space is limited, allowing large quantities of premium packaging to be stored flat before a rapid fulfillment push.

When to Consider Simpler Trays or Separate Lids

High-speed automated loading

If your packing line relies on automated loading and manual roll-over assembly slows down the line, consider a standard four-corner glued tray or a machine-erected carton.

Parcel shipping

The tuck-in lid is designed for retail closure, not courier security. For direct-to-consumer shipping, this tray often needs a fitted corrugated outer shipper.

Board Choice, Print, and Buffer Width Limits

Board caliper and locking friction

The inner buffer walls lock via tongues that insert into base slots. The board thickness should be matched to these slots so the frame stays locked without tearing.

Buffer width

Wider buffer walls create a more dramatic frame but increase the risk of the inner panels bowing. If a very wide frame is needed, board stiffness becomes critical.

Print layout across roll-over panels

Because the inner buffer walls roll over from the outside, graphics can be designed to wrap continuously from the exterior into the hollow cavity.

Folder-gluer capabilities

The webbed corners require specific folder-gluer attachments during manufacturing. Confirming this capability early ensures the boxes can be delivered flat and ready to pop open.

Adjusting the Frame, Closure, and Locks

Frame dimensions

The width of the hollow buffer can be adjusted to change the standoff distance, though this requires recalculating the corner locking angles.

Lid closure

The tuck flap width and taper can be modified to adjust the opening friction, depending on how frequently the consumer will open and close the box.

Base locking slots

The offsets for the locking tongues and base holes can be fine-tuned to accommodate different board thicknesses, ensuring a tight friction fit.

Board and packing details

Webbed corner concealment

The pre-glued corner gussets fold inward during pop-up and are completely hidden inside the hollow buffer cavity once the walls are rolled over, leaving a clean interior.

Tray Configurations

Base tray without cover (B49.21.00.00)

Removes the integrated hinged lid, leaving an open buffer-wall tray. Useful when pairing with a separate slipcase or a clear sleeve.

Additional notes

Folder-gluer requirements for webbed corners

This design requires a converter with folder-gluer attachments capable of handling webbed (gusseted) corners. If this equipment is unavailable, a non-webbed variant may be necessary.

FAQs

Assembly and Packing

Does this box require manual assembly?

While the converter pre-glues the corners so the box ships flat and pops open, the packing team manually rolls the four inner wall panels over and locks them into the base to form the hollow frame.

Can the webbed corners be glued by hand?

They are typically glued on a folder-gluer during manufacturing so the boxes arrive flat. While hand-gluing is technically possible, it defeats the efficiency of the pop-up design.

Shipping and Route

Can this box be shipped through parcel networks as-is?

The tuck-in lid and hollow walls are designed for retail presentation and inner protection. It usually requires a corrugated outer shipper for parcel networks.

Comparisons

How does this compare to a rigid setup box?

It offers a similar framed presentation and premium feel, but because it is a folding carton that ships flat, it reduces inbound freight and warehouse storage space.

Design and Fit

Can the width of the hollow frame be changed?

The buffer width can be adjusted to frame the product differently. However, very wide buffer walls may bow outward if the board is not stiff enough, so prototypes should be tested.

Are the glued corners visible to the customer?

The webbed corner gussets fold inward and are trapped inside the hollow cavity of the buffer walls, leaving a clean presentation.

Materials

What board types work best for this design?

Folding boxboard (FBB) or solid bleached sulfate (SBS) are typically used. The board must be stiff enough to prevent the hollow walls from crushing, but flexible enough to allow the webbed corners to fold flat without cracking.

Closure and Security

Does the lid lock securely enough for retail shelves?

The tuck flap provides a friction fit that keeps the lid closed for presentation. For heavy retail handling, a clear wafer seal may be added.
