ECMA B40.20.83.53

Machine-Erected Glued Tray with Tuck Lid

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Intended for automated tray-erecting equipment
Delivered flat and unglued
Hinged lid with three friction-fit tuck wings

About this product

The B40.20.83.53 is a top-loading folding carton intended for automated packing lines. Delivered as a flat, unglued blank, it is usually formed by a tray erector that applies adhesive to the four corners, creating a stable base with an integrated, hinged tuck lid.

Because it bypasses the converter's folder-gluer entirely, it offers excellent flat-shipping density and pristine print surfaces. However, the reliance on machine erection means it is often less practical for low-volume or manual fulfillment operations.

Common uses

Bakery and food service
Medical kits
Electronics
Premium retail food

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will this package be handled after it is filled?

What type of product is going inside?

Do you need a clear window on the lid?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Automated Packing Lines

Bakery and Food Service

A common style for pastries, donuts, and premium foods packed at scale, providing a wide loading aperture and a reclosable lid.

Medical Kits

Offers a clean, unwebbed corner presentation and a friction closure for retail shelves or secondary kitting.

Premium Electronics

Provides a premium unboxing experience with a hinged lid, while the flat delivery protects printed finishes from scuffing.

Retail Food Displays

The glued corners support stacking on retail shelves, while the dust flaps keep the lid from crushing inward.

Retail and Premium Product Sectors

Automated Manufacturing Facilities

A strong fit for operations that have already invested in tray-erecting equipment, shifting the assembly labor entirely to the machine.

Premium Retail Brands

The flat-blank delivery means the carton never passes through a folder-gluer, eliminating a common source of scuffing on printed finishes.

High-Density Logistics

Because the blanks are completely flat and unglued, they maximize pallet density for inbound freight compared to pre-glued collapsible trays.

When to Consider Manual or Pre-Glued Alternatives

Low-Volume or Manual Packing

If you are packing by hand, a Roll-End Tuck-Top (RETT) mailer uses friction locks instead of glue, eliminating the need for adhesive equipment.

Need for Fast Manual Assembly

If you want a glued tray but pack manually, a 4-corner collapsible tray is pre-glued by the manufacturer and opens easily by hand.

Equipment Compatibility and Board Selection

Adhesive Application

Discuss your equipment's adhesive system, as this can affect the required porosity or coating on the glue flaps.

Board Thickness and Lid Fit

The three wings on the lid rely on friction against the inner walls. Thicker boards need precise CAD adjustments to keep the lid from binding or tearing during closure.

Print Surface Protection

Take advantage of the flat delivery by specifying full-coverage printing or delicate finishes that might otherwise be scuffed in a folder-gluer.

Dust Flap Clearance

The three dust flaps can be adjusted to ensure they do not overlap or interfere with the front tuck flap when the lid is closed.

Flap Clearances and Lid Friction

Dust Flap Depth

The three dust flaps can be shortened depending on the carton's overall proportions to ensure smooth lid closure.

Lid Wing Bevels

The angles on the side tuck wings can be adjusted to tune the friction fit, balancing a firm hold with easy opening.

Window Patching

A window can be added to the lid panel for product visibility, though this adds a manufacturing step before delivery.

Board and packing details

Blank Sprawl and Nesting

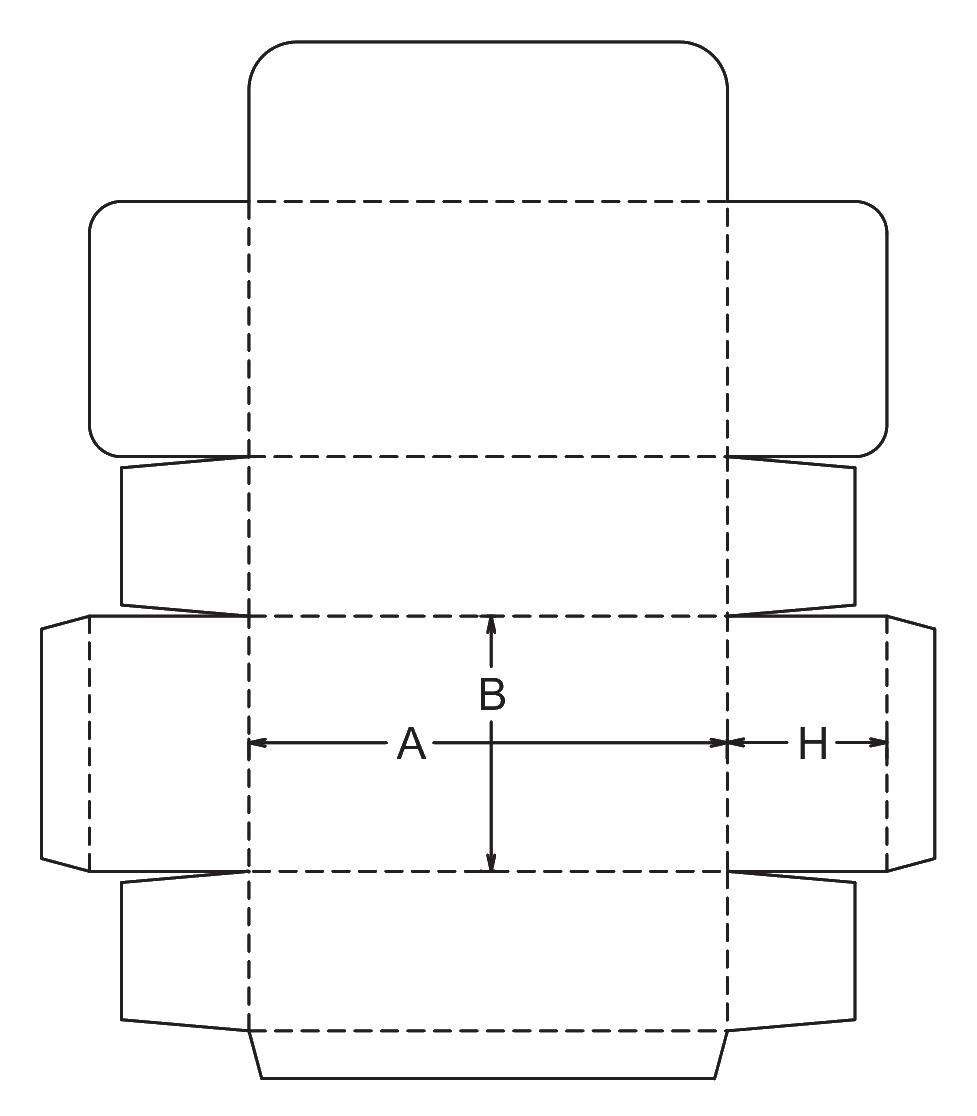

The flat blank resembles a large cross with a long lid extension. For very large cartons, this shape can lead to moderate nesting waste on the sheet compared to designs with a separate base and lid.

Lid and Dust Flap Variations

Full Flap Cover (B40.20.83.60)

Uses a complete flap cover with closed corners instead of the 3-wing tuck lid, changing the closure sequence and presentation.

Additional notes

Run size considerations

Because this tray relies on automated erecting equipment rather than hand folding, it is generally chosen for mature, repeat packing lines rather than short promotional batches.

FAQs

Production and Assembly

Can this tray be assembled by hand?

While possible using double-sided tape or manual glue application, it can slow down packing lines. This template is intended for automated tray erectors.

Does the manufacturer pre-glue this carton?

Because it lacks diagonal folding scores, it is not pre-glued and folded flat. It is delivered as a completely flat blank.

Shipping and Route

Is this carton suitable for parcel shipping?

The friction-fit lid may open during rough transit. For courier networks, it often needs an outer shipping box or tamper-evident taping.

Materials

Can I use thicker board for this design?

It is primarily intended for folding cartonboard. If adapted for thicker corrugated board, the CAD file should be checked to ensure the three lid wings do not bind against the thicker walls.

Closure

What is the purpose of the three dust flaps?

They fold inward before the lid is closed, helping to keep dust out of the corners and providing a resting surface that stops the lid from crushing inward under light top loads.

Fit and Clearances

Why might the lid wings need adjustment?

The bevel angles and depth of the lid wings control how tightly the lid locks. These are usually tuned to the specific board thickness to balance a firm hold with easy opening.

Print and Finish

Does this style protect printed graphics?

Because this blank is never processed through a folder-gluer at the factory, it carries a lower risk of scuffing on premium finishes or delicate coatings.

Comparison

Why choose this over a roll-end tuck-top?

This glued tray uses less board area than a roll-end tuck-top and provides clean, single-thickness walls, making it very efficient for automated packing lines.
