ECMA C10.40.60.20

Hexagonal Crash-Lock Retail Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Distinctive six-sided shape for retail display
Pre-glued auto-bottom snaps open for fast manual packing
Friction-fit tuck top allows easy opening and reclosure

About this product

The C10.40.60.20 is a six-sided folding carton designed to stand out on retail shelves while keeping manual packing lines moving quickly. Delivered flat with a pre-glued base, the carton opens into a rigid hexagonal shape with a simple squeeze, eliminating the need to fold or tape the bottom.

The top closes with a friction-fit tuck flap and dust flaps, making it well-suited for cosmetics, confectionery, and premium gifts. Because the six-point base relies on precise interlocking flaps, this carton is suited for lightweight to medium-weight retail goods rather than heavy industrial parts.

Common uses

Cosmetics and skincare bottles
Confectionery and specialty chocolates
Premium gifting and promotional kits
Specialty beverage tasting kits

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Inside width (side to side)

Inside depth (front to back)

Inside height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

What type of product will go inside?

How will these cartons be packed?

Will the carton hold a single round item (like a bottle or jar)?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail presentation and fast manual fulfillment

Retail display differentiation

The hexagonal footprint breaks up the visual monotony of standard rectangular boxes on a shelf, offering multiple facing angles for branding and graphics.

High-volume manual packing

The crash-lock base removes bottom assembly from the packing process. Operators simply squeeze the carton open, drop the product in, and tuck the top closed.

Multi-facing brand presentation

Six vertical panels allow for continuous wrap-around artwork or segmented product information, giving designers more surfaces to work with than a standard four-sided box.

Snug fit for cylindrical goods

The six-sided interior closely matches the profile of round bottles and jars, reducing internal movement and often eliminating extra void fill.

Cosmetics, confectionery, and specialty gifting

Cosmetics and personal care

The shape naturally complements cylindrical bottles, jars, and premium skincare products, providing a close fit that protects the primary container.

Confectionery and specialty foods

Often used for wrapped chocolates, loose candies, or specialty teas where the unboxing experience and shelf presence justify a more complex carton shape.

Premium gifting and promotional kits

The distinctive geometry elevates the perceived value of promotional items and gift sets, making the packaging part of the presentation.

When to consider four-sided or taped cartons

Heavy or dense products

The interlocking base flaps can sag or disengage under heavy loads. For heavy items, a standard four-corner carton with a taped or fully overlapping base is often a better fit.

Automated filling lines

The six-sided shape and friction-fit tuck top are difficult for automated erecting and filling equipment to handle. If the packing line is fully mechanized, a standard rectangular carton is usually required.

Direct parcel shipping

The tuck-in top can open during rough transit. If shipping directly through courier networks, this carton requires an outer corrugated shipper or secure tamper-evident sealing.

Board thickness, print layout, and closure friction

Board grade and thickness

The six-panel crash lock requires precise folding. Standard folding carton board works well, but thick micro-flute corrugated can cause the complex bottom joints to bind or tear during setup.

Artwork across multiple panels

Continuous graphics that wrap around the six vertical panels require careful print registration across multiple score lines.

Top closure friction

The tuck flap relies on friction against the front wall to stay closed. The choice of board and surface coating affects how securely this flap holds without a clear wafer seal.

Flat delivery footprint

Because it folds flat across six panels rather than four, the knocked-down carton is wider than a standard rectangular box of similar volume. This changes how many flat cartons fit into a master shipping case.

Adjusting dimensions, tuck depth, and display features

Height and side length

The overall height and the width of the six panels can be scaled to fit specific bottles or product bundles, provided the proportions allow the base to fold flat for delivery.

Thumb cuts and tuck depth

The top closure can be modified with a deeper tuck flap or a thumb cutout to make opening easier for the end user.

Window patches

A window cutout can be added to one or more panels to display the product inside, though the cutout must be kept away from the vertical creases to maintain carton strength.

Board and packing details

Production route for six-corner designs

The six-panel crash lock requires specialized folding and gluing steps. Because of this complexity, this carton is often better suited for established repeat orders rather than short-run trials, where a simpler tuck-bottom hexagon may be more practical.

Top closure variations

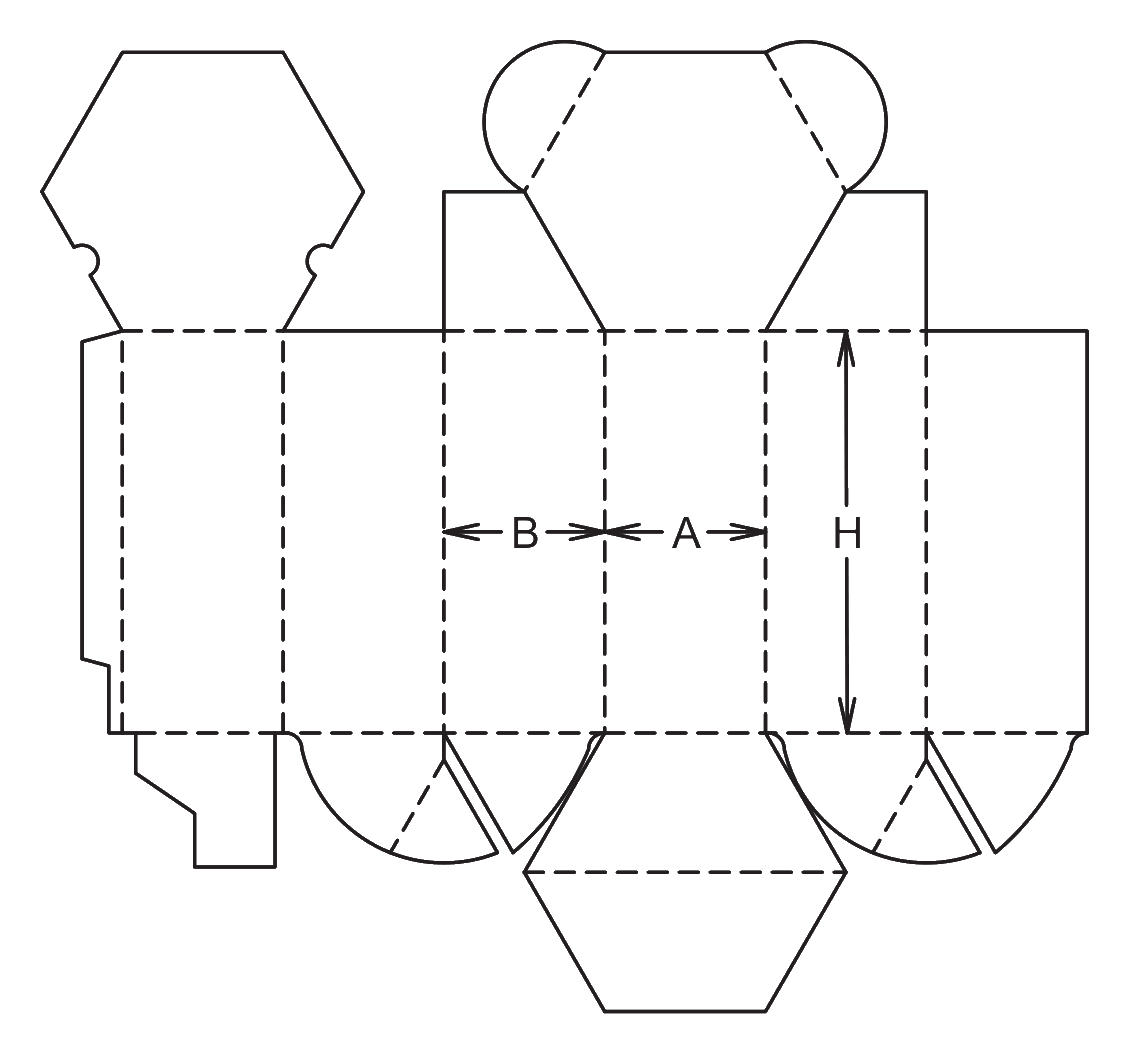

C10.40.60.20.26 and C10.40.60.20.a EngView source variants

The official C10.40.60.20 page is built from the C10.40.60.20.26 and C10.40.60.20.a EngView source rows. Keep both with this hexagonal crash-lock carton family, then check the selected dieline for the exact panel layout and closure details.

Additional notes

Base strength limits

The interlocking paperboard flaps of the auto-bottom are strong enough for cosmetics and confectionery, but heavy glass jars or dense metal parts may require a different base style to prevent sagging.

FAQs

Packing and Assembly

Does the bottom need tape or glue during packing?

The base is pre-glued by the manufacturer. When you squeeze the flat carton, the bottom flaps automatically swing down and lock together to form a rigid floor.

Can this carton be run on automated filling equipment?

The hexagonal profile and the tuck-in top are designed for manual packing lines. Standard automated cartoners are built for four-sided boxes.

Shipping and Route

Is this carton secure enough to ship in the mail on its own?

The friction-fit tuck top is designed for retail presentation and easy consumer access. For parcel shipping, it should be placed inside a corrugated outer shipper.

Board and Material

Can this be made from corrugated board for extra protection?

It depends on the exact board thickness. While thin micro-flutes are sometimes possible, the complex six-point crash lock becomes very bulky and difficult to fold flat if the material is too thick. Standard folding carton board is a more reliable choice.

Print and Graphics

Can my artwork wrap continuously around the carton?

Yes, but the artwork must account for the six vertical score lines. Critical text or small logos should be centered on individual panels rather than placed directly over the folds.

Product Fit

What types of products fit best in a hexagonal carton?

Cylindrical items like bottles, jars, and candles fit very efficiently, as the six-sided shape closely hugs the round product, minimizing movement inside the box.

Storage and Handling

How are these cartons delivered?

They are delivered flat and pre-glued. Because of the six-panel design, the flat profile is wider than a standard rectangular box of the same volume, which affects how they are packed into master shipping cases.

Closure Security

Will the top stay closed on its own?

The friction-fit tuck flap is designed to stay closed on a retail shelf. However, if the product is heavy or the carton will be handled frequently, a clear wafer seal may be needed to prevent accidental opening.
