ECMA C20.40.11.11

Hexagonal Pyramid Carton

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Six-sided tapered body for premium retail presentation
  • Top and bottom flaps rely on an external seal
  • Delivered flat for repeat erection and filling

About this product

The hexagonal pyramid carton is a distinctive six-sided package that tapers from top to bottom, creating a striking conical shape for premium retail shelves. It is frequently used for cosmetics, confectionery, and luxury gifts where presentation is the primary goal.

Because this specific style uses simple overlapping flaps rather than interlocking tucks, it relies on an external seal to stay closed. This makes it a strong fit for repeat production runs, while hand-packing operations often prefer a tuck-in variant.

Common uses

  • Premium cosmetics and skincare
  • Wrapped confectionery and truffles
  • Specialty gifts and luxury candles
  • Retail multi-packs

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Presentation and Primary Packaging

Premium retail display

The tapered hexagonal shape breaks away from standard rectangular boxes, drawing attention on crowded retail shelves. It provides six distinct panels for branding and graphics, making it effective for luxury goods that need to stand out from every angle.

Repeat production lines

With simple top and bottom cover flaps that fold over five supporting dust flaps, this carton is designed for repeat cartoning setups. The tube can be erected, filled, and sealed efficiently when the right equipment is in place.

Gift and specialty presentation

The conical profile creates an elegant unboxing experience for seasonal items or limited-edition releases. The wide top opening allows easy access to the contents once the seal is broken.

Retail multi-packs

When bundled together in a display tray, the tapered shapes can create interesting visual patterns. The flat side panels allow the cartons to sit flush against each other at the top or bottom, depending on the orientation.

Product Categories Using Tapered Cartons

Cosmetics and personal care

High-end skincare, perfumes, and specialty cosmetics use this shape to mirror the contours of tapered bottles or jars. The rigid paperboard construction protects the primary container while offering a premium unboxing experience.

Confectionery and specialty foods

Wrapped chocolates, truffles, and seasonal treats often use hexagonal pyramids for gifting. The wide top opening allows easy access to the contents, while the tapered base creates an elegant profile.

Luxury home goods and candles

Specialty candles and home fragrances benefit from the distinctive shape, which provides a stable base and a wide top for easy removal of the product.

When to Consider Tuck Closures or Different Shapes

Hand assembly and manual kitting

Sealing top and bottom flaps by hand is slow and inconsistent. If your team will be erecting and sealing the cartons manually, a tuck-in closure variant is a much safer and faster choice.

Heavy stacking requirements

Tapered walls introduce bending moments under vertical weight. If the cartons will support heavy top loads during transit or display, a straight-walled hexagonal carton or a protective master shipper should be evaluated.

Individual parcel shipping

This is a primary retail carton. Its tapered shape and simple flap closures mean a protective outer shipping box is needed for parcel delivery.

Sealing Methods and Production Planning

Top and bottom sealing method

Because the main hexagonal flaps do not have friction tucks, you will need to decide how they will be secured. Adhesive sealing is a common approach for repeat runs, but high-tack tamper-evident labels can also be used depending on the product and packing line.

Board grade and crease behavior

The 60-degree internal angles require precise creasing. The chosen board grade should be able to fold cleanly without cracking to maintain a sharp, rigid pyramid shape.

Master shipper configuration

Tapered cartons do not nest cleanly into standard rectangular grids without leaving void space. You will need to plan the outer transit packaging carefully, often using custom partitions or alternating orientations to keep the cartons secure during shipping.

Print alignment on tapered walls

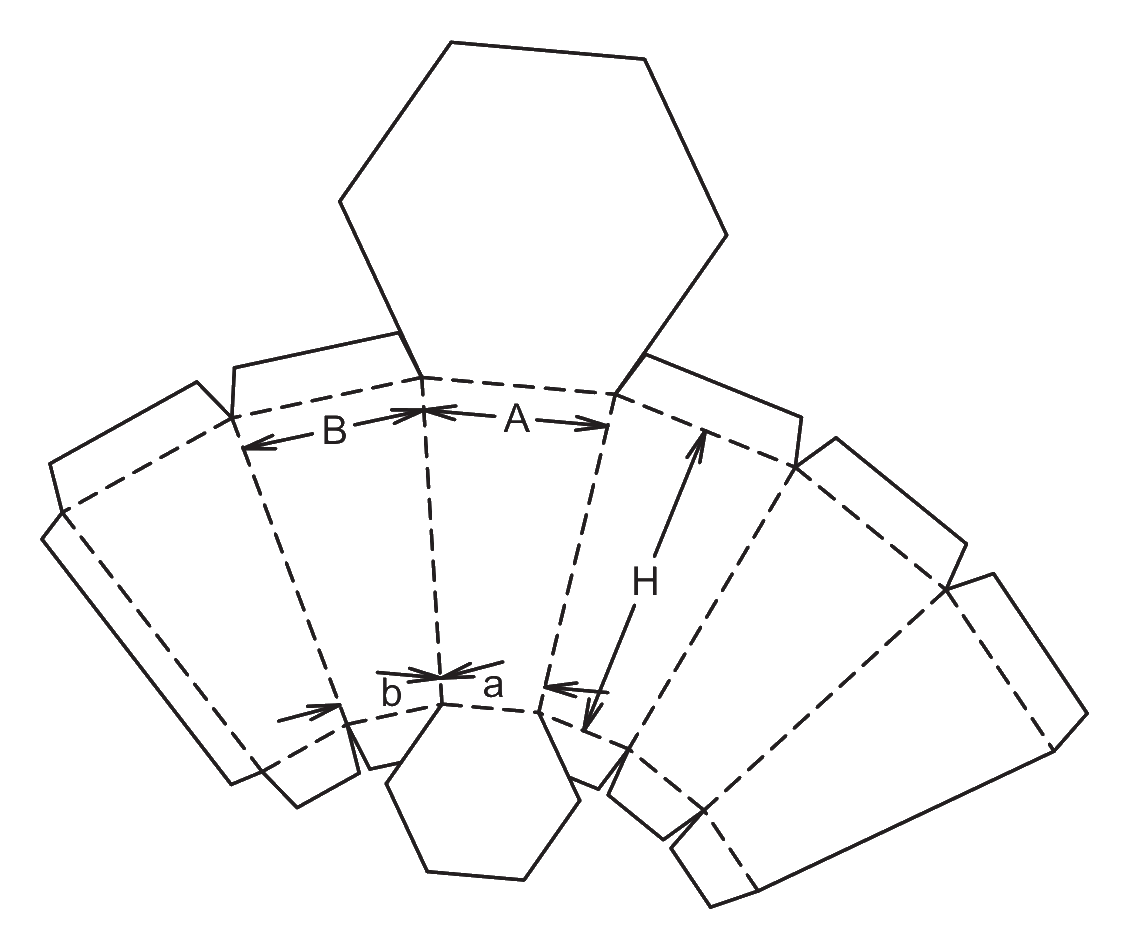

Because the six wall panels are trapezoidal rather than rectangular, artwork and text need careful adjustment to the dieline to ensure they align correctly when the carton is erected.

Adjusting the Taper and Proportions

Taper angle and base ratio

The severity of the pyramid shape can be adjusted by changing the ratio between the top and bottom dimensions. A wider top and narrower base creates a dramatic inverted pyramid, while closer dimensions create a subtle taper.

Dust flap sizing

The height of the top and bottom dust flaps can be adjusted to provide more or less support for the main hexagonal cover flaps, depending on the product weight and sealing method.

Glue flap placement

The long-seam glue flap can be positioned on the inside or outside of the tube, depending on the desired visual finish and the specific folding sequence used during production.

Board and packing details

Production line routing

Forming the long side seam of a tapered hexagonal tube often requires specific equipment setups. It is important to check that the chosen production route can handle the angled fold sequence.

Additional notes

Repeat erection equipment

While the flat tube opens easily, the hexagonal geometry requires careful handling to square the corners and fold the dust flaps accurately before sealing.

Related Specialty Cartons

C20.40.20.20: Hexagonal Pyramid with Tuck Closures

Compare this when packing by hand. It uses the same tapered hexagonal body but replaces the glued flaps with friction tucks for easy manual assembly.

C10.40.11.11: Straight Hexagonal Carton

Compare this when you need the six-sided footprint but require straight vertical walls for different stacking behavior.

FAQs

Assembly and Sealing

Can this carton be assembled without an external seal?

The top and bottom closures are simple overlapping flaps without locking tabs. They rely on adhesive or a strong tamper-evident label.

Is this package suitable for manual packing lines?

It is generally less efficient for manual packing because hand-sealing the top and bottom flaps takes time. For manual kitting, a tuck-in variant of the hexagonal pyramid is a much more practical choice.

Shipping and Route

How are these cartons shipped to the filling facility?

The manufacturer glues the long side seam and delivers the cartons flat. They are then popped open into their 3D hexagonal shape on the filling line.

Can this carton be shipped individually through the mail?

This is a primary retail carton. Its tapered shape and simple flap closures mean a protective outer shipping box is needed for parcel delivery.

Product Fit and Inserts

Can custom inserts be added to the interior?

Die-cut paperboard inserts can be designed to hold bottles, jars, or cosmetics securely within the tapered walls, preventing the product from shifting against the angled sides.

Print and Finish

Does the tapered shape affect graphic design?

Because the six wall panels are trapezoidal rather than rectangular, artwork and text need careful adjustment to the dieline to ensure they align correctly when the carton is erected.

Shipping and Route

How does the tapered shape affect stacking strength?

Tapered walls distribute vertical weight differently than straight walls, which can introduce bending moments. If heavy top loads are expected, the board grade and outer shipper should be planned accordingly.

Prototyping

Should I request a physical sample before ordering?

A physical prototype is crucial to verify that the 60-degree corners fold cleanly with your chosen board grade, and to test the sealing method with your actual product.
