Premium retail and presentation
High-end retail shelf display
The geometric shape and iris-like closure stand out on retail shelves. The six flat side panels offer excellent billboard space for premium graphics, foil stamping, or embossing.
Boutique confectionery and chocolate kitting
The twisting motion required to open the rosette adds a tactile, premium feel to the unboxing experience, making it a strong fit for chocolates and boutique sweets.
Fragrance and cosmetic launches
The interlocking top closure provides an elegant presentation for bottles and jars, provided the board choice supports the weight of the glass.
Limited-edition promotional kitting
The unique star-like closure elevates the perceived value of promotional items, though the manual assembly time must be factored into the campaign schedule.
Boutique brands and manual kitting
Boutique retail brands
Brands looking to elevate their product presentation often choose the rosette closure to differentiate themselves from standard rectangular tuck cartons, relying on the unboxing experience to justify the packaging cost.
Manual fulfillment centers
Because the rosette requires a specific twisting motion to lock, it is often assembled by fulfillment centers or retail staff trained in manual packing, rather than standard automated lines.
E-commerce unboxing programs
While the carton itself is not meant for loose courier transit, it is frequently used as the primary presentation layer inside a sturdy corrugated outer shipper for direct-to-consumer deliveries.
When to consider simpler closures or different shapes
High-speed automated packing
Standard cartoning machinery does not execute the twisting motion required for a rosette closure. If packing speed is the primary concern, compare this to a standard straight-tuck or reverse-tuck carton.
Heavy or dense product loading
The friction-locked bottom rosette bears the weight of the product. For heavy items that might cause the center to bow and unlock, compare this to a crash-lock bottom or an auto-bottom carton.
Board choice, fulfillment labor, and shipping protection
Board grade and folding endurance
The diagonal creases on the rosette flaps must fold sharply without cracking, and the locking tongues need enough snap to hold the closure tight. Virgin fiber boards like FBB or SBS are often chosen to support this motion. Thick, rigid boards or micro-flute corrugated often resist the twist and prevent the closure from laying flat.
Tamper evidence and loose-fill containment
The rosette closure relies entirely on friction. It is not tamper-evident unless a clear seal or label is applied over the center. Additionally, a tiny natural gap remains where the six points meet, meaning it cannot hold loose powders without an inner bag or wrap.
Fulfillment labor and closing speed
Closing the top and bottom requires pushing all six flaps inward simultaneously so they overlap in a spiral. This takes more time per unit than a standard tuck flap and requires manual dexterity.
Outer shipping protection
The friction-locked rosette may open under heavy vibration or drop impacts. For parcel delivery, this carton is typically placed inside a protective outer shipper rather than being mailed on its own.
Proportions, scaling, and surface finishes

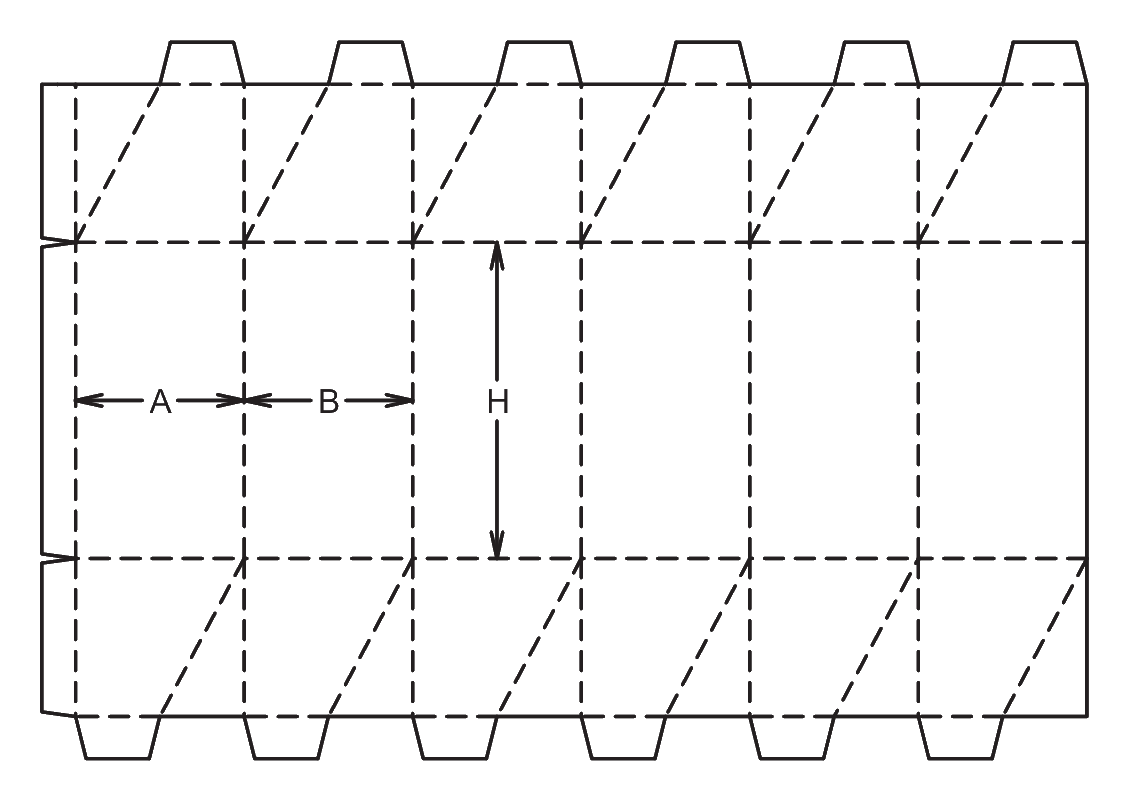

Hexagon proportions and tube height
The height of the hexagonal tube and the width of the six side panels can be adjusted to fit the product. The complex geometry of the top and bottom flaps recalculates automatically to ensure the six points meet perfectly in the center.
Locking tongue height scaling
The locking tongues that secure the rosette can be scaled proportionally with the carton width, ensuring the closure remains secure even on very large or very small cartons.
Surface finishes over diagonal creases
Heavy laminations or thick spot UV coatings over the diagonal creases can make the flaps too stiff to twist easily, or reduce the friction needed to keep the rosette locked.
Board and packing details
Grain direction and crease integrity
Balancing the grain direction is important. It must support the vertical corners of the hexagon while allowing the diagonal rosette creases to fold without resistance. Physical prototyping is strongly recommended to verify the board's behavior.
Template variants
C10.40.90.90.a (Proportional tongue scaling)
This variant calculates the height of the locking tongues based on the width of the carton, ensuring the closure remains secure and easy to assemble even when the box is scaled to very large or small sizes. The base code uses a fixed 15mm tongue, which can cause issues on extreme dimensions.
Additional notes
Surface finishes and locking friction
Heavy laminations or thick spot UV coatings over the diagonal creases can make the flaps too stiff to twist easily, or reduce the friction needed to keep the rosette locked. Test finishes on a prototype before full production.
Related presentation cartons
FAQs
Assembly and packing
Can this carton be closed on an automated packaging line?
The side seam is glued before delivery, so the carton arrives flat. However, closing the top and bottom rosettes requires a complex twisting motion. Unless you have specialized robotic twisting fixtures, the ends must be closed manually.
Is the rosette closure difficult to fold by hand?
It requires a specific sequence: pushing all six flaps inward simultaneously so they overlap in a spiral, then tucking the final tongue under the first flap. It is easy to learn but takes more time per unit than a standard tuck flap.
Materials and board
Can I make this out of corrugated board?
Corrugated board is generally not recommended. The diagonal creases and interlocking tongues require the flexibility and snap of paperboard (like FBB or SBS). Corrugated flutes often crush and distort during the twisting motion, preventing the rosette from laying flat.
Shipping and route
Is this box safe for e-commerce shipping?
The friction-locked top and bottom may open if the box is dropped or subjected to heavy vibration. For parcel delivery, this carton is typically used as a primary presentation pack inside a sturdy outer shipping box.
Product fit and weight
Will the bottom hold heavy items?
The bottom rosette bears the weight of the product. While the interlocking design is surprisingly strong, heavy items can cause the center to bow outward and unlock. Always test a physical sample with your actual product weight.
Closure and sealing
Do I need tape or glue to seal the top and bottom?
The rosette closure is designed to lock itself using friction and overlapping geometry. However, if you need tamper evidence, a clear wafer seal or branded label must be applied over the center point.
Product fit and weight
Can this carton hold loose powders or small granules?
Because the closure relies on six folded points meeting in the center, a tiny natural gap remains. Loose powders or very small items will sift out unless they are contained in an inner bag or wrap.
Assembly and packing
How does the carton arrive from the manufacturer?
The carton is delivered flat. The side seam is already glued, so you only need to open the hexagonal tube and fold the top and bottom rosettes.
Materials and board
Can I add a window to the side panels?
A window can be added to the flat side panels to display the product. However, the window cutout should be kept away from the vertical creases to maintain the structural strength of the hexagonal tube.
