ECMA E20.21.00.00

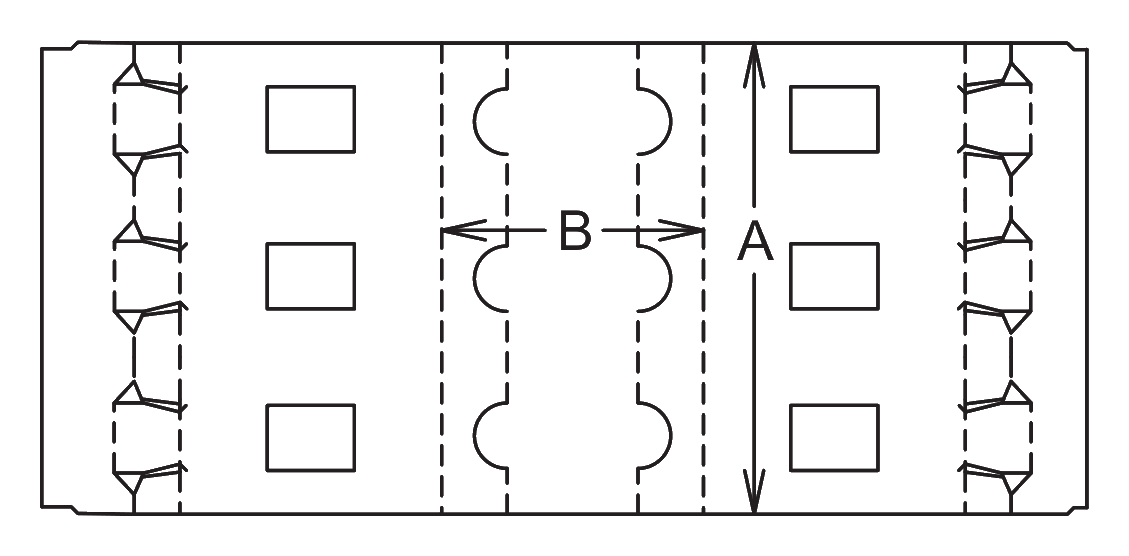

Single-Row Wrap-Around Bottle Carrier (Open Sides)

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • Groups a single row of bottles into a tight multipack
  • Open side panels keep primary bottle labels visible
  • Often erected on automated wrap-around packing equipment

About this product

This wrap-around carrier groups a single row of bottles into a secure, retail-ready multipack. Designed with open side panels, it frames the individual bottle labels for clear shelf presentation while using less material than a fully enclosed carton.

The top panel covers the bottle caps, providing protection from dust and creating a clean upper surface, while base and neck cutouts lock each bottle tightly in place. Because it wraps tightly around the product and relies on a glued seam, this style is often erected and sealed on automated cartoning lines.

Common uses

  • Craft beer 3-packs
  • Premium soda 4-packs
  • Hot sauce multipacks
  • Cosmetic bottle sets

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Multipacks and Beverage Grouping

Premium Beverage 3-Packs and 4-Packs

Practical for craft beer, cider, kombucha, or premium sodas where the bottle label is a key part of the branding. The open sides allow consumers to see the actual product while the carrier holds the group together.

Sauce and Condiment Samplers

Groups hot sauces, syrups, or specialty oils into retail sets. The top panel protects the closures, and the tight wrap reduces glass-to-glass contact.

Personal Care and Cosmetic Sets

Groups shampoo, lotion, or specialty bath products into promotional sets. The open windows showcase premium bottle finishes and branding.

Ready-to-Drink Coffee and Tea

Fits cold brew or specialty tea bottles, keeping the primary label visible in refrigerated displays while grouping the products for a higher transaction value.

Beverage, Sauce, and Personal Care Brands

High-Volume Retail Brands

Brands running automated packing lines benefit from the efficiency of wrap-around blanks. The flat delivery and tight product fit make it an efficient choice for large retail rollouts.

Beverage Co-Packers

Facilities handling multiple beverage brands can use this sleeve to reduce material usage compared to fully enclosed cartons, provided their equipment supports the wrap-and-glue sequence.

Brands Prioritizing Label Visibility

Companies that invest heavily in primary bottle labels often prefer this style over enclosed cartons, as it frames the artwork rather than hiding it behind a secondary printed panel.

Alternative Multipack Styles to Consider

Hand-Packed Operations

Wrap-around carriers rely on machine tension to pull the board tightly around the bottles before gluing. If you are packing by hand, a pre-glued basket carrier or an auto-bottom carton with dividers is usually a faster and more reliable choice.

Need for a Carrying Handle

This sleeve relies on the consumer gripping the entire pack. If you need a dedicated carrying handle for heavier multi-packs, look at a basket carrier or a wrap-around style with an integrated handle cutout.

Automation, Bottle Shape, and Board Strength

Packing Line Compatibility

This package is delivered as a flat blank and is typically wrapped around the bottles and glued on the packing line. Check that your cartoning equipment can handle the specific wrap sequence and tension required for this sleeve.

Label Orientation

Because the side panels feature display windows, your packing line may need a mechanism to orient the bottles so the primary labels face outward through the cutouts.

Board Grade and Tear Resistance

The board must support the weight of the bottles without tearing at the cutouts. Depending on the payload, this often points toward a high-strength folding carton board or a micro-flute corrugated material.

Bottle Shape Consistency

This sleeve relies on a tight wrap to secure the bottles. It performs more reliably with straight-walled or gently tapered bottles rather than highly irregular shapes.

Cutout Sizing and Row Configurations

Window and Cutout Shaping

The rectangular side windows and base cutouts can be reshaped to match your specific bottle profile, ensuring a tight lock and framing your label perfectly.

Bottle Count and Row Length

While commonly used for 3-packs, the template length can be adjusted to accommodate 2, 4, or 5 bottles in a single row, depending on bottle diameter and board strength.

Neck and Heel Lock Adjustments

The internal cutouts that grip the top and bottom of the bottles can be fine-tuned to match the exact diameter of your caps and the curvature of your bottle bases.

Board and packing details

Cap Protection and Stacking

The continuous top panel covers the bottle caps, keeping them clean and providing a flatter surface than exposed necks. However, because the bottles bear the vertical weight, stacking should be tested with the actual product.

Design Adjustments and Handle Options

Handle Cutouts

Finger holes can sometimes be added to the top panel or upper side panels to assist with carrying, provided the board strength allows it.

Additional notes

Flat blank delivery

These carriers are delivered as flat, unglued blanks, which maximizes shipping and storage efficiency but typically involves dedicated wrap-around cartoning equipment to erect and seal.

Related Multipack Styles

Pre-Glued Basket Carriers

A practical choice for manual packing, featuring a built-in handle and individual cells.

FAQs

Packing and Production

Can this carrier be packed by hand?

Hand packing is difficult because wrap-around carriers rely on machine tension to pull the board tightly around the bottles before gluing. Without that tension, heavy bottles may slip out.

Product Fit

Will the bottles fall out of the open sides?

When properly sized and packed with the right tension, the base cutouts and neck grips lock the bottles in place. The open side windows are sized to display the label without compromising the structural retention of the sleeve.

Does this carrier work for tapered or uniquely shaped bottles?

It is more reliable with straight-walled or gently tapered bottles. Highly irregular shapes can make it difficult to achieve the tight wrap and tension required for a secure hold.

Design and Print

Do the bottles need to be oriented before packing?

If you want the primary bottle labels to show perfectly through the side windows, the packing line often requires a bottle-orientation step before the sleeve is wrapped.

Materials

What board is best for this style?

Because the carrier must hold the weight of multiple glass or heavy plastic bottles, it benefits from a tear-resistant material. Virgin kraft-backed folding board or a micro-flute corrugated material are common choices.

Route and Shipping

How are these carriers shipped to retail?

Once packed, these multipacks are typically loaded into a master corrugated tray or shipping box for palletizing and distribution, as the sleeve itself does not protect the bottles from heavy transit impacts.

Design and Print

Can we add a carrying handle to this sleeve?

Finger holes can sometimes be added to the top panel, but this depends heavily on the total weight of the bottles and the tear resistance of the chosen board.

Route and Shipping

Does the covered top panel allow for stacking?

The top panel creates a flatter surface than exposed bottle necks, which can help with stability. However, the bottles themselves bear the vertical weight, so stacking limits depend on the strength of your primary containers.
