ECMA E40.82.00.00

Tuck-Top Presentation Folder

  • Available in a wide range of custom configurations & material selection.
  • Order 1 sample. Or order 100K+ units. Or anything in between.
  • Affordable delivery across North America.
  • Design support, warehousing, testing, assembly available.
  • Widest machinery capability in America via 30+ specialist partner plants.
Get pricing

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

  • One-piece unglued construction
  • Friction-fit tuck tab closure
  • Delivered flat for manual assembly

About this product

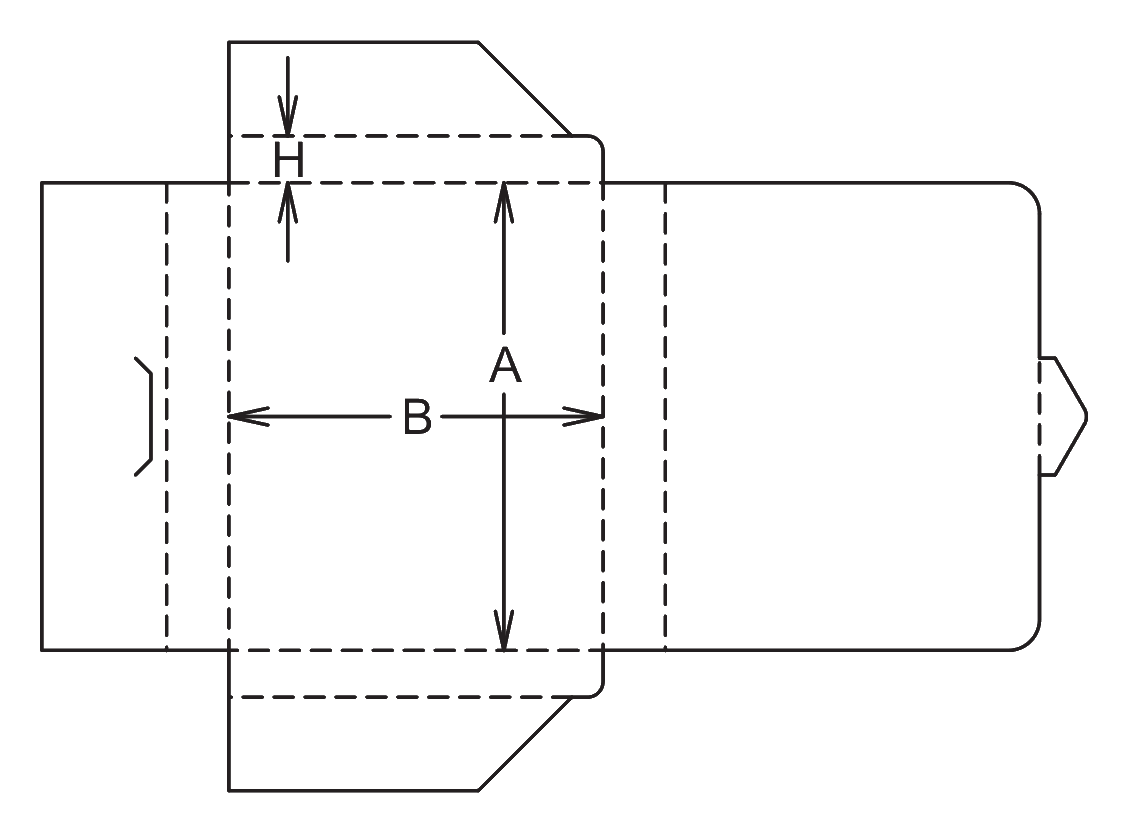

The ECMA E40.82.00.00 family provides a clean, one-piece presentation folder that sets up entirely by hand without adhesive. By folding the inner flaps over the side walls, the tray locks together, while the attached lid secures via a single friction-fit tuck tab.

Because it bypasses the folder-gluer, this style requires only a single die-cutting pass and is delivered completely flat. It is a natural choice for apparel, books, software kits, and boutique retail items where a premium, unglued aesthetic is preferred.

Common uses

  • Apparel and shirt boxes
  • Software and media kits
  • Flat promotional mailers
  • Boutique retail

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Best Price Guarantee

Already have a packaging quote? Let us beat it.

Send us the quote you have. We will beat it for the same specifications, quantity, and delivery requirements.

Upload a competing quote

Free quote review. No obligation.

30+specialist partner plants

We supply through the plant best suited to your price, material, production, and delivery requirements.

Why we can beat a lower quote

30+ plants give us more ways to lower the price.

Each plant has different machinery, material costs, order minimums, and freight rates. Our buying volume helps us secure better pricing. We then quote through the plant that gives you the lowest total price for your requirements.

Send us your current quote. Watch us beat it.

Attach it to the quote form or email it to us. We'll review it free and send you our price.

Upload a competing quoteinfo@herculeindustrial.com
Best Price Guarantee terms

To qualify, send a written supplier quote dated within the past 30 days and addressed to your company. It must cover the same dimensions, construction, material, print, finish, quantity, tooling, freight, delivery date, and delivery location. The guarantee does not cover taxes, expired quotes, liquidation or clearance sales, or obvious pricing errors.

Files or competing quote (optional)
Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity
Units
Materials and print
Add details for paperboard preference
Add details for print and artwork
Current box or specs
Add details for do you have a current box, spec, or target sample?

Retail Presentation and Flat Goods

Boutique Retail and Apparel

Often used as a classic shirt box or flat garment folder. The double-thick walls provide clean edges, and the unglued design allows the carton to be stored flat behind the counter until the moment of purchase.

Promotional Kits and Media

The attached lid offers a large, uninterrupted surface for branding. When opened, the inside of the lid and the tray present documents, software, or flat promotional items clearly.

Flat Confectionery and Slabs

The shallow depth and wide footprint make this folder an excellent fit for premium chocolate bars or confectionery slabs, keeping the product flat and well-presented upon opening.

Photography and Art Prints

For flat, rigid items that require a clean presentation without the risk of glue residue, this folder provides a neat enclosure that is easy for the recipient to open and reclose.

Manual Fulfillment and Flat Storage

Manual Packing Stations

This folder is designed for manual erection. Operators fold the side and front walls to lock the tray, load the product, and tuck the lid closed. It supports hand-packing but is not suited for automated cartoning lines.

Flat Storage and Fulfillment

Because there are no glue seams, the blanks nest tightly on a pallet. This improves inbound shipping density and reduces the storage footprint required at the fulfillment center.

Premium Unboxing Experiences

The unglued construction and overlapping inner flaps create a clean, double-wall appearance. This elevates the perceived value of the product compared to standard glued cartons.

When to Consider Corrugated Mailers or Glued Cartons

Courier and Parcel Shipping

The friction-fit tuck tab is designed for presentation, not rough transit. If the package will be shipped individually through a parcel network, consider a corrugated roll-end tuck-top mailer, or plan to use an outer shipping envelope.

High-Speed Automated Lines

If your packing operation relies on automated erecting equipment, a standard glued straight-tuck or reverse-tuck carton will be easier to process than this manually folded style.

Board Thickness, Print, and Route Planning

Board Caliper and Lock Friction

The width of the tuck tab and the length of the receiving slit must be precisely matched to the thickness of the chosen board. Changing from a standard folding cartonboard to a thicker micro-flute requires adjusting these clearances so the lid stays closed without tearing.

Two-Sided Print Visibility

When the folder is opened, the inside of the lid and the inner fold-over flaps are highly visible. If you want a continuous brand experience, specify two-sided printing.

Outer Shipper Requirements

Because the tuck tab is not sealed, this folder requires a secondary mailer, rigid envelope, or master carton if it will leave a controlled retail environment.

Grain Direction

To prevent cracking along the main hinge folds, especially on the lid, the board's grain direction should be specified to run parallel to the longest creases.

Tuck Tab and Flap Adjustments

Tuck Tab Width and Shape

The tuck tongue can be widened for a stronger hold or tapered for easier insertion. Any adjustment to the tab must be mirrored by an adjustment to the receiving slit.

Slit Position and Length

The receiving slit can be moved slightly or lengthened to accommodate different board thicknesses or to change the tension of the closure.

Inner Flap Coverage

The depth of the side dust flaps can be extended to provide more coverage over the product, ensuring items do not slip out of the corners during handling.

Board and packing details

Slit Alignment and Assembly

For variants where the slit is on an inner flap, operators must check that the flaps are folded in the correct sequence so the slit is exposed to receive the tuck tab.

Tuck and Flap Variants

E40.82.00.00.a (Top-Edge Slit)

The receiving slit is positioned directly on the top crease of the front wall. The front inner flap folds over the side dust flaps to lock the tray.

E40.82.00.00.b (Front-Panel Slit)

Similar to the .a variant, but the receiving slit is located lower down on the front wall panel itself, requiring a slightly longer tuck tab.

E40.82.00.00.c (Inner-Panel Slit)

The locking slit is located on an inner trapezium panel that folds in from one of the long side walls, while the main cover folds over from the opposite side.

Additional notes

Parcel sealing and outer carton choice

Because the tuck tab is not sealed, plan to use a secondary mailer or a tamper-evident label if the package will leave a controlled retail environment.

Related Packaging

E40.81.00.00: Folder with Locking Panels

A better choice if you prefer a closure that uses interlocking panels rather than a single tuck tab.

Roll-End Tuck-Top Mailer

A better choice if you need a corrugated structure capable of shipping individually through mixed-carrier networks without an outer envelope.

FAQs

Shipping and Route

Can this folder be shipped individually in the mail?

Not on its own. The friction-fit tuck tab can open during transit. For parcel shipping, this folder should be placed inside a poly mailer, a rigid envelope, or an outer corrugated shipper.

Production and Assembly

Does this package require gluing?

No. The entire structure is cut and creased from a single flat sheet. The tray walls lock together through folding, and the lid secures with the tuck tab.

Material and Fit

Can this be made from corrugated board?

While possible with thin micro-flutes, it is primarily designed for folding cartonboard. Using corrugated board requires careful CAD adjustments to the fold allowances and the locking slit to accommodate the extra thickness.

Assembly

Is this suitable for automated packing?

No. The sequence of folding the side walls, trapping the inner flaps, and inserting the tuck tab is designed for manual assembly at a packing station.

Print and Finish

Which panels are visible when the folder is opened?

The inside of the lid, the inner base, and the inner fold-over flaps are all visible upon opening. Two-sided printing is often used to improve the presentation.

Modifications

Can the tuck tab be made more secure?

Yes, the width and taper of the tuck tab can be adjusted, but the receiving slit must be updated simultaneously to maintain a proper friction fit without tearing the board.

Storage

How is this package delivered?

Because it requires no gluing, it is delivered as a completely flat, unglued blank, which maximizes pallet density and reduces storage space.

Product Fit

What types of products fit best in this folder?

It is an excellent fit for flat, lightweight, or semi-rigid items such as apparel, books, software kits, or chocolate slabs.
