Interactive 3D

1 / 3

ECMA F10.42.00.00

Twin-Item Drop-In Carrier Carton

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Pre-glued crash locks on both ends for rapid manual assembly
Two top-loading apertures separated by a central carrying handle
Delivered flat and opened horizontally for drop-in packing

About this product

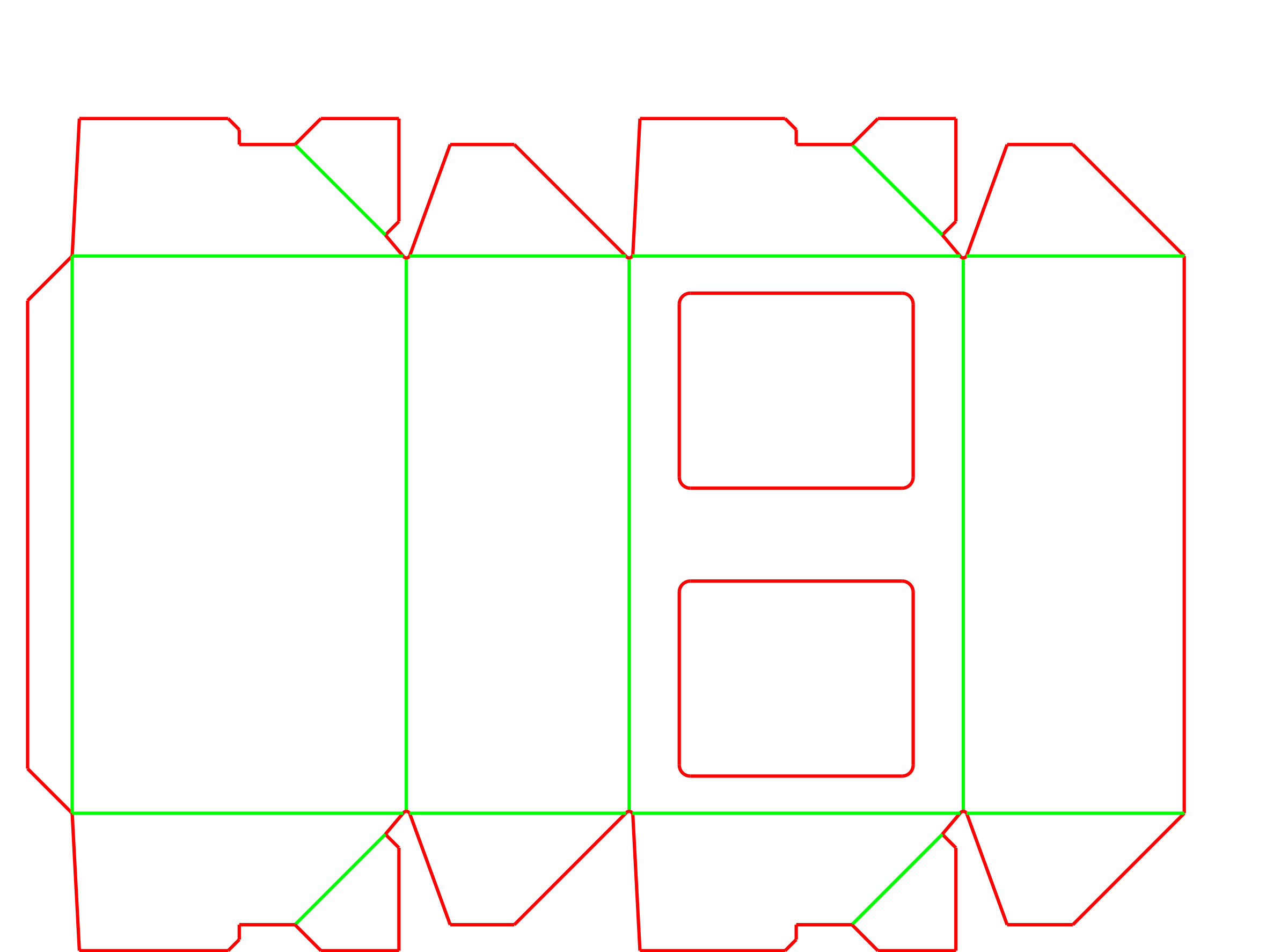

The F10.42.00.00 is a specialized folding carton designed to carry two distinct items, such as beverage cups, bottles, or retail tubs. While it is constructed like a standard tube, it is used horizontally: the pre-glued ends snap shut to form the side walls, allowing products to be dropped directly into the two top-facing apertures.

The central web of board between the openings functions as a carrying handle. Because both ends feature automatic crash-locks, the carrier opens into its final shape in one motion, making it efficient for fast-paced retail and takeaway environments.

Common uses

Retail twin-pack promotions
Food service and beverage takeaway
Cosmetic pairings
Specialty food kitting

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Twin-Packs And Takeaway Carriers

Retail twin-packs and promotional kits

This carrier is built for displaying and transporting two related items together. The open top allows full visibility of the primary packaging, making it a strong choice for retail promotions where the product needs to be seen but easily carried.

Food service and beverage takeaway

The drop-in design and central handle make this a natural fit for takeaway cups, deli containers, or bottles. The operator simply pushes the edges to snap the ends closed, lays the carrier flat, and drops the items in.

Cosmetic and personal care pairings

For shampoo and conditioner sets or lotion pairings, this carton keeps the two bottles securely separated while providing a convenient carrying handle for the customer.

Specialty food and deli kitting

Gourmet shops can use this carrier to pair jars of jam, sauces, or specialty dips. The horizontal orientation ensures the jars remain upright during transport.

Food Service And Promotional Kitting

High-volume retail counters

When counter space is limited and packing speed matters, the double crash-lock construction removes the need to fold individual flaps. The carrier moves from flat to ready-to-load in a single motion, reducing assembly labor during busy periods.

Quick-service restaurants and cafes

Fast-paced food service environments benefit from the rapid assembly. Staff can erect the carrier with one hand and load drinks or food tubs immediately.

Event and festival merchandising

For outdoor events where attendees need to carry multiple items while walking, the central handle provides a secure grip without requiring a separate shopping bag.

Single-Aperture And Fully Enclosed Alternatives

Single-item or multi-item variations

If the packing job needs only one opening or a different arrangement of holes, a modified aperture wall is a better starting point. This specific template is strictly for twin-item configurations with a central handle.

Parcel shipping and full enclosure

This is an open-top carrier designed for hand delivery and retail shelves. If the items will be shipped through a courier network, consider fully enclosed mailers or shipping cartons that protect the primary goods from dust and impact.

Handle Strength, Board Grade, And Moisture Resistance

Board strength and handle tear risk

The central web between the two apertures bears the entire weight of the loaded products. Heavy items, such as glass bottles or dense liquids, often benefit from tear-resistant board grades to help prevent the handle from failing during transit.

Moisture and condensation exposure

If the carrier will hold chilled beverages or refrigerated items, condensation can weaken standard paperboard. A moisture-resistant coating or specialized board is worth discussing to maintain the integrity of the carrying handle.

Production path and run size

This design involves gluing on the side seam and both ends. This specific folding sequence often involves specific folder-gluer setups, which can make short trial runs harder to source compared to simpler tuck-end cartons.

Base panel support

The solid panel opposite the apertures acts as the floor. If the products are dense, this base may bow downward when lifted. Board thickness should be matched to the payload weight to ensure stability.

Aperture Sizing And Handle Width

Aperture dimensions and product fit

The length and width of the two openings should be sized closely to the physical products. The corners of the apertures use a small radius to prevent stress tears, which should be checked against the shape of the inserted items.

Central handle web width

Increasing the size of the product holes naturally reduces the width of the central carrying handle. The balance between product clearance and handle strength should be validated with a physical prototype.

Corner radii for cutouts

The corners of the top openings can be rounded to reduce the risk of stress tears when products are inserted or removed. This radius can be adjusted based on the shape of the primary packaging.

Board and packing details

Flat delivery and storage

Despite the complex double-lock ends, the carrier is delivered completely flat. This keeps inbound freight and storage footprint low before the cartons are needed at the packing station.

Additional notes

Base panel sagging

The solid panel opposite the apertures acts as the floor. If the products are dense, this base may bow downward when lifted. Board thickness should be matched to the payload weight.

FAQs

Product fit and inserts

Can the apertures be changed to circles instead of rectangles?

The cutouts can be modified to fit cylindrical items like cups or bottles. The critical factor is leaving enough solid board in the center to maintain a strong carrying handle.

Route and shipping

Is this carrier suitable for ecommerce shipping?

This is an open-top carrier designed for retail takeaway. It would need to be placed inside a separate, fully enclosed outer carton for courier delivery.

Board and finish behavior

What happens if the products are heavy?

The central handle web takes the full lifting stress. For heavy items, the board material should be evaluated for an upgrade to a tear-resistant grade, and the handle width should be tested with a physical prototype.

Quantity and production path

Why is this carrier harder to produce in short runs?

The carton features pre-glued crash locks on both ends, plus a side seam. This involves a multi-point folder-gluer setup, which is generally reserved for larger, repeatable production volumes.

Packing labor

How long does it take to assemble?

Assembly is very fast. Because both ends are pre-glued crash locks, pushing the flat edges inward forces the entire 3D shape to open and lock simultaneously.

Samples and prototypes

What should be tested with a physical sample?

A sample should be loaded with the actual products to check the clearance through the apertures, the stability of the base panel, and the tear resistance of the handle when lifted.

Print and label surface

Where can this carrier be printed?

The side walls and the top panel around the apertures offer flat surfaces for branding and product information. The base panel can also be printed with regulatory or recycling details.

Related-box choice

Should I use this for a single heavy item?

This specific template is designed for two items separated by a central handle. For a single item, a different aperture arrangement or a standard folding carton is usually a better fit.
