ECMA F80.13.00.00

Presentation Box with Integrated Platform

Available in a wide range of custom configurations & material selection.
Order 1 sample. Or order 100K+ units. Or anything in between.
Affordable delivery across North America.
Design support, warehousing, testing, assembly available.
Widest machinery capability in America via 30+ specialist partner plants.

Get pricing

Free white-glove consultations. Blazing-fast response time. Fast quotes.

Product details

Top highlights

Single-piece design eliminates the need for separate inserts
Raised platform provides a framed, recessed unboxing experience
Requires manual folding and compartment setup

About this product

This premium folding carton features a built-in, raised platform designed to hold products securely in place. Instead of relying on a separate insert, the front panel extends and folds backward into the box, creating a false bottom with custom die-cut compartments.

By combining the outer shell and the internal tray into a single piece of board, this design simplifies inventory and guarantees the insert is never missing during fulfillment. It is a strong choice for retail kits, cosmetics, and promotional sets where presentation is the priority.

Common uses

Cosmetics and skincare kits
Promotional mailers packed inside an outer shipper
Specialty beverage sets
Small electronics presentation

Get a quote

Share what you know. We'll take it from there. Or email us at info@herculeindustrial.com

Describe your project *

Approximate quantity *

Size if known

Files or competing quote (optional)Drag files here or choose filesAdd drawings, photos, dielines, quotes, specs, or other useful files.Max 5 files, 25 MB total.

Name *

Email *

Phone

Optional

More details

You can skip this whole part, or open a section and answer only what you know.

Size and quantity

Detailed dimensions

Units US customary (inches)Metric

What do your dimensions describe?

Length

Width

Height

Size notes

Quantity notes

Materials and print

Paperboard preference

Add details for paperboard preference

Paperboard details

Print and artwork

Add details for print and artwork

Print, finish, or artwork details

Shipping or storage context

Custom changes or unusual needs

How will you provide the sizes for the custom cutouts?

How heavy are the items resting on the raised platform?

How will these boxes be shipped to the final recipient?

Current box or specs

Do you have a current box, spec, or target sample?

Add details for do you have a current box, spec, or target sample?

Current box, known specs, or current problem

Destination ZIP or region

Company

Any deadline or timing constraint?

Retail Presentation and Kitting

Premium retail kitting

The integrated platform elevates the product, creating a framed display as soon as the lid is opened. Because the tray is tethered to the box, it provides a continuous visual transition from the outer walls to the inner floor.

Single-piece inventory management

Managing a single SKU simplifies procurement and storage. Fulfillment teams do not need to match separate boxes and inserts, meaning every kit has the correct internal retention ready to fold.

Fragile item separation

The recessed compartments keep glass bottles, jars, or delicate components separated, preventing them from clinking together on the retail shelf or during handling.

Structured unboxing sequences

The false bottom hides the lower portion of the products, focusing the buyer's attention on the top labels and creating a deliberate, organized presentation.

Cosmetics, Electronics, and Promotional Sets

Cosmetics and personal care sets

Well-suited for gift sets containing multiple bottles, jars, or tubes. The custom cutouts hold each item firmly in its designated spot.

Promotional kits and influencer mailers

Often used as the inner presentation layer for high-value mailers. When paired with a protective outer shipping box, the integrated platform delivers a clean, high-end reveal.

Specialty beverage or tasting sets

Useful for small sample bottles or tasting kits where the presentation of the collection is as important as the individual items.

Small electronics presentation

Keeps devices and their accessories neatly separated without relying on molded plastic trays, supporting paper-based packaging goals.

When to Consider a Two-Piece Alternative

High-volume runs and material footprint

The fold-over platform requires an exceptionally long flat blank, which reduces how many boxes can be cut from a single sheet of board. For very large runs, switching to a standard tuck box with a separate drop-in insert often reduces overall material usage.

Automated packing lines

This package requires human hands to fold the platform 180 degrees and push down the individual compartment flaps. If your fulfillment relies on high-speed automated cartoning, a different structure is necessary.

Board Choice, Fit, and Route Planning

Board thickness and fold endurance

The material must be flexible enough to handle a full 180-degree fold at the platform hinge without cracking, yet rigid enough to support the weight of the products without the false bottom sagging.

Product dimensions and cutout clearance

The die-cut compartments are tailored to the specific items being packed. Providing exact physical samples or precise 3D models of your products helps the cutouts hold the items snugly without tearing the board during loading.

Platform support and heavy items

The terminal flap of the platform usually rests against the rear wall with a friction fit. For heavier items, discuss whether this flap should be glued during manufacturing for permanent stability.

Outer shipping protection

The lid secures with a tuck flap and a locking tongue. This closure is designed for retail handling; courier networks usually require an outer mailer or master carton to protect the presentation box.

Customizing the Platform and Compartments

Compartment shapes and layout

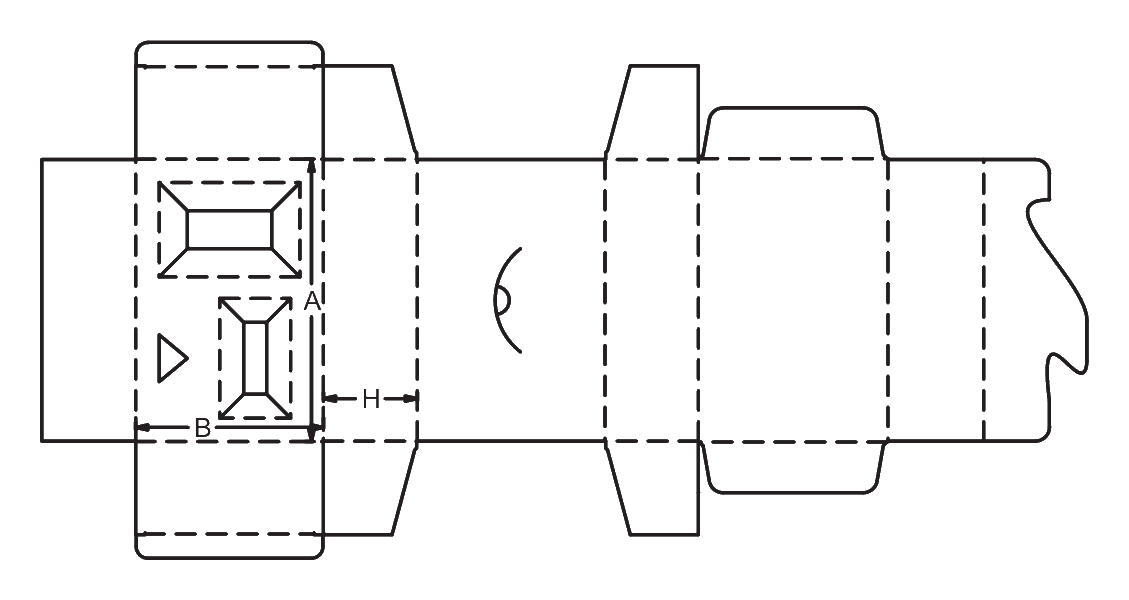

The default template features rectangular trays and a triangular cutout, but these openings are entirely adjustable. They can be modified to fit circular bottles, contoured electronics, or asymmetrical cosmetic jars.

Platform height and base clearance

The depth of the false bottom can be adjusted to raise or lower the products relative to the lid. The flaps that fold down to create the recessed trays also act as structural pillars, resting against the bottom of the box.

Locking tongue shape

The width and taper of the locking tongue (the plug that inserts into the base slit) can be adjusted to increase or decrease the opening friction, depending on how often the box will be opened and closed.

Board and packing details

Print panel placement on the platform

Because the platform is an extension of the front wall folded inward, the top surface of the false bottom is formed from the same side of the board as the exterior. This allows a single-sided print run to decorate both the outside of the box and the visible interior presentation area.

Additional notes

Flat delivery and kitting space

The flat delivery keeps storage requirements minimal, but fulfillment teams must account for the manual folding time required to erect the platform and push down the compartment flaps.

FAQs

Print and Finish

Do I need double-sided printing to brand the inside platform?

No. The platform folds inward from the main exterior panel. A standard single-sided print will cover the outside of the box and the top surface of the internal platform.

Product Fit

Will the raised platform sag if my products are heavy?

The platform is supported by the flaps that fold down from the cutouts. These flaps act as pillars resting on the floor of the box. However, for particularly heavy items, a thicker board grade or a separate rigid insert may be a better choice.

Can the cutouts be changed to fit different products?

Yes. The size, shape, and placement of the cutouts are adjusted to match the exact dimensions of the items being packed, as long as they fit within the boundaries of the platform.

Assembly and Packing

Can this box be erected on automated packing machinery?

No. The integrated platform and the individual compartment flaps require manual folding and setup. It is designed for hand-packing operations.

Does the platform require glue to stay in place?

The terminal flap of the platform usually rests against the rear wall with a friction fit, but a glue strip can be added during manufacturing if permanent stability is required for heavier items.

How is the package delivered?

Despite the complex internal structure, the entire package is delivered flat. The platform is folded into place during the final kitting process.

Shipping and Route

Can I ship this box directly through the mail?

This is a presentation box with a tuck-and-slit closure. It is not sealed or durable enough for direct courier shipping and should be placed inside a corrugated outer mailer or master shipper.

Comparison

When should I choose a separate insert instead of this integrated platform?

A separate insert is often chosen for very large runs where the long blank of the integrated platform reduces material efficiency, or when the products are too heavy for a fold-over paperboard false bottom.
